Automation Dr. Nix QNix 9500 Series Operation Manual page 10

9500
NOTICE
Measurement results
During calibration use the uncoated original substrate for the most accurate measurements.
NOTICE
Error of measurement
Rough surfaces or dirt can cause errors of measurement.
Calibration methods
Zeroing For zero point calibration, simply place the probe on the uncoated original
substrate. This calibration is ideal for smooth surfaces.
1-point For 1-point calibration, select a suitable reference film close to the expectancy
range and a smooth, uncoated original substrate.
2-point For 2-point calibration, select two reference films of different thicknesses
which also include the expectancy range and a smooth, uncoated original
substrate.
Custom Here you can customise your calibration method.

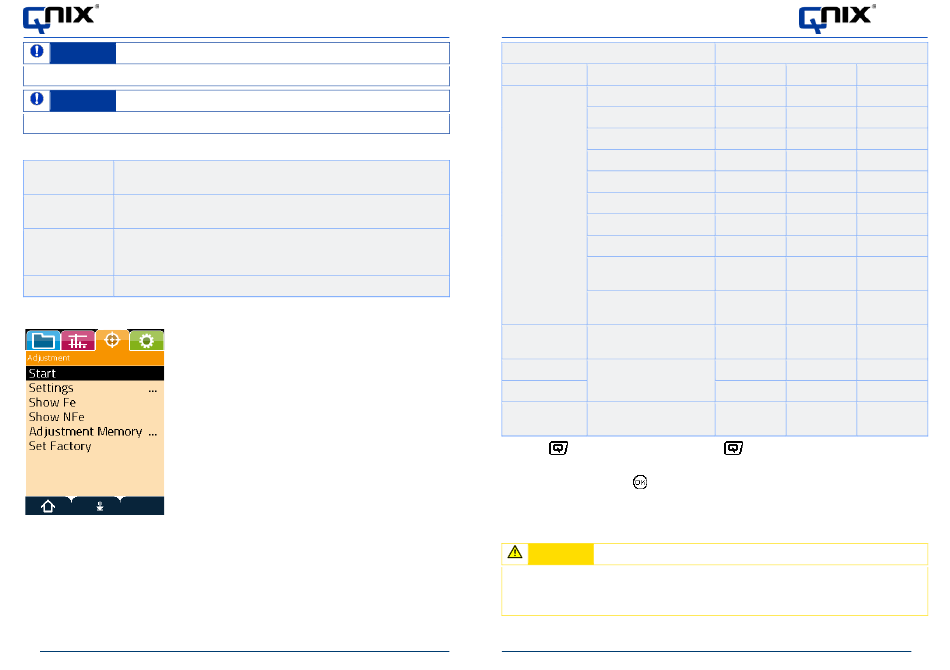

Setting calibration parameters
In the "Calibration" menu you can set the following parameters prior to calibration:
> Open the "Calibration" menu
> Under "Settings", select the calibration based on the job or the limit set
> If necessary, adjust the parameters
18 18 / 48
4 Operation and Controls
QNix 9500 EN_ES_FR_IT_NL_PL
4 Operation and Controls
Available options
Settings Zeroing
1-point
2-point
Custom
ISO 19840 zero/offset
ISO 19840 2-point
SSPC PA2 zero/offset
SSPC PA2 2-point
Averaging on/off (Flexible, 3,
5, 10)
Roughness on/off
(roughness adjustable)
Calibration Save and retrieve calibration
memory results
Show Fe Shows the calibration
results.
Show NFe
Factory calibration Resets calibration to the
factory settings
> Use the button to start the calibration. If the
9500P+,
> Select "Start" and press the button to start the calibration.
> Place the gauge on a suitable substrate or reference plates and perform the necessary number of
measurements.
> If necessary, save the results to the calibration memory.
CAUTION
Factory calibration
After confirming the selection, the current calibration settings will be erased and the factory set-
tings restored.
If necessary, recalibrate the device.
QNix 9500 EN_ES_FR_IT_NL_PL
9500
Unit
® ® ®
QNix 9500B QNix 9500P QNix 9500P+
X X X
X X X
X X X
- X X
- - X
- - X
- - X
- - X
X X X
X X X
- X X
- X X
- X X
X X X
button is reconfigured on the 9500P or
19 / 48 19
