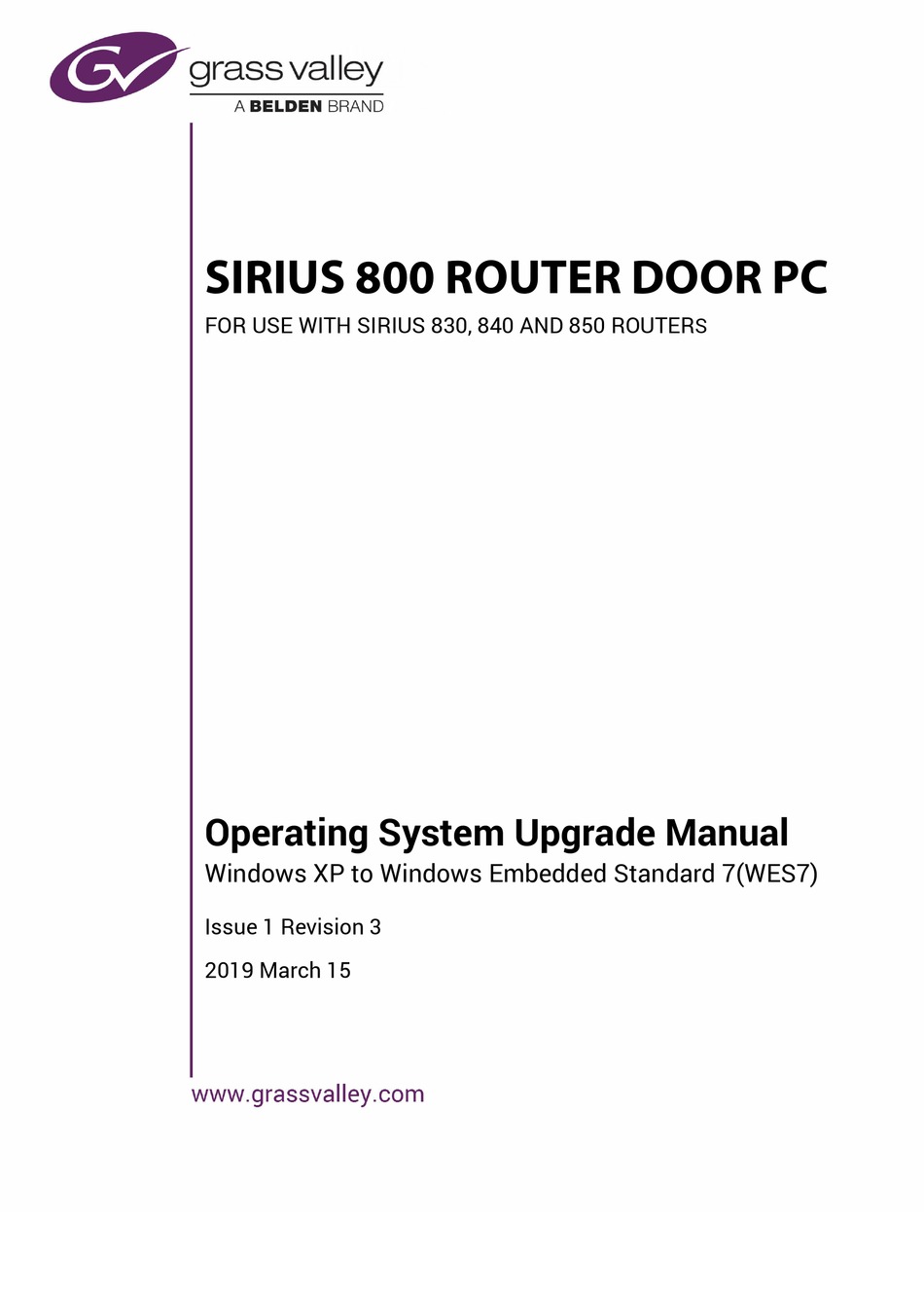

- Page 1 SIRIUS 800 ROUTER DOOR PC FOR USE WITH SIRIUS 830, 840 AND 850 ROUTER Operating System Upgrade Manual Windows XP to Windows Embedded Standard 7(WES7) Issue 1 Revision 3 2019 March 15...
- Page 2 Copyright and Trademark Notice Copyright © 2019, Grass Valley Canada. All rights reserved. Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions.
-
Page 3: Table Of Contents
Contents 1. About this Manual ........... 1 1.1 Contact Details . -
Page 4: About This Manual
1. About this Manual This Door PC Operating System Upgrade manual describes the procedure to upgrade the Door PC from Windows XP to Windows Embedded Standard 7 (WES 7). Refer to the Sirius 800 User Manual for Door PC operational details and the Workbench manual for Workbench operation. -
Page 5: Warnings And Precautions
Door PC Operating System Upgrade Manual Warnings and Precautions 2. Warnings and Precautions Erk lä ru n g d er S ic h e rh e its s y m b ole D ie s es Symb o l w eist d e n B en utzer au f wichtig e In for ma tio n en h in, die in de r be g le iten d en Do ku m en tation e nth alte n sin d . - Page 6 Door PC Operating System Upgrade Manual Warnings and Precautions Turvamerkkien selitys Förklaring av Säkerhetssymboler Tämä merkki tarkoittaa, että laitteen mukana toimitettu kirjallinen Denna symbol hänvisar användaren till viktig information som materiaali sisältää tärkeitä tietoja. Lue käyttöohje. återfinns i litteraturen som medföljer. Se manualen. Tämä...
-
Page 7: Explanation Of Safety Symbols
Door PC Operating System Upgrade Manual Warnings and Precautions 2.1 Explanation of Safety Symbols This symbol refers the user to important information contained in the accompanying literature. This symbol indicates that hazardous voltages are present inside. No user serviceable parts inside. This system should only be serviced by trained personnel. 2.2 Safety Warnings CAUTION RISK OF ELECTRIC SHOCK... -
Page 8: Safety Standards
COAXIAL CABLES Coaxial cables connections (particularly serial digital video connections) shall be made with high-quality double-screened coaxial cables such as Belden 1694A or Belden 1505A. D-TYPE CONNECTORS D-type connectors shall have metal shells making good RF contact with the cable screen. -
Page 9: Pre-Upgrade Tasks
3. Pre-upgrade Tasks This manual describes the following processes: • Pre-upgrade information, equipment required and checklist - this section. • Back-up the current Windows XP Door PC settings - see section 4. • Install Windows Embedded Standard 7 (WES 7) - see section 5. •... -
Page 10: Pre-Upgrade Checklist
Door PC Operating System Upgrade Manual Pre-upgrade Tasks • Spare USB memory stick for back-up purposes (alternatively the Workbench USB memory stick can be used) 3.3 Pre-upgrade Checklist It is important that all of the information in the pre-upgrade checklist is noted down and easily accessible before starting the upgrade. -
Page 11: Back-Up Xp Door Pc Settings
4. Back-up XP Door PC Settings 4.1 Connecting a USB Hub, Keyboard and Mouse The upgrade process requires the connection of three USB devices at the same time (mouse, keyboard and the USB memory stick). As the Door PC only has two USB ports a USB hub must be connected to carry out the upgrade. - Page 12 Door PC Operating System Upgrade Manual Back-up XP Door PC Settings Open up Workbench from the shortcut, or Start menu if no shortcut available. Take a note of the Controller Names and IP Settings in the frame and write them in the checklist in section 3.3.
- Page 13 Door PC Operating System Upgrade Manual Back-up XP Door PC Settings Choose BackUp... Fig 4. SQL Server BackUp Highlight and Remove any old backup paths in the Destination list box Remove any old Backups Fig 5. Remove any Old Backups Then click Add...
- Page 14 Door PC Operating System Upgrade Manual Back-up XP Door PC Settings Ensure Overwrite all existing backup sets is selected Fig 6. SQL BackUp Options Click OK, start the back up process and add the backup filename to the checklist in section 3.3. Repeat this process for all the Databases being backed up.
-
Page 15: Door Pc Settings
Door PC Operating System Upgrade Manual Back-up XP Door PC Settings 4.3 Door PC settings Click Start, then right-click on My Computer and select Properties. Under the Computer Name tab take a note of the Computer Description and the Full computer name and add them to the checklist in section 3.3. -
Page 16: Windows Embedded Standard 7 (Wes 7) Installation
5. Windows Embedded Standard 7 (WES 7) Installation WARNING: This Installation will format the Hard Drive; do not proceed unless you are Important: certain that everything has been backed up. Safely remove the USB drive you used to backup the database(s) and insert the Door PC WES 7 USB memory stick. -
Page 17: Configure The Windows 7 Door Pc
6. Configure the Windows 7 Door PC 6.1 Flipping the Display Orientation The Door PC screen mounted in the door is inverted, so in order to use it sensibly the display needs to be flipped. Right-click on the desktop and select Screen Resolution from the right click menu. From the Orientation drop down box, choose Landscape (flipped), see Fig 9. -
Page 18: Configure The Screen Saver
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC Press the OK button when it appears. Close the calibration screen. 6.3 Configure the Screen Saver Insert the WES 7 USB stick. Open the Snell Screen Saver folder. Run install_flash_player_13_active_x.exe to install Adobe Flash player. -
Page 19: Turn Off Visual Effects
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC 10. Click on the Screen Saver icon 11. Set the Wait time to 20 minutes 12. Click on the OK button to save the settings Fig 11. Configure Screen Saver 13. -
Page 20: Switch Off The Firewall
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC 6.5 Switch off the Firewall Click on the Start button and open the Control Panel. In the control panel search box type windows firewall and click on Windows Firewall in the results list. -
Page 21: Enable Remote Access
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC Select the Never check for updates (not recommended) option Fig 14. Windows Update Screen Click on the OK button to save the changes. 6.7 Enable Remote Access Type Allow remote access in the control panel search box and select the Allow remote access to your computer option. -
Page 22: Set The Ip Address
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC 6.8 Set the IP Address Type Network and Sharing in the control panel search box and select the Network and Sharing Center option, see Fig 16. Click on the Local Area Connection in the View your active networks section, see Fig 16. -
Page 23: Set Password To Never Expire
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC 6.9 Set Password to Never Expire Click the Start button. In the search box type Group Policy and double click on Edit Group Policy in the search results. In the Local Group Policy Editor expand Computer Configuration, Windows Settings, Security Settings, Account Policies and then click on Password Policy, see Fig 17. -
Page 24: Set The Pc Name
Door PC Operating System Upgrade Manual Configure the Windows 7 Door PC 6.10 Set the PC Name Type rename this computer in the control panel search box and select the Rename this computer option from the results list. Enter the computer description from the checklist in the Computer description text box, see section 3.3 From the Computer Name tab of the System Properties dialog click on the Change button. -
Page 25: Install And Configure Workbench
7. Install and Configure Workbench 7.1 Installing Workbench Insert the Workbench installation USB memory stick supplied with the upgrade kit and run the WorkbenchInstaller program to install Workbench in the Default location. This is a fresh install so the SQL boxes must be selected, see Fig 20. Click on the Next >... - Page 26 Door PC Operating System Upgrade Manual Install and Configure Workbench The Computer component will be amber because the Door PC screen resolution is below the recommended minimum for full Workbench operation. As the Door PC is designed to run LiveRunner rather than full Workbench this is not an issue. The Workbench Database component will be red as Workbench has not yet been associated with a database, this is normal.
-
Page 27: Restoring The Database(S)
Door PC Operating System Upgrade Manual Install and Configure Workbench 7.2 Restoring the Database(s) The previously backed up databases must now be restored. Open SQL Server Management Studio. Connect to SQL Server. Browse the Object Explorer, right click on the database to be restored and select Tasks >... - Page 28 Door PC Operating System Upgrade Manual Install and Configure Workbench On the General page of the Restore Database screen, check the Restore check box Fig 25. Restore Database Screen - General Page On the Options page of the Restore Database screen select the Overwrite the existing database (WITH REPLACE) check box as shown in Fig 26.
-
Page 29: Completing The Upgrade And Configuring Workbench
Door PC Operating System Upgrade Manual Install and Configure Workbench 7.3 Completing the Upgrade and Configuring Workbench Copy the backed-up Shortcuts from USB stick to the desktop. Right click on the Startup entry in the Start, All Programs menu and select Explore. Copy the LiveRunner Shortcut to the Windows Startup folder so that LiveRunner starts automatically when Windows starts. -
Page 30: Contact Us
Contact Us Grass Valley Technical Support For technical assistance, contact our international support center, at 1-800-547-8949 (US and Canada) or +1 530 478 4148. To obtain a local phone number for the support center nearest you, please consult the Contact Us section of Grass Valley’s website ( www.grassvalley.com An on-line form for e-mail contact is also available from the website.
