Tyco Electronics AMP NETCONNECT MRJ21 Instruction Sheet

Back Cable Manager Kit
1933352-1 (Ref)

1 6 (1 Row With 6 Ports) CASSETTE ASSEMBLY
Unshielded
1479452-1

1. INTRODUCTION

MRJ21 cassette assemblies listed in Figure 1 are
designed to be installed into Patch Panel 1479451–1.
Back Cable Manager Kits 1933352–[ ] (shown in
Figure 1) can be used to support the trunk cable. The
patch panel and cable manager kit are designed to be
mounted onto a standard 483–mm [19–in.] Electronic
Industries Alliance (EIA) rack or equipment cabinet.
Read these instructions thoroughly before starting

installation.

Reasons for reissue of this instruction sheet are
provided in Section 5, REVISION SUMMARY.
All numerical values in this instruction sheet are
NOTE
in metric units [with U.S. customary units in
i
brackets]. Dimensions are in millimeters [and
inches]. Figures are not drawn to scale.
To obtain information on AMP NETCONNECT
products, call PRODUCT INFORMATION at the
AMP NETCONNECT logo is a trademark of Tyco Electronics.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMP NETCONNECT* MRJ21*
Cassette Assemblies 1479452-1,
1479459-1, 1777082-1, and 1777086-1
Patch Panel
1479451-1
MRJ21 Receptacle
Chamfered Corner
(Indicates Port 1)
2
Shielded
1777086-1

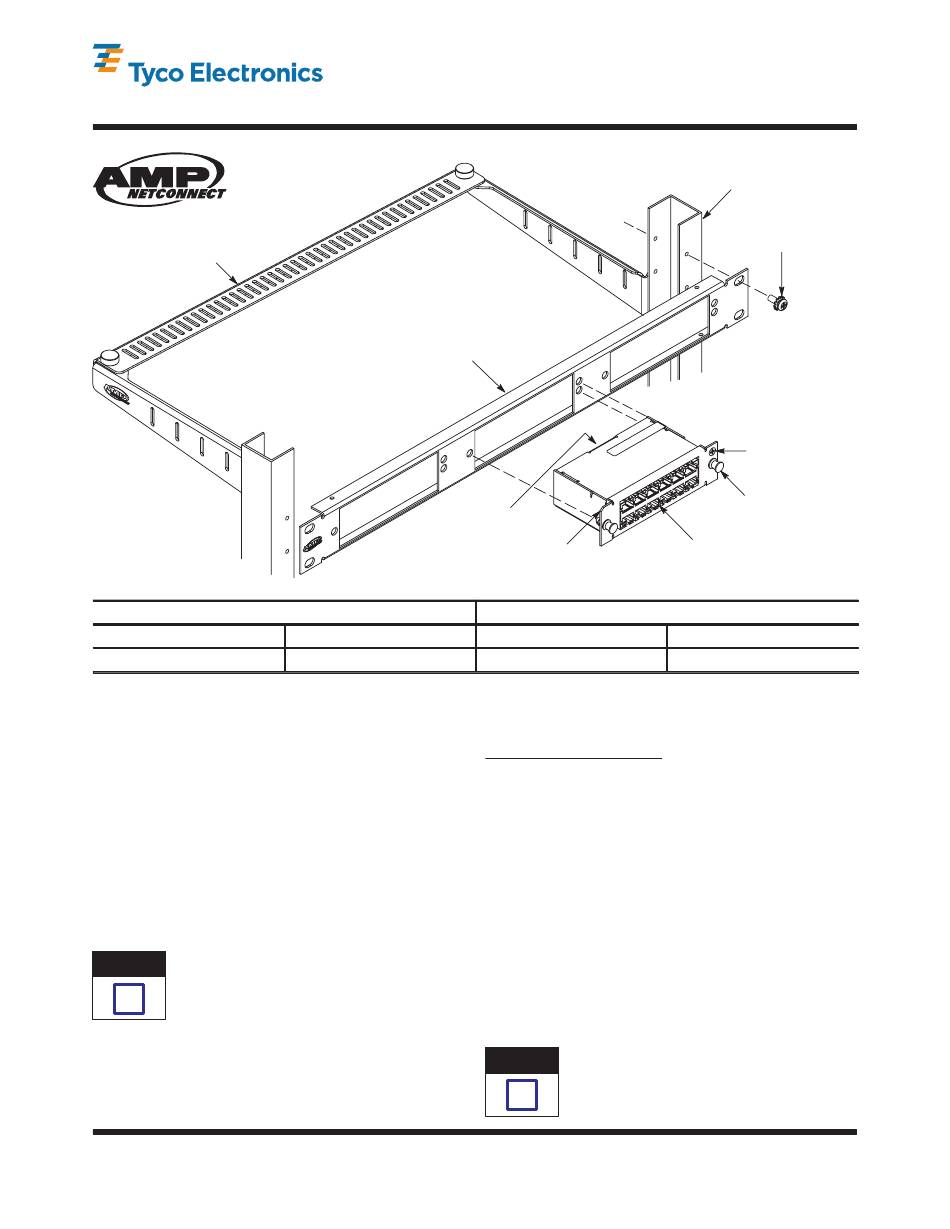

Figure 1
number at the bottom of this page, or visit the
AMP NETCONNECT website at
www.ampnetconnect.com.

2. DESCRIPTION

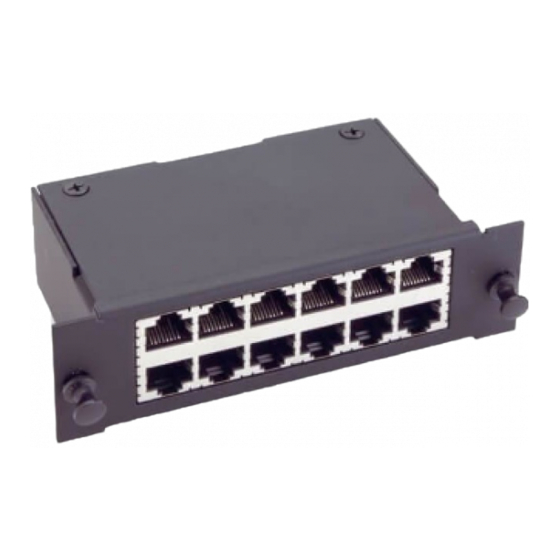

The front of each cassette assembly features two
plungers used to secure the assembly to the patch
panel and a chamfered corner that indicates Port 1.
The shielded cassette also has a
used for bonding. The back of each cassette
assembly features an MRJ21 receptacle that accepts
the connector of the trunk cable. See Figure 1.
3. INSTALLATION
Using the mounting screws, mount the patch panel
and cable manager kit onto the rack, then proceed as
follows:
NOTE
i
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Cassette
Assembly
Ports

6 (2 Rows With 6 Ports) CASSETTE ASSEMBLY
Unshielded
1479459-1
For installation procedure for the patch panel,
refer to Figure 1; for the cable manager kit, refer
to Instruction Sheet 408-10170.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-8866
13 JAN 09 Rev F
Rack
Mounting Screw
(4 Places)
1
/ -Turn Fastener
4
(Shielded Cassette
(Only)
Plunger
(2 Places)
Shielded
1777082-1
1
/ –turn fastener
4
