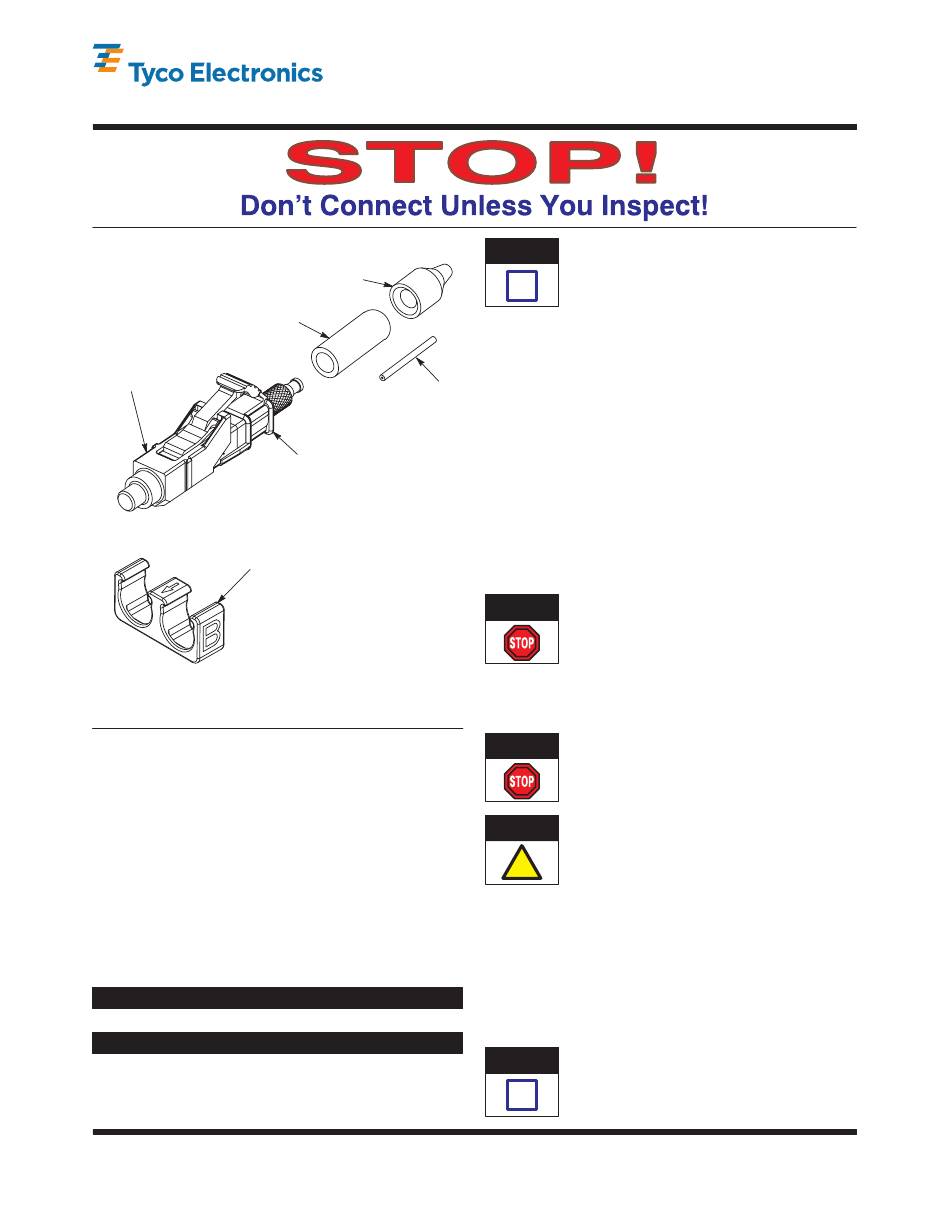

Tyco Electronics LightCrimp Plus LC Instruction Sheet

Rear
Protective G
Cap
Termination G
Cover
Duplex Clip
(Duplex Connector Kits Only)
G
Connector kit is shipped with these installed onto connector
assembly. Keep them in place until ready for assembly.
Figure 1
1. INTRODUCTION
LightCrimp Plus LC simplex and duplex fiber optic
connector kits are designed to be applied to fiber
optic cable. The connectors are used with singlemode
m
or multimode 125– m glass fiber cable. These kits
can be used with any of the following media
(paragraph of assembly procedure is indicated
next to media).
m
5.1. 900- m Easy Strip or Tight Buffered Fiber
m
5.2. 250- m Coated Fiber
Read these instructions thoroughly before assembling
the connector kit.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
LightCrimp* Plus LC
Simplex and Duplex
Fiber Optic Connector Kits
Short Boot
Tubing
Connector
Assembly
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
NOTE All numerical values in this instruction sheet are
in metric units [with U.S. customary units in
i brackets]. Dimensions are in millimeters [and
inches]. Figures are not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
2. DESCRIPTION
(See Figure 1)
The simplex connector kit consists of a connector
assembly, short boot, and tubing. The tubing is used
m
with 250– m coated fiber. Also included, assembled
onto the connector, are a termination cover for the
ferrule (front of connector) and a protective cap for
the plunger (rear of connector). The duplex connector
kit consists of two of each of these components and a
duplex clip. The duplex clip is also available
separately.
3. SAFETY PRECAUTIONS
To avoid personal injury, ALWAYS wear eye
DANGER
protection when working with optical fibers.
NEVER look into the end of terminated or
unterminated fibers. Laser radiation is invisible
but can damage eye tissue. NEVER eat, drink, or
smoke when working with fibers. This could lead
to ingestion of glass particles.
DANGER BE VERY CAREFUL to dispose of fiber ends
properly. The fibers create slivers that can easily
puncture the skin and cause irritation.
DO NOT use defective or damaged components.
CAUTION
Replace them with new components.
!
4. REQUIRED TOOLS AND MATERIALS
— Micro–Strip Stripper 492109–2
— Combination Strip Tool 1278947–1

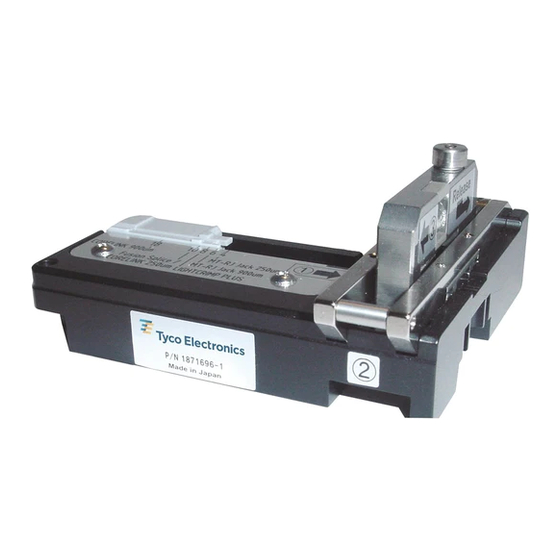

— Cable Holder Assembly 1754138–1 or
2064540–1 (only used to terminate connector with
termination cover installed)
Revision B (marked on handle) or later of Cable
NOTE
Holder Assembly 1754138-1 is required when
i terminating LC SECURE connectors.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-8925
06 APR 09 Rev D
1
of 8
www.tycoelectronics.com
LOC B
