Tyco Electronics AMP NETCONNECT MRJ21 Instruction Sheet

Snap Rivet
(Qty 8)
PATCH PANEL RETROFIT KIT
PART NUMBER DESCRIPTION
1479951-1 48 Ports
1479853-1 48 Ports
1479894-1 24 Ports

1. INTRODUCTION

Each patch panel retrofit kit is designed to be installed
onto the MRJ21 standard patch panels listed in
Figure 1 to enable it for use with the AMP
NETCONNECT AMPTRAC system. Read these
instructions thoroughly before starting installation.
AMPTRAC–ready MRJ21 patch panels are available
(for 24 ports, refer to 408–8974; for 48–port
straight patch panels, refer to 408–8998; for 48–port
angled patch panels, refer to 408–8963).
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 4, REVISION SUMMARY.
To obtain information on AMP NETCONNECT
products, call PRODUCT INFORMATION at the
number at the bottom of this page, or visit the
AMP NETCONNECT website at
www.ampnetconnect.com.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMP NETCONNECT* MRJ21*
Patch Panel Retrofit Kits 1479853-1,
1479894-1, and 1479951-1

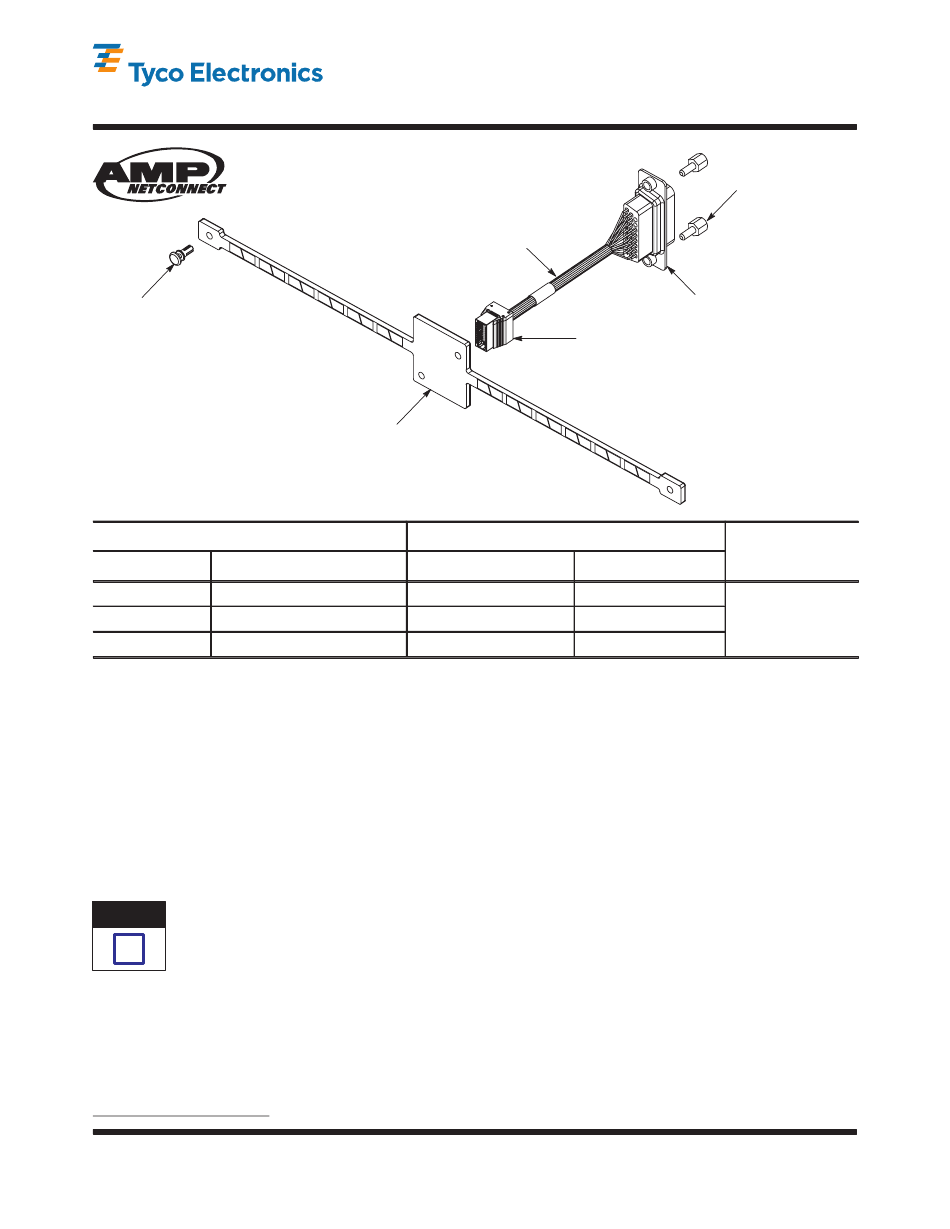

48-Port Patch Panel Retrofit Kit Shown
Sensor Printed Circuit (PC)
Board Subassembly (Qty: 2)
UNSHIELDED
Straight Patch Panel 1435965-1 and 1435971-1
Angled Patch Panel 1777052-1
Straight Patch Panel 1777029-1
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Cable Assembly
(Qty: 2)
AMPMODU*
Connector
STANDARD PATCH PANEL
SHIELDED
1777098-1

2. DESCRIPTION

(Refer to Figure 1)
Each patch panel retrofit kit consists of one or two
sensor pc board and cable assembly (with an
HDP–22 connector on one end and an AMPMODU
connector on the other end). Also included are snap
rivets for the sensor pc board subassembly and
screwlocks for the HDP–22 connector of the cable
assembly.

3. INSTALLATION

1. Remove the lid screws from the base of the
patch panel. Remove the lid.
2. Remove all of the snap rivets and the cover
plate (24–port patch panel) or plates (48–port
patch panel) from the front of the patch panel.
Also, for the shielded patch panel, remove the
cover plate from the back of the patch panel.
See Figure 2.
3. Place the cable assembly inside the base of the
patch panel, and position the HDP–22 connector
through the cutout at the back of the patch panel.
Using the screwlocks, mount the HDP–22
connector onto the patch panel. See Figure 3.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-8988
08 OCT 08 Rev B
Screwlock
(Qty: 4)
HDP-22
Connector
AMPTRAC
INPUT/OUTPUT (I/O) INPUT/OUTPUT (I/O)
CABLE
G
1499507-X
G
X denotes length in feet.
1 of 2
LOC B
