Tyco Electronics AMP NETCONNECT MRJ21 Series Instruction Sheet

12-24 Screw
(4 Places)
EIA Rack
(Ref)

1. INTRODUCTION

MRJ21 24–Port 10/100/1000BASE–T Straight Patch
Panels 1777029–[ ] are designed to be mounted onto
a standard 483–mm [19–in.] Electronic Industries
Alliance (EIA) rack or equipment cabinet as shown in
Figure 1. Patch Panel –2 is designed for use with the
AMP NETCONNECT AMPTRAC system. Read these
instructions thoroughly before starting installation.
NOTE All numerical values in this instruction sheet are
in metric units [with U.S. customary units in
i
brackets]. Dimensions are in millimeters [and
inches]. Figures are not drawn to scale.
NOTE
For Patch Panel -2, these instructions assume
that the reader understands the operation of
i
equipment and software used with the
AMPTRAC system.
AMPTRAC Retrofit Kit 1479894–1 can be installed
onto Patch Panel –1 to enable the patch panel to be
connected to the AMP NETCONNECT AMPTRAC
system. Back Cable Manager Kits 1933352–[ ] or
Wiring Distribution Bracket Kit 557548–1 must be
used to support the cable.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMP NETCONNECT*
MRJ21* 24-Port 10/100/1000BASE-T
Straight Patch Panels 1777029-[ ]

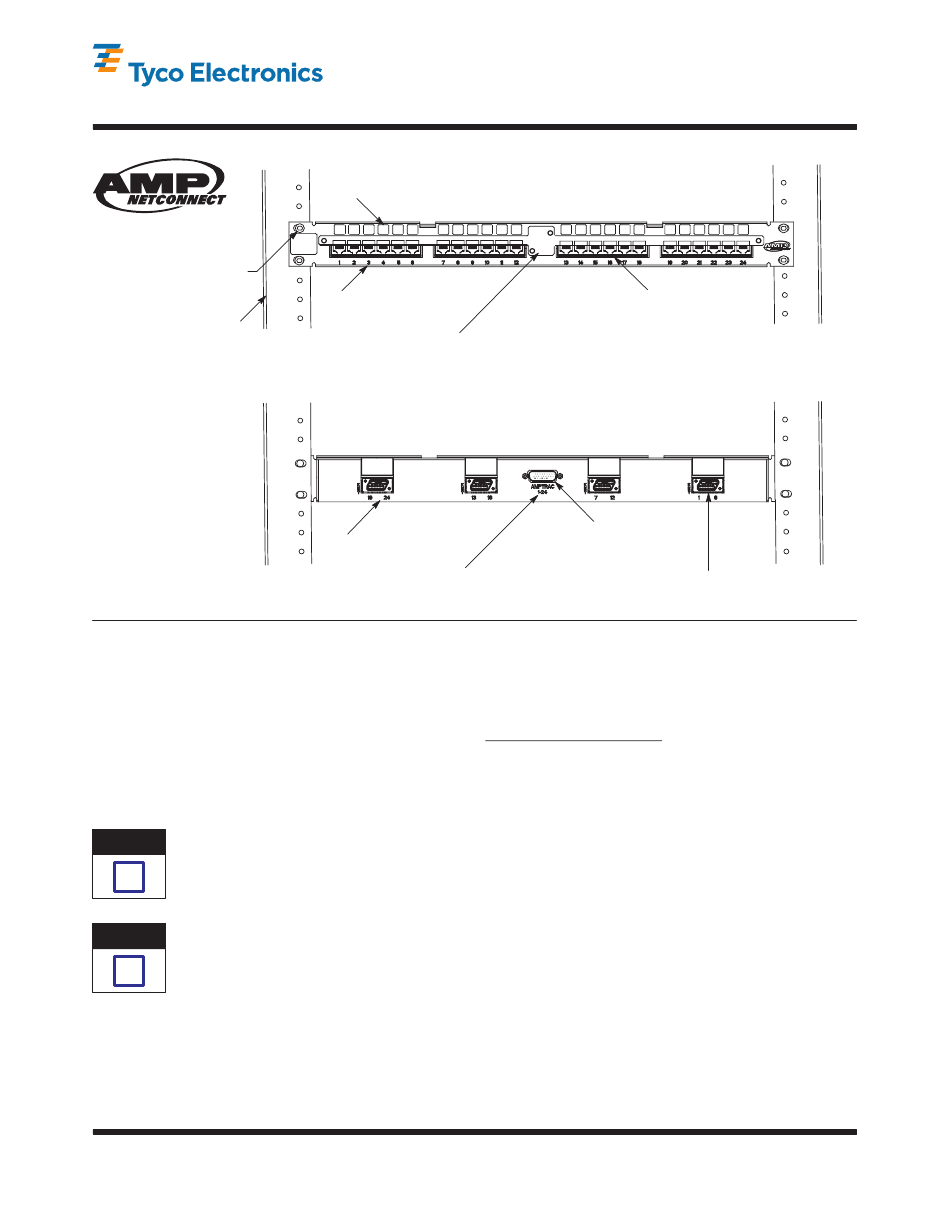

Front of Patch Panel
Blank Label Pad
(24 Places)
Port Identification
(24 Places)
AMP NETCONNECT* AMPTRAC*
Printed Circuit (PC) Board Subassembly
(Patch Panel -2 Only)
Back of Patch Panel
Port Identification
(4 Places)
AMPTRAC Port Identification
(Patch Panel -2 Only)
Figure 1
To obtain information on AMP NETCONNECT
products, call PRODUCT INFORMATION at the
number at the bottom of this page, or visit the
AMP NETCONNECT website at
www.ampnetconnect.com.
Reasons for reissue of this instruction sheet are
provided in Section 6, REVISION SUMMARY.

2. DESCRIPTION

Each patch panel contains four MRJ21 receptacles
(one per 1
are identified by numbers printed on the front and on
the back of the patch panel,
provided on the front for identifying connecting ports.
Four 12–24 screws are included to mount the patch
panel to the rack.
In addition, Patch Panel –2 has a pc board
subassembly and HDP–22 connector to enable the
patch panel to connect to the AMP NETCONNECT
AMPTRAC system.

3. INSTALLATION

1. Using the screws, mount the patch panel onto
the rack. Refer to Figure 1.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752

1 6 RJ45 Connector
Assembly (4 Places)
HDP-22 Connector
(Patch Panel -2 Only)
MRJ21 Receptacle
(4 Places)

6 RJ45 connector assembly). The ports
and blank label pads are
This controlled document is subject to change.
For latest revision and Regional Customer Service,
www.tycoelectronics.com
visit our website at
Instruction Sheet
408-8974
19 JUN 08 Rev D
