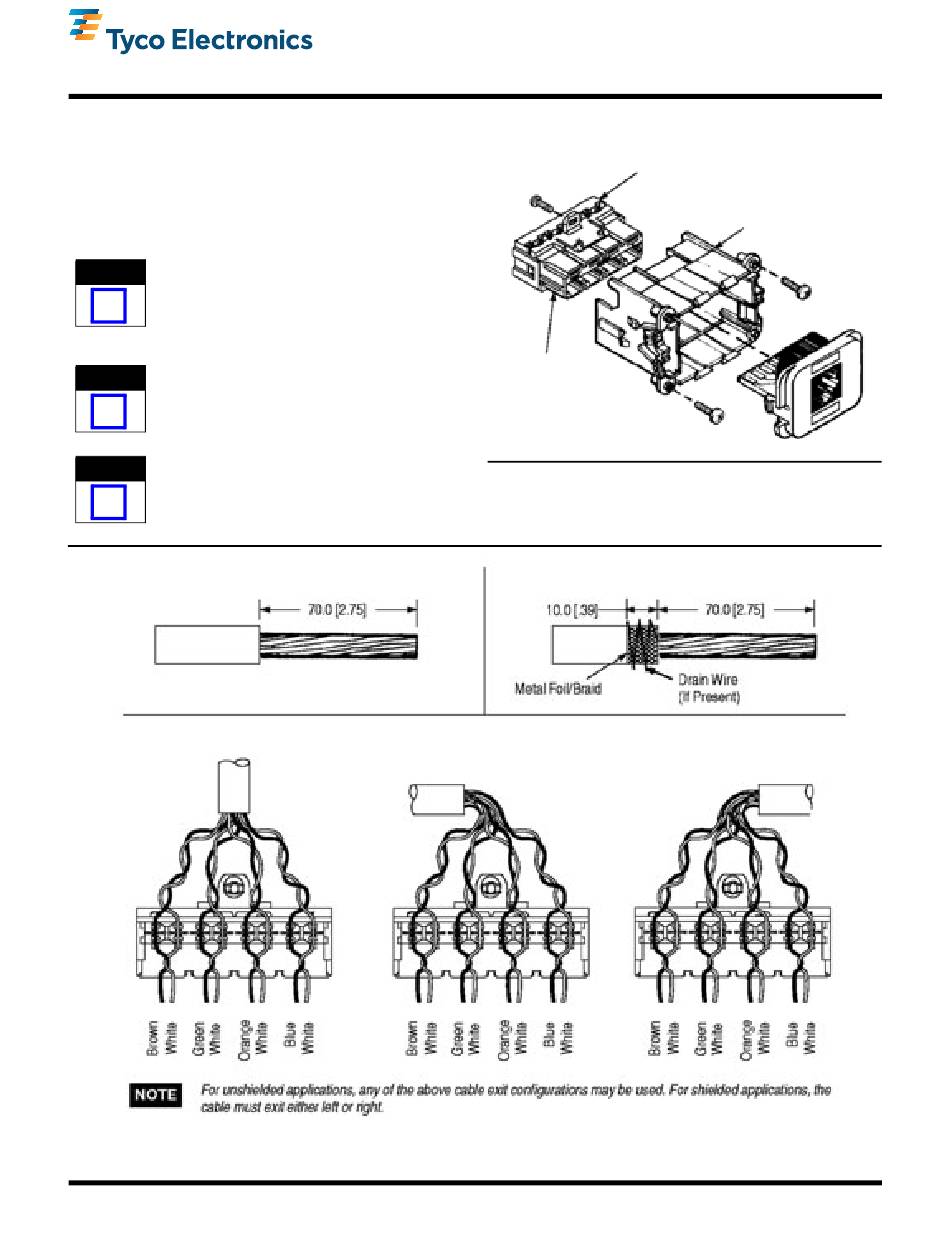

1. INTRODUCTION
This instruction sheet provides termination and
installation procedures for ACO Single Port Kits. The
kits can be used in panel mount or furniture raceway
applications. Optional faceplate kits and various
adapter insert assemblies are available to meet either
application.
Dimensions on this sheet are in millimeters [with
NOTE
inches in brackets]. Figures are not drawn to scale.
i
2. TERMINATION PROCEDURES
The 110Connect card edge connector comes pre-
NOTE
installed in a single port housing. The single port
i
housing functions as a secure holding fixture while
terminating.
The edge connector is approved for use with 22
NOTE
through 24 AWG solid wire with a maximum outside
i
insulation diameter of 1.6 mm [.06 in.] (100 ohm
UTP or STP).
Unshielded Applications
©2011 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.
AMP Communications Outlet (ACO)
Single Port Kits (Cat 6)
110Connect
Card Edge
Connector
Exit Left
Figure 2
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Instruction Sheet
408-8700
Cover
Single Port
Housing
Figure 1
Shielded Applications
Exit Right
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
05 JAN 11 Rev A
1 of 4
LOC B
Advertisement
Related Manuals for Tyco Electronics ACO Single Port Kits
Summary of Contents for Tyco Electronics ACO Single Port Kits
- Page 1 Single Port Kits (Cat 6) 05 JAN 11 Rev A 1. INTRODUCTION This instruction sheet provides termination and installation procedures for ACO Single Port Kits. The Cover kits can be used in panel mount or furniture raceway applications. Optional faceplate kits and various...
- Page 2 408-8700 2.1. Unshielded Applications It is recommended to maintain the pair twists to NOTE within 6.4 mm [.25 in.] of the termination with 1. Remove approximately 70.0 mm [2.75 in.] of the Category 6 cables cable jacket. 2. Determine the direction of the cable exit. Using 5.
- Page 3 408-8700 2. Install two No. 2 screws into two posts located diagonally apart. Tighten screws to clamp housing Existing Panel 68.6 [2.70] to panel. See Figure 6. Cutout (Approx) Screw 35.05 [1.38] (Approx) 228.5 to 457.2 [9 to 18] Housing Figure 6 4.2.
- Page 4 408-8700 3. Slide the metal shield onto the guides on the BACK of the housing. Push shield over housing until all four latches snap into place. 7. INSTALLATION OF INSERTS 1. Install connector inserts by pushing the insert into the appropriate port. Align insert latches with tabs on the edge of the housing.
