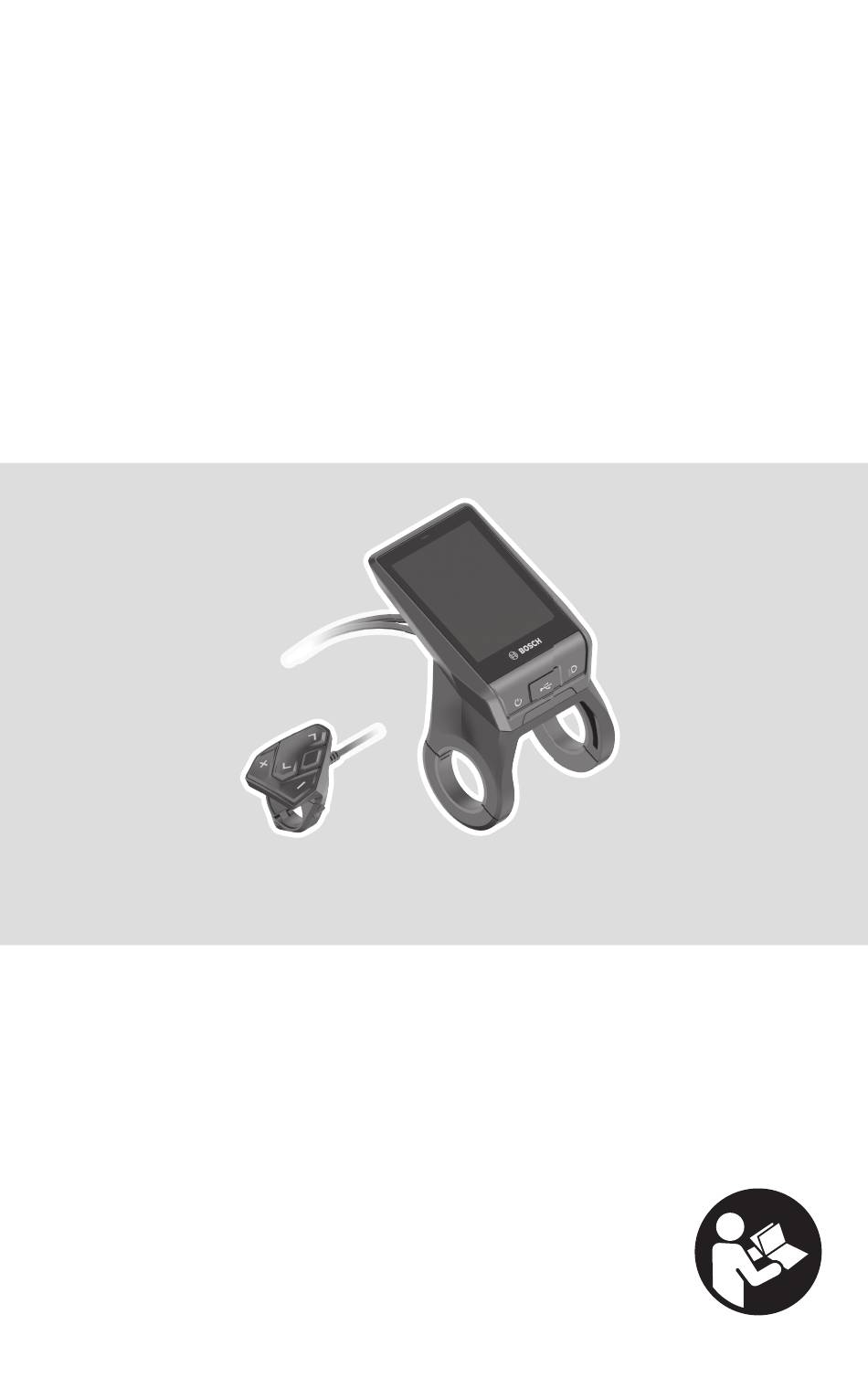

  • Page 1 Nyon Online Version (BUI350) en Original operating instructions...
  • Page 2 English – 2 Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 3: Table Of Contents

    Switching the push assistance on/off ........21 Switching bicycle lights on/off..........22 Lock (premium function)............22 Compatibility..............23 Setting up the Lock function ...........23 How it works..............23 Replacing eBike Components and the Lock Function ..25 Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 4 <Basic Screen> (preset screen) ..........45 <Quick Menu>..............46 Error code display ..............47 Displays and settings of the Bosch eBike Connect smartphone app........53 Activating the Bosch eBike Connect Application ......53 Registration via Smartphone........... 53 Main menu of Bosch eBike Connect ......... 55 <Activities>...
  • Page 5 <Help> menu item ............63 Profile menu item ..........63 Maintenance and servicing ............65 Maintenance and cleaning ............65 After-sales service and advice on using products ....... 65 Transport................65 Disposal ................66 Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 6: Safety Instructions

    Save all safety warnings and instructions for future reference. The term battery is used in these instructions to mean all original Bosch eBike rechargeable battery packs. Do not allow yourself to be distracted by the on-board computer's display.

  • Page 7: Safety Information Relating To The Navigation System

    Bluetooth® in aeroplanes. Avoid using the on-board computer near your body for extended periods. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bosch eBike Systems is under licence. Safety information relating to the navigation system Do not plan your routes whilst you are cycling.

  • Page 8: Congratulations

    To find out more, visit: www.Bosch-eBike.com. Instructions on how to use the app and the portal can be found in the online operating instructions at www.Bosch-eBike.com. Nyon (BUI350) is not suitable for navigation without a bicycle (for hikers or motorists). Bosch eBike Systems...
  • Page 9 English – 9 Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 10: Product Features

    (5) On-board computer (6) Display (touch-sensitive) (7) Brightness sensor (8) USB port (9) Release mechanism (10) Next page button (11) Select button (12) Decrease assistance level button (13) Holder for operating unit Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 11: Technical Data

    Internal lithium-ion battery 1000 Protection rating IP x5 Supported Wi-Fi standards 802.11b/g/n (2.4 GHz) Weight, approx. Wi-Fi – Frequency 2400–2480 – Transmission power < 100 Bluetooth® – Frequency 2400–2480 – Transmission power < 10 Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 12: Declaration Of Conformity

    English – 12 Declaration of Conformity Robert Bosch GmbH, Bosch eBike Systems, hereby declares that the Nyon (BUI350) radio communication unit complies with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity can be ac- cessed at the following website address: https://www.ebike-connect.com/conformity.

  • Page 13: Fitting

    Deactivate and remove the on-board computer when fitting or work- ing on the holder. This will avoid malfunctions/improper use. Deactivate and remove the on-board computer when fitting or re- moving the securing screw. This will avoid malfunctions/improper use. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 14 English – 14 (20) (18) (19) (20) (18) Locking screw for on-board computer (19) Drive unit contacts (20) Operating unit contacts Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 15: Inserting And Removing The On-Board Computer (See Figures A-B)

    Screw the enclosed locking screw (18) (M3 thread, 5 mm long) from below into the thread provided in the holder. Fit the holder back onto the handlebars. Please note: The locking screw is not designed to prevent theft. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 16: Operation

    Note: This puts the Nyon (BUI350) into a standby mode. – Remove the on-board computer from its holder. If no power is drawn from the eBike drive for about 10 minutes (e.g. because...

  • Page 17: Standby Mode

    75 %. In any case, the on-board computer switches off at midnight (00:00) at the latest. If Nyon (BUI350) cannot be switched on or does not work properly, press and hold the on/off button (for approx. 15 seconds). This may correct the malfunction.

  • Page 18: Battery Charge Indicator

    LEDs on the eBike battery itself. Colour of the indicator Explanation White The eBike battery is over 30 % charged. Yellow The eBike battery is between 15 % and 30 % charged. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 19: Initial Operation Of The On-Board Computer

    The full functionality of the on-board computer cannot be guaranteed if the protective display film is used. Nyon is supplied with a partially charged battery. Before first use, the Nyon battery must be fully charged via the USB port or the eBike system.

  • Page 20: Connecting The On-Board Computer With The Portal

    English – 20 You can set up a user ID via your Bosch eBike Connect smartphone app or simply at www.ebike-connect.com. Enter the details required for registra- tion. The Bosch eBike Connect smartphone app is available to download free of charge from the App Store (for Apple iPhones) or from the Google Play Store (for Android devices).

  • Page 21: Setting The Assistance Level

    The push assistance aids you when pushing your eBike. The speed in this function depends on the selected gear and can reach a maximum of 6 km/h. The lower the selected gear, the lower the speed of the push assistance function (at full power). Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 22: Switching Bicycle Lights On/Off

    Connect app. The account allows you to use the Lock func- tion with an on-board computer, which in turn can be used to activate the function on up to 4 eBikes. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 23: Compatibility

    Please read through these thor- oughly and adhere to the warnings that are issued (e.g. before deleting your eBike or user account). Compatibility The Lock function is compatible with these Bosch eBike product lines: Drive unit Product line BDU3xx...
  • Page 24 – The Lock function can no longer be set up or switched off – Your eBike Connect account has been deleted or deactivated, yet the Lock function has been set up and remains active. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 25: Replacing Ebike Components And The Lock Function

    The eShift components are electrically connected to the drive unit by the manufacturer. The separate operating instructions describe how to operate the electronic gear-shifting systems. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 26: Abs - Anti-Lock Braking System (Optional)

    English – 26 ABS – anti-lock braking system (optional) If the eBike is fitted with a Bosch eBike ABS, the indicator light is shown in the display of the on-board computer during the system start-up as well as in the event of a fault. The indicator light goes out as soon as you are riding the eBike faster than 6 km/h and no fault is detected by the ABS.
  • Page 27 ✔ ✔ ✔ Remaining range indicator ✔ (circle around the current location) Training effect in real time ✔ Overview of journeys ✔ ✔ Purchase of premium features ✔ A) GPS required Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 28: Premium Features

    Nyon as the owner. Rights of the Guest After an owner has been defined on Nyon, each further user of a login will automatically become a guest. If the guest logs out, all activity data that could not be synchronised before logout is automatically deleted.

  • Page 29: Displays And Configurations Of The On-Board Computer

    The display and/or text may change slightly following a software update. Nyon is fitted with a touch-sensitive screen. Swiping left or right scrolls between the individual screens. Tapping on the Status Screen opens func- tions or submenus.

  • Page 30: Status Screen

    This is where you can switch between light and dark backgrounds. Button <Brightness> This is where you can select from the following brightness levels: 25 % | 50 % | 75 % | 100 % | Auto. Smartphone battery charge <Information> This is where recent events are displayed (e.g. maps download). Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 31: Settings

    The bike component page displays the serial number and hardware and soft- ware versions for each component, in addition to other key data which is relevant for the components. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 32 You can display the speed and distance in kilometres or miles, display the clock in 12- or 24-hour format, adjust the time, date and time zone and select your preferred language. You can reset Nyon to factory settings, start a software update (if available) and choose between a black and white design.

  • Page 33: Ride Screen

    The colour of the screen changes depending on the assistance level. Connection to heart rate monitor Is also a placeholder for further events. The indicator is shown when the event occurs (e.g. connection to smartphone). Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 34 On-board computer battery charge If Bluetooth® and/or Wi-Fi connections are available, the corres- ponding icon is displayed in the centre. eBike battery charge Latest state of charge of the eBike battery Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 35: Trip Data Screen

    <Trip Time> Trip time indicator <Avg. Speed> Average speed indicator <Altitude> Altitude above sea level indicator <Map Screen> Navigation is carried out using map data based on Open Street Map (OSM). Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 36 English – 36 When you switch on Nyon, it begins the satellite search to receive GPS sig- nals. When sufficient satellites have been found, the location point changes colour from grey to blue. In the case of unfavourable weather conditions or locations, the satellite search may take a little longer.
  • Page 37 Changing the assistance level means that the circle adapts accordingly. Selecting the navigation search n1 brings up the following menu: Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 38 Button <Work> Selecting this button guides you to your work address. Button <Locations> Selecting this button means you can find your saved locations that have been synchronised by the app or the portal. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 39: Active Navigation

    If you have imported or planned GPX routes via the online portal, these will be transferred to your Nyon via Bluetooth® or via a Wi-Fi connection. You can start these routes when you wish. If you are near a route, you can have the navigation system guide you to the starting point or you can start navigating along the route immediately.

  • Page 40: Range Display

    The following table gives you an overview of the possible displays with regard to the state of charge of the rechargeable eBike battery. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 41 English – 41 Appearance Colour State of charge of the rechargeable eBike battery at the destination Green > 30 % Orange 15 % to 30 % 7 % to 15 % < 7 % Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 42: Analysis Screen

    <Riding Mode Usage> Indicator for usage of different riding modes <Max. Speed> Maximum speed indicator <Ascent> Ascent indicator <Avg. Power> Indicator for the ratio of your own power compared to motor output Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 43: Creating Your Own Screens

    You also have the option to start the function via <Settings> → <Screens>. The following options are available: – Move screens – Create new screens – Delete screens – Add preset screens <Fitness Screen> (preset screen) Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 44: Emtb Screen> (Preset Screen)

    English – 44 <My Power> Your power indicator <Cadence> Cadence indicator <Heartrate> Heart rate indicator <Calories> Calories burned indicator <eMTB Screen> (preset screen) <Slope> Ascent indicator Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 45: Basic Screen> (Preset Screen)

    English – 45 <Altitude> Altitude above sea level indicator <Altitude Graph> Altitude graph indicator <Max. Slope> Maximum slope indicator <Ascent> Ascent indicator <Basic Screen> (preset screen) <Trip Distance> Trip distance indicator Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 46: Quick Menu

    – <Custom Riding Modes> (premium function, obtainable via the App Store or Google Play Store) Via this submenu, you can select custom riding modes. – <Quick Menu> This submenu allows you to exit the <Quick Menu>. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 47: Error Code Display

    Clean the buttons if need be. Configuration error Restart the system. If the problem per- sists, contact your Bosch eBike dealer. Drive unit connection Have the connections checked problem eBike battery connection...
  • Page 48 (does not apply to BUI350) Software version error Restart the system. If the problem per- sists, contact your Bosch eBike dealer. Internal drive unit fault Restart the system. If the problem per- sists, contact your Bosch eBike dealer. Internal software error Restart the system.
  • Page 49 English – 49 Code Cause Corrective measures Restart the system. If the problem per- sists, contact your Bosch eBike dealer. Configuration error Restart the system. If the problem per- sists, contact your Bosch eBike dealer. Temperature error The eBike is outside of the permissible temperature range.
  • Page 50 Restart the system. If the problem persists, contact your Bosch eBike dealer. Software version error Contact your Bosch eBike dealer so that they can perform a software update. Error relating to third- Observe the information in the operat-...
  • Page 51 Internal ABS fault Contact your Bosch eBike dealer. 860, Fault in the power supply Restart the system. If the problem per- sists, contact your Bosch eBike dealer. 870, Communication error Restart the system. If the problem per- sists, contact your Bosch eBike dealer.
  • Page 52 English – 52 Code Cause Corrective measures ABS indicator light is de- Contact your Bosch eBike dealer. fective or missing; ABS may not be working. Internal fault of the on- Restart your eBike system by switching display board computer it off and back on.

  • Page 53: Displays And Settings Of The Bosch Ebike Connect Smartphone App

    The following description of the eBike Connect app applies to the Kiox (BUI330) and Nyon (BUI27x and BUI350) on-board computers. Activating the Bosch eBike Connect Application In order to be able to use all eBike Connect functions, it is necessary to have a smartphone with the Bosch eBike Connect application.
  • Page 54 English – 54 If the application Bosch eBike Connect is active and there is a Bluetooth® connection to your on-board computer, data between on-board computer and smartphone will sync automatically. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 55: Main Menu Of Bosch Ebike Connect

    English – 55 Main menu of Bosch eBike Connect Symbol Menu item Function <Feed> This menu item contains an overview of the number of kilometres that have been trav- elled over the last month, a display indicat- ing the latest activity undertaken that has not yet been completed, and the latest news updates.

  • Page 56: Activities> Menu Item

    If you are using Nyon, the planned route is automatically transmitted to Nyon as soon as there is a connection between the app and Nyon. If you are using Kiox, then you transmit the planned route by selecting the button for starting the route, and confirm with OK once you have read the safety instructions.

  • Page 57: My Ebike> Menu Item

    The name assigned to each eBike can be changed, or an eBike can be deleted from the selection list. <Shop> Menu Item If you are using Nyon, you have the option of expanding the functionality of your on-board computer with the <Shop> menu item to include premium functions.
  • Page 58 If you are happy with the defini- tion, save the riding mode. The riding mode is then automatically transmit- ted to Nyon if there is a Bluetooth® connection. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 59: Displays And Settings Of The Online Portal

    The following description of the online portal applies to Kiox and Nyon. Online registration Internet access is required for online registration.

  • Page 60: Online Portal Main Menu

    You can choose between three different routes (<Fast>, <Scenic> and <MTB>). – The <Fast> route shows you the fastest connection from your location to your selected destination while avoiding steeper slopes. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)
  • Page 61 If you are using Nyon, the planned route is automatically transmitted to Nyon as soon as there is a connection between the app and Nyon. <Explore> Under the <Explore> menu item, tour suggestions for your surrounding area are offered to you through the "Outdooractive"...

  • Page 62: Activities> Menu Item

    The turn-by-turn instructions can be switched off by pressing the button in the top right. If Nyon is close to the starting point, navigation can be started immediately. If Nyon is further away from the starting point, the rider can be navigated to that point.

  • Page 63: My Ebike> Menu Item

    Facebook. <My eBike> Menu Item Under <My eBike>, you can manage your eBike components, and create and adapt custom riding modes (only with Nyon). <Help> menu item In the <Help> menu item, you will find a selection of FAQs (frequently asked questions), contact details, legal information and information about the sys- tem and licences.
  • Page 64 English – 64 Under <Connected apps>, you can connect to the apps of Bosch partners, consequently synchronising your activities with these apps. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 65: Maintenance And Servicing

    Transport If you transport your eBike attached to the outside of your car, e.g. on a bike rack, remove the on-board computer and the eBike battery to avoid damaging them. Bosch eBike Systems 1 270 020 Nen | (31.08.2020)

  • Page 66: Disposal

    Please return Bosch eBike components that are no longer usable to an au- thorised bicycle dealer. Subject to change without notice.
  • Page 67 Robert Bosch GmbH 72757 Reutlingen Germany www.bosch-ebike.com 1 270 020 Nen (2020.08) T / 67...
