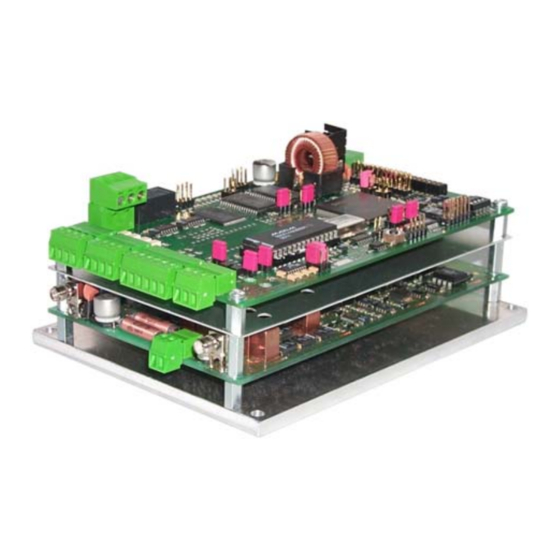

Feig Electronic OBID i-scan ID ISC.LR200 Manual
  1. Manuals
  2. Brands
  3. Feig Electronic Manuals
  4. Card Reader
  5. OBID i-scan ID ISC.LR200 Series
  6. Manual

Feig Electronic OBID i-scan ID ISC.LR200 Manual

Standard-reader firmware-version 5.04 and higher
Hide thumbs Also See for OBID i-scan ID ISC.LR200:
Table of Contents

Advertisement

Quick Links

Download this manual
®
MANUAL
OBID i-scan
ID ISC.LR200
Standard-Reader
Firmware-Version 5.04 and higher
final
public (B)
2006-12-22
H90692-16e-ID-B.doc

Advertisement

Table of Contents
loading

Related Manuals for Feig Electronic OBID i-scan ID ISC.LR200

Summary of Contents for Feig Electronic OBID i-scan ID ISC.LR200

  • Page 1 ® MANUAL OBID i-scan ID ISC.LR200 Standard-Reader Firmware-Version 5.04 and higher final public (B) 2006-12-22 H90692-16e-ID-B.doc...
  • Page 2 Composition of the information in this manual has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information.

  • Page 3: Table Of Contents

    3.3. CFG2: COM-Interface ......................29 3.4. CFG3: RF-Interface I......................32 3.5. CFG4: RF-Interface II......................34 3.6. CFG5: RF-Interface III.......................35 3.7. CFG6 + CFG7: Selection Mask (only I-Code EPC Transponder)........35 3.8. CFG8: General Transponder Parameters..............36 3.9. CFG9: Reserved ......................41 FEIG ELECTRONIC GmbH Page 3 of 174 H90692-16e-ID-B.doc...
  • Page 4 5.4. [0x65] Get Software Version.....................69 5.5. [0x66] Get Reader Info ......................71 5.6. [0x69] RF Reset .........................73 5.7. [0x6A] RF ON/OFF ......................74 5.8. [0x6C] Set Noise Level......................75 5.9. [0x6D] Get Noise Level .....................75 FEIG ELECTRONIC GmbH Page 4 of 174 H90692-16e-ID-B.doc...
  • Page 5 7.1.14. [0xA0] Read Config Block..................103 7.1.15. [0xA1] Write Config Block ..................104 7.2. [0xB1] Host commands for ISO15693 Custom and Proprietary Commands .....105 7.2.1. Fujitsu Custom Commands ..................106 7.2.1.1. [0xA0] EAS ....................106 7.2.1.2. [0xA1] Write EAS...................107 FEIG ELECTRONIC GmbH Page 5 of 174 H90692-16e-ID-B.doc...
  • Page 6 7.4.3.4. Infineon (My-d Light) ...................135 7.4.4. KSW Microtec (TempSens) ..................136 7.4.5. Philips ........................137 7.4.5.1. Philips (I-Code SLI) ..................137 7.4.5.2. Philips (I-Code SLI-S)..................138 7.4.6. STMicroelectronics ....................139 7.4.6.1. STMicroelectronics (LRI512) ...............139 7.4.6.2. STMicroelectronics (LRI64) ................140 FEIG ELECTRONIC GmbH Page 6 of 174 H90692-16e-ID-B.doc...
  • Page 7 Error-Code for ISO15693 Transponders ................165 ANNEX E: Index of Control Bytes..................166 ANNEX F: Index of Configuration Parameters ..............167 ANNEX G: Memory Model I-Code 1 Transponders ..............168 ANNEX H: Examples for Read Data..................171 FEIG ELECTRONIC GmbH Page 7 of 174 H90692-16e-ID-B.doc...
  • Page 8 Buffered Read Mode (BRM) (DB-Size of the transponder = 4 bytes)........172 ISO-Host Command (DB-Size of the transponder = 8 bytes) ..........172 Buffered Read Mode (BRM) (DB-Size of the transponder = 8 bytes)........173 ANNEX I: Codes of Reader Types..................174 FEIG ELECTRONIC GmbH Page 8 of 174 H90692-16e-ID-B.doc...

  • Page 9: Revision History Of Documentation

    The ”re-scan” parameter has been removed Custom Commands for Philips ISO15693 Transponder I-Code SLI 14.01.04 EAS Request for Philips Transponders supported in BRM mode EAS Request for Philips Transponders supported in Scan mode FEIG ELECTRONIC GmbH Page 9 of 174 H90692-16e-ID-B.doc...
  • Page 10 Transponder settings ISO-Blocksize Read Mode, DB-Blocksize Support EMMicroelectronics EM 4034 Support Fujitsu (MB89R116), (MB89R118), (MB89R119) 130 131 132 18.12.06 Support Infineon (My-d Light) Support Philips (I-Code SLI-S) Support STMicroelectronics (LRI2k) Support Texas Instruments (Tag-it HF-I Pro) FEIG ELECTRONIC GmbH Page 10 of 174 H90692-16e-ID-B.doc...

  • Page 11: Abbreviations

    Most Significant Byte Number Output Read / Write Access Read Relay Radio Frequency RSSI Received Signal Strength Indicator Real Time Clock Serial Number Table Transponder Timeslot Unique Identifier Write Only Access Write FEIG ELECTRONIC GmbH Page 11 of 174 H90692-16e-ID-B.doc...

  • Page 12: Introduction

    The base set of commands and features is fully compatible to the commands of the other OBID ® i-scan product line members. The configuration possibilities of the ID LR.ISC Readers makes it easy to adapt them to the individual range of applications by soft- and hardware configuration. FEIG ELECTRONIC GmbH Page 12 of 174 H90692-16e-ID-B.doc...

  • Page 13: Data Transmission Between Obid I-Scan ® Id Isc.lr-Reader And Host

    Host (Terminal / PC / ..) Reader → parameter- / control command parameter received and stored / control command processed ← status / error status data ← FEIG ELECTRONIC GmbH Page 13 of 174 H90692-16e-ID-B.doc...

  • Page 14: Iso15693 Host Commands

    Transponder data in Reader field ← → write data to Transponder with UID Transponder with correct UID in antenna field ? ← OK status status = no Transponder in Reader field ← FEIG ELECTRONIC GmbH Page 14 of 174 H90692-16e-ID-B.doc...
  • Page 15 / status = no Transponder read Transponder data in Reader field ← → write data Transponder in antenna field ? ← OK status status = no Transponder in Reader field ← FEIG ELECTRONIC GmbH Page 15 of 174 H90692-16e-ID-B.doc...
  • Page 16 / status = Transponder read no Transponder data in Reader field ← → write data selected Transponder in antenna field ? ← OK status status = no Transponder in Reader field ← FEIG ELECTRONIC GmbH Page 16 of 174 H90692-16e-ID-B.doc...

  • Page 17: Buffered Read Mode

    Only read operations are available with the Buffered Read Mode. • The Buffered Read Mode is only available if Scan Mode is disabled • The Buffered Read Mode can be used with the 2.5. Reader Multiplex Mode. FEIG ELECTRONIC GmbH Page 17 of 174 H90692-16e-ID-B.doc...

  • Page 18: Scan Mode

    2 Transponder in detection range UID and data block should be read: UID1 data1 UID2 data2 Com-Prefix (optional) SCAN-LOCK-TIME UID: Serial-Number (fix) time to the next new Transponder reading data: data blocks (free programmable) Separation character (optional) End character (optional) FEIG ELECTRONIC GmbH Page 18 of 174 H90692-16e-ID-B.doc...
  • Page 19 Only read operations are available with the Scan Mode. • Scan Mode is only available if Buffered Read Mode is disabled • The Scan Mode can be used with the 2.5. Reader Multiplex Mode. FEIG ELECTRONIC GmbH Page 19 of 174 H90692-16e-ID-B.doc...

  • Page 20: Reader Multiplex Mode

    Please note that the signal input and the signal output are isolated and must be supplied with external DC voltage. Please refer the manual “Mounting Instructions ID ISCLR200.x-x” (M00601-xde-ID-B / M00602-xde-ID-B) for details. Note: Multiplex Mode will only be available in Buffered Read Mode. FEIG ELECTRONIC GmbH Page 20 of 174 H90692-16e-ID-B.doc...

  • Page 21: Asynchronous Interface

    CRC16: Cyclic redundancy check of the protocol bytes from 1 to n-2, as specified by CCITT-CRC16 Polynom: + 1 (0x8408) Start Value: 0xFFFF Direction: Backward see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 21 of 174 H90692-16e-ID-B.doc...

  • Page 22: Crc16 Calculation Algorithm

    /* cnt = number of protocol bytes without CRC */ crc ^= DATA[i]; for (j = 0; j < 8; j++) if (crc & 0x0001) crc = (crc >> 1) ^ CRC_POLYNOM; else crc = (crc >> 1); FEIG ELECTRONIC GmbH Page 22 of 174 H90692-16e-ID-B.doc...

  • Page 23: Configuration Parameters (Cfg)

    Malfunctions may occur if parameters are configured outside their described range or if unspecified parameters have been changed! • A firmware update resets the EEPROM to default settings and the Reader goes into the error status “EE-Init-mode”. FEIG ELECTRONIC GmbH Page 23 of 174 H90692-16e-ID-B.doc...
  • Page 24 EEPROM and a Reader the Reader. reset. FEIG ELECTRONIC GmbH Page 24 of 174 H90692-16e-ID-B.doc...

  • Page 25: Cfg0: Passwords

    32-bit password, the "READER-ID". This means that only after a "Login" with a valid READER-ID with the command 4.1. [0xA0] Reader-Login can configuration parameters in the EEPROM of the Reader may be read and changed in the EEPROM of the Reader. FEIG ELECTRONIC GmbH Page 25 of 174 H90692-16e-ID-B.doc...

  • Page 26: Cfg1: General Inputs / Outputs

    Bit: Function: REL frq OUT2 frq OUT1 frq Bit combination flashing frequency b 1 1 1 Hz b 1 0 2 Hz b 0 1 4 Hz b 0 0 8 Hz FEIG ELECTRONIC GmbH Page 26 of 174 H90692-16e-ID-B.doc...
  • Page 27 / or the OUT2 will be active. • BRM mode (reading of serial number and EAS): the relay and / or OUT2 will only be active if the EAS is set on the transponder. FEIG ELECTRONIC GmbH Page 27 of 174 H90692-16e-ID-B.doc...

  • Page 28: Dedicated Input / Output Functions

    An error in the RF final stage is indicated by a blinking LED5. A detailed error code is returned from the Reader in every asynchronous communication protocol. See chapter ANNEX D: Index of Status Bytes for the error codes. FEIG ELECTRONIC GmbH Page 28 of 174 H90692-16e-ID-B.doc...

  • Page 29: Cfg2: Com-Interface

    Changing of BAUD only becomes effective after writing / saving configuration block CFG2 to EEPROM and reset of the Reader A reasonableness check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = [0x11]. FEIG ELECTRONIC GmbH Page 29 of 174 H90692-16e-ID-B.doc...
  • Page 30 0x08 38400 baud A plausibility check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = 0x11. see: 5.2. [0x55] Start Flash Loader FEIG ELECTRONIC GmbH Page 30 of 174 H90692-16e-ID-B.doc...
  • Page 31 The TR-RESPONSE Time must be < “Block Timeout” in the Host COM-Port settings. • The time base of the TR-RESPONSE-TIME has been changed from 100ms to 5ms since the firmware version 4.0. FEIG ELECTRONIC GmbH Page 31 of 174 H90692-16e-ID-B.doc...

  • Page 32: Cfg3: Rf-Interface I

    Firmware Upgrade” first. For this you have to use the demo program ID ISOStart and the Upgrade Code must be ordered by Feig Electronic. A reasonableness check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = [0x11].
  • Page 33 If a basic antenna and a complementary antenna and FSK is used FSK-RX-CHN must be set to 0x02. A plausibility check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = [0x11]. FEIG ELECTRONIC GmbH Page 33 of 174 H90692-16e-ID-B.doc...

  • Page 34: Cfg4: Rf-Interface Ii

    IGNORE-WEAK-COLL: ( only by ASK modulation) Defines whether a weak collision has valid data or not. 0x00: a weak collision has valid data 0x01: a weak collision has corrupted data and the data will be ignored FEIG ELECTRONIC GmbH Page 34 of 174 H90692-16e-ID-B.doc...

  • Page 35: Cfg5: Rf-Interface Iii

    0x00 0x00 0x00 0x00 0x00 0x00 CFG7: Byte Contents SELECTION MASK SELECTION MASK LSB Default 0x00 0x00 0x00 0x00 0x00 0x00 0x00 Byte Contents Default 0x00 0x00 0x00 0x00 0x00 0x00 0x00 FEIG ELECTRONIC GmbH Page 35 of 174 H90692-16e-ID-B.doc...

  • Page 36: Cfg8: General Transponder Parameters

    0x00 0x00 0x00 OPTION OPTION OPTION Blocksize Default 0x03 0x00 0x00 0x04 ICODE-MODE: (only I-Code 1 Transponders) Bit: Function Mapping FAST FAST Normal Mode (1 / 256) Fast Mode (1 / 1) FEIG ELECTRONIC GmbH Page 36 of 174 H90692-16e-ID-B.doc...
  • Page 37 APP-ID: (only I-Code 1 Transponders) Application ID to select a Transponder Note: • If FAM-CODE and APP-ID are zero, all I-Code 1 Transponders will respond. Otherwise only the Transponders with matching FAM-CODE and APP-ID will respond. FEIG ELECTRONIC GmbH Page 37 of 174 H90692-16e-ID-B.doc...
  • Page 38 1 timeslot Note: • If number of timeslots (NO-TS) is 1 anticollision is only possible with ASK sub-carrier mode. Disabled Enabled ISO-AFI: (only ISO15693 Transponders) Application Family Identifier to select a Transponder FEIG ELECTRONIC GmbH Page 38 of 174 H90692-16e-ID-B.doc...
  • Page 39 Note: This mode should only be used with the buffered read mode Tag-it options disabled Tag-it options enabled Note: For enabling the ISO-TAGIT-OPTION the ISO-ICODE-OPTION must be disabled. FEIG ELECTRONIC GmbH Page 39 of 174 H90692-16e-ID-B.doc...
  • Page 40 A value of 0x00 will be automatically set to a block size of 4byte. Blocksize: Automatic (If transponder is known) Manuel (As specified in DB-Blocksize) Read Mode: b00: Automatic Mode (If transponder is known) Single Read Multiple Read FEIG ELECTRONIC GmbH Page 40 of 174 H90692-16e-ID-B.doc...

  • Page 41: Cfg9: Reserved

    3.9. CFG9: Reserved The configuration block CFG9 is reserved for future use. Byte Contents 0x00 0x00 0x00 0x00 0x00 0x00 0x00 Default Byte Contents 0x00 0x00 0x00 0x00 0x00 0x00 0x00 Default FEIG ELECTRONIC GmbH Page 41 of 174 H90692-16e-ID-B.doc...

  • Page 42: Cfg10: General System Parameters

    Scanner Mode is enabled there are no ISO15693 Host commands available. Note: • Changing of OP-Mode only becomes effective after writing / saving configuration block CFG10 to EEPROM and reset of the Reader. FEIG ELECTRONIC GmbH Page 42 of 174 H90692-16e-ID-B.doc...
  • Page 43 If this bit is not set, the reader stores a data set for each multiplexer antenna. Examples: 1) ANT-STORE = 1, Tag was detected by antenna 1 and 4 Antenna detected one data set, antenna number = 0x09 FEIG ELECTRONIC GmbH Page 43 of 174 H90692-16e-ID-B.doc...
  • Page 44 If ANT-STORE = 1 and Tag was detected by antenna 1 and data set was transmitted to host, the reader doesn't store new data sets for another antenna, if valid time was not expired. FEIG ELECTRONIC GmbH Page 44 of 174 H90692-16e-ID-B.doc...

  • Page 45: Cfg11: Buffered Read Mode

    (1-8) where the transponder has been detected, will be stored. A plausibility check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = [0x11]. FEIG ELECTRONIC GmbH Page 45 of 174 H90692-16e-ID-B.doc...
  • Page 46 If several Transponders has the same content in the addressed data block, only one dataset will be generated. Bit: Function DB-ADR SOURCE A plausibility check is performed by writing this parameter to the Reader. If an error occurs the Reader answers with STATUS = [0x11]. FEIG ELECTRONIC GmbH Page 46 of 174 H90692-16e-ID-B.doc...
  • Page 47 Number of repeated reads of data blocks if a read error occurred. RE-READ = 0 means the Reader forces one read but no second read in case of an error during first read. FEIG ELECTRONIC GmbH Page 47 of 174 H90692-16e-ID-B.doc...
  • Page 48 If the reader doesn’t detect a synchronization pulse on the “IN1”within the SYNC- TIMEOUT, the reader starts the RF communication automatically after the SYNC- TIMEOUT. In addition, the error message “0x85 Synchronization Error” appears. FEIG ELECTRONIC GmbH Page 48 of 174 H90692-16e-ID-B.doc...

  • Page 49: Cfg12: Scan Mode

    Between two reads the Reader automatically forces a RF-Reset. Trigger: Trigger disabled Trigger enabled Trigger disabled (The Reader scans all the time. However, this mode increase the current consumption) FEIG ELECTRONIC GmbH Page 49 of 174 H90692-16e-ID-B.doc...
  • Page 50 If either bit 0..1 (SNR, DB) is not set, the scan-mode remains switched off. SNR = Serial Number Output of the Serial-Number inactive Output of the Serial-Number active Setting this bit activates the output of the Serial-Number FEIG ELECTRONIC GmbH Page 50 of 174 H90692-16e-ID-B.doc...
  • Page 51 COM-ADR of the Reader will transmit When this option is on, the Reader will transmit the COM-ADR before each data set. Byte Order MSB first LSB first Defines the Byte Order within frame FEIG ELECTRONIC GmbH Page 51 of 174 H90692-16e-ID-B.doc...
  • Page 52 A maximum number of 254 bytes can be transmitted over the interface, including serial number, time, etc. By sending more than 254 bytes the last bytes will be cut off. The End-character will be sent in any case. FEIG ELECTRONIC GmbH Page 52 of 174 H90692-16e-ID-B.doc...
  • Page 53 0x30 b0001 0x31 b0010 0x32 b0011 0x33 b0100 0x34 b0101 0x35 b0110 0x36 b0111 0x37 b1000 0x38 b1001 0x39 b1010 0x41 b1011 0x42 b1100 0x43 b1101 0x44 b1110 0x45 b1111 0x46 FEIG ELECTRONIC GmbH Page 53 of 174 H90692-16e-ID-B.doc...
  • Page 54 ‘ ‘ 0x20 none 0x00 USER user defined in SEP-USR Note: Only one option could be selected. END-USR: User defined end character. Note: SEP-CHAR and END-CHAR cannot be used together with the Data-/Clock-Interface. FEIG ELECTRONIC GmbH Page 54 of 174 H90692-16e-ID-B.doc...

  • Page 55: Magnetic Strip Emulation

    1101/0 b 1111/1 b 1111/1 b 0001/0 b010 b 101000/1 b 100010/1 b 100110/0 b 010001/1 b 011001/0 b 111110/0 b 011010/0 b011 Time XOR operation on Start-, Data and Stop-sign FEIG ELECTRONIC GmbH Page 55 of 174 H90692-16e-ID-B.doc...

  • Page 56: Wiegand Emulation

    Timing The following diagram represents the signal response of the 3 data lines of the data-/clock- interface in Wiegand emulation. /CLOCK = DATA0 /DATA = DATA1 = 0,5 ms = 10..12 ms FEIG ELECTRONIC GmbH Page 56 of 174 H90692-16e-ID-B.doc...

  • Page 57: Cfg13: Anticollision

    To set up a fixed timeslot, both MIN-TS and MAX-TS must contain the value of the desired timeslot. Note: • If Anticollision Mode is disabledd in the 3.10. CFG10: General System Parameters configuration block the Reader uses MIN-TS for Transponder communication. FEIG ELECTRONIC GmbH Page 57 of 174 H90692-16e-ID-B.doc...
  • Page 58 TR-WEAK: Number of Transponders per weak collision on the air interface. TR-COLL: Number of Transponders per collision on the air interface. TR-CRC: Number of Transponders per CRC error on the air interface. FEIG ELECTRONIC GmbH Page 58 of 174 H90692-16e-ID-B.doc...

  • Page 59: Cfg14: Reserved

    3.14. CFG14: Reserved The configuration block CFG14 is reserved for future use. Byte Contents 0x00 0x00 0x00 0x00 0x00 0x00 0x00 Default Byte Contents 0x00 0x00 0x00 0x00 0x00 0x00 0x00 Default FEIG ELECTRONIC GmbH Page 59 of 174 H90692-16e-ID-B.doc...

  • Page 60: Cfg15: Antenna Multiplexing

    (when communication on the RF interface ends) reserved MUX-VALID-TIME: After this time has expired (value x 5ms), the next channel is selected. (This parameter has no effect if the “MUX Switch Condition” is set to “no responce”) FEIG ELECTRONIC GmbH Page 60 of 174 H90692-16e-ID-B.doc...
  • Page 61 The following table shows the allocation between the input channel and the output channel in the Dual Mode. physical Input Channels Dual Mode: physical Output OUTPUT- CHANNELS Channels FEIG ELECTRONIC GmbH Page 61 of 174 H90692-16e-ID-B.doc...

  • Page 62: Protocols For Reader Configuration

    3.1. CFG0: Passwords. NOTE: • A Reader-Login with wrong READER-ID cause a "Logout". • A "Logout" can be effected via the command 5.3. [0x63] CPU Reset. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 62 of 174 H90692-16e-ID-B.doc...

  • Page 63: 0X80] Read Configuration

    Otherwise the error code 0x13 will occur. • Reading from reserved configuration blocks will result in an 0x15 error code. see ANNEX D: Index of Status Bytes see 3. Configuration Parameters (CFG) FEIG ELECTRONIC GmbH Page 63 of 174 H90692-16e-ID-B.doc...

  • Page 64: 0X81] Write Configuration

    Otherwise the error code 0x13 will occur. • A write to reserved configuration blocks will result in error code 0x16. see ANNEX D: Index of Status Bytes see 3. Configuration Parameters (CFG) FEIG ELECTRONIC GmbH Page 64 of 174 H90692-16e-ID-B.doc...

  • Page 65: 0X82] Save Configuration To Eeprom

    Otherwise the error code 0x13 will occur. • A save configuration to EEPROM with reserved configuration blocks will result in error code 0x16. see ANNEX D: Index of Status Bytes see 3. Configuration Parameters (CFG) FEIG ELECTRONIC GmbH Page 65 of 174 H90692-16e-ID-B.doc...

  • Page 66: 0X83] Set Default Configuration

    0x13 will occur. • A set to default configuration with reserved configuration blocks will result in error code 0x16. see ANNEX D: Index of Status Bytes see 3. Configuration Parameters (CFG) FEIG ELECTRONIC GmbH Page 66 of 174 H90692-16e-ID-B.doc...

  • Page 67: 0X85] Set System Timer

    TIMER: Byte 7...8 TIMER 0...23 0...59 0...59999 Note: • The internal system timer is not a real-time clock (RTC) and the accuracy cannot be guarantied. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 67 of 174 H90692-16e-ID-B.doc...

  • Page 68: Protocols For Reader Control

    This protocol allows you to reset the CPU on the Reader. Host → Reader 4...5 COM-ADR [0x63] CRC16 Host ← Reader 5...6 COM-ADR [0x63] CRC16 STATUS see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 68 of 174 H90692-16e-ID-B.doc...

  • Page 69: 0X65] Get Software Version

    Version LR200-2 (can be used with ID ISC.ANT.MUX and a fix MUX Switch Condition, see:3.15. CFG15: Antenna Multiplexing) RECREV: without receiver revision with receiver revision (Firmware >=4.02 necessary) see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 69 of 174 H90692-16e-ID-B.doc...
  • Page 70 ID ISC.LR200 SW-TYPE: Type of Reader firmware 0x28 ID ISC.LR100 (40) 0x29 ID ISC.LR200 (41) TR-TYPE: Displays the Transponders supported by the software. Bit: Function: Bit: Function: I-Code Tag-it I-Code 1 15693 FEIG ELECTRONIC GmbH Page 70 of 174 H90692-16e-ID-B.doc...

  • Page 71: 0X66] Get Reader Info

    This Information's are necessary for some firmware updates or firmware upgrades. SW-REV: Revision status of the firmware. Depending on the Mode and reader type different controller’s are meant. see ANNEX D: Index of Status Bytes see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 71 of 174 H90692-16e-ID-B.doc...
  • Page 72 Indicates which customer firmware is licensed on the Reader. FW_L: Indicates which Firmware version is licensed on the Reader. TR_DRV_L: Indicates which Transponder drivers are licensed on the Reader. FNC_L Indicates which optional functions are licensed on the Reader. FEIG ELECTRONIC GmbH Page 72 of 174 H90692-16e-ID-B.doc...

  • Page 73: 0X69] Rf Reset

    When the Buffered Read Mode is switched off the data table is initialized with an RF Reset. • The response of this command will be sent after the RF Reset was completed. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 73 of 174 H90692-16e-ID-B.doc...

  • Page 74: 0X6A] Rf On/Off

    RF-Field of Reader antenna is ON Notes: • An active Buffered Read Mode comes to a halt if the RF power is switched off, and remains stopped until the RF power is switched on. FEIG ELECTRONIC GmbH Page 74 of 174 H90692-16e-ID-B.doc...

  • Page 75: 0X6C] Set Noise Level

    11...12 COM-ADR [0x6D] NOISE-LEVEL CRC16 STATUS NOISE-LEVEL: Byte 5...6 7...8 9...10 NOISE-LEVEL min. NL avg. NL max. NL Value min.NL, avg.NL and max.NL in mV. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 75 of 174 H90692-16e-ID-B.doc...

  • Page 76: 0X6E] Reader Diagnostic

    MODE = 0x01: FLAGS A FLAGS B FLAGS A: Bit: Function: TEMP- TEMP- > < SYNC NOISE RF-HW CONTROL ALARM WARN Reader: LR200 LR100 & LR200 FLAGS B: Bit: Function: Reader: LR200 FEIG ELECTRONIC GmbH Page 76 of 174 H90692-16e-ID-B.doc...
  • Page 77 Chn4 Chn5 MUX-Status MUX-Status MUX-Status Chn6 Chn7 Chn8 Notes: If the channel has not been selected the status is 0xFF. For further information about the ID ISC.ANT.MUX see manual “H30701-xde-ID-B.pdf” and “M30201-xde-ID-B.pdf“ FEIG ELECTRONIC GmbH Page 77 of 174 H90692-16e-ID-B.doc...

  • Page 78: 0X6F] Base Antenna Tuning

    LED flashes with a frequency of 8Hz. To leave the base antenna tuning state a 5.3. [0x63] CPU Reset has to be performed by the host. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 78 of 174 H90692-16e-ID-B.doc...

  • Page 79: 0X71] Set Output

    OUT-TIME = inactive FLASH output for OUT-TIME = with OSF alternating Note: • If Reader synchronization is used the output OUT1 is not available for common use. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 79 of 174 H90692-16e-ID-B.doc...
  • Page 80 In order to reset a continuously active time, OUT-TIME = 1 has to be sent to the Reader, which effects a change to the idle status after 100 ms. • The continuous activation is cancelled after a reset or a power failure. FEIG ELECTRONIC GmbH Page 80 of 174 H90692-16e-ID-B.doc...

  • Page 81: Set Output Examples

    If the trigger is enabled in Scan-Mode the input IN2 isn't available for common use. see ANNEX D: Index of Status Bytes see 3.2. CFG1: General Inputs / Outputs see 3.2. CFG1: General Inputs / Outputs FEIG ELECTRONIC GmbH Page 81 of 174 H90692-16e-ID-B.doc...

  • Page 82: Special Commands

    For enablilng the EAS function in I-Code 1 Transponders see ANNEX G: Memory Model I-Code Transponders for details. Host → Reader 4...5 COM-ADR 0x1C CRC16 Host ← Reader 5...6 COM-ADR 0x1C STATUS CRC16 see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 82 of 174 H90692-16e-ID-B.doc...

  • Page 83: 0X18] Destroy (Only Epc And Uid Transponders)

    • If the EPC doesn't match, the reader also answers with status [0x83]. • If the command was not successfully (reader may continue read the EPC), the reader answers with status [0x03]. FEIG ELECTRONIC GmbH Page 83 of 174 H90692-16e-ID-B.doc...

  • Page 84: Protocols For Iso15693 Host Commands

    Some ISO15693 Host commands can be used to access I-Code 1, I-Code EPC and Tag-it HF Transponders. The additional commands Read Config Block and Write Config Block were created by FEIG ELECTRONIC to provide full Transponder configuration capabilities for I-Code 1 via the i-scan memory model (see ANNEX G: Memory Model I-Code 1 Transponders.

  • Page 85: 0Xb0] Host Commands For Iso15693 Mandatory And Optional Commands

    Data is only transferred if STATUS = 0x00, 0x83, 0x84, 0x93, 0x94, 0x95. • This command is not available if the 2.3. Buffered Read Mode 2.4. Scan Mode is switched see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 85 of 174 H90692-16e-ID-B.doc...

  • Page 86: 0X01] Inventory

    Data Storage Family Identifier. If not used, this value will return 0x00. UID: Read-only serial number of the Transponder. For EPC Transponder: if 8 or 12 Bytes of the EPC are transmitted, dependents on the EPC Transponder type. FEIG ELECTRONIC GmbH Page 86 of 174 H90692-16e-ID-B.doc...
  • Page 87 Otherwise status 0x01 (no transponder in reader field) will appear. • If status 0x83, 0x84 or 0x85 appears the data set will be transferred nevertheless. If no transponder was detected, no data set will be transferred. FEIG ELECTRONIC GmbH Page 87 of 174 H90692-16e-ID-B.doc...

  • Page 88: 0X02] Stay Quiet

    This command sets one Transponder to Quiet State. Only needed if anticollision is switched OFF. REQUEST-DATA 6...13 0x02 MODE MODE: Bit: Function ADR: b001 addressed UID: Read-only serial number of the Transponder. Note: • This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 88 of 174 H90692-16e-ID-B.doc...

  • Page 89: 0X22] Lock Multiple Blocks

    Max. DB-N 0x20 ->32 0x10 ->16 = 128 / x ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. DB-ADR-E: Block number where the error occurred. FEIG ELECTRONIC GmbH Page 89 of 174 H90692-16e-ID-B.doc...

  • Page 90: 0X23] Read Multiple Blocks

    Number of data blocks to be read from the Transponder, starting at DB-ADR. The maximum number of DB-N, depends on DB-Size. The maximum number of bytes is 128 bytes. DB-Size Max. DB-N 0x20 ->32 0x10 ->16 = 128 / x FEIG ELECTRONIC GmbH Page 90 of 174 H90692-16e-ID-B.doc...
  • Page 91 It must be deselected by using the command 5.6. [0x69] RF Reset. • A read multiple block command for ISO15693 transponder in the non-addressed mode uses the block size “ISO-Blocksize” which is defined in 3.8. CFG8: General Transponder Parameters FEIG ELECTRONIC GmbH Page 91 of 174 H90692-16e-ID-B.doc...

  • Page 92: 0X24] Write Multiple Blocks

    0x10 ->16 = 128 / x DB-SIZE: Number of bytes of one data block. This value depends on the specification of the Transponder manufacturer, see chapter 7.4. Supported ISO15693 Host commands for ISO15693-Transponders FEIG ELECTRONIC GmbH Page 92 of 174 H90692-16e-ID-B.doc...
  • Page 93 If an EPC Transponder is already locked, the reader answers with status = [0x03]. • The write function onto an I-Code EPC takes about 100ms per byte. • A write command on Tag-it HF Transponders cannot be performed in the selected mode. FEIG ELECTRONIC GmbH Page 93 of 174 H90692-16e-ID-B.doc...

  • Page 94: 0X25] Select

    UID: Read-only serial number of the Transponder. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 94 of 174 H90692-16e-ID-B.doc...

  • Page 95: 0X26] Reset To Ready

    Read-only serial number of the Transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: • This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 95 of 174 H90692-16e-ID-B.doc...

  • Page 96: 0X27] Write Afi

    AFI: Application Family Identifier of the Transponder. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 96 of 174 H90692-16e-ID-B.doc...

  • Page 97: 0X28] Lock Afi

    Read-only serial number of the Transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 97 of 174 H90692-16e-ID-B.doc...

  • Page 98: 0X29] Write Dsfid

    Data Storage Format Identifier of the Transponder. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 98 of 174 H90692-16e-ID-B.doc...

  • Page 99: 0X2A] Lock Dsfid

    Read-only serial number of the Transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 99 of 174 H90692-16e-ID-B.doc...

  • Page 100: 0X2B] Get System Information

    The LSB (32bits) from the Read-only serial number of the Transponder. AFI: Application Family Identifier. If not supported by the Transponder, this value will return 0x00. Manufacturer Code: Manufacturer specific code (see: ANNEX A: Codes of Transponder Types) FEIG ELECTRONIC GmbH Page 100 of 174 H90692-16e-ID-B.doc...
  • Page 101 IC reference (version) of the Transponder. If not supported by the Transponder, this value will return 0x00. Chip Version: Chip version of the Transponder Note: This command is only available for ISO15693 and Tag-it HF Transponders. FEIG ELECTRONIC GmbH Page 101 of 174 H90692-16e-ID-B.doc...

  • Page 102: 0X2C] Get Multiple Block Security Status

    = 128 / x ISO15693-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. SEC-STATUS: Block security status . Note: This command is only available for ISO15693 Transponders. FEIG ELECTRONIC GmbH Page 102 of 174 H90692-16e-ID-B.doc...

  • Page 103: 0Xa0] Read Config Block

    UID: Read-only serial number of the Transponder. CB-ADR: Address of the config block to be read from the Transponder. Requested config block. Note: This command is only available for I-Code 1. FEIG ELECTRONIC GmbH Page 103 of 174 H90692-16e-ID-B.doc...

  • Page 104: 0Xa1] Write Config Block

    0,2,5 and 6. If one block is already locked, the status will be set to 0x00. When using ISO15693 Transponders or Tag-it HF the command 7.1.3. [0x22] Lock Multiple Blocks should be used. FEIG ELECTRONIC GmbH Page 104 of 174 H90692-16e-ID-B.doc...

  • Page 105: 0Xb1] Host Commands For Iso15693 Custom And Proprietary Commands

    Data is only transferred if STATUS = 0x00, 0x83, 0x84, 0x94, 0x95. • This command is not available if the 3.11. CFG11: Buffered Read Mode 3.12. CFG12: Scan Mode is switched on. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 105 of 174 H90692-16e-ID-B.doc...

  • Page 106: Fujitsu Custom Commands

    RESPONSE CODE: The response Code repeated six times if the EAS bit is set. Note: • If an error is detected or the EAS bit is set to 0 the transponder remains silent FEIG ELECTRONIC GmbH Page 106 of 174 H90692-16e-ID-B.doc...

  • Page 107: 0Xa1] Write Eas

    Read only serial no. of the transponder. The UID is required only in the addressed mode. DATA: 0: clears the EAS bit 1: sets the EAS bit ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = {0x95}. FEIG ELECTRONIC GmbH Page 107 of 174 H90692-16e-ID-B.doc...

  • Page 108: 0Xa2] Refresh

    Read only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = {0x95}. FEIG ELECTRONIC GmbH Page 108 of 174 H90692-16e-ID-B.doc...

  • Page 109: Infineon Custom Commands

    Block security status of following data block. Sec-Status is not supported, this value will return 0x00. Requested data block. The block size is defined by DB-SIZE. Notes: • Only one Transponder can be read in the non-addressed mode. FEIG ELECTRONIC GmbH Page 109 of 174 H90692-16e-ID-B.doc...

  • Page 110: 0X30] Write

    DB-SIZE. The number of the expected bytes are DB-N * DB-SIZE. ISO-ERROR: (only ISO15693 Transponders) ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. DB-ADR-E: Block number where the error occurred. FEIG ELECTRONIC GmbH Page 110 of 174 H90692-16e-ID-B.doc...

  • Page 111: 0X90] Write Byte

    Number of data blocks to be locked, starting at DB-ADR. The maximum number of DB-N = 16 (128 bytes). ISO-ERROR: ISO15693 error code of Transponder response. This byte is only available if STATUS = 0x95. DB-ADR-E: Block number where the error occurred. FEIG ELECTRONIC GmbH Page 111 of 174 H90692-16e-ID-B.doc...

  • Page 112: Ksw Custom Commands

    UID: Read-only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = 0x95. FEIG ELECTRONIC GmbH Page 112 of 174 H90692-16e-ID-B.doc...

  • Page 113: 0Xa1] Set Log

    Read-only serial no. of the transponder. The UID is required only in the addressed mode. Logflags: The type of measurement. Logpointer: Pointer of the next measurement value. Logperiode: Range of the measure. . LogLimitLo: Lower limit for measurement value LogLimitHi: Higher limit for measurement value FEIG ELECTRONIC GmbH Page 113 of 174 H90692-16e-ID-B.doc...

  • Page 114: 0Xa2] Get Log Status

    Logpointer: Pointer of the next measurement value LogLimitLo: Lower limit for measurement value LogLimitHi: Higher limit for measurement value Logperiode: Range of the measure. Timerticks: Defines how many times the measurement interval runs off. FEIG ELECTRONIC GmbH Page 114 of 174 H90692-16e-ID-B.doc...

  • Page 115: 0Xa3] Bist

    UID: Read-only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = 0x95. FEIG ELECTRONIC GmbH Page 115 of 174 H90692-16e-ID-B.doc...

  • Page 116: 0Xa4] Lock

    ISO error code of transponder response. This byte is only available if STATUS = 0x95. Note: • The transponder responds with an ISO-Error whenever a write command is issued. It is also not possible to read Block 0x46 and 0x47 (password). FEIG ELECTRONIC GmbH Page 116 of 174 H90692-16e-ID-B.doc...

  • Page 117: 0Xa5] Unlock

    UID: Read-only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = 0x95. FEIG ELECTRONIC GmbH Page 117 of 174 H90692-16e-ID-B.doc...

  • Page 118: Custom Commands For Philips Iso15693 Transponder I-Code Sli

    ISO error code of transponder response. This byte is only available if STATUS = {0x95}. 7.2.4.2. [0xA3] Reset EAS This command sets the EAS bit to 0. REQUEST-DATA (7-14) 0xA3 MODE RESPONSE-DATA (STATUS = {0x95}) ISO-ERROR FEIG ELECTRONIC GmbH Page 118 of 174 H90692-16e-ID-B.doc...

  • Page 119: 0Xa4] Lock Eas

    UID: Read-only serial number of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = {0x95}. FEIG ELECTRONIC GmbH Page 119 of 174 H90692-16e-ID-B.doc...

  • Page 120: 0Xa5] Eas Alarm

    If an error is detected or the EAS bit is set to “0” the transponder remains silent and the status 0x01 will be sent to the host. • If EAS bit is set to “1” the status will be 0x00. FEIG ELECTRONIC GmbH Page 120 of 174 H90692-16e-ID-B.doc...

  • Page 121: 0Xa0] Inventory Read

    DATA-SETS is only send once in a response protocol. DB-SIZE: Number of bytes of one data block. DSFID: Data Storage Format Identifier of the transponder. If not used (OPTION = 0), this value will return {0x00} FEIG ELECTRONIC GmbH Page 121 of 174 H90692-16e-ID-B.doc...
  • Page 122 Requested data block. The block size is defined by DB-SIZE. Note: IF DB-ADR and DB-N exceeds the maximum number of the available data blocks, only the content of the available data blocks will be transferred. FEIG ELECTRONIC GmbH Page 122 of 174 H90692-16e-ID-B.doc...

  • Page 123: St Microelectronics Custom Commands

    UID: Read-only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = {0x95}. FEIG ELECTRONIC GmbH Page 123 of 174 H90692-16e-ID-B.doc...

  • Page 124: 0Xa1] Deactivate Eas

    UID: Read-only serial no. of the transponder. The UID is required only in the addressed mode. ISO-ERROR: ISO error code of transponder response. This byte is only available if STATUS = {0x95}. FEIG ELECTRONIC GmbH Page 124 of 174 H90692-16e-ID-B.doc...

  • Page 125: 0Xbf] Iso15693 Transparent Command

    The Reader tries to sample the response after CMD-RES-DELAY. If there is no response the Reader sends a EOF after EOF-PULSE-DELAY and tries to sample the response after CMD-RES_DELAY see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 125 of 174 H90692-16e-ID-B.doc...
  • Page 126 Reader should code the data in the RF forward link and decode the data in the RF return link. TxCRCEn: A CRC is calculated over the transmitted data and the CRC byte(s) are appended to the data stream No CRC is inserted/transmitted FEIG ELECTRONIC GmbH Page 126 of 174 H90692-16e-ID-B.doc...
  • Page 127 The response data ever contains the in RSP-LENGTH defined number of data bytes. Note: • This command is only available for ISO15693 Transponders. • This command is not available if the 3.11. CFG11: Buffered Read Mode 3.12. CFG12: Scan Mode is switched on. FEIG ELECTRONIC GmbH Page 127 of 174 H90692-16e-ID-B.doc...

  • Page 128: Supported Iso15693 Host Commands For Iso15693-Transponders

    Reading of one block in non addressed mode is only possible, if parameter “Read Mode” in CFG8 is set to “10: Multiple Read“. The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set”. FEIG ELECTRONIC GmbH Page 128 of 174 H90692-16e-ID-B.doc...

  • Page 129: Emmicroelectronics (Em4135)

    Reading of one block in non addressed mode is only possible, if parameter “Read Mode” in CFG8 is set to “10: Multiple Read“. The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set”. FEIG ELECTRONIC GmbH Page 129 of 174 H90692-16e-ID-B.doc...

  • Page 130: Fujitsu

    Parameters” is set to “00: automatically set”. Up to two blocks of data can be written for one request. • ASK SUB-CARRIER and Datacoding 1 of 4 must be configured in the reader (see: “ 3.8. CFG8: General Transponder Parameters”) FEIG ELECTRONIC GmbH Page 130 of 174 H90692-16e-ID-B.doc...

  • Page 131: Fujitsu (Mb89R118)

    Parameters” is set to “00: automatically set”. Up to two blocks of data can be written for one request. • ASK SUB-CARRIER and Datacoding 1 of 4 must be configured in the reader (see: “ 3.8. CFG8: General Transponder Parameters”) FEIG ELECTRONIC GmbH Page 131 of 174 H90692-16e-ID-B.doc...

  • Page 132: Fujitsu (Mb89R119)

    Parameters” is set to “00: automatically set”. Up to two blocks of data can be written for one request. • ASK SUB-CARRIER and Datacoding 1 of 4 must be configured in the reader (see: “ 3.8. CFG8: General Transponder Parameters”) FEIG ELECTRONIC GmbH Page 132 of 174 H90692-16e-ID-B.doc...

  • Page 133: Infineon

    “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). The Custom Specific Commands Read [0x10], Write [0x30] and the Write Byte [0x90] will be used automatically by the Reader. FEIG ELECTRONIC GmbH Page 133 of 174 H90692-16e-ID-B.doc...

  • Page 134: Infineon (Iso Address Mode) 0Xe0

    WR-OPTION = 0 ∗ The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). FEIG ELECTRONIC GmbH Page 134 of 174 H90692-16e-ID-B.doc...

  • Page 135: Infineon (My-D Light)

    “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). Reading of more than one block in non addressed mode is only possible, if parameter “Read Mode” in CFG8 is set to “01: Single Read“. FEIG ELECTRONIC GmbH Page 135 of 174 H90692-16e-ID-B.doc...

  • Page 136: Ksw Microtec (Tempsens)

    √ √ 0x26 Reset to Ready 0x27 Write AFI 0x28 Lock AFI 0x29 Write DSFID 0x2A Lock DSFID √ √ √ √ 0x2B Get System Information 0x2C Get Multiple Block Security Status FEIG ELECTRONIC GmbH Page 136 of 174 H90692-16e-ID-B.doc...

  • Page 137: Philips

    Get Multiple Block Security Status ∗ The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). FEIG ELECTRONIC GmbH Page 137 of 174 H90692-16e-ID-B.doc...

  • Page 138: Philips (I-Code Sli-S)

    “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). Reading of more than one block in non addressed mode is only possible, if parameter “Read Mode” in CFG8 is set to “01: Single Read“. FEIG ELECTRONIC GmbH Page 138 of 174 H90692-16e-ID-B.doc...

  • Page 139: Stmicroelectronics

    “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). Reading of more than one block in non addressed mode is only possible, if parameter “Read Mode” in CFG8 is set to “01: Single Read“. FEIG ELECTRONIC GmbH Page 139 of 174 H90692-16e-ID-B.doc...

  • Page 140: Stmicroelectronics (Lri64)

    Mode” in CFG8 is set to “01: Single Read“ and the parameter DB-Blocksize is set to 1. The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set”. FEIG ELECTRONIC GmbH Page 140 of 174 H90692-16e-ID-B.doc...

  • Page 141: Stmicroelectronics (Lri2K)

    √ √ √ 0x2C Get Multiple Block Security Status The WR-OPTION will be set automatically by the FEIG Readers if the RW-OPTION parameter in “CFG8 General” is set to “00: automatically set”. FEIG ELECTRONIC GmbH Page 141 of 174 H90692-16e-ID-B.doc...

  • Page 142: Texas Instruments

    OPTION = 1”. Note: • The “Write_2_Blocks” command and “Lock_2_Blocks” command will be used automatically by the Reader. This will only become an effect if the block address starts with an even- numbered address. FEIG ELECTRONIC GmbH Page 142 of 174 H90692-16e-ID-B.doc...
  • Page 143 ® OBID i-scan System-Manual ID ISC.LR200 • In the case of writing/locking an odd number of blocks the “Write_2_Blocks”/“Lock_2_Blocks” command will be combined with the “write single Block”/ “Lock single Block” command. FEIG ELECTRONIC GmbH Page 143 of 174 H90692-16e-ID-B.doc...

  • Page 144: Texas Instruments (Tag-It Hf-I Pro)

    The WR-OPTION will be set automatically by the FEIG Readers if the WR-OPTION parameter in “CFG8 General” is set to “00: automatically set” (3.8. CFG8: General Transponder Parameters). When using the “non-addressed” mode the WR-OPTION must be set manually to “WR- OPTION = 1”. FEIG ELECTRONIC GmbH Page 144 of 174 H90692-16e-ID-B.doc...

  • Page 145: Supported Iso15693 Host Commands For I-Code 1 Transponders

    Get System Information Get Multiple Block Security 0x2C Status √ √ 0xA0 Read Config Block √ √ 0xA1 Write Config Block Note: Read Multiple Blocks cannot be used with the option including Security Status. FEIG ELECTRONIC GmbH Page 145 of 174 H90692-16e-ID-B.doc...

  • Page 146: Supported Iso15693 Host Commands For Epc Transponders

    Reset to Ready 0x27 Write AFI 0x28 Lock AFI 0x29 Write DSFID 0x2A Lock DSFID 0x2B Get System Information Get Multiple Block Security 0x2C Status 0xA0 Read Config Block 0xA1 Write Config Block FEIG ELECTRONIC GmbH Page 146 of 174 H90692-16e-ID-B.doc...

  • Page 147: Supported Iso15693 Host Commands For I-Code Uid Transponders

    Reset to Ready 0x27 Write AFI 0x28 Lock AFI 0x29 Write DSFID 0x2A Lock DSFID 0x2B Get System Information Get Multiple Block Security 0x2C Status 0xA0 Read Config Block 0xA1 Write Config Block FEIG ELECTRONIC GmbH Page 147 of 174 H90692-16e-ID-B.doc...

  • Page 148: Supported Iso15693 Host Commands For Tag-It Hf Transponders

    0x28 Lock AFI 0x29 Write DSFID 0x2A Lock DSFID √ √ √ 0x2B Get System Information Get Multiple Block Security 0x2C Status √ 0xA0 Read Config Block √ 0xA1 Write Config Block FEIG ELECTRONIC GmbH Page 148 of 174 H90692-16e-ID-B.doc...

  • Page 149: Protocols For Buffered Read Mode

    If the RF power is switched off with a 5.7. [0x6A] RF ON/OFF command and the Reader synchronization is used an incoming synchronization pulse is handled directly through the Reader to the synchronization output. FEIG ELECTRONIC GmbH Page 149 of 174 H90692-16e-ID-B.doc...

  • Page 150: Transponder Access In The Buffered Read Mode

    3.10. CFG10: General System Parameters configuration block. In the Buffered Read Mode all Transponder types enabled in the 3.4. CFG3: RF-Interface I configuration block are used. FEIG ELECTRONIC GmbH Page 150 of 174 H90692-16e-ID-B.doc...

  • Page 151: 0X21] Read Buffer

    ANT = Antenna number Antenna 0x01 0x02 0x04 0x08 0x10 0x20 0x40 0x80 TIMER = internal system timer (see chapter 4.6. [0x85] Set System Timer for details) see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 151 of 174 H90692-16e-ID-B.doc...
  • Page 152 The Block-Size in “BRM” is always 4 bytes. If the block size of the Transponder is not equal to 4 bytes, the Reader always splits the data into 4 byte blocks. • If I-Code EPC is used the Serial Number can consist of 13 bytes. FEIG ELECTRONIC GmbH Page 152 of 174 H90692-16e-ID-B.doc...

  • Page 153: 0X31] Read Data Buffer Info

    The data structure can be inconsistent if some Transponders have left the antenna field before all requested data blocks could be read. However TAB-LEN does not contain the number of valid data sets in the data buffer. see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 153 of 174 H90692-16e-ID-B.doc...

  • Page 154: 0X32] Clear Data Buffer

    The command Initialize Buffer clears the data buffer to an initial state. It does not matter if the data sets in the data buffer were read or not. Host → Reader 4...5 COM-ADR [0x33] CRC16 Host ← Reader 5...6 COM-ADR [0x33] STATUS CRC16 see ANNEX D: Index of Status Bytes FEIG ELECTRONIC GmbH Page 154 of 174 H90692-16e-ID-B.doc...

  • Page 155: Annex

    ® OBID i-scan System-Manual ID ISC.LR200 ANNEX: ANNEX A: Codes of Transponder Types Value Transponder type 0x00 Philips I-Code 1 0x01 Texas Instruments Tag-it HF 0x03 ISO15693 Transponders 0x06 Philips I-Code EPC FEIG ELECTRONIC GmbH Page 155 of 174 H90692-16e-ID-B.doc...

  • Page 156: Annex B: Time Behavior Of The Asynchronous Interface

    Optional Commands 3.3. CFG2: see ANNEX C: Time Behavior [0xB1] Host commands for COM-Interface of ISO15693 Host Commands ISO15693 Custom and for details Proprietary Commands RESPONSE- TIME [0xBF] ISO15693 Transparent Command FEIG ELECTRONIC GmbH Page 156 of 174 H90692-16e-ID-B.doc...

  • Page 157: Annex C: Time Behavior Of Iso15693 Host Commands

    The timing is measured inclusive of the communication time at 115Kbaud. A modified baud rate will slightly increase the timing but the Inventory timing is mostly determined by the anticollision, so you may neglect the communication time. Execution time Communication time FEIG ELECTRONIC GmbH Page 157 of 174 H90692-16e-ID-B.doc...
  • Page 158 Transponder very close to the antenna The timing diagram with 16 timeslots and 1 to 150 Transponders shows the timing of the inventory including the communication time. The timing will be achieved in buffered read mode. FEIG ELECTRONIC GmbH Page 158 of 174 H90692-16e-ID-B.doc...
  • Page 159 The “More Bit” is set if the number of Transponders exceeds 24. So if the “More bit” is set in the response of the Reader to the inventory command, the communication time is influenced by the speed of the host system. More data requested Execution time Communication time Host FEIG ELECTRONIC GmbH Page 159 of 174 H90692-16e-ID-B.doc...

  • Page 160: Time Behavior For Common Commands With Independent Transponder Performance.160

    Stay Quiet Select Reset to Ready Get System 12.3 10.5 Information 1 block multiple 2 blocks 1.75 block 8 blocks 11.5 security 32 blocks 19.5 16.5 4.65 status FEIG ELECTRONIC GmbH Page 160 of 174 H90692-16e-ID-B.doc...

  • Page 161: Annex D: Index Of Status Bytes

    The address is beyond the configured address space of the Transponder. 0x05 Wrong Transponder-type: This command is not applicable at the Transponder: • A special command is not applicable to the Transponder. FEIG ELECTRONIC GmbH Page 161 of 174 H90692-16e-ID-B.doc...
  • Page 162 1. Read the Device-ID using the command [0x66] Get Reader Info (Mode 0x80) 2. Send the Device-ID and the serial number of the reader to Feig Electronic 3. Write the upgrade code into the reader using the command [0x5F] Set Firmware Update...
  • Page 163 Data Buffer Overflow: • A data buffer overflow occurred. 0x94 More Data: • There are more Transponder data sets requested than the response protocol can transfer at once. see 3.11. CFG11: Buffered Read Mode FEIG ELECTRONIC GmbH Page 163 of 174 H90692-16e-ID-B.doc...
  • Page 164 ® OBID i-scan System-Manual ID ISC.LR200 0x95 ISO15693-Error: • An additional error code for ISO15693 Transponders will be sent with response data. FEIG ELECTRONIC GmbH Page 164 of 174 H90692-16e-ID-B.doc...

  • Page 165: Error-Code For Iso15693 Transponders

    The specified block is locked and its content cannot be changed 0x13 The specified block was not successfully programmed 0x14 The specified block was not successfully locked 0xA0 - 0xDF Custom command error codes all others reserved for future use FEIG ELECTRONIC GmbH Page 165 of 174 H90692-16e-ID-B.doc...

  • Page 166: Annex E: Index Of Control Bytes

    [0xA0] 4.1. [0xA0] Reader-Login [0xB0] 7.1. [0xB0] Host commands for ISO15693 Mandatory and Optional Commands [0xB1] 7.2. [0xB1] Host commands for ISO15693 Custom and Proprietary Commands [0xBF] 7.3. [0xBF] ISO15693 Transparent Command FEIG ELECTRONIC GmbH Page 166 of 174 H90692-16e-ID-B.doc...

  • Page 167: Annex F: Index Of Configuration Parameters

    3.11. CFG11: Buffered Read Mode 3.12. CFG12: Scan Mode 3.13. CFG13: Anticollision 3.14. CFG14: Reserved RP/WP 3.15. CFG15: Antenna Multiplexing RP/WP WO = write only access; R/W = read and write access; ‘-‘ = no access FEIG ELECTRONIC GmbH Page 167 of 174 H90692-16e-ID-B.doc...

  • Page 168: Annex G: Memory Model I-Code 1 Transponders

    7.1.5. [0x24] Write Multiple Blocks. S-No.: This block contains the unique read-only 64-bit Serial Number of the Transponder. Byte Function MSB Serial Number 8-15 16-23 24-31 32-39 40-47 48-55 56-63 LSB Serial Number FEIG ELECTRONIC GmbH Page 168 of 174 H90692-16e-ID-B.doc...
  • Page 169 ”1” = r/w, ”0” = ro 16-23 ”1” = r/w, ”0” = ro ”1” = r/w, ”0” = ro "1" = r/w, ”0” = ro ”0” = ro S-NO ”0” = ro S-NO FEIG ELECTRONIC GmbH Page 169 of 174 H90692-16e-ID-B.doc...
  • Page 170 This feature offers the possibility to create „Transponder families“ and are only enabled if they are not equal to zero (see chapter). Byte Function Family Code 8-15 Application ID 16-23 24-31 Bits 16 - 31 can be used for user data without restriction. FEIG ELECTRONIC GmbH Page 170 of 174 H90692-16e-ID-B.doc...

  • Page 171: Annex H: Examples For Read Data

    Buffered Read Mode (BRM) (DB-Size of the transponder = 4 bytes) and Buffered Read Mode (BRM) (DB-Size of the transponder = 8 bytes). ISO-Host Command ( DB-Size of the transponder = 4 bytes) FEIG ELECTRONIC GmbH Page 171 of 174 H90692-16e-ID-B.doc...

  • Page 172: Buffered Read Mode (Brm) (Db-Size Of The Transponder = 4 Bytes)

    ® OBID i-scan System-Manual ID ISC.LR200 Buffered Read Mode (BRM) (DB-Size of the transponder = 4 bytes) ISO-Host Command (DB-Size of the transponder = 8 bytes) FEIG ELECTRONIC GmbH Page 172 of 174 H90692-16e-ID-B.doc...

  • Page 173: Buffered Read Mode (Brm) (Db-Size Of The Transponder = 8 Bytes)

    ® OBID i-scan System-Manual ID ISC.LR200 Buffered Read Mode (BRM) (DB-Size of the transponder = 8 bytes) FEIG ELECTRONIC GmbH Page 173 of 174 H90692-16e-ID-B.doc...

  • Page 174: Annex I: Codes Of Reader Types

    ID ISC.LR100 ID ISC.LR200 ID ISC.LRU1000 ID CPR.M02 ID CPR.02 ID CPR.M03 (586/#) ID CPR04-U ID ISC MR101-U / PR101-U ID ISC.MR101-A / PR101-A ID ISC.PRH101-A (RS232 or Bluetooth) ID ISC.PRH101-U (USB-Version) FEIG ELECTRONIC GmbH Page 174 of 174 H90692-16e-ID-B.doc...
