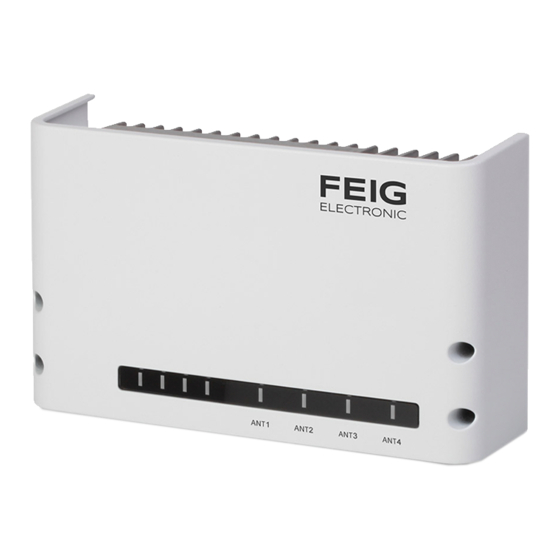

- Page 1 INSTALLATION ID ISC.LRU1002 UHF Long Range Reader final – public (B) 2014-03-18 – M31010-1e-ID-B.docx...
- Page 2 FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human.
-
Page 3: Table Of Contents
5.1. Status LEDs ........................19 5.2. Reset Push Buttons ......................20 5.3. Reader Power adjustment ....................21 5.3.1. EU-Reader according to EN302 208 ................21 5.3.2. FCC-Reader according to FCC 47 Part 15 ..............22 FEIG ELECTRONIC GmbH Page 3 of 29 M31010-1e-ID-B.docx... - Page 4 7.3.1. USA (FCC) and Canada (IC) warning notices ............28 7.3.2. Label Information ....................... 29 7.3.3. Installation with FCC / IC Approval ................29 7.3.4. USA (FCC) and Canada (IC) approved antennas ............29 FEIG ELECTRONIC GmbH Page 4 of 29 M31010-1e-ID-B.docx...
- Page 5 Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in an immediate proximity of the device respective the antenna for some time. FEIG ELECTRONIC GmbH Page 5 of 29 M31010-1e-ID-B.docx...
-
Page 6: Performance Features Of Reader Family Id Isc.lru1002
Table 2: Optional Reader Accessories Reader type Description Protection cap for IP 64 Art.No.: 3558.000.00 ID ISC.LR.CSC-IP64 Connector Sealing Cap Rail Mounting Set for ID ISC.LRU1002 and ID ISC.LRU3000/3500 ID ISC.LRU3x00-MS Mounting Rail Set Art.No.: 3831.000.00 FEIG ELECTRONIC GmbH Page 6 of 29 M31010-1e-ID-B.docx... -
Page 7: Installation
The Reader is designed for wall-mount, including outdoors. Holes for mounting on a wall are provided in the housing. It is not necessary to open the reader housing for mounting. 68 (2.68) 261,3 (10.29) 241,7 (9.52) Figure 1: Installation Drawing FEIG ELECTRONIC GmbH Page 7 of 29 M31010-1e-ID-B.docx... -
Page 8: Terminals
Power supply 24VDC +-5% USB interface for host communication Digital input, digital output, relay output and RS232 interface Table 4: Push button function Push button Description Internal push button for complete configuration reset FEIG ELECTRONIC GmbH Page 8 of 29 M31010-1e-ID-B.docx... -
Page 9: Antenna Connection
Exceeding the tightening torque will destroy the plug. Table 5: External antenna connection Terminal Description ANT 1 - 4 Connection for external antennas (input impedance 50) Figure 3: External antenna connection ANT1-4 FEIG ELECTRONIC GmbH Page 9 of 29 M31010-1e-ID-B.docx... -
Page 10: Power Supply
The reader has to be supplied by a limited power supply (e.g. NEC Class 2/LPS power sup- ply) according IEC EN 60950-1 chapter 2.5, only. Reversing the polarity of the supply voltage may destroy the device. Each reader has to be supplied by a separate external power supply. FEIG ELECTRONIC GmbH Page 10 of 29 M31010-1e-ID-B.docx... -
Page 11: Interfaces
12 Mbit (USB full speed). A standard shielded USB-cable can be used. Figure 5: USB-Interface for host communication NOTE: The length of the USB-cable can have a max. of 5m (20 inch). It is not allowed to use longer cables. FEIG ELECTRONIC GmbH Page 11 of 29 M31010-1e-ID-B.docx... -
Page 12: Rs232 Interface On Connector X4
Table 8: Pin Assignment RS232 Interface Pin Number Pin Assignment at Connector X4 RS232 – RxD RS232 – TxD Figure 7: Wiring example for connecting the RS232 interface to a 9 pin D-SUB plug FEIG ELECTRONIC GmbH Page 12 of 29 M31010-1e-ID-B.docx... -
Page 13: Data-Clock Interface On Connector X4
The digital outputs OUT1 and OUT2 are not available, if the data-clock interface is activated. The data as well as the clock need to be supplied with an external voltage. The output is configured for max. 24 V DC / 30 mA. FEIG ELECTRONIC GmbH Page 13 of 29 M31010-1e-ID-B.docx... - Page 14 The necessity of the external pull down resistor is depending on the inner circuit of the used Wiegand Controller FEIG ELECTRONIC GmbH Page 14 of 29 M31010-1e-ID-B.docx...
-
Page 15: Digital Input On Connector X4
NOTE: The input is configured for a maximum input voltage of 24 V DC and an input current of max. 20 mA. Polarity reversal or overload on the input will destroy it. FEIG ELECTRONIC GmbH Page 15 of 29 M31010-1e-ID-B.docx... -
Page 16: Outputs On Connector X4
Terminal X4. The output must therefore be powered by an external power supply. Figure 11: Optocoupler -Outputs OUT1-2 Table 11: Pin Assignment digital Output OUT1 / OUT2 Pin Number Pinbelegung at Connector X4 OUT1-E OUT1-C OUT2-E OUT2-C FEIG ELECTRONIC GmbH Page 16 of 29 M31010-1e-ID-B.docx... - Page 17 CAUTION: The output is configured for max. 24 V DC / 30 mA. Polarity reversal or overload on the output will destroy it. The output is intended for switching resistive loads only. FEIG ELECTRONIC GmbH Page 17 of 29 M31010-1e-ID-B.docx...
-
Page 18: Relay Output On Connector X4
The relay output is intended for switching resistive loads only. If an inductive load is con- nected, the relay contacts must be protected by means of an external protection circuit. Figure 14: Internal and possible external wiring of the relay output FEIG ELECTRONIC GmbH Page 18 of 29 M31010-1e-ID-B.docx... -
Page 19: Operating And Display Elements
(light in sequence) Configurations-Reset: FLASH FLASH FLASH While T1 is pushed and hold for maximal 5s (light in sequence) After T1 has been pushed and hold for 5s. Configuration Reset has been finished. FEIG ELECTRONIC GmbH Page 19 of 29 M31010-1e-ID-B.docx... -
Page 20: Reset Push Buttons
To finish the hardware configuration reset a reboot of the reader is mandatory. This can either be performed by plugging off the power supply or by sending the command System Reset [0x64] in Mode [0x00] RF-Controller to the reader. Figure 16: System Reset [0x64] FEIG ELECTRONIC GmbH Page 20 of 29 M31010-1e-ID-B.docx... -
Page 21: Reader Power Adjustment
** Correction Factor to convert the radiated power from e.r.p to e.i.r.p. an Excel file „Calc-RF-Power.xls“ can be used. For the calculation of the reader output power P Available from Feig Electronic GmbH. Example: ** linear antenna = „0“, circular antenna = „1“... -
Page 22: Fcc-Reader According To Fcc 47 Part 15
According to Example 2 it will only be necessary to adapt the output power of the reader when the antenna ANT.U600/270 is used if the length of the antenna cable is less then 6m. FEIG ELECTRONIC GmbH Page 22 of 29... - Page 23 1 x Relay) 24 V DC / 1 A (switching current), (2A con- stant load) Inputs 1 x Optocoupler max.24 V DC / 20 mA Interfaces RS232, USB (full Speed), Ethernet, Data-Clock FEIG ELECTRONIC GmbH Page 23 of 29 M31010-1e-ID-B.docx...
- Page 24 * Caution: Overheating of the device may result in performance losses. It is recommended to activate the RF of the reader only if there is a transponder in the detection range of an antenna. FEIG ELECTRONIC GmbH Page 24 of 29...
- Page 25 Radio Regulation Europe EN 302 208 USA FCC 47 CFR Part 15 Canada IC RSS-Gen, RSS-210 EN 301 489 Safety Low Voltage EN 60950 Human Exposure EN 50364 FEIG ELECTRONIC GmbH Page 25 of 29 M31010-1e-ID-B.docx...
-
Page 26: Radio Approvals
When properly used this radio equipment conforms to the essential requirements of Article 3 and the other relevant provisions of the R&TTE Directive 1999/5/EC of March 99. Performance Classification according to ETSI EN 301 489: Class 2 FEIG ELECTRONIC GmbH Page 26 of 29 M31010-1e-ID-B.docx... -
Page 27: Declaration Of Conformity (Directive 1999/5/Ec - R&Tte)
® OBID i-scan Installation ID ISC.LRU1002 7.2. Declaration of Conformity (Directive 1999/5/EC - R&TTE) Figure 18: Declaration of Conformity FEIG ELECTRONIC GmbH Page 27 of 29 M31010-1e-ID-B.docx... -
Page 28: Usa (Fcc) And Canada (Ic)
Warning: Changes or modification made to this equipment not expressly approved by FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment. FEIG ELECTRONIC GmbH Page 28 of 29... -
Page 29: Label Information
émetteur, sauf dans les cas énumérés à la certification de ce pro- duit. Following antennas are approved by FCC according FCC Part 15 and IC Canada according RS210 ID ISC.ANT.U170/170-FCC (4.0 dBic) ID ISC.ANT.U270/270-FCC (9.0 dBic) ID ISC.ANT.U600/270-FCC (10,5 dBic) FEIG ELECTRONIC GmbH Page 29 of 29 M31010-1e-ID-B.docx...
