- Page 1 INSTALLATION ® OBID i-scan ID ISC.PRH101-A ID ISC.PRH101-B ID ISC.PRH101-USB final public (B) 2005-11-01 M50800-0e-ID-B.doc...
- Page 2 GmbH does not give any guarantee promise for perfect function in cross environments. FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does not convey any license under its patent rights nor the rights of others.
-
Page 3: Table Of Contents
3.1. Signal buzzer ........................6 3.2. Scan - button ........................6 3.3. LED ............................7 4. Assembly and Wiring 4.1. Reader with asynchronous interface ID ISC.PRH101-A ..........8 4.1.1. Asynchronous interface RS232 ..................8 4.1.2. Supply voltage .......................9 4.2. Reader with Bluetooth™ interface ID ISC.PRH101-B.............10 4.2.1. -
Page 4: Safety Instructions / Warning - Read Before Start-Up
Special advice for carriers of cardiac pacemakers: Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm between the device and your cardiac pacemaker. FEIG ELECTRONIC GmbH Page 4 of 18 M50800-0e-ID-B.doc... -

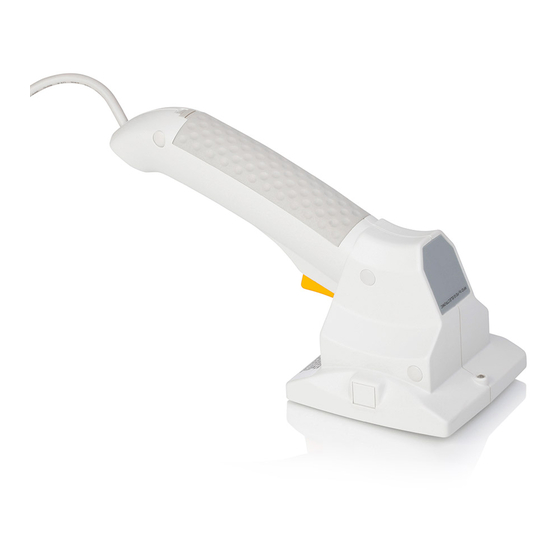

Page 5: Performance Features Of The Id Isc.prh101
An anti-collision function enables simultaneous reading of several transponders per second. The Reader electronic is fitted in a plastic housing with a protection class IP30. The Reader ID ISC.PRH101-A has an asynchronous RS232 interface, the ID ISC.PRH101-B has an Bluetooth interface and the ID ISC.PRH101-USB has an USB interface. -
Page 6: Control And Display Elements
The switch of the reader can be configured by the software. In the standard configuration the serial number of the Transponder is read and is sent to the host after pressing the scan - button. FEIG ELECTRONIC GmbH Page 6 of 18 M50800-0e-ID-B.doc... -
Page 7: Led
- Turns on if battery voltage is flat (no more scanning possible - only ID ISC.PRH101-B) LED orange „INITIALIZING “ - Flashes during Reader initialization after power-up. Table 2: Standard configuration of the LEDs FEIG ELECTRONIC GmbH Page 7 of 18 M50800-0e-ID-B.doc... -
Page 8: Assembly And Wiring
® OBID i-scan Installation ID ISC.PRH101 4. Assembly and Wiring 4.1. Reader with asynchronous interface ID ISC.PRH101-A 4.1.1. Asynchronous interface RS232 D-Sub 9pol. female 5V DC (inside) 2 - RxD 3 - TxD 5 - GND DC Jack 2,5 x 5,5mm (outside) Fig. -
Page 9: Supply Voltage
Preferred is a linear power supply with 5V DC / 1300 mA. When using a switching power supply, be sure that its internal switching frequency is less than 300 kHz. (see:7.1. Accessories). Feig Article No. Part No. 1689.000.00.00 ID NET.5VDC Table 5: Recommended power supply FEIG ELECTRONIC GmbH Page 9 of 18 M50800-0e-ID-B.doc... -
Page 10: Reader With Bluetooth™ Interface Id Isc.prh101-B
All Readers have a factory set name and a preset password. The name "OBID_PRH101B" consists of a fixed (OBID_PRH) and a user modifiable (101B) part. Description Default setting Name variable 101B Password 1234 Table 6: Standard configuration of the Bluetooth Interface FEIG ELECTRONIC GmbH Page 10 of 18 M50800-0e-ID-B.doc... -
Page 11: Supply Voltage
• Reversed polarity may destroy the device. • Rechargeable batteries should never be discarded with normal trash; please return them to a proper collection location ! Fig. 3: Inserting the rechargeable batteries FEIG ELECTRONIC GmbH Page 11 of 18 M50800-0e-ID-B.doc... -
Page 12: Charging The Batteries
Outside Minus – charge voltage Table 8: Charger connection Note: • Reversing the polarity of the charger can destroy the batteries. • The Reader is not functional while the batteries are charging. FEIG ELECTRONIC GmbH Page 12 of 18 M50800-0e-ID-B.doc... -
Page 13: Reset - Button (Id Isc.prh101-B Only)
If the reader is used for the first time, it must be registered in the operating system of the computer. For this the instruction "M30100-xde-ID-B: Installation of the OBID USB driver" can be used FEIG ELECTRONIC GmbH Page 13 of 18... -
Page 14: Technical Data
230 x 100 x 80 mm • Weight 320 g • Degree of Protection IP 30 • Cable length – ID ISC.PRH101-A approx. 8,2´/2,5 m – ID ISC.PRH101-B no cable – ID ISC.PRH101-USB approx. 8,2´/2,5 m • Color similar RAL 9002 Electrical Data •... - Page 15 – USA FCC 47 CFR Part 15 • ETSI EN 301 489 • Safety - low voltage EN 60950 - Human Exposure EN 50364 • Fall Withstands multiple 5´/1,5 m drops to concrete FEIG ELECTRONIC GmbH Page 15 of 18 M50800-0e-ID-B.doc...
-
Page 16: Approvals
When properly used this radio equipment conforms to the essential requirements of Article 3 and the other relevant provisions of the R&TTE Directive 1999/5/EC of March 99. Equipment Classification according to ETSI EN 300 330 and ETSI EN 301 489: Class 2 FEIG ELECTRONIC GmbH Page 16 of 18 M50800-0e-ID-B.doc... - Page 17 ® OBID i-scan Installation ID ISC.PRH101 FEIG ELECTRONIC GmbH Page 17 of 18 M50800-0e-ID-B.doc...
-
Page 18: Appendix
The following accessories are available for the Reader. Artikel Nr. Bezeichnung Beschreibung 1689.000.00 ID NET.5VDC 5 V DC power supply with suitable con- nector for ID ISC.PRH101-A. 2650.000.00 ID CHA.NiMH-A Batterie charger with suitable connector for ID ISC.PRH101-B Table 10: Accessories 7.2. Scope of delivery...
