SMK V SB 33 Plus VESA Mounting Kit • Installation Guide (Continued)

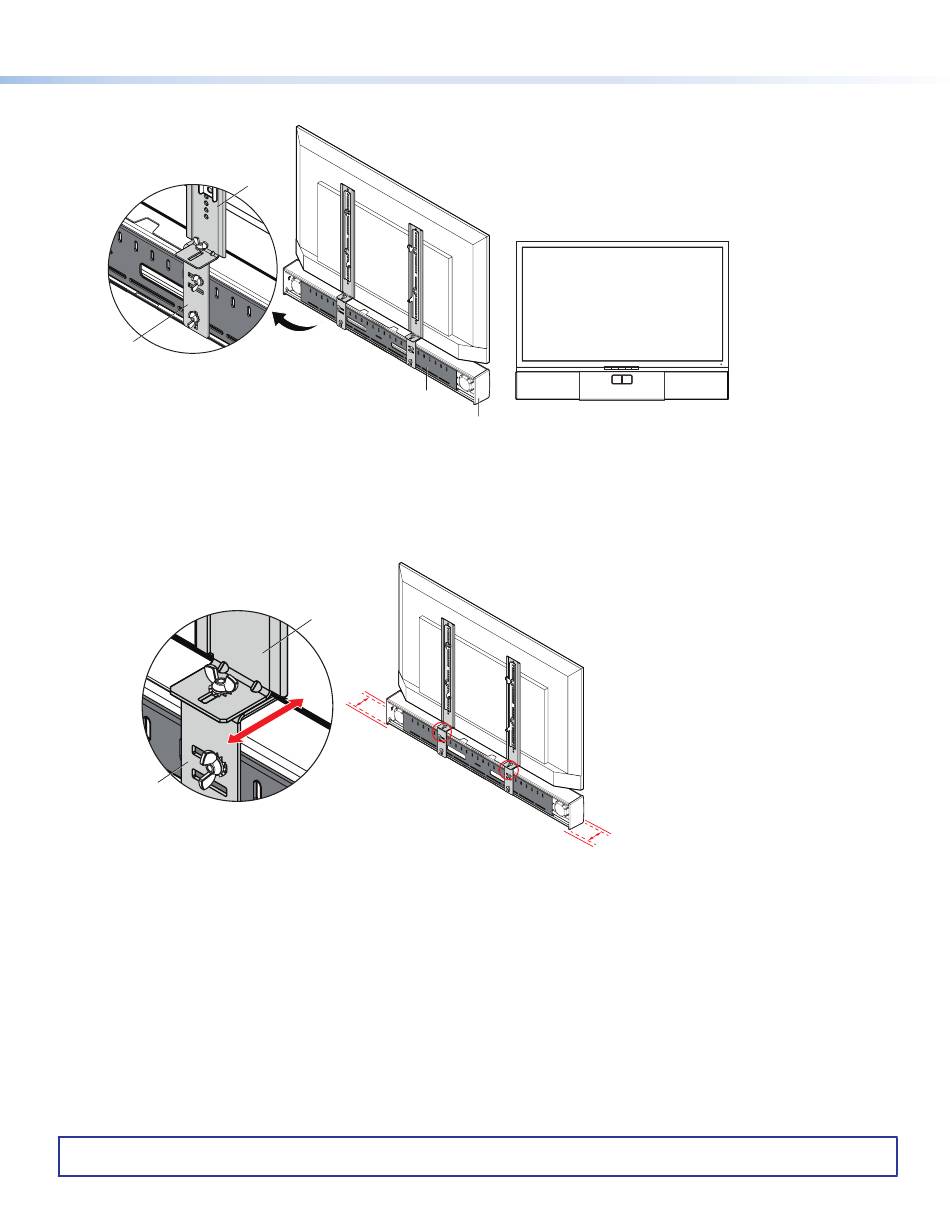

9. Install the SB 33 speaker to the wall plate as shown in figure 6.
Short
L-bracket
Figure 6. Installing the SB 33 speaker wall plate
10. If the alignment between the display and the SB 33 speaker needs to be adjusted in order to align the front of the speaker
assembly relative to front of the display, do the following:
a. Loosen, but do not remove, the two wingnuts attaching the long L-brackets to the short L-brackets.
b. Adjust the soundbar speaker to either the front or the rear of the display and then tighten the wingnuts.
Short
L-bracket
Depth Adjustment
Figure 7.

Adjusting Depth

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
4
Long
L-bracket
Wallplate
Long
L-bracket
on the Extron website.
© 2020 Extron Electronics — All rights re
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
SB 33 Speaker
www.extron.com
served.
Display
68-3104-51 Rev. A
03 20
