UTS 100 Series • Setup Guide

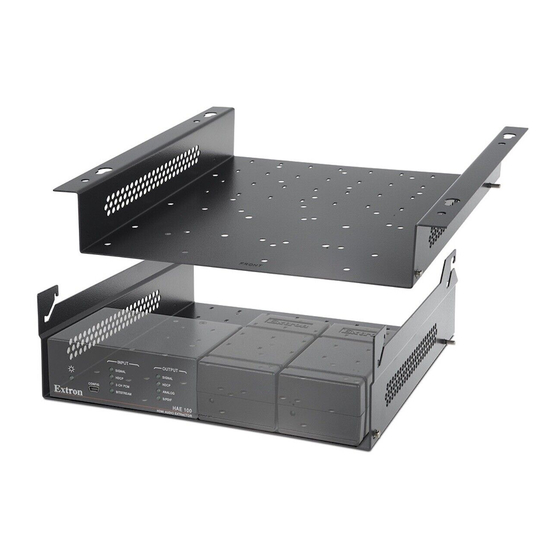

The Extron UTS 100 and UTS 150 under-table shelf system accommodates half-rack,
quarter-rack, and eighth-rack products in a half-rack width installation. The shelves can
accommodate a single device or combinations of smaller devices.

Included Parts

UTS 100 (70-1028-01)
(8) #4-40 x 3/16 inch product mounting screw
(4) #8 x 1/2 inch shelf mounting screw

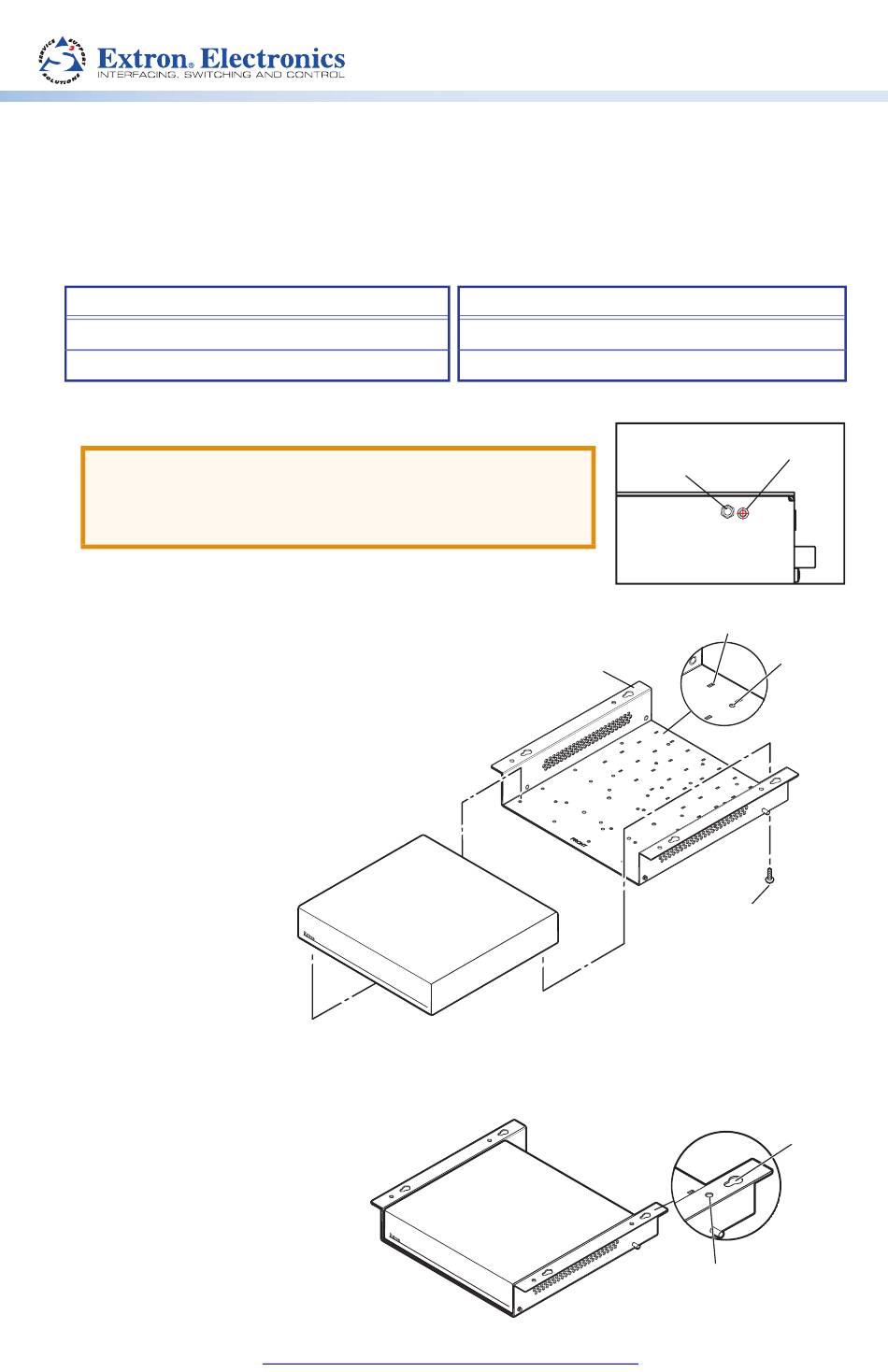

Step 1 — Mount Devices on the Shelf
ATTENTION:
in their base, which anchor stand-offs for internal circuit
boards (see the figure to the right). Using these holes will
damage the product and will not provide secure mounting.
Before securing a device to the shelf, decide where the device
will be placed. Ensure that adequate space remains for running
cables.
1. Place the device on the shelf so that the rack mounting
holes are aligned with two diagonally opposite product
mounting holes in the shelf (see figure at right).
Remove any rubber feet attached to the device.
2. Secure the device to the shelf, using two
of the provided #4-40 x 3/16 inch
screws.
3. Use the rectangular (wire tie)
openings for tie wraps if
necessary.
Step 2 — Install the UTS 100 (Primary Shelf) Under the Table
The UTS 100 may be mounted under furniture in
one of two ways: using the keyhole slots for
a removable installation or the clearance
holes for a fixed installation.
1.
Hold the UTS 100 under
the desk or table and mark
the locations of four corner
mounting holes.
Some products have hexagonal holes
Get other manuals https://www.bkmanuals.com
UTS 150 (70-1028-02)
(8) #4-40 x 3/16 inch product mounting screw
(2) #8-32 Thumbnut
Hexagonal
Stand-off (for
mounting circuit
board)
UTS 100
Use 2 mounting holes on diagonally
opposite corners of device.
#4-40 Thread for
Rack Mounting
Wire tie
openings
Product
mounting
holes
(2) #4-40 x 3/16"
screws
Keyhole
slot
Clearance
hole
