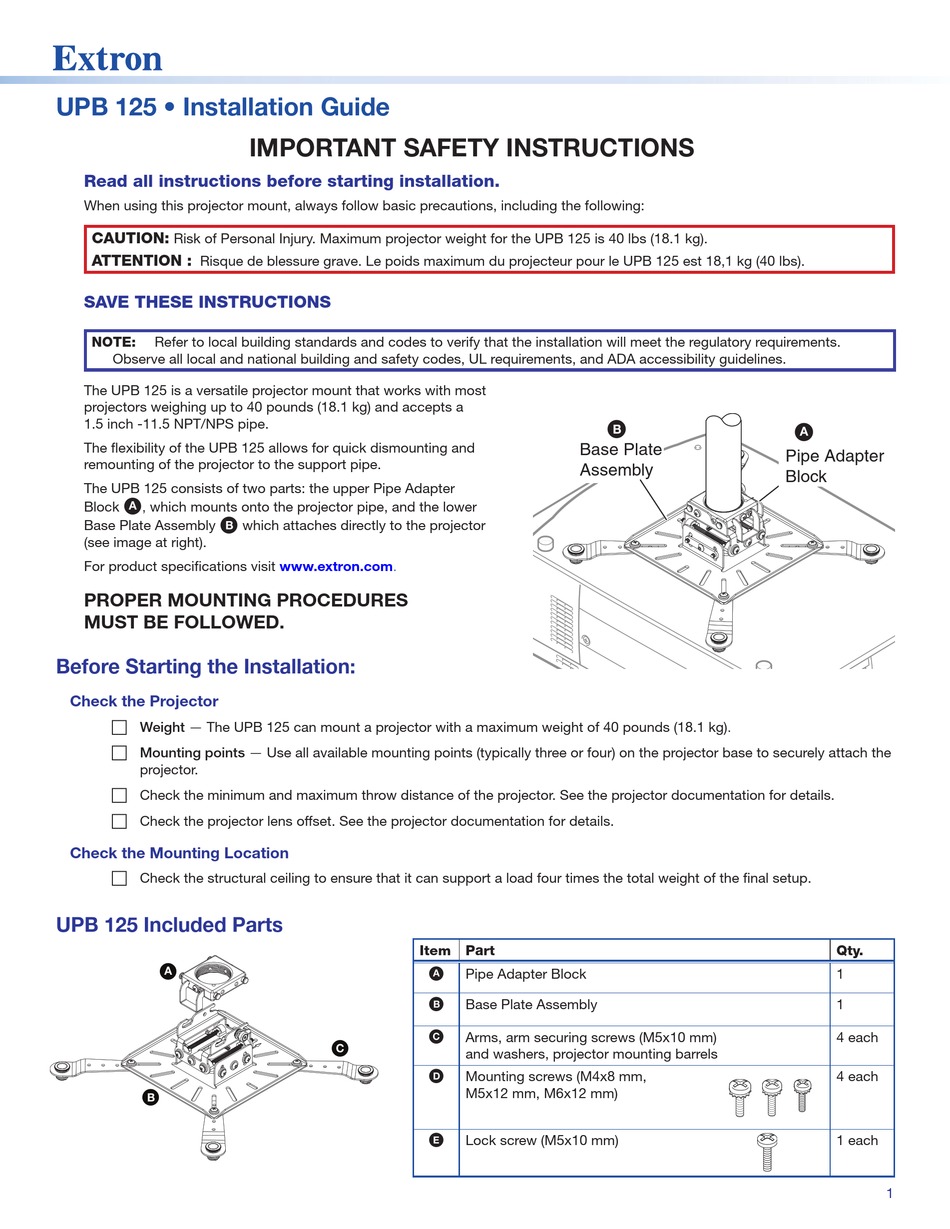

UPB 125 • Installation Guide
Read all instructions before starting installation.
When using this projector mount, always follow basic precautions, including the following:
CAUTION:
Risk of Personal Injury. Maximum projector weight for the UPB 125 is 40 lbs (18.1 kg).
ATTENTION :
Risque de blessure grave. Le poids maximum du projecteur pour le UPB 125 est 18,1 kg (40 lbs).
SAVE THESE INSTRUCTIONS
NOTE:
Refer to local building standards and codes to verify that the installation will meet the regulatory requirements.
Observe all local and national building and safety codes, UL requirements, and ADA accessibility guidelines.
The UPB 125 is a versatile projector mount that works with most
projectors weighing up to 40 pounds (18.1 kg) and accepts a
1.5 inch -11.5 NPT/NPS pipe.
The flexibility of the UPB 125 allows for quick dismounting and
remounting of the projector to the support pipe.
The UPB 125 consists of two parts: the upper Pipe Adapter
Block
A
, which mounts onto the projector pipe, and the lower
Base Plate Assembly
B
(see image at right).
For product specifications visit
PROPER MOUNTING PROCEDURES
MUST BE FOLLOWED.
Before Starting the Installation:
Check the Projector
Weight — The UPB 125 can mount a projector with a maximum weight of 40 pounds (18.1 kg).
c
Mounting points — Use all available mounting points (typically three or four) on the projector base to securely attach the
c
projector.
Check the minimum and maximum throw distance of the projector. See the projector documentation for details.
c
Check the projector lens offset. See the projector documentation for details.
c
Check the Mounting Location
Check the structural ceiling to ensure that it can support a load four times the total weight of the final setup.
c
UPB 125 Included Parts
A
B
IMPORTANT SAFETY INSTRUCTIONS
which attaches directly to the projector
www.extron.com.
Item Part
C
B
Base Plate
Assembly
Pipe Adapter Block
A
Base Plate Assembly
B
Arms, arm securing screws (M5x10 mm)
C
and washers, projector mounting barrels
Mounting screws (M4x8 mm,
D
M5x12 mm, M6x12 mm)
Lock screw (M5x10 mm)
E
A
Pipe Adapter
Block
Qty.
1
1
4 each
4 each
1 each
1
