SMK V SB 33 Plus VESA Mounting Kit • Installation Guide (Continued)
3.
Place the VESA display mount on top of the L-bracket, while aligning the bolt holes of the display mount with the bottom
round hole and top slot hole of the L-bracket and the bolt hole of the display. Repeat this procedure for the other long
L-bracket on the other side of the display.
NOTE:
If the VESA display mount uses horizontal mounting brackets or a X-braced bracket, then insert the included
four metal washer/spacers between the long L-bracket and VESA display mount.
4. Insert bolts through the VESA display mounts, the long L-brackets, and the display. Be sure to align the bolt holes of the
VESA display mounts with the display mounting holes and insert the bolts. Hand tighten all 4 bolts. Spacers are provided if
needed (see figure 1 on the previous page).
Long L-brackets

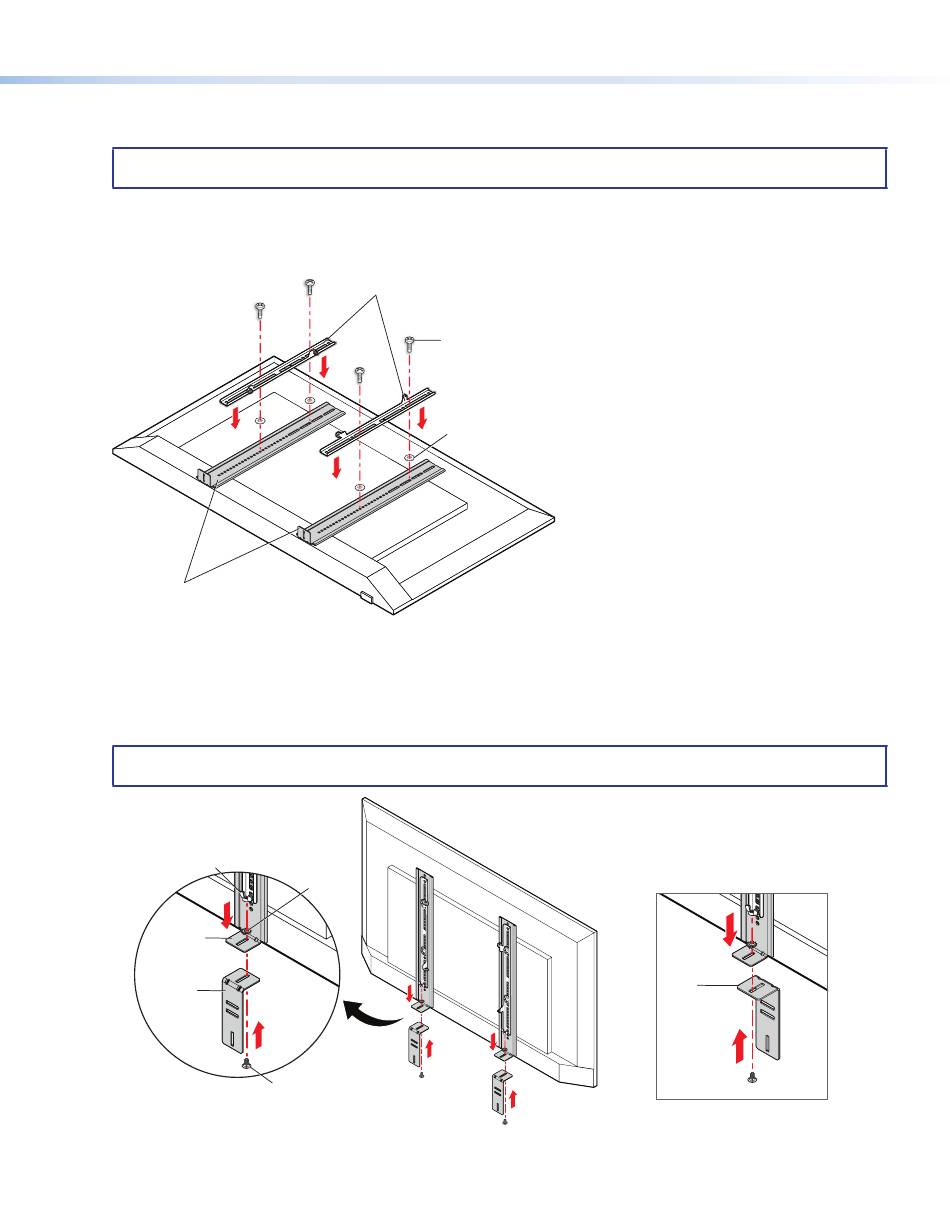

Figure 2.

Installing VESA display mount

5. Position the short L-bracket under the long L-bracket so that the L-bends of each bracket are paired together (see figure 3).
Afterwards, install one bolt with a wingnut and lock-washer so that the long and short L-brackets are held together. Tighten
the wingnut.
Repeat this procedure for the other long L-bracket on the other side of the display.
NOTE:
The short L-bracket may be reversed if the soundbar needs to be positioned further forward relative to the
display (see figure 3).
Wingnut
Long
L-bracket
Short
L-bracket
Figure 3. Installing short L-brackets on the long L-brackets
2
VESA Display
Mount (not included)
Mounting Screws
Washers
Lock
Washer
Bolt
Short
L-bracket
(Reversed)
Alternative Installation of
Short L-bracket
