Extron electronics PMK 560 Installation Manual

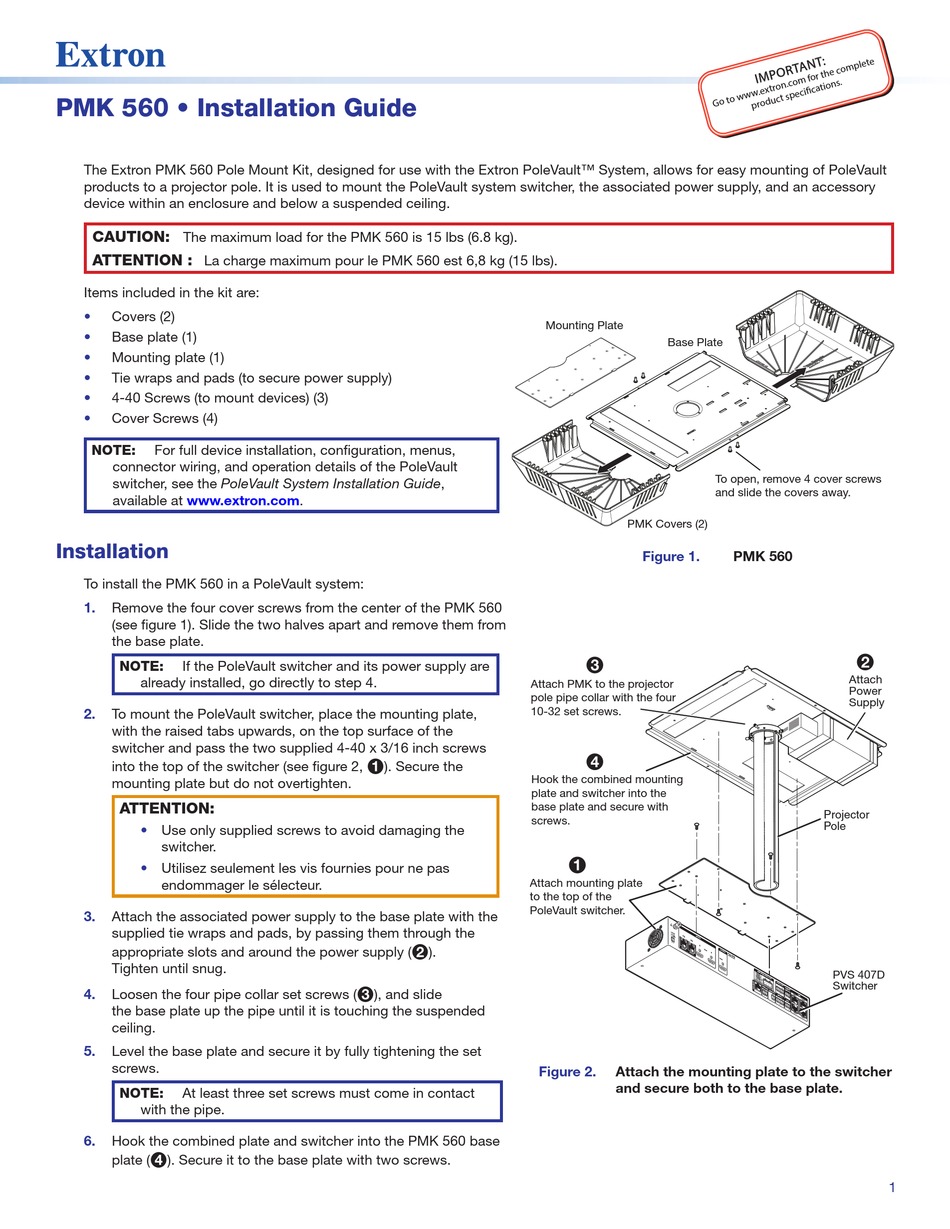

PMK 560 • Installation Guide

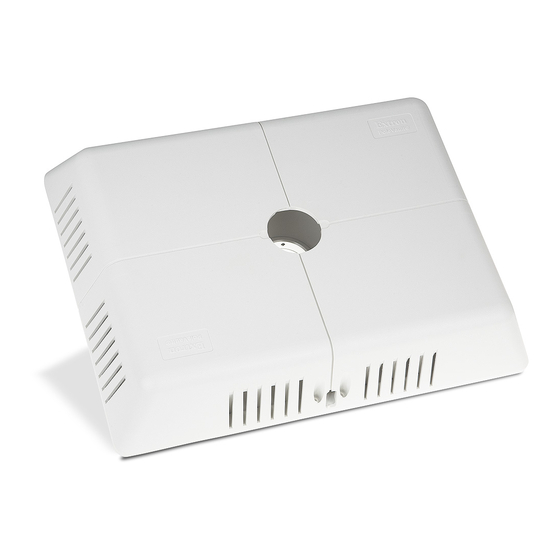

The Extron PMK 560 Pole Mount Kit, designed for use with the Extron PoleVault™ System, allows for easy mounting of PoleVault
products to a projector pole. It is used to mount the PoleVault system switcher, the associated power supply, and an accessory
device within an enclosure and below a suspended ceiling.
CAUTION:
The maximum load for the PMK 560 is 15 lbs (6.8 kg).
ATTENTION :
La charge maximum pour le PMK 560 est 6,8 kg (15 lbs).
Items included in the kit are:
• Covers (2)
• Base plate (1)
• Mounting plate (1)
• Tie wraps and pads (to secure power supply)
• 4-40 Screws (to mount devices) (3)
• Cover Screws (4)
NOTE: For full device installation, configuration, menus,
connector wiring, and operation details of the PoleVault
switcher, see the PoleVault System Installation Guide,
available at www.extron.com.
Installation
To install the PMK 560 in a PoleVault system:
1. Remove the four cover screws from the center of the PMK 560
(see figure 1). Slide the two halves apart and remove them from
the base plate.
NOTE: If the PoleVault switcher and its power supply are
already installed, go directly to step 4.
2.
To mount the PoleVault switcher, place the mounting plate,
with the raised tabs upwards, on the top surface of the
switcher and pass the two supplied 4-40 x 3/16 inch screws
into the top of the switcher (see figure 2,
mounting plate but do not overtighten.
ATTENTION:
• Use only supplied screws to avoid damaging the
switcher.
• Utilisez seulement les vis fournies pour ne pas
endommager le sélecteur.
3. Attach the associated power supply to the base plate with the
supplied tie wraps and pads, by passing them through the
appropriate slots and around the power supply (
Tighten until snug.
4.
Loosen the four pipe collar set screws (
the base plate up the pipe until it is touching the suspended
ceiling.
5. Level the base plate and secure it by fully tightening the set
screws.
NOTE: At least three set screws must come in contact
with the pipe.
6.
Hook the combined plate and switcher into the PMK 560 base
plate ( ). Secure it to the base plate with two screws.
4
Attach PMK to the projector
pole pipe collar with the four
10-32 set screws.
). Secure the
1
Hook the combined mounting
plate and switcher into the
base plate and secure with
screws.
Attach mounting plate
to the top of the
PoleVault switcher.
).
2
3 ), and slide
Mounting Plate
Base Plate
To open, remove 4 cover screws
and slide the covers away.
PMK Covers (2)
Figure 1.
3
4
1
PO
W ER
12 V
- - 1/ 2
A M IN PU
AX
SIG TS
LIN 3/ 4
K
SIG
LIN K 5
PV T IN
HD
M I
PV 6
T IN
Figure 2. Attach the mounting plate to the switcher
and secure both to the base plate.
PMK 560
2
Attach
Power
Supply
Projector
Pole
O U
TP
U T
P V
S 40
7D
HD
M I
PVS 407D
AM
PL
DO IF IE
NO D AU
GR OU T
OR ND D IO
SP SH OR
EA T L O U
CL OU TP KE R T
AS UT 4/8 Switcher
S 2 S R
W IR AU
IN G D IO
O U
R EM L T
PA
O TE R G IN
RS SE
-2 32 O VE N SO G
R PV
R
T
Tx IR LA
Rx IN PU N 1 LA LA N N
G
L T 7
+V
LA
S G R AU N 3
X
LA
N 2
LA
N 4
1
