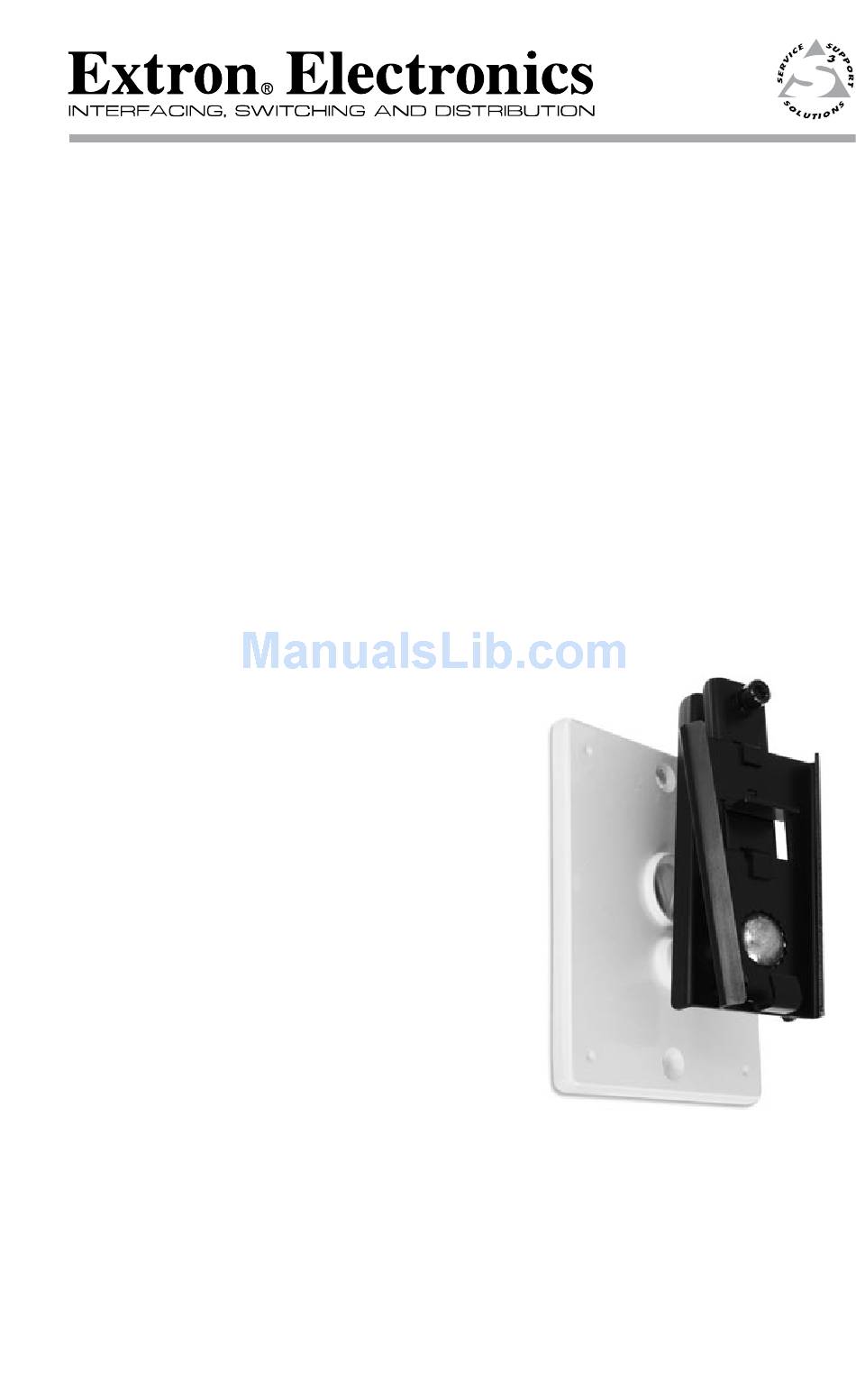

- Page 1 User’s Guide V-Lock Wall Mount Assembly Kit ™ ® Replacement accessory for Extron System INTEGRATOR SI 3 Surface Mount Speakers 68-1490-01 Rev. A 03 08...
-
Page 2: Packaging Information

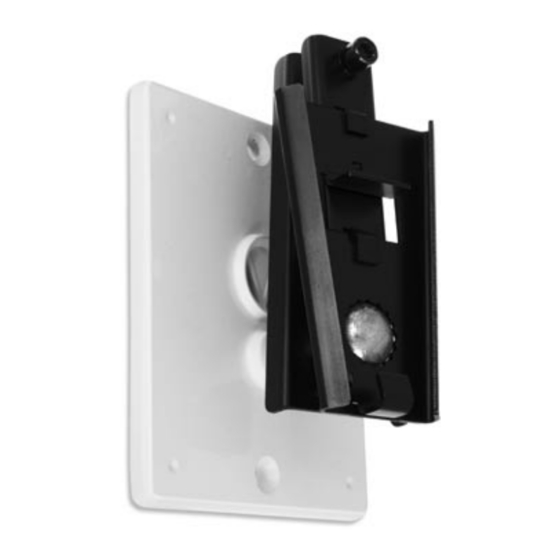

Introduction Packaging Information The V-Lock wall mount assemblies (one for each speaker) and an Allen hex tool. Figure 1 — V-Lock Assembly packaging details About the V-Lock Assembly Kit The V-Lock Wall Mount Assembly Kit is a pair of replacement... -
Page 3: Installation
To replace a damaged V-Lock assembly that is already installed, do the following: Remove the Extron logo from the front of the speaker to access the hex cap screw. Retain the logo. Insert the hex tool and unlock the speaker. - Page 4 Loosen the hex cap screw and turn the stage back to its upright position. Retighten the hex cap screw to lock it in place. Reattach the seismic cable to the speaker (see figure 5). Insert the speaker wires (see figure 3). Anchor this end to a suitable secure point.
-
Page 5: Mounting The Speakers
Mounting the speakers Carefully lift the speaker above the wall mount assembly and gently slide the speaker box bracket down into the V-lock groove (see figure 6) until it locks into place. Lift the speaker up to the wall mount assembly... -
Page 6: Final Adjustments
If it does lift out, continue tightening the hex cap screw until it is no longer possible to lift the speaker from the assembly. For speaker details, specifications, troubleshooting tips,... - Page 7 Extron Electronics warrants this product against defects in materials and workmanship for a period of five years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
