The Extron
MBU 149 Under-Desk Mount Kit (part number
®
70-222-01) lets you attach an Extron 1U high device to the
underside of a desk or table, or to a wall. The brackets
extend approximately ¼" (6 mm) above the top surface of the
device, which allows an air space between the enclosure and
the mounting surface.
Installation
Step 1 — Attach brackets to device

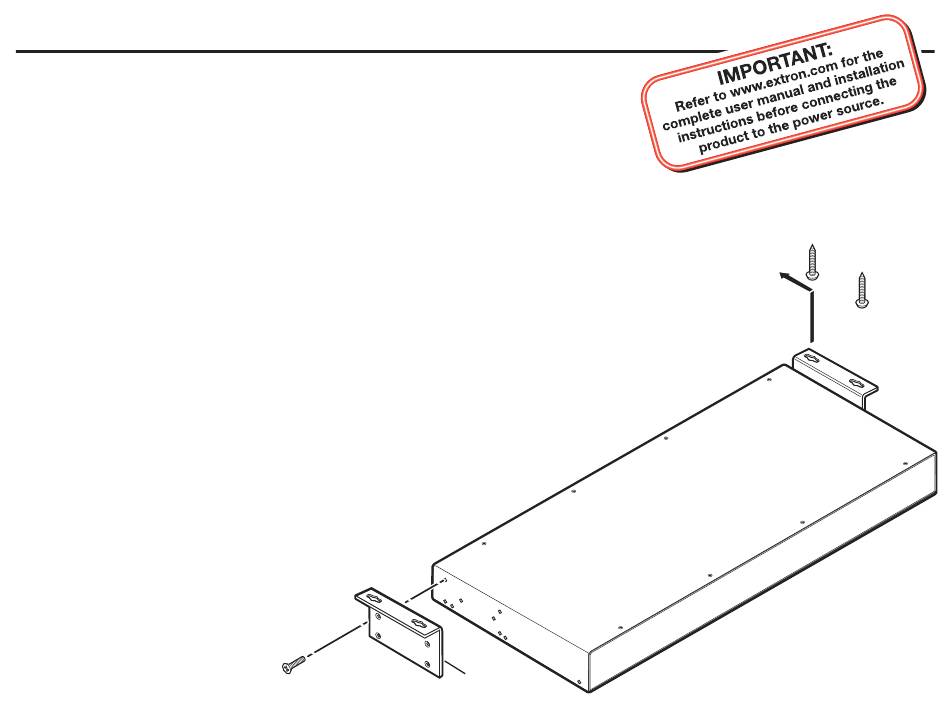

Attach brackets to the device with the supplied machine
screws, as shown on the left side of the picture below.
Step 2 — Mark screw location
Hold the device with attached brackets against the
wall or the underside of the furniture, and
mark the screw hole locations (centers of
the brackets' screw slots).
Step 3 — Drill holes
Drill four pilot
holes, each
3/32" (2 mm)
in diameter, ¼"
(6 mm) deep,
at the locations
marked in step 2.
Setup Guide — MBU 149
#8 Screw
(4 Places)
Each Side
Mounting
Bracket
Mounting Screws
(2 Places)
Each Side
(Continued on reverse side)
Advertisement
Table of Contents
Related Manuals for Extron electronics MBU 149
Summary of Contents for Extron electronics MBU 149
- Page 1 Setup Guide — MBU 149 The Extron MBU 149 Under-Desk Mount Kit (part number ® 70-222-01) lets you attach an Extron 1U high device to the underside of a desk or table, or to a wall. The brackets extend approximately ¼" (6 mm) above the top surface of the device, which allows an air space between the enclosure and the mounting surface.
- Page 2 Setup Guide — MBU 149, cont’d Step 4 — Install screws Insert the wood screws (provided) into the pilot holes. Fasten each screw into the furniture or wall until the screw heads protrude slightly less than ¼" (6 mm) from the mounting surface.
