USFM 100 • Installation Guide
IMPORTANT SAFETY INSTRUCTIONS
When using this accessory, basic precautions should always be followed, including the following:
WARNING:
Risk of Personal Injury. Maximum setup load for the USFM 100 (projector arm) is 20 lbs (9.1 kg).
AVERTISSEMENT :
bras du projecteur) est 9,1 kg (20 lbs).
NOTE:
Refer to local building standards and codes to verify that the installation will meet the regulatory
requirements. Observe all local and national building and safety codes, UL requirements, and ADA
accessibility guidelines.
WARNING:
Risk of Personal Injury and Property Damage. Do not exceed specified weight limits of any
component of the installation. Follow the manufacturer's specifications and installation instructions.
AVERTISSEMENT :
de poids de n'importe quel composant de l'installation. Suivez les spécifications et les instructions d'installation du
fabricant.
The Extron USFM 100 is a mounting kit for suspending ultra short throw projectors from a wall. The USFM 100 base
plate enclosure is capable of mounting a PoleVault
remaining for installing additional devices and cable management. It is designed to be used with the UPB 25 universal
projector bracket (supplied with the Extron WallVault
The USFM 100 has knockouts on all four sides that allow external raceways or conduits to be attached for cabling runs
where necessary.
Arm Cover (top)
Arm Cover (bottom)
Read all instructions before starting installation.
Risque potentiel de blessure grave. La charge maximum d'installation pour le USFM 100 (le
SAVE THESE INSTRUCTIONS
Risque potentiel de blessure grave ou de dommages matériels. Ne dépassez pas les limites
System switcher and its supplied power supply, with sufficient room
®
®
Extron
USFM 100
Arm Cover (front)

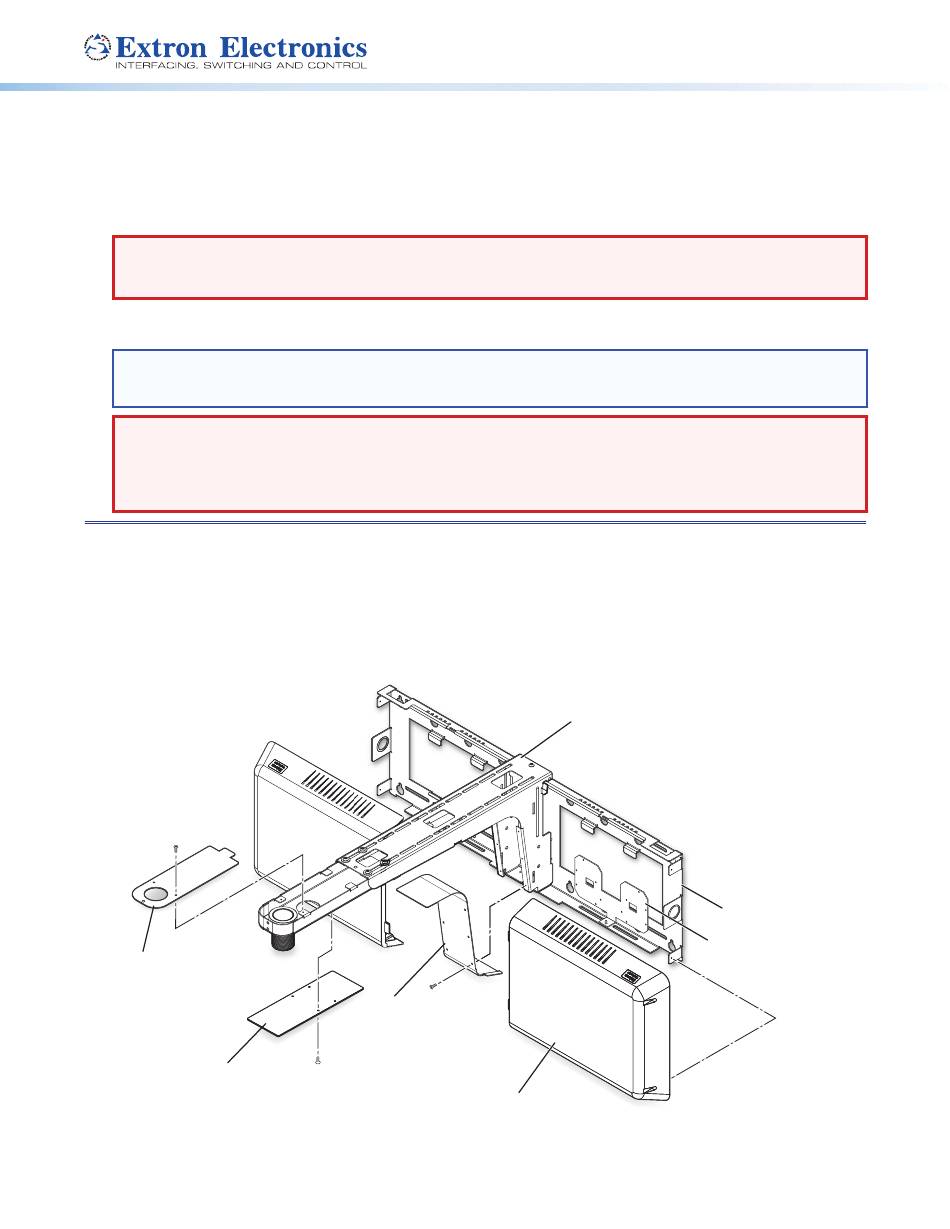

USFM 100 Parts
Figure 1.
system).
Boom Arm
Plastic Enclosure Cover
Base Plate
Device Mounting Plate
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the USFM 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics USFM 100

Summary of Contents for Extron electronics USFM 100

  • Page 1 Suivez les spécifications et les instructions d'installation du fabricant. The Extron USFM 100 is a mounting kit for suspending ultra short throw projectors from a wall. The USFM 100 base plate enclosure is capable of mounting a PoleVault System switcher and its supplied power supply, with sufficient room ®...

  • Page 2: Recommended Installation Tools

    (5/8 inch). Une installation non-conforme de ce produit peut engendrer des blessures graves. The location and type of wall where the USFM 100 is to be installed should be identified before starting installation. This determines the installation method and the type of fasteners used to secure the plate to the wall.
  • Page 3 Wall Mounting Features Figure 2. If the cables are to be run behind the wall to the USFM 100 location, mark the cutout area on the wall large enough for signal cables (see inset in figure 2). Remove the base plate and set it aside. Cut out the marked area for cable access.

  • Page 4: Run Cables

    USFM 100. If running cable behind the walls: Run all the cables from all the locations to the USFM 100 and through the access hole (cut in step 1d). Proceed to step 4. If using a surface raceway or conduit: Turn over the left or right USFM cover as needed, and from the inside, cut the most suitable marked raceway or conduit knockout for the cable to enter the USFM 100.
  • Page 5 2400 Raceway Option V700 Conduit Option Signal Cable Access Cutout Option Cabling Run Options Figure 5. 4. Cable the Switcher Connect the cables from the PoleVault wallplates, control device (MediaLink Controller), speakers, and optional ® accessories (VoiceLift, Page Sensor Kit) to the rear ports of the switcher. See the PVS 305SA Setup Guide for connection details.

  • Page 6: Complete The Installation

    USFM 100 Installation Guide, cont'd Depending on the power supply used, either: • Secure the power supply within the support end of the boom arm. To do this, pass the tie wraps through the holes on one side of the arm and then around the power supply (see figure 7, left image). Tighten the tie wraps.
  • Page 7 USFM 100 Dimensions 2.20" 34.40" (5.59 cm) (87.38 cm) 11.14" (28.29 cm) Base Plate (front view) 36.29" (92.19 cm) 2.74" (6.96 cm) 12.94" (32.86 cm) Base Plate with Plastic Covers 31.80" (max.) 31.80" (max.) To Wall (80.77 cm) (80.77 cm) 30.00"...
  • Page 8 When aligning the projector to the screen or wall display, consult the projector manual for the relevant throw lengths. See the images below for the dimensions of USFM 100 with the UPB 25 installed. Page 7 shows the basic USFM 100 unit dimensions and the diagram below shows the installed unit dimensions 31.80" (max) (80.77 cm)
