SMK V SB 33 82-100 VESA Mounting Kit
Setup Guide

Product Description

The SMK V SB 33 82-100 VESA Mounting Kit allows the SB 33 A 82-90 and SB 33 A 90-100 soundbar speakers to be attached
to the same VESA display mount that supports the display device. This type of installation enables the SB 33 speaker to be
aligned with the display for a visually aesthetic installation. The SB 33 front speaker surface can be adjusted flush with the front of
the display. It can be adjusted forward, backward, up, down, and side-to-side.

Installation

VESA display mounts come in a variety of different styles, so these instructions for installing the SMK V SB 33 82-100 VESA
Mounting Kit are variable. Consult the installation guides for your VESA display mount and your display device before installing
the kit. Follow the steps below to install the kit.

WARNING:

The final installation should be able to continuously support the speaker weight. The final installation
should also be able to support short term overloading. Be sure to not exceed the load limit of the VESA mount, mounting
surface, and SMK V SB 33 82-100. The maximum load limit of the SMK V SB 33 82-100 is 85 lb. (38 kg) Since applications
can vary considerably, it is assumed that the installer will exercise good judgment when selecting the mounting location,
method, and hardware. Installation and service must be performed by authorized personnel only.
AVERTISSEMENT :
doit également pouvoir supporter une courte surcharge. Veillez à ne pas dépasser la charge maximale du support de
montage VESA, de la surface de montage, et de l'unité SMK V SB 33 82-100. La charge maximale du SMK V SB 33 82-
100 est de 38 kg. Étant donné la possibilité d'évolution considérable des applications, il est supposé que l'installateur fera
preuve de discernement lors de la sélection de l'emplacement, du mode, et du matériel de montage. L'installation et la
maintenance du système doivent être exclusivement effectuées par un technicien agréé.

NOTE:

Observe all applicable building codes and local ordinances when installing the SB 33 A speaker.
The SMK V SB 33 82-100 VESA Mounting Kit is composed of 2 long L-brackets, 2 short L-brackets, reinforcing plate (see
figure 4 on page 3), 4 plastic spacers, 10 bolts, 10 lock washers, 10 washers, and 10 wingnuts.
1. Install the wall mount portion of the VESA display mount onto the desired wall location (see the VESA display mount
installation guide).
2. Position one long L-bracket of the SB 33 kit on the back of the display while aligning the bolt holes on the display with a slot
on the L-bracket. Repeat this procedure for the other long L-bracket on the other side of the display (see figure 1).
Long L-brackets

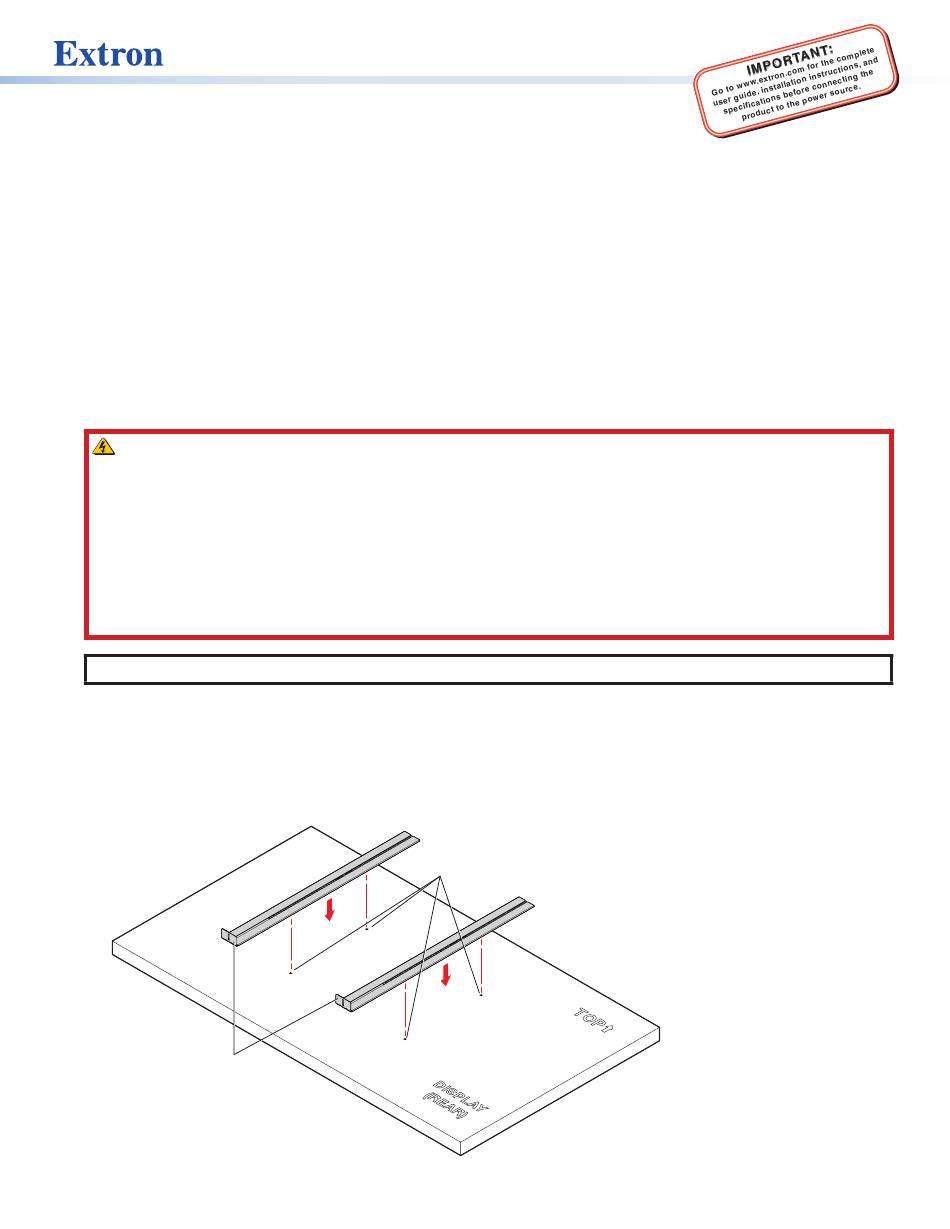

Figure 1. Installing Long L-brackets
L'installation finale doit pouvoir supporter en permanence le poids de l'enceinte. L'installation finale
Bolt Holes
1
