- Page 1 im Vertrieb von CAMBOARD Electronics User's Guide MLM-UDSM MediaLink Under Desk Slide Mount Mounting Option ™ 68-628-01 Rev. C 05 06 www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
-
Page 2: Safety Instructions • English

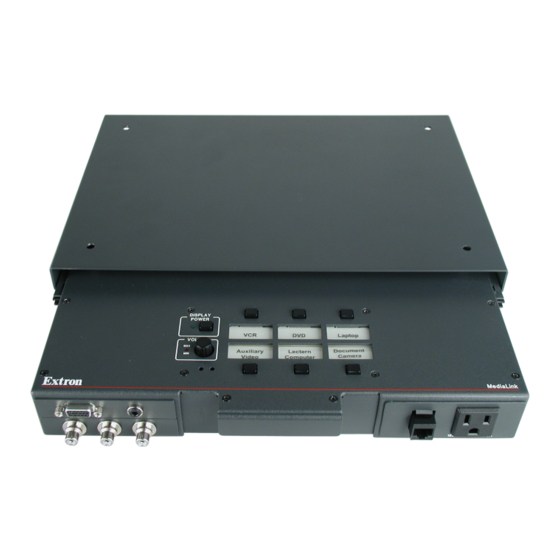

im Vertrieb von CAMBOARD Electronics Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. - Page 3 im Vertrieb von CAMBOARD Electronics MLM-UDSM Installation Guide About the MLM-UDSM The Extron MLM-UDSM is an under desk/table mounting enclosure for the MediaLink™ Controller (MLC 206) that provides a way to slide the MLC out of the way (like closing a drawer) when not in use. The MLM-UDSM also provides four single-space Architectural Adapter Plate (AAP) openings for attaching control modules or other AAP devices.
- Page 4 im Vertrieb von CAMBOARD Electronics MLM-UDSM Installation Guide, cont’d Install the MLC and AAP accessories in the sliding enclosure Set the sliding enclosure’s top plate on the table/desk. If applicable, set the DIP switches on any AAP devices to be attached to the MLM-UDSM.
- Page 5 im Vertrieb von CAMBOARD Electronics Replace or add labels, if needed. Refer to the MediaLink Controllers User’s Manual for instructions. Turn the MLM-UDSM sliding enclosure’s top plate right side up. Align the openings in the sliding enclosure’s top plate with the controller’s buttons, knob, and LEDs, and place the top plate on the MLC as shown below.
- Page 6 im Vertrieb von CAMBOARD Electronics MLM-UDSM Installation Guide, cont’d Lower the sliding enclosure’s top panel (with attached MLC and AAP accessories) onto the bottom panel, and align the screw holes. The cables should be routed to the rear of the enclosure. Insert and fasten the eight screws that connect the top and bottom of the sliding enclosure, and fasten them securely.
-
Page 7: Part Numbers And Accessories
im Vertrieb von CAMBOARD Electronics Insert and tighten the two screws on either side of the mounting plate. These screws prevent you from pulling the sliding drawer completely out from the mounting plate. 2 Screws Part Numbers and Accessories Included parts These items are included in each order for an MLM-UDSM: Included parts Replacement part... - Page 8 im Vertrieb von CAMBOARD Electronics MLM-UDSM Installation Guide, cont’d MLM-UDSM Dimensions Shelf fully extended to 4.17 inches 2.25 inches 9.000 8.000 7.212 0.213 THRU (2 places) 2.645 1.000 .500 .000 .000 0.174 THRU (6 places) .000 .880 2.250 N All dimensions are in inches. All trademarks mentioned in this manual are the properties of their respective owners.
- Page 9 CAMBOARD Electronics Extron’s Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option,...
