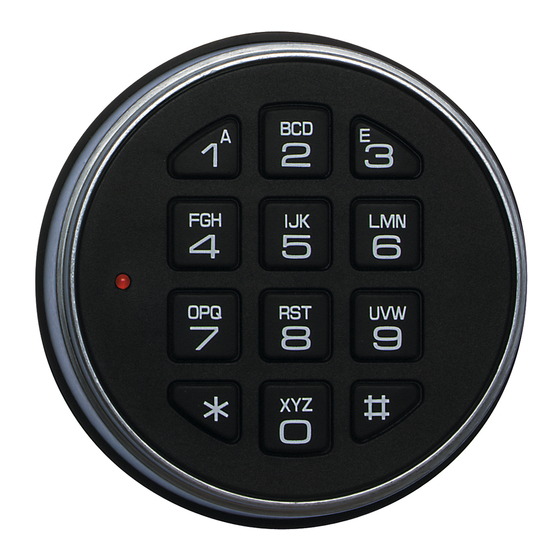

- Page 1 Setup Instructions LA GARD ComboGard Pro 39E Electronic Lock P/N 731.018 Rev I - 05/2018...
- Page 2 ComboGard Pro locks can either be configured using the TIME DELAY ComboGard Pro Setup software or through a series of • Delay Period 1 - 99 minutes keypad commands. This document will cover configuring the • Open Period 1 - 19 minutes lock using both methods.
-
Page 3: Lock Operating Conventions
LOCK OPERATING CONVENTIONS • In Dual Mode, two combinations are required to open the lock. Manager Commands 1,2,3,7 and 9 can be performed using the Manager combination alone. • In “Dual Mode and [User + Manager] to access Manager Menu”, two combinations are required for all lock functions except to Change Combination. - Page 4 Configure Lock Settings Start the Setup Program: Select the CGP Setup icon from the desktop or complete the following steps: 1. Select the Start icon from the Windows task bar. 2. Select the Programs or All Programs menu item.
- Page 5 Plug the USB or Serial Interface Adapter into an available USB port on the PC. If using a USB Adapter, the list of ports will be updated to reflect the new device. The LA GARD USB Interface Adapter can be identified in the list as USB Serial Adapter. The virtual COM Port assigned to the USB port where the Adapter is currently installed will follow the device description (Figure 2).
- Page 6 Select Mode(s): Select by placing a check mark in the desired operational Mode: Silent Alarm, External Signals, and Time Delay. Multiple modes can be selected. Silent Alarm: If selected, a LA GARD alarm box will be required to use this feature.
- Page 7 Select Combination Length: To change the Combination Length, click on the up and down arrows. A combination length of 6 to 9 digits can be selected. Example: 7 digits (Figure 6) CAUTION: To maintain the VdS Class 2 and EN 1300 Class B certification when the Silent alarm feature is used, a combination length of 7 digits or longer must be selected.
- Page 8 Install Users: The Manager cannot be disabled because the Manager must be installed with a combination in order to activate the lock. To install a User, place a check mark in the Installed box next to the User ID. When a User is selected, the default is w/ Combination.
- Page 9 Figure 12 Figure 13 Figure 10 Figure 11 Figure 14 SAVE SETUP CONFIGURATION Once the setup configuration has been completed, you may name and save the setup file (*.xml) for future use. 1. Click the Save button or on the Files tab at the top of the program and select Save (Figure 15).
- Page 10 Figure 16 ACTIVATE THE LOCK 1. Press and hold the 0 key until the lock signals twice. 2. Enter any valid combination within 40 seconds. The lock will signal twice then one long beep (approximately 2 seconds). The lock is now fully functional, but still in Setup.
- Page 11 SET COMBINATION LENGTH 1. Enter the default Manager combination (5-5-5-5-5-5) and hold down last digit of combination until lock double signals twice release and the LED stays on. 2. PRESS 8. 3. Enter combination length (6, 7, 8, or 9).
- Page 12 3. 5. Disconnect Reset Box. The Lock is now in Factory mode, and is ready to be configured by the PC Software or through the keypad. dormakaba USA Inc. 749 W. Short St. Lexington KY 40508 T: 859 253 4744...
