Page 1: Table Of Contents
Operating and display elements of the input unit External connections to / from the Axessor safe lock Code structure and basic operation of Axessor units Factory settings Quick commissioning and customer-specific configu- ration of safe locks Safe locks Axessor series 2018-03 Quick reference guide... -
Page 2: Package Content
- Connecting cable between Axessor safe lock and Axessor input unit - Batteries (3x AA (LR6), 1.5V) - Mounting material - Leaflet with the dormakaba safe locks web address to USB drivers, fact sheet, brochure, Axessor manuals, declaration of conformity, EN1300, UL, ECB-S and VdS certifications https://www.dormakaba.com/gb-en/solutions/products/safe-locks/axessor/axessor-243198... -

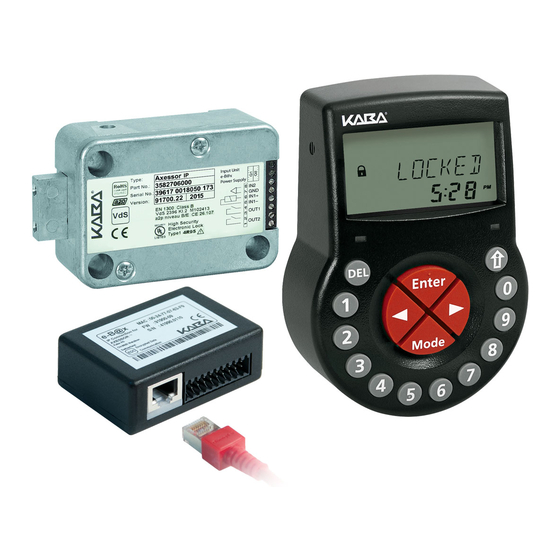

Page 3: External Connections To / From The Axessor Safe Lock
Use the connecting cable in input unit, eBox or the package. Only use the power supply original Axessor power supply. Note All Axessor safe lock inputs and outputs are configurable with the AS284-USBW or AS284-NETW Axessor Programming Software. Safe locks: Axessor series 2018-03... -
Page 4: Code Structure And Basic Operation Of Axessor Units
9 0 x x x x x x Note The overview shows the code structure of the Axessor series units. Axessor USB safe locks are able to manage a maximum of 2 user groups. Axessor CIT and Axessor IP safe locks are able to manage a maximum of 4 user groups. - Page 5 The lock is in a weekly locking period and it is not possible to open the lock. The current time is displayed. Penalty after wrong trials A five-minute time penalty is initiated after entering 4 incorrect codes one after another. The remaining penalty time is displayed. Safe locks: Axessor series 2018-03...
- Page 6 Enter a valid code is now active. and press Note There are three different Programming modes available in the Axessor series. Enter the Master code, Manager code or User code to access the desired programming level. Safe locks: Axessor series 2018-03...
- Page 7 CIT safe lock. Enter the Manager menu 1. Open the lock 2. Press 3. Enter a Manager code 4. Press Enter the User menu 1. Open the lock 2. Press 3. Enter a User code 4. Press Safe locks: Axessor series 2018-03...
-
Page 8: Factory Settings
✓ ✓ ✓ ✓ (CIT) Dual mode · skips time delay but cannot open lock · Off ✓ ✓ ✓ ✓ ✓ (IP) ✓ (IP) One shot code for group 4 ✓ (CIT) ✓ (CIT) Safe locks: Axessor series 2018-03... - Page 9 ✓ (CIT with AS280-W) ✓ Mixed mode ✓ (CIT with AS280-W) ✓ ✓ ✓ ✓ ✓ Time delay in Bank mode 0 minutes ✓ ✓ ✓ ✓ Duress time delay in Bank mode (per group) 1 minute Safe locks: Axessor series 2018-03...
- Page 10 / external input event A – F / remote enabling / cancel non-return time delay) ✓ ✓ ✓ ✓ Output 1: duress alarm ✓ ✓ ✓ ✓ Output 2: lock open (OR boolean operation with lock open or motor open or door open) Safe locks: Axessor series 2018-03...
-
Page 11: Quick Commissioning And Customer-Specific Configuration Of Safe Locks
1) Connect the admin or operator dongle to the PC and start the AS284-W soft- ware. (Note: Please contact the local dormakaba support to order the software.) 2) Connect the input unit to the PC via an USB cable with plugs of type A-B. - Page 12 This documentation may not be reproduced or distributed in any way – neither in digital nor in photographic form without prior written permission of dormakaba Schweiz AG. © by dormakaba Schweiz AG, CH-8620 Wetzikon. dormakaba Schweiz AG Mühlebühlstrasse 23 8620 Wetzikon T: +41 44 931 61 11 www.dormakaba.com...
