  • Page 1 Technical Manual 1220013692 - 11/2017...
  • Page 2 No part of this document may be reproduced or used in any form or by any means without prior written permis- sion of dormakaba Schweiz AG. All names and logos of third-party products and services are the property of their respective owners.
  • Page 3: Table Of Contents

    Installation versions  19 4.2.1 Installation version A  20 4.2.2 Installation version B  22 4.2.3 Function check on anti-panic digital cylinder  24 Programming  25 Initial programming of MRD components  25 Initial programming of LEGIC® and MIFARE components  25 Master media  25 User media  25...
  • Page 4  40 Emergency power supply  40 Troubleshooting  41 Error analysis  41 Error analysis for battery life  43 Appendix  44 10.1 Summary of various factors influencing the battery operation  44 10.2 Recommendations for battery operation  44 dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 5: About This Document

    This section contains information for the proper use of this document. 1.1 Validity This document describes the product: Product designation: dormakaba digital cylinder Types: 143X dormakaba Digital cylinder with Euro profile (17 mm) 153X dormakaba Digital cylinder with round profile (22 mm) Article numbers and vari- ants: Euro profile cylinder 1435 Standard...
  • Page 6: Supplementary Documentation

    Programmer 1460 technical manual • Operating manual for programmer 1364 • Wireless operation: Wireless planning guideline • Documentation for the system software used 1.5 Digital cylinder abbreviations Short designation Product designation Digital cylinder dormakaba digital cylinder Programmer Programmer 1460 1.6 Hazard categories Instructions with information on what to do and not to do to prevent injury and material damage are denoted specially.
  • Page 7: Notes

    They help to make best use of the product and its functions. 1.8 Symbols Symbols with the following meanings are used for hazards (depending on hazard source.) General hazard Hazard from electric shock Risk of explosion Risk to electronic components from electrostatic discharge 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 8: Basic Safety Instructions

    Improper use or incorrectly installed digital cylinders can lead to emergency exit locks or panic door locks and doors not opening. • The use of a digital cylinder must be checked carefully before using it in locks with a panic function. •...
  • Page 9: Areas Of Use

    The following points must be observed for certification as per VdS Class B: On doors at risk of forced entry, the 'Protected' version of the digital cylinder must be protected with a VdS-recognised burglary-resistant Class B or C doorplate. These doorplates correspond to DIN 18 257 Class ES 2 or ES 3 and EN1906 Class 3 or 4.
  • Page 10: Esd Protective Measures

    Do not open, drill through or squash lithium batteries. • Do not burn lithium batteries or expose them to high temperatures. • Do not short circuit lithium batteries. • Do not recharge lithium batteries. dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 11: Product Description

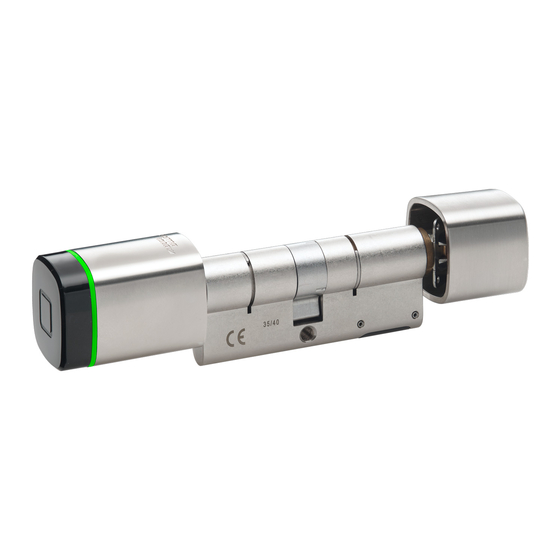

    This section provides an overview of the product and gives information on technical details. 3.1 Overview The digital cylinder is an electronic locking cylinder with a reader antenna on the rotary knob. Depending on the version, the reader antenna may be on the outer knob or on both the outer and inner knob.
  • Page 12: Technical Data

    Product description Technical Manual 3.4 Technical data The digital cylinder is intended for use in building doors that are equipped with a lock. Technical data Dimensions Outer knob Ø x L 36 x 45 mm Inner knob Ø x L 36 x 29 mm Small inner knob Ø...
  • Page 13: Dimensions

    Dependent on the configura- tion used Battery life at -20°C EXT version: approx. 40,000 cycles 3.4.1 Dimensions The dimensions stated also apply for the 22 mm round profile cylinder. 1431 Dimension drawing 1431 Asymmetrical (profile cylinder) 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 14 Product description Technical Manual 10.5 1434 Dimension drawing 1434 Half with outer knob profile (profile cylinder) 1435 Dimension drawing 1435 Standard (profile cylinder) dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 15 Technical Manual Product description 1437 Dimension drawing 1437 Anti-panic, small inner knob version (profile cylinder) 1439 Dimension drawing 1439 Dual (profile cylinder) 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 16: Conformity

    Technical Manual 3.5 Conformity This product conforms to the EU directives 2014/53/EU Radio Equipment Directive 2014/35/EU LVD Directive 2011/65/EU RoHS Directive You can download the original declaration of conformity in PDF format at www.kaba.com/con- formity. dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 17: Installation

    Improper use or incorrectly installed digital cylinders can lead to emergency exit locks or panic door locks and doors not opening. • The use of a digital cylinder must be checked carefully before using it in locks with a panic function. •...
  • Page 18: Tools Required

    Determine the length of the forend screw: Forend screw ≥ backset + 10 mm. 4.1.2 Tools required • Tool – Multitool • Allen key, small inner knob, 2 mm hex • Flat head and Phillips screwdriver • Programming cable • Adaptor/programming pin dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 19: Installation Versions

    NOTICE When installing the lock, there is a risk of being locking out. Always install the digital cylinder when the door is open. This prevents you from locking your- self out when using self-locking locks. The locking cylinder in the digital cylinder version without an inner knob and the dual version should be programmed before carrying out the function test.
  • Page 20: Installation Version A

    The outer door knob and the cylinder housing are now firmly connected. Align the cam flush with the cylinder housing. From the outer side of the door, push the digital cylinder through the fitting and the lock. Position the forend locking stud in the lock and tighten it slightly.
  • Page 21 Technical Manual Installation Check that the door knobs function correctly. Both door knobs can be turned without touching the fit- tings. Check the backset. The door knobs must not knock against the door frame. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 22: Installation Version B

    Position the forend locking stud in the lock and tighten it slightly. Install the fittings. Note: Align the locking spring and the notch with each other! Place the inner door knob on the cylinder housing. dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 23 Tighten the forend locking stud. Check that the door knobs function correctly. Both door knobs can be turned without touching the fittings. Check the backset. The door knobs must not knock against the door frame. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 24: Function Check On Anti-Panic Digital Cylinder

    Risk of personal injury or death. • After installing the digital cylinder in a panic lock, a function check must be carried out. It must be possible to open the lock with the lever handle in all cam rest areas.
  • Page 25: Programming

    Lost User media should be immediately blocked and deleted from all components. (Delete lost User media in the system software in the whitelist (add CardLink to the blacklist) or delete all User media with the corresponding master and then re-program all User media). 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 26: Program Structures

    B masters as required. For example, a B1 master only manages 50 users whilst another master, B2, manages up to 3950 users. 5.6 A/B and B structures A/B structure A master B structure B master User media dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 27: Programming User Media With B Masters

    1 x long Beeeep Master B approx. 1 shold in front of the antenna. Note: If no master medium is held up within 20 seconds, program- ming mode ends automatically and one long acoustic signal sounds. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 28: Deleting Individual User Media

    1 x long Beeeep Master B approx. 1 shold in front of the antenna. Note: If no master medium is held up within 20 seconds, program- ming mode ends automatically and one long acoustic signal sounds. dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 29: Deleting Individual B Masters

    Beeeep Master A approx. 1 s hold in front of the antenna. Note: If no master medium is held up within 20 seconds, program- ming mode ends automatically and one long acoustic signal sounds. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 30: Deleting All User Media

    Mas- 2 x short Beep ter B approx. 10 s Beep All User media under the Master B 1 x long are deleted. 1 x short 10 s Key: Firmware version 42xx dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 31: Ini Reset With Master Media For Whitelist And Cardlink

    1 x long, Master A approx. 15 s hold in front Beep 1 x short, of the antenna. The INI reset will be after 15 s, executed after 15 s. 2 x short 15 s 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 32 15 s. 15 s Master A 2 x short Beep Master A approx. 15 s hold in front Beep of the antenna. The INI reset will be executed after 15 s. 15 s dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 33: Operation

    Access authorisation will be signalled by an acoustic signal and a visual display Note: The digital cylinder's opening time is limited; after this time has elapsed, the digital cylinder closes automatically. Upon delivery, the opening time is approx. 6 s, but this can be adjusted using the 1460 programmer or the system software.
  • Page 34: Maintenance

    Function check on anti-panic digital cylinder As part of maintenance on a panic lock, also carry out a function check on the anti-panic di- gital cylinder. (See Chapter Function check on anti-panic digital cylinder [} 4.2.3].) dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 35: Cleaning

    Only disinfection agents that are explicitly formulated for cleaning delicate metal surfaces and plastics may be used. The use of unsuitable cleaning agents or methods can damage the components' surface. Use a soft, damp cloth to clean the surface. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 36: Service

    Do not oil the Digital cylinder! 8.1 Serial numbers The digital cylinder's serial number can be found on the cylinder housing next to the matrix code. The first 5 digits indicate the manufacturing date. The manufacturing date can be worked out as follows: Enter the first 5 digits into any cell in an Excel sheet.
  • Page 37 Position the multitool on the outer door knob. Turn the multitool to the left and lock it. The outer door knob and the cylinder are now firmly con- nected. Check that the digital cylinder is functioning correctly. Check theclock time [} 8.5] and adjust if required.
  • Page 38: Replace E-Module

    ð The door knob module and the cylinder housing are now firmly connected. 6. Insert the battery. ð After it has been inserted, the LEDs will briefly flash green once. ð The component is now ready again. Attach the door knob. dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 39: Disassembling The Inner Door Knob

    Loss of data With an INI reset, all previously saved settings and data on the E-module are deleted. NOTICE Before components are returned to Kaba for servicing, always carry out a reset on the components. 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 40: Reset With Master Media

    If all the alarm signals are ignored until the batteries are completely flat, doors can no longer be opened from the outside with the digital cylinder. In this case, insert a new battery. The digital cylinder does not require an emergency power supply using the 1460 programmer.
  • Page 41: Troubleshooting

    Incorrect e-module on digital — 3 x red – E-module knob and MC in- – Check compatibility cylinder flash sert are not compatible (V4 FW 42.XX) Other errors — – Unintentional re-start — short 1220013692 - 11/2017 dormakaba digital cylinder...
  • Page 42 Measures short green short Other errors — – Unintentional re-start — short 1 x long short Key: Components without visual display Function only for c-lever, mechatronic cylinder and digital cylinder The actuator subsequently opens dormakaba digital cylinder 1220013692 - 11/2017...
  • Page 43: Error Analysis For Battery Life

    – Store e-module knob without digital cylinder battery – Defective electronics – Contact customer service – Activation of digital cylinder – Inform user without RFID medium, e.g. by hold- ing your hand in front of it – Many unauthorised access at- –...
  • Page 44: Appendix

    This chapter provides additional information about the battery operation. 10.1 Summary of various factors influencing the battery operation The digital cylinder operates with a 3 V CR2 lithium battery. The battery life is affected by the following factors: • Number of accesses and actions (frequency of use) •...
