- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS GL10 Electronic Gate Lock...
-
Page 2: Table Of Contents
CONTENTS • DESCRIPTION • PRODUCT UNBOXED • PRE - INSTALLATION ASSESMENT o Mechanical o Electrical • INSTALLATION o Mark the lock position o Drill the lock mounting holes o Secure the lock in position o Mark the strikes position o Drill the strikes mounting holes o Secure the strike in position o Wire the lock o Cover the lock... -
Page 3: Description

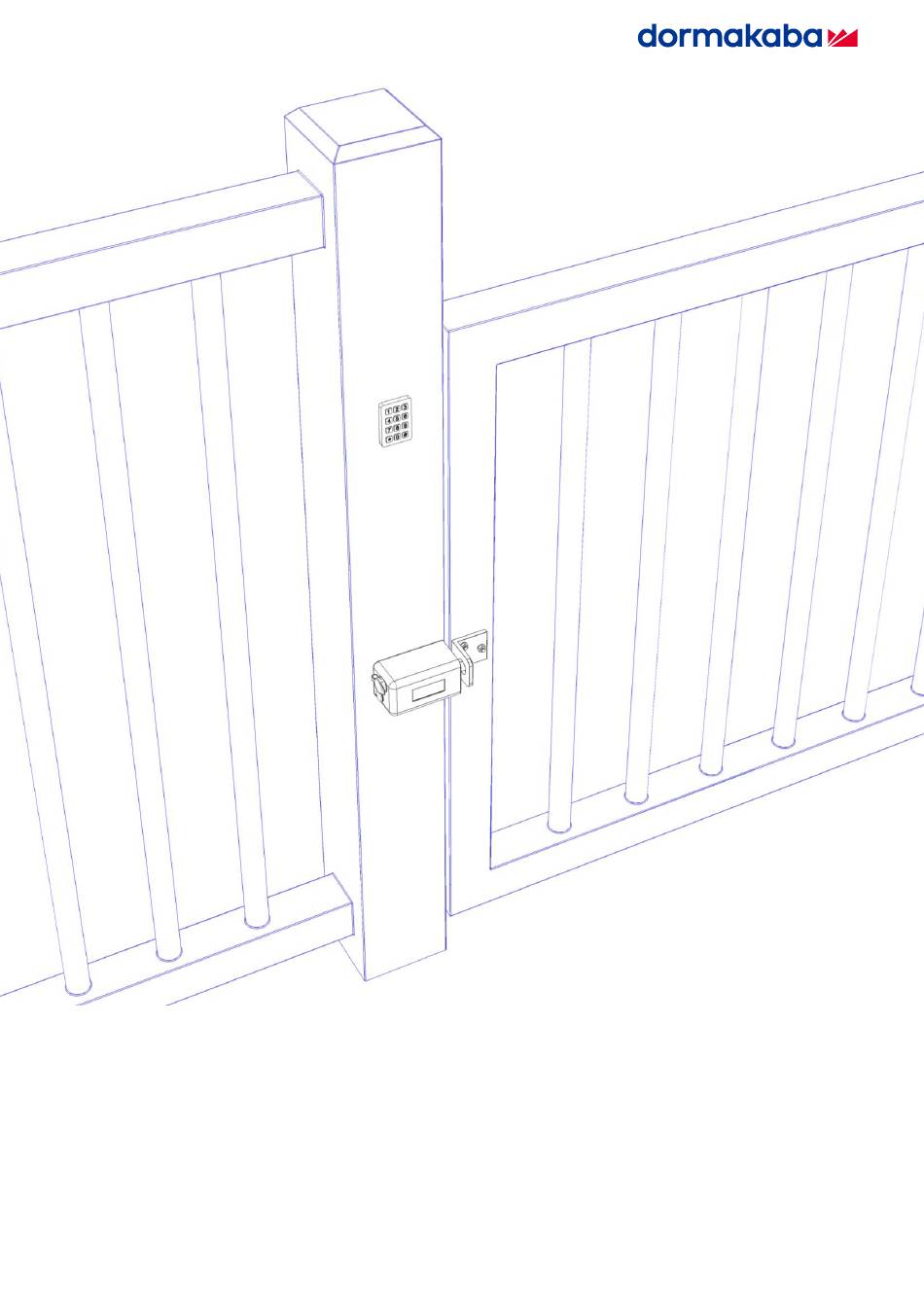

DESCRIPTION The GL10 is a low voltage motor driven lock suited for securing vehicle and pedestrian gates. It is supplied with a matching strike plate and can be installed externally or internally in a horizontal or vertical position. It is designed for use on single or double gates and can be mounted to suit hinged or sliding applications. - Page 4 After the positions of the lock and strike are determined, establish where to run the wires and also decide on what feedback is required from the lock. There are a total of eleven available connections on the GL10; three are compulsory and eight are optional.
-
Page 5: Installation
4. INSTALLATION A typical vehicle gate lock installation is described. The lock is being mounted to the fence post while the strike will be mounted to the gate on the left of the lock. Coach bolts would be used to secure the lock and strike. 4.1 Mark the lock position Locate the lock in the desired position and using a pen / pencil mark the three mounting... -
Page 6: Drill The Strikes Mounting Holes
4.5 Drill the strikes mounting holes Use a M8 drill bit to drill the three mounting holes in the gate. 4.6 Secure the strike in position Push the bolts through the gate post and position the strike over the protruding bolt ends. Place nuts on the three bolts and tighten them to secure the strike to the gate. - Page 7 5. WIRING Connect the GL10 as per the chart below. The three power connections are vital for the operation of the lock whilst the eight monitor connections are outputs supplied to offer feedback if desired. Positive connection to DC power supply (12 – 24V) Negative connection to DC power supply (12 –...
-
Page 8: Fail State
For increased security the GL10 has the ability to automatically lock itself after a timed period in the event of a user failing to do so. If an unlock signal is given to the lock but the gate is not opened the GL10 can automatically lock itself again after one minute. -
Page 9: Auto Re-Lock On
With Auto re-lock OFF selected, the momentary connection of HAS A LOCK CL to + acts as both the lock SIGNAL BEEN SENT and unlock signals for the GL10. HAS THE BOLT PIN INTERNAL EXTENDED AFTER ALARM SOUNDS 3 ATTEMPTS? - Page 10 7.3 General If the batteries are fitted and the power is removed to the GL10 at any time during its operation, the lock will revert to its pre-selected state of either unlocked or locked. The GL10 has been designed to operate with high quality disposable alkaline batteries and may not work correctly with alternatives.
- Page 11 If the Failure to lock / unlock alarm has been sounded it is important that the cause of the obstruction is investigated immediately. As the alarm sounds to indicate the bolt pin has not completed its correct action, it is possible that the gate is unsecured so the security of the building is at risk.
-
Page 12: Strike
9.2 Strike 10. MAINTENANCE The GL10 has been treated with grease and applying any other type of lubricant may void the warranty. With the cover removed it is important to take care when replacing the batteries, selecting the configuration or manually overriding the mechanism.
