Dormakaba M1000 Series Installation Instructions

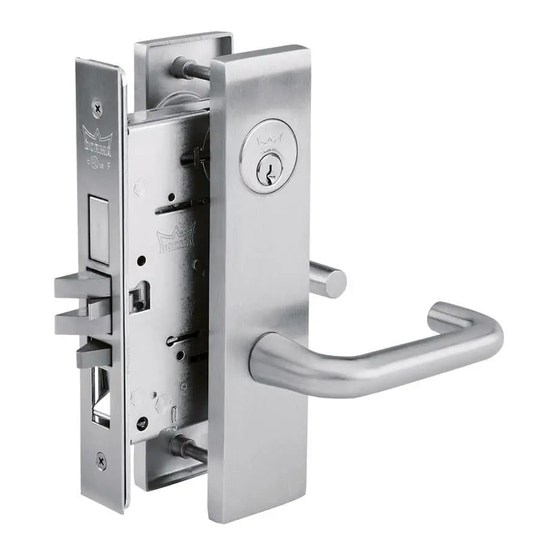

M1000 mechanical mortise locks
Installation instructions
Tools required
#2 Phillips screwdriver
#3 Phillips screwdriver

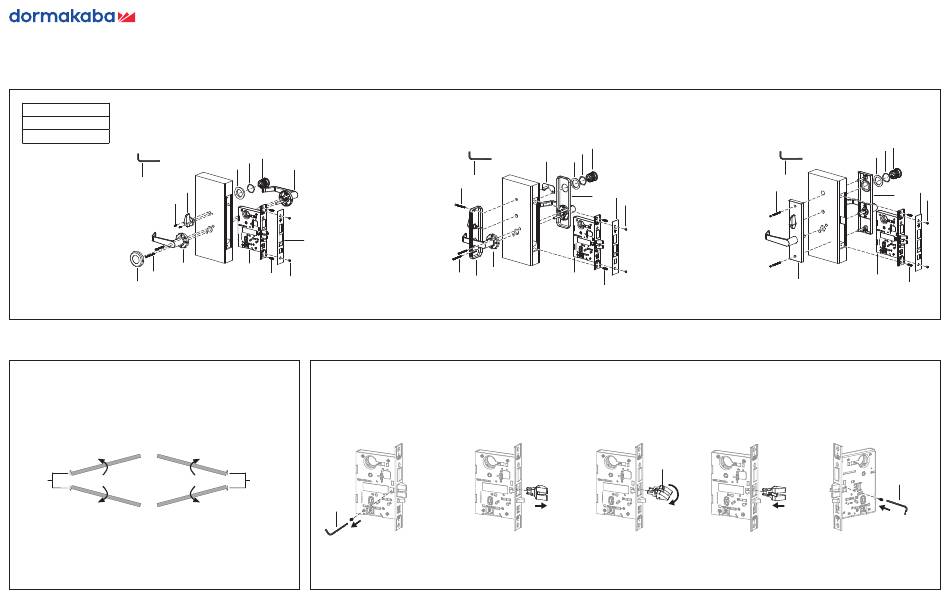

Parts list (Sectional trim)
1. Inside rose
14
2. 8-32 x 1-3/4" screws
5
3. Inside lever assembly
4. #6-1/2" screws
4
5. Thumb turn
6. Chassis
7. 12-24 x 13/4" combo-screws
8. Armor plate
9. 8-32 x 1/4" screws
10. Outside lever assembly
11. Mortise cylinder
12. Wave washer
13. Cylinder ring
3
14. Allen key (included)
2
1
1 Handing instructions
1.1 Determine door handing
1.1.1 Change latch bolt handing if it does not match
door handing.
Interior side of door
Left hand door (LH)
Hinge
Left hand reverse
Exterior side of door
door (LHR)
M1000 series
11
12
13 10
Parts list (M escutcheon trim)
1. Inside lever assembly
2. 8-32 x 1-1/4" screws
3. Inside escutcheon assembly
4. 8-32 x 1-3/4" screws
5. Escutcheon mounting plate
6. Chassis
7. 12-24 x 3/4" combo-screws
8. Armor plate
9. 8-32 x 1/4" screws
8
10. Outside escutcheon assembly
11. Mortise cylinder
12. Wave washer
6 13. Cylinder ring
14. Allen key (included)
7
9
1.2 Reverse direction of latch (if necessary)
NOTE: Orient latch as seen in images.
1.2.1 Remove latch bolt set
screw with provided
allen key.
Right hand door (RH)
Hinge
Right hand reverse
Allen key
door (RHR)
94740_C
11
12
13
5
14
4
8
10
9
1
2 6
3
7
1.2.2 Remove latch 1.2.3 Rotate latch
from mortise 180°.
lock.
www.dormakaba.us
Parts list (H escutcheon trim)
11
1. Inside escutcheon assembly
2. 10-32 x 2-1/8" screw 2
3. Chassis
4. 12-24 x 3/4" combo-screws
5. Armor plate
6. 8-32 x 1/4" screws
7. Outside escutcheon assembly
8. Mortise cylinder
9. Wave washer
10. Cylinder ring
11. Allen key (included)
1
1.2.4 Reinstall latch 1.2.5 Reinstall latch bolt
into lock.
Latch foot
NOTE: Be sure latch foot is raised when reinserting latch.
12-2023
9 8
10
5
7
6
3
4
set screw and
tighten securely.
Allen key
1
