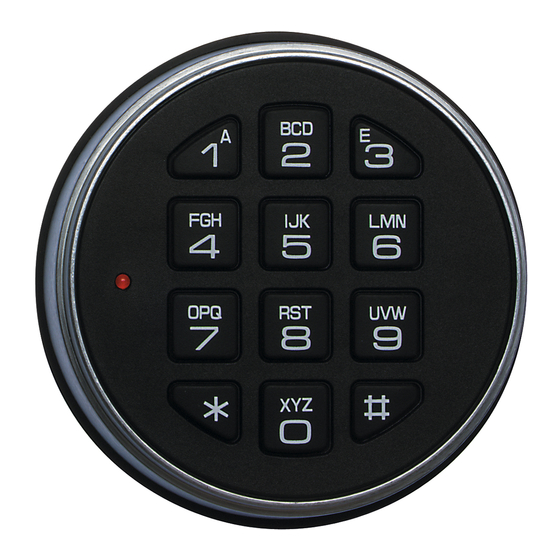

- Page 1 Keypad Only Setup Instructions LA GARD ComboGard Pro 39E Electronic Combination Lock P/N 735.028 Rev. N - 05/18...
- Page 2 ComboGard Pro locks can either be configured using the ComboGard Pro Setup software or through a series of keypad commands. This document will cover configuring the lock using the keypad commands ONLY. The ComboGard Pro Lock has three states of operation: Factory Default, Manual Setup, and Active.
- Page 3 EXTERNAL SIGNALS (Alarm Box Required - P/N 2789NC. Only one External Signal type may be selected.) An external input signal to the Alarm Box will either disable the Lock from opening, override the time delay, or enable the remote override depending on the selection programmed for External Signals.
- Page 4 Low Battery Warning • Repeated audio/visual signals (LED flashes/beeps) during Lock opening indicate the battery is low and should be replaced immediately. • If the battery level becomes too low to safely operate the Lock, pressing any key will initiate the low battery warning. The battery must be replaced before the Lock will operate.
- Page 5 Additional Operations • Delay Period – The LED will flash once every second. • Open Period – The LED will flash twice a second, and the Entry Device will beep every 10 seconds. • If any key is pressed, the Lock will flash the LED and beep three times. •...
- Page 6 SET COMBINATION LENGTH 1. Enter the default Manager combination (5-5-5-5-5-5) and hold down last digit of combination until lock double signals twice release and the LED stays on. 2. PRESS 8. 3. Enter combination length (6, 7, 8, or 9).
- Page 7 ACTIVATE USERS 1. Enter Default Manager combination (all 5’s to length of combination) and hold down last digit of combination until lock double signals twice release and the LED stays on. 2. PRESS 1. 3. Enter User number (1 - 9.) 4.
- Page 8 Reset Box and repeat steps 2 and 3. 5. Disconnect Reset Box. The Lock is now in Factory mode, and is ready to be configured by the PC Software or through the keypad. dormakaba USA Inc. 749 W. Short St. Lexington KY 40508 T: 859 253 4744...
