Page 1: Dc Power Supply

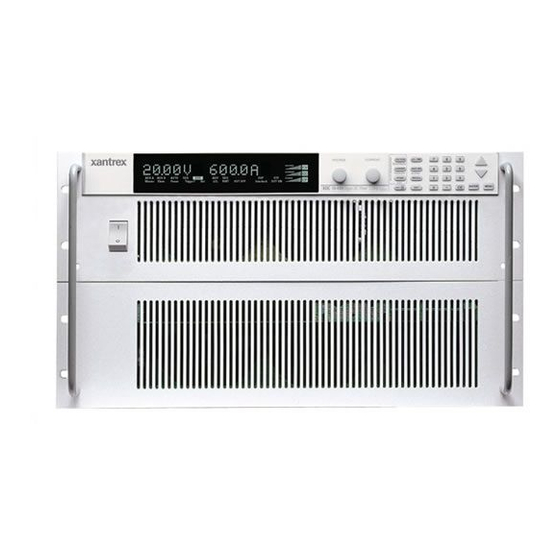

XDC 6000 Watt and 12000 Watt Series Digital Programmable DC Power Supply XDC 10-600 XDC 10-1200 XDC 20-300 XDC 20-600 XDC 30-200 XDC 30-400 XDC 40-150 XDC 40-300 XDC 60-100 XDC 60-200 XDC 80-75 XDC 80-150 XDC 100-60 XDC 100-120...
Page 3 Operating Manual for XDC 6000 Watt and 12000 Watt Series Digital Programmable DC Power Supply...
Page 4: Warranty
Warranty This Limited Warranty is provided by Xantrex Technology, Inc. (“Xantrex”) and covers defects in workmanship and materials in your XDC 6000 Watt or 12000 Watt Series Digital DC Power Supply. This warranty lasts for a Warranty Period of 5 years from the date of purchase at point of sale to you, the original end user customer.
Page 5 Direct returns may be performed according to the Xantrex Return Material Authorization Policy described in your product manual. For some products, Xantrex maintains a network of regional Authorized Service Centers. Call Xantrex or check our website to see if your product can be repaired at one of these facilities. In any warranty claim, dated proof of purchase must accompany the product and the product must not have been disassembled or modified without prior written authorization by Xantrex.
Page 6 This Limited Warranty gives you specific legal rights. You may have other rights which may vary from state to state or province to province. Operating Manual for XDC Series Power Supply...
Page 7 Please record the following information when you first open your Power Supply package: About Your Power Model Number Supply Serial Number Purchased From Purchase Date Release Release 3.0 (2002-06) © Copyright Printed in Canada Release 3.0 ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ 2002 Xantrex Technology Inc. All rights reserved.
Page 8 DC voltage of the battery, will provide adequate reverse polarity current protection. Where several power supplies are in parallel, it is best to fuse each one, rather than one large fuse for all. Operating Manual for XDC Series Power Supply...
Page 9 Symbols Used in This Earth (Ground) Terminal Manual Protective Conductor Terminal On (Supply) Off (Supply) Warning (Shock Hazard) Caution (Check manual for specific information.) Release 3.0...
Page 10 FCC Compliance FCC Part 15 - Radio Frequency Devices - Class A Limits Canadian EMC Requirements The unit complies with Canadian EMC requirements of ICES-001. viii Operating Manual for XDC Series Power Supply...
Page 11 • An Index Sections Section 1: About the XDC Power Supply describes the power supply features, front panel controls, front panel display, and rear panel connectors. It also gives an overview of operation. Section 2: Installation describes how to mount the power supply, how to connect it, and how to run initial self-tests.
Page 12 The current release of this manual is listed below. Updates may be issued as an addendum. Release 3.0 (2002-06) describes the Standard Commands describes the error messages that could appear describes the General Purpose Interface Bus (GPIB) Operating Manual for XDC Series Power Supply provides electrical and...
Page 13: Table Of Contents
List of Figures............xix Section 1. About The XDC Power Supply Overview .
Page 14 Configure Power ON Settings ........84 Operating Manual for XDC Series Power Supply...
Page 15 Program Auto Sequence ......... . 87 Programming a Sequence .
Page 16 Restore Factory Calibration ......... . . 192 Operating Manual for XDC Series Power Supply...
Page 17 Appendix B. SCPI Command Reference Overview............193 Codes and Standards .
Page 18 Index ............245 Operating Manual for XDC Series Power Supply...
Page 19: List Of Tables
List of Tables Table 1.1 Table 2.1 Table 2.2 Table 2.3 Table 2.4 Table 3.1 Table 4.1 Table 4.2 Table 4.3 Table 4.4 Table 4.5 Table 4.6 Table 4.7 Table 4.8 Table 4.9 Table 4.10 Table 4.11 Table 4.12 Table 4.13 Table 4.14 Table 4.15 Table 4.16...
Page 20: List Of Tables
AC Line Input Specifications ....... 236 Operating Manual for XDC Series Power Supply...
Page 21: List Of Figures
List of Figures Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Figure 1.5 Figure 1.6 Figure 2.1 Figure 2.2 Figure 2.3 Figure 2.4 Figure 2.5 Figure 2.6 Figure 2.7 Figure 2.8 Figure 2.9 Figure 2.10 Figure 2.11 Figure 4.1 Figure 4.2 Figure 4.3 Figure 4.4 Figure 4.5...
Page 22 List of Figures Operating Manual for XDC Series Power Supply...
Page 23: Section 1. About The Xdc Power Supply
Section 1. About The XDC Power Supply Overview The XDC Series of digital, programmable DC power supplies is designed for use in OEM, ATE, burn-in, magnet charging, and other high power systems for a broad range of applications. The XDC uses our newly developed digital technology which, combined with “Soft Switching,”...
Page 24: Front Panel
CE Mark, CSA Certified, FCC Compliance, UL (pending) *These features are available on 6000 Watt units when the power supply is equipped with the optional GPIB/CANbus interface card. Front Panel Figure 1.1 Front Panel (6000 Watt) Operating Manual for XDC Series Power Supply...
Page 25 Figure 1.2 Front Panel (12000 Watt) 1. Rack mount brackets 2. Handles 3. On/Off switch 4. Air intake vents 5. Front panel display (vacuum fluorescent display). See Figure 1.4 for details. 6. Voltage knob 7. Current knob 8. Keypad. (See Figure 1.3 for details.) Release 3.0 Front Panel...
Page 26 RUN is pressed. 6. OUT ON/OFF key: Toggle between Output ON and Output OFF. 7. LCL/RMT key: Toggle between local mode and remote mode (or Go to Local for GPIB operation) except during calibration. Operating Manual for XDC Series Power Supply...
Page 27 8. PROTECTION SET key: View and set protection setpoints. ALARM response: Read and clear alarm messages. ALARM annunciator indicates if there are any alarm messages. 9. RECALL settings key: Apply stored power supply settings. 10. EXIT key: Cancel operation, exit menu or get out of Calibration mode or Auto Sequence mode.
Page 28 S/D if tripped? Select fold mode Select fold delay Select 1 to 10 Select 1 to 10 Operating Manual for XDC Series Power Supply Select Y or N Select Y or N Select Y or N Select Y or N...
Page 29 Enter max limit Enter min limit Enter max limit Enter min limit Enter max limit Enter min limit Enter voltage step Enter time interval About The XDC Power Supply Front Panel Enter Value/Duration To Next Step or EXIT to finish...
Page 30: Display
3. Voltage, Current, and Power Bar Graphs: Show present voltage, current limit, and power output in graphical format. Also indicates regulation mode. Status Annunciators Figure 1.5 Front Panel Display, Status Annunciators Operating Manual for XDC Series Power Supply...
Page 31 1. AUX A: Condition selected for auxiliary line A is TRUE. 2. Master: Power supply is selected to be the master in current share configurations. 3. AUX B: Condition selected for auxiliary line B is TRUE. 4. Slave: Power supply is selected to act as a slave in current share configurations. 5.
Page 32: Rear Panel
5. Analog Program and Readback 6. CANbus Port: For current sharing or multichannel operation (optional for 6000 Watt units) 7. RS-232 Connector 8. GPIB (optional) 9. Protective Conductor Ground Screw 10. AC Input 11. Chassis ground stud Operating Manual for XDC Series Power Supply...
Page 33: Overview Of Operation
Overview of Operation Power ON Power ON describes the period between the time the AC power is turned ON and the time the power supply is ready for normal operation. Each supply comes with a series of factory default settings that may be in effect at the conclusion of the Power ON period.
Page 34 About The XDC Power Supply Overview of Operation Operating Manual for XDC Series Power Supply...
Page 35: Section 2. Installation
Section 2. Installation Overview Section 2 provides recommendations and procedures for inspecting, installing, and testing the power supply. For more information about controls and connectors, refer to the front panel diagrams (Figure 1.1 to Figure 1.5) as well as the rear panel diagram (Figure 1.6) in Section 1.
Page 36: Inspection, Cleaning, And Packaging
Use low-pressure compressed air to blow dust from in and around vent openings and components on the printed circuit boards. Operating Manual for XDC Series Power Supply...
Page 37: Returning Power Supplies To The Manufacturer
2. Include the following: • The RMA number supplied by Xantrex Technology Inc clearly marked on the outside of the box. • A return address where the unit can be shipped. Post office boxes are not acceptable.
Page 38: Power Supply
5. If storing, stack no more than 5 boxes high. Check the storage temperature range specification in Appendix E. Model Number: Serial Number: Figure 2.1 Typical Box Label for Storage POWER SUPPLY ___________________________ ___________________________ FRAGILE – ELECTRONIC EQUIPMENT Operating Manual for XDC Series Power Supply...
Page 39: Location, Mounting, And Ventilation
Location, Mounting, and Ventilation Use the power supply in rack-mounted applications only. The power supply is designed to fit in a standard 19 in. (483mm) equipment rack. Rack Mounting WARNING- High Energy and High Voltage Ensure that the 8-32 rack mounting screws do not extend more than 1/8 in. (3.0mm) into the sides of the power supply.
Page 40 Installation Location, Mounting, and Ventilation Figure 2.2 Unpacking the Power Supply (6000 Watt shown) Operating Manual for XDC Series Power Supply...
Page 41: Ventilation
Installation Location, Mounting, and Ventilation Figure 2.3 Mounting the Power Supply in the Rack With Support Rails (6000 W shown) Ventilation Allow cooling air to reach the ventilation inlets on the front of the unit and allow 4 in. (10 cm) of unrestricted air space at the rear of the unit for the fan exhaust. Ventilation inlets are located on the top and sides;...
Page 42: Ac Input Power
Figure 2.4 and Figure 2.6. Figure 2.4 AC Input Connector for 6000 Watt units Ground Connection 3-Phase Terminal Block Connectors Operating Manual for XDC Series Power Supply...
Page 43: Ac Input Wire
AC Input Wire The manufacturer recommends the AC input wire specified in Table 2.2 and Table 2.3. This must be permanently connected to an approved AC distribution box with suitably rated over-current protection. If you require a special cord, contact the manufacturer.
Page 44 9. Energize the AC input. It is now safe to turn the power supply on. Figure 2.5 Attaching the AC Input Wires for 6000 Watt units Operating Manual for XDC Series Power Supply...
Page 45: Ac Wire Input Connection For 12000 W
AC Wire Input See Figure 2.6, on page 44. Connection To connect the 12000 W AC input wires: for 12000 W 1. Ensure that the AC input cord is de-energized, and that the power switch on the front of the power supply is OFF. 2.
Page 46 AC Input Power Figure 2.6 Attaching the AC Input Wires for 12000 Watt units left terminal: Ground Connection 3 right terminals: 3-Phase Terminal Block Connectors AC input cover plate Operating Manual for XDC Series Power Supply...
Page 47: Basic Checks Or Self-Tests
Basic Checks or Self-Tests WARNING The factory setting for Power ON is 0V and 0A with the output OFF. These settings can be customized by end users. If you suspect that the power supply has been used by someone else since it was received from the factory, be prepared for the unit to power ON with a live DC output.
Page 48: Power On Check
OUT ON/OFF. 2. Connect a Digital Voltmeter (DVM) to the output terminals on the rear panel, observing correct polarity. 3. Press OUT ON/OFF to turn the DC output ON. Voltage Mode Operation Check Operating Manual for XDC Series Power Supply...
Page 49: Current Mode Operation Check
4. Slowly turn the Current knob clockwise 1 or 2 turns. Slowly turn the Voltage knob clockwise and observe both the front panel voltmeter and the DVM. Do not exceed 10V. 5. Compare the DVM reading with the front panel voltmeter reading to verify the accuracy of the internal voltmeter.
Page 50: Load Wiring
To increase the current carrying capability, use parallel cables. Table 2.4 Current Carrying Capacity for Load Wiring Wire Size (AWG) Single insulated conductors in free air, 30°C Wire Size Maximum Current (A) (AWG) 250MCM Operating Manual for XDC Series Power Supply Maximum Current...
Page 51: Load Wiring Length For Operation With Sense Lines
Load Wiring For applications using remote sensing, or for improved voltage regulation at the load, you must limit the voltage drop across each load line. We recommend that you use Length for the larger load wiring to ensure a smaller voltage drop (1V maximum), although Operation units will compensate for up to 5V drop in each line with the remote sense lines with Sense...
Page 52: Load Connections
10AWG for 20A, and 8AWG for 30A. Isolation The wire must have a suitable insulating coating that will prevent arcing between the positive and negative output current, and must be rated for 105 ° C operation. Operating Manual for XDC Series Power Supply...
Page 53: Single Load
Single Load To connect a single load to the DC output bus bars (10–150V outputs): 1. Ensure that the power supply is powered OFF. 2. Place a bolt in the connecting hole of the negative bus bar, and fasten the negative wire or bus bar, a washer, and a nut to the bolt.
Page 54: Multiple Loads
If 2 loads share a single cable, the fluctuation in current to one load will cause the voltage to vary on the others. This is due to wire impedance drops. Figure 2.7 Fastening the Output Wires (6000 Watt) (Low and Medium Voltage) Operating Manual for XDC Series Power Supply...
Page 55: Output Strain Relief/Cover
Installation Load Connections Output Strain See Figure 2.8 and Figure 2.9 for installation of the output cover. Use this cover to protect users from accidental contact with the bus bars and to clamp output cables in Relief/Cover place. Figure 2.8 Output Bus Bar Cover for 6000 Watt units (Low and Medium Voltage) Figure 2.9 Output for 12000 Watt units (Low and Medium Voltage) Release 3.0...
Page 56 Installation Load Connections Figure 2.10Output Cover with Strain Relief for 6000 Watt units (High Voltage 300–600V) Operating Manual for XDC Series Power Supply...
Page 57 Installation Load Connections Figure 2.11 Output for 12000 Watt units (High Voltage 300–600V) Release 3.0...
Page 58: Remote Sensing
The remote sensing input is sensitive to electrical noise, so always use a shielded twisted pair, 22AWG or greater for the sense line cable. Terminate the shield to the supply chassis or the negative output of the power supply for best results. Operating Manual for XDC Series Power Supply...
Page 59: Section 3. Operation
Section 3. Operation Overview Once you have installed the power supply and connected both the AC input power and the load as explained in Section 2, the power supply is in its default configuration and is ready to operate in local control mode. Section 3 begins by explaining how to power on and power off the power supply.
Page 60: Powering Off The Power Supply
Appendix A. =0 and I You Will See The OUT OFF annunciator illuminates; Ouput V and I are 0. The AC OFF alarm, and then the unit fades to black. Operating Manual for XDC Series Power Supply...
Page 61: Power Supply Regulation Modes
Power Supply Regulation Modes The power supply has 3 regulation modes while in the Normal Operation State: • Constant Voltage (CV) • Constant Current (CC) • Constant Power (CP) The CV, CC, and CP annunciators indicate the regulation mode. Constant In this mode, the supply’s output voltage is constant while the current and power vary with the load.
Page 62: Remote Control Modes
IEEE 488.2 (GPIB) protocol is also available. An optional CANbus port for 6000 Watt units is also available which enables multi-channel communication from a single GPIB address, and supports current sharing with parallel connected units. (For detailed information, see Section 4, “Remote Operation”.) Operating Manual for XDC Series Power Supply...
Page 63: Front Panel Controls
This section describes the function keys, menu options, and control knobs that you use to operate the power supply. (Additional details about the front panel keys, control knobs, and display annunciators are provided in Section 1, “About The XDC Power Supply”.) The next section (“Power Supply Operation”...
Page 64: Menu Navigation
9. POWER SETPT: Sets up the power output. (See “Set Power” on page 65.) 10. DISPLAY CFG: Sets up the display to show the desired combination of voltage, current, and power. (See “Configure Display” on page 98.) Operating Manual for XDC Series Power Supply...
Page 65: Control Knobs
11. KNOB LOCKOUT: Locks out either the Voltage or Current knob, or locks out both. (See “Lock Out Control Knobs” on page 98.) 12. SETPT LIMIT: Sets up minimum and maximum voltage, current, and power setpoints. (See “Set V, I, and P Limits” on page 100.) 13.
Page 66: Power Supply Operation
ENTER CURRENT ENTER You Will See Set #####V This saves the setting and enables the new voltage setpoint. You Will See Set #####A This saves the setting and enables the new current setpoint. Operating Manual for XDC Series Power Supply...
Page 67: Set Power
Set Power The POWER SETPOINT menu option lets you select the power output limit, measured in watts. The following table shows how to access and work with the Power Setpoint option. The power setpoint is normally at the maximum rating of the power supply, in the factory default configuration and does not need to be re-set for typical use.
Page 68 Recovery options are available for AC Off and OTP. Also, see “Status Registers” on page 142. Operating Manual for XDC Series Power Supply...
Page 69 To set the Over-Voltage Protection: Step # Do This Use the Voltage knob, the numeric, keypad, or the arrow keys to enter a value. The value must be between 0–103% of the unit’s rated voltage. The other protection options follow a similar procedure, but have 2 extra steps: 1.
Page 70 OVP SET 0V OCP SET 0A OCP SET 0A OCP SET ####A S/D if trip? N S/D if trip? Y This setting is saved and the display returns to its default operating mode. Operating Manual for XDC Series Power Supply...
Page 71 To set the Under-Current Protection: Step # Do This Use the Current knob, the numeric keypad, or the arrow keys to enter a value. The value must be between 0–103% of the unit’s rated current. Use the arrow keys to select Yes or No. To set the Over-Power Protection: Step # Do This Use both the Current and Voltage...
Page 72 OVP SET 0V UPP SET 0W UPP SET 0W UPP SET ####W S/D if trip? N S/D if trip? Y This setting is saved and the display returns to its default operating mode. Operating Manual for XDC Series Power Supply...
Page 73: Set Shutdown Recovery For Ac Off And Otp
To set Fold Protection: Step # Do This Use the arrow keys or the numeric keypad to select the value: None, CC, CV, CP Use the arrow keys or the numeric keypad to select the delay time. The Shutdown Recovery menu offers 2 options for AC Off (ACO) and Over-Temperature protection (OTP): Shutdown Recovery for...
Page 74: Respond To Alarms
OTP Latched OTP AutoRecov ACO AutoRecov OTP is set to Auto Recovery. ACO remains set to Auto Recovery and the display returns to its default operating mode. You Will See OC Alarm OP Alarm Operating Manual for XDC Series Power Supply...
Page 75 If the alarms are cleared, the system returns to its default operating state. If the alarms persist, the system prompts OVP SET #####V. The system has shifted to output protection mode. You can press ENTER to work with the OVP setting or press the arrow keys to view the other protection settings.
Page 76: Set Up Remote Control
If the system is using GPIB, it will shift to remote control only when the Remote enable line, REN = 1 and a command is sent from the remote controller. You Will See RS-232 menu option. (See “Select Remote REMOTE SELECT Operating Manual for XDC Series Power Supply...
Page 77: Select Remote Control Source
Select The REMOTE SELECT menu option allows you to select an interface for remote control. Before selecting a remote control source, be sure to set up each interface Remote using the Remote Configure menu. See “Configure Remote Control Source” on page Control Source Remote control sources are listed here along with their respective programming...
Page 78: Configure Remote Control Source
See the tables that follow to see how to proceed. Configuration Settings 1200, 2400, 4800, 9600, 19200, 38400 Hdwr, XON, None Select the operating range of the API: 0–5 0–10 1–30 Y, N 2-50 Y, N Operating Manual for XDC Series Power Supply...
Page 79: Store User Settings
Store User If you have a frequent or constant need for a specific voltage and current output, you can save these setpoints in the power supply’s memory as a user setting. Once a Settings setting is stored, it remains in the power supply’s memory after the unit is powered off.
Page 80: Change Stored Settings
Your voltage setting appears on the display. Your voltage setting is saved. Set #####A Your current setting appears on the display. Set 1 (unused) Set 1 Your voltage and current setting is now saved as Set 1. Operating Manual for XDC Series Power Supply...
Page 81: Recall Settings
Recall After you have saved one or more settings, you can press RECALL to retrieve them from the power supply’s non-volatile memory or to run an auto-sequence program. Settings (You can also recall stored settings through your Power ON configuration. See “Configure Power ON Settings”...
Page 82: Factory Preset
Press 4 times. ENTER Use the numeric keypad This runs the selected ENTER You Will See User Setting User Set ## You Will See Factory Preset You Will See Auto Sequence User Set ## Operating Manual for XDC Series Power Supply...
Page 83 Table 3.1 Settings Affected by Recall Feature Voltage setpoint Current setpoint Power setpoint Triggered voltage setpoint Disabled (DEF) Triggered current setpoint Disabled (DEF) Triggered power setpoint Trigger source Low voltage setpoint limit High voltage setpoint limit 103% of voltage rating Low current setpoint limit High current setpoint limit Low power setpoint...
Page 84: Read Error Messages
Step # Do This For a detailed description of all error messages, see Appendix C. MENU ENTER Press repeatedly until all messages have been read and cleared. You Will See ERROR MSGS Error -### No errors Operating Manual for XDC Series Power Supply...
Page 85: Configure User Lines
Configure The USER LINES menu option lets you configure the auxiliary status lines User Lines The Auxiliary (Aux) lines are 2 open collector outputs that can be used to monitor the status of the power supply. The auxiliary lines are referred to as AUX A and AUX B.
Page 86: Configure Power On Settings
ENTER =0, and I You Will See Cfg CV Pol Act High Pol Act Low This setting is saved and the display returns to its default operating mode. =0. (default configuration) Operating Manual for XDC Series Power Supply...
Page 87 Factory Preset Selecting Factory Preset lets you restore the factory defaults the next time the power supply is powered ON. To select Factory Preset: Step # Do This 1. You can also press the Down arrow 2 times. Release 3.0 MENU 2 times MENU...
Page 88: User Settings
User Settings Out ON? Y The default display for the selected operating mode. You Will See ERROR MSGS PON CONFIG Last Setting Out ON? Y The default display for the selected operating mode. Operating Manual for XDC Series Power Supply...
Page 89: Program Auto Sequence
Auto-Sequence Auto Sequence lets you recall a stored program next time the unit is powered on. (Assumes at least one program has been saved in memory. See “To edit the sequence’s trigger source:Using Auto Sequencing” on page 96.) To select Auto Sequence: Step # Do This 1.
Page 90: Programming A Sequence
See the “Setting step advance by trigger:” table below. You Will See ERROR MSGS AUTO SEQ PGM Sequence 1 Sequence # Edit Sequence Step 1 Edit Step S01 ####V S01 ####A S01 ####W S01 ####V Set Step Time Operating Manual for XDC Series Power Supply...
Page 91 Step # Do This Set the step advance method. this table. Repeat steps 7 to 14 for all remaining steps in the sequence. screen. Setting step advance by time: This procedure is continued from step 13 in the “To program a sequence:” table. It describes how to program the sequence to advance a particular step by waiting for a certain time period.
Page 92 . Use the scroll ENTER “Editing Repeat Times of a Sequence” on page 95 You Will See Set Step Time Wait for Trig To Next Step for an explanation of how to edit these Operating Manual for XDC Series Power Supply “Editing...
Page 93: Deleting A Sequence
Deleting a This option allows you to delete an entire sequence. Sequence To delete a sequence: Step # Do This keys to select a sequence to delete. keys to select the Del Sequence option. keys to confirm deletion. Wait. Sequence is now deleted. Release 3.0 MENU 6 times or...
Page 94: Editing A Sequence Step
ENTER ENTER . Use the scroll ENTER . Use the scroll You Will See ERROR MSGS AUTO SEQ PGM Sequence 1 Sequence # Edit Sequence Step 1 Step # Edit Step Edit Step Operating Manual for XDC Series Power Supply...
Page 95: Inserting A Sequence Step
Inserting a This option allows you to insert a particular step in a sequence that has already been programmed. Sequence Step To insert a step into a programmed sequence: Step # Do This keys to select a sequence to work with.
Page 96: Deleting A Sequence Step
. Use the scroll ENTER ENTER EXIT You Will See ERROR MSGS AUTO SEQ PGM Sequence 1 Sequence # Edit Sequence Step 1 Step # Edit Step Delete Step Step ## Deleted Step ## Operating Manual for XDC Series Power Supply...
Page 97: Editing Repeat Times Of A Sequence
Editing This option allows you to edit the number of times the sequence will run before it goes into STOP mode. Repeat Times of a To edit the sequence’s repeat times: Sequence Step # Do This keys to select a sequence to work with.
Page 98: Editing Trigger Source Of A Sequence
Bus is triggered by a GPIB GET command or a *TRG command. ENTER EXIT You Will See ERROR MSGS AUTO SEQ PGM Sequence 1 Sequence # Edit Sequence Trig Source Trig From Man Trig from ### Edit Sequence Operating Manual for XDC Series Power Supply...
Page 99: Using Auto Sequencing
Using Auto Auto Sequence programs can be set to run as a Power ON default or recalled from memory by pressing the RECALL key. In Auto Sequence mode, 3 of the function Sequencing keys operate as alternates: • VOLTAGE operates as RUN/PAUSE. •...
Page 100: Configure Display
Lock V Knob? N Lock V Knob? Y Lock I Knob? N The Voltage knob is locked out. Lock I Knob? Y The setting is saved and the display returns to its default operating mode. Operating Manual for XDC Series Power Supply...
Page 101 If you attempt to use either knob, the display shows Knobs Locked, and there is no effect on the output. To lock out only the Voltage knob: Step # Do This If you attempt to use the Voltage knob, the display shows V Knob Locked, and the output is not affected.
Page 102: Set V, I, And P Limits
Voltage Limit High 0V High #####V Low 0V The Maximum setting is saved and the Minimum setting appears. Low #####V The setting is saved and the display returns to its default operating mode. Operating Manual for XDC Series Power Supply...
Page 103: Current Limit
To set the current limits: Step # Do This Use the Current knob, arrow keys, or numeric keypad to enter a value. The value must be within 0A to 103% of the unit’s rated current. Use the Voltage knob, arrow keys, or numeric keypad to enter a value.
Page 104: Power Limit
Power Limit High #####W High #####W Low #####W The Maximum setting is saved and the Minimum setting appears. Low #####W The setting is saved and the display returns to its default operating mode. Operating Manual for XDC Series Power Supply...
Page 105 The slew rate error increases as the slew rate increases. Selecting SLEW RATE from the main menu will give you two choices: Voltage slew - adjust the voltage slew rate Voltage default - restore the default voltage slew rate Selecting VOLTAGE DEFAULT will return the slew rate to the default value of 1% rated voltage per 150us.
Page 106: View Model Information
The front panel display has a large number of indicators and annunciators. See “Display” on page 28 and “Status Annunciators” on page 28. Status MENU 1 time ENTER You Will See ERROR MSGS MODEL INFO Xantrex Operating Manual for XDC Series Power Supply...
Page 107: Section 4. Remote Operation
Section 4. Remote Operation Overview This chapter is divided into 3 main parts: • “Remote Analog Operation” on page 108 provides an overview of how to use remote analog control • “Multichannel Operation (6000 Watt only)” on page 113 gives information on the setup and use of Multichannel functionality •...
Page 108 B.14. Before using a SCPI command, familiarize yourself with the information in “Using SCPI Commands” on page 195. *PSC <on_off_state> *RCL <user_setting> *RST *SAV <user_setting> *SDS *SRE? *SRE <enable_mask> *STB *TRG *TST? *WAI Operating Manual for XDC Series Power Supply...
Page 109: Making Connections For Remote Control
Making Connections for Remote Control See Figure 4.1 for the locations of the RS-232, GPIB and CANbus connectors and the locations and the pin numbers of the User Lines and the Analog Programming Lines. GPIB and CANbus are optional. Figure 4.1 View of Remote Interface Connections Removable mating connectors are supplied for the user lines and program lines, while the mating connectors and cables for the other ports are supplied by the user.
Page 110: Remote Analog Operation
Function Input/Output Aux Status Line A Output Aux Status Line B Output External Trigger 4–12V Input Safety Interlock Input (Shutdown) 4–12V Safety Interlock Input (Shutdown) GND User Power, 5–12Vdc Input User Ground Input Operating Manual for XDC Series Power Supply...
Page 111 CHASSIS POTENTIAL Figure 4.2 Schematic For User Line Interface Table 4.2 Analog Programming Pins Pin # The analog setpoint and readback pins may be configured to work in either a 0–5V range or 0–10V range. The programming lines have their own isolated power source (10mA max), and this power can be looped back to power the user lines, if required.
Page 112: Configure Analog Control
User Line Pin # MENU 5 times ENTER ENTER ENTER You Will See ERROR MSGS REMOTE CONFIG RS-232 Cfg Analog Cfg Input 0-5V 0-5V or 0-10V Setting is saved and menu is exited. Operating Manual for XDC Series Power Supply...
Page 113 Next select analog programming as the remote control interface. Your options are • Analog V & I - voltage and current programmed via the analog interface • Analog V - voltage programmed via the analog interface; current set via front panel •...
Page 114: Using Remote Analog Control
“Select Remote Control Source” on page 75. You can select analog remote control or either the output voltage or current, or both. When only voltage or current is being remotely controlled, the other setpoint is under front panel local control. Operating Manual for XDC Series Power Supply...
Page 115: Multichannel Operation (6000 Watt Only)
Multichannel Operation (6000 Watt only) Multichannel Multichannel operation is only available for 6000 Watt units. You may remotely control up to 50 power supplies from one programming interface (RS-232 or GPIB) Connections by using multichannel addressing if the CANbus option is installed. One power supply will be connected to a PC via RS-232 or GPIB.
Page 116: Configuration
Terminate the bus at both ends with 120 ohm, 1/4 Watt resistors (included) across the CAN HI and CAN LO signals (Pins 2 and 7). See Table 4.5, “CANbus Pins,” on page 113. Operating Manual for XDC Series Power Supply...
Page 117: Using Multichannel Operation
2. At least one power supply should be connected to a PC via RS-232 or GPIB for multichannel functionality. Configure each of the power supplies with a unique address, as described in the configuration section. Addresses may be in the range 1 to 50 inclusive.
Page 118: Multichannel Commands
These commands include *CLS, *IDN?, *OPT?, *RST, *TST?, *RCL, *SAV, *SDS, and *WAI. See Table B.9, “System Commands,” on page 204. Note The multichannel interface may not handle multiline response messages. Operating Manual for XDC Series Power Supply...
Page 119: Multichannel Broadcast Commands
Multichannel Add a suffix of "0" to simultaneously broadcast the "command" to the master and all other units on the CANbus. Only commands are allowed, queries are not allowed. Broadcast Note that there will be a lag in execution time between the local unit and all other Commands units of up to a maximum of 20 ms.
Page 120: Rs-232 Operation
ERROR MSGS REMOTE CONFIG RS-232 Cfg Baud 9600 Baud ##### Flow Ctl None Options are None = no flow control Hdwr = CTS/DTS hardware handshake XON = software, XON/XOFF characters used Settings are saved. Operating Manual for XDC Series Power Supply...
Page 121: Using Rs-232
Next, select RS-232 as the remote control interface. Step # Do This Press the LCL/RMT button to begin remote operation via the RS-232 interface. SCPI Set the band rate: SYST:COMM:SER:BAUD {1200 | 2400 | 4800 | 9600 | 19200 | 38400} Select flow control: SYST:COMM:SER:PACE {HARD | XON | NONE}...
Page 122: Gpib Operation
The GPIB port is a special GPIB female connector. Table 4.7 describes the pin functions. Pin 12 is not used. Connection Table 4.7 GPIB Pins Pin # Function NRFD NDAC Not used Ground Ground Ground Ground Ground Ground Ground Operating Manual for XDC Series Power Supply...
Page 123: Configuration
Configuration Configure the power supply’s GPIB address and power-on service request setting. The defaults are GPIB address 2 and power-on service request off. Front panel First set the GPIB parameters: Step # Do This Select an address from 1-30 Select whether power-on service request is to be sent.
Page 124: Using Gpib
Refer to the manual for your GPIB interface card. Commands to change remote and local mode will be specific to that card. Press the LCL/RMT button to return to local mode, except if the power supply is in LLO (local lockout) state. Operating Manual for XDC Series Power Supply...
Page 125: Scpi Commands For Digital Interfaces
SCPI Commands for Digital Interfaces These SCPI commands are for use with GPIB, RS-232 and Multichannel remote digital interfaces. Set Up Power For a complete list of commands and remote functionality, see Appendix B, “SCPI Command Reference”. ON Defaults The Power On configuration can be set with one of 4 options: •...
Page 126 See “Editing Trigger Source of a Sequence” on page 96 for more information. See for information about remotely programming and running auto sequence programs. To reset to user setting #1: OUTP:PON:REC SEQ1 To check the setting: OUTP:PON:REC? The response should be SEQ1. Operating Manual for XDC Series Power Supply...
Page 127: Power On Output State
Remote Operation SCPI Commands for Digital Interfaces Power On You may also change the output state whether the output is enabled or disabled at power on. Output State To change the power on at output state: OUTP:PON:STAT [ON|OFF|1|0] To check the setting: OUTP:PON:STAT? Reset Resetting the unit puts certain features to a known state.
Page 128 Disabled (0.0A) and not shutdown when tripped Disabled (0.0A) and not shutdown when tripped Disabled (0.0W) and not shutdown when tripped Disabled (0.0W) and not shutdown when tripped Latched Disabled (Default) Disabled (Default) Exit None False Disabled Operating Manual for XDC Series Power Supply...
Page 129: Store User Settings
Remote Operation SCPI Commands for Digital Interfaces Store User If you have a frequent or constant need for a specific voltage and current output, you can save these setpoints in the power supply’s memory as a user setting. Once a Settings setting is stored, it remains in the power supply’s memory after the unit is powered off.
Page 130: Change Remote/Local Control Of Power Supply
To change setpoints: SOUR:VOLT <voltage> SOUR:CURR <current> SOUR:POW <power> To check setpoints: SOUR:VOLT? SOUR:CURR? SOUR:POW? To set a triggered setpoint: SOUR:VOLT:TRIG <voltage> SOUR:CURR:TRIG <current> SOUR:POW:TRIG <power> See “Triggering Commands” on page 136 for more information. Operating Manual for XDC Series Power Supply...
Page 131 Remote Operation SCPI Commands for Digital Interfaces To check a triggered setpoint: SOUR:VOLT:TRIG? SOUR:CURR:TRIG? SOUR:POW:TRIG? To set limits: SOUR:VOLT:LIM:HIGH <voltage> SOUR:VOLT:LIM:LOW <voltage> SOUR:CURR:LIM:HIGH <current> SOUR:CURR:LIM:LOW <current> SOUR:POW:LIM:HIGH <power> SOUR:POW:LIM:LOW <power> If the high end of the range was set to 5 volts, the command, SOUR:VOLT 10 would return an error.
Page 132: Configure V, I, P Protection Limits
[OFF] or shut down with an alarm [ON] if the protection level is exceeded. To check the Over-Current Protection level: SOUR:CURR:PROT? To check if the Over-Current Protection was tripped: SOUR:CURR:PROT:TRIP? Operating Manual for XDC Series Power Supply...
Page 133 Remote Operation SCPI Commands for Digital Interfaces Under-Current Protection To set the Under-Current Protection level: SOUR:CURR:PROT:UND <current> SOUR:CURR:PROT:UND:STAT <on-off-state> The first UCP protection command sets the protection level. The second command lets you choose a warning alarm only [OFF] or shut down with an alarm [ON] if the protection level is exceeded.
Page 134: Configure Other Protection Mechanisms
Units may be specified as “ms” (milliseconds) “s” (seconds), or “min” (minutes). If no units are specified, the default seconds are assumed. (Increments of 0.1s are allowed.) The default value is 0.5 second. Operating Manual for XDC Series Power Supply...
Page 135 Remote Operation SCPI Commands for Digital Interfaces Over Temperature Protection The user has the option of setting whether the over temperature protection (OTP) mechanism is latched or automatically resumes operation. (The trip levels are internally set and cannot be changed by the user.) SENSE:TEMP:PROT:LATCH {ON|1|OFF|0} Where: ON or 1 means the supply will be latched in shutdown if OTP is tripped, until the...
Page 136: Clear Protection Event
• HTEM: High-Temperature Condition • SPR: Sense Protection Tripped • FOLD: Fold Protection Tripped • CC: Constant Current Mode • CV: Constant Voltage Mode • CP: Constant Power Mode • UNR: Output Unregulated Operating Manual for XDC Series Power Supply...
Page 137: Read Error Messages
To check the setting: OUTP:AUXA:SOUR? To set up Auxiliary line B: OUTP:AUXB:SOUR <aux-line-mnemonic> To set the polarity of the auxiliary status lines: OUTP:AUXA:POL {HIGH|LOW} OUTP:AUXB:POL {HIGH|LOW} Where: HIGH means that the logic of the output is active high. (That is, if the condition is true, the line is pulled high.) LOW means the logic of the output is active low.
Page 138: Triggering Commands
Programmed sequences can run one time only, or repeatedly up to 9999 times or infinitely. You can store up to 10 sequences of 99 steps each. The duration of each step may range from a minimum of 10 milliseconds to a maximum of 99 hours. Operating Manual for XDC Series Power Supply...
Page 139 Remote Operation SCPI Commands for Digital Interfaces Operation Users can select and start a sequence, and while the sequence is running, pause or end it. Users can press and hold the TRIGGER button to skip over steps that have a set duration.
Page 140: Programming Sequences
<sequence_count> ranges from 1 to 9999. It will run the sequence the number of times specified before putting it into the STOP condition. • FORever and INFinity cause the sequence to repeat forever. A query will return 9.9E37, representing INFinity. Operating Manual for XDC Series Power Supply...
Page 141: Program:delete
Selecting a Trigger Source If any triggers are programmed into the sequence, select a trigger source: PROG:TRIG:SOUR {BUS|MAN|EXT|IMM} • BUS - trigger signal is IEEE 488.1 GET or *TRG • MANual - trigger input is from the front panel TRIGGER key •...
Page 142: Auto Sequence Operation
It then advances to the next step. A trigger must come from the selected trigger source. Skipping a Step PROGram:STEP:NEXT Querying Operation PROGram:STEP:EXEC? You can query the step number that is currently operating. Operating Manual for XDC Series Power Supply...
Page 143: Slew Rate
Slew Rate The slew rate is calculated as a function of change in the output voltage and a given time interval. The maximum slew rate is 1% V rating/150us. The slew rate is saved upon power off and restored at power on. Output ON/OFF and shutdown are not affected by the programmable slew rate.
Page 144: Condition Register
SCPI Commands for Digital Interfaces Identification The identification query command returns a string that states the manufacturer, model, serial number, and firmware revision. Query *IDN? may return “Xantrex, XDC 60-100, 100000, 3.000/0/0/0000. Option *OPT? Identification Query SYST[<channel>]:OPTion? The option identification query returns a string listing any reportable options that are installed in the power supply.
Page 145: Transition Filters
Remote Operation SCPI Commands for Digital Interfaces Enable Register The enable register enables reporting of the event bits to the summary bit or the status byte. The contents of the enable register are unchanged by *CLS and *RST. Transition Filters A positive transition filter allows an event to be reported when a condition changes from false to true.
Page 146: Remote Operation
Not Used MEASuring Waiting for TRIGger Not Used Not Used REGulating Summary SHUTdown Summary Remote CONtrol Summary Current SHare Summary Not Used Not Used PROGram running Not Used STATus:OPERation Operating Manual for XDC Series Power Supply to Status Byte bit 7...
Page 147 Table 4.9 OPERation Status Register Release 3.0 Bit Weight Bit Name CALibrating SETTling RANGing SWEeping MEASuring Waiting for TRIGger Summary Waiting for ARM Summary Not implemented CORRecting REGulating Summary SHUTdown Summary 1024 Remote CONtrol Summary 2048 Current SHareSummary 4096 Not Used 8192 INSTrument Summary 16384...
Page 148: Regulating Sub-Register
The power supply is shut down by a power n Summary supply protection mechanism. INTerlock The power supply is shut down by INTerlock signal. COMMand The power supply is shut down by a command. Operating Manual for XDC Series Power Supply...
Page 149: Protection Shutdown Sub-Register
Protection SHUTdown Sub-Register Table 4.12 Protection SHUTdown Sub-Register Bit Weight Bit Name Remote CONtrol Sub-Register This identifies which remote interface is controlling the unit. Only one bit is active at a time with the exception of analog control, where voltage or current alone, or both may be under remote control.
Page 150: Current Share Sub-Register
Multi-channel Programming interface, with with LLO local controls locked out. Description MASTer The power supply is configured to be a Current Share Master. SLAVe The power supply is configured to be a Current Share Slave. Operating Manual for XDC Series Power Supply...
Page 151: Questionable Status Register
Remote Operation SCPI Commands for Digital Interfaces QUEStionable Status Register The Questionable Status Register is a 16-bit register that stores information about questionable events or status during power supply operation. That is, bits in these registers may indicate that the output of the supply is of undesirable or questionable quality.
Page 152 CURRent Summary Not Used POWer Summary TEMPerature Summary Not Used Not Used Not Used CALibration to Status Not Used Not Used AC Off UNRegulated Not Used Not Used Not Used Operating Manual for XDC Series Power Supply Byte bit 3...
Page 153 Table 4.15 QUEStionable Status Register Bit Weight 16384 32768 Release 3.0 Bit Name VOLTage Summary CURRent Summary TIME POWer Summary TEMPerature Summary FREQuency Summary PHASe Summary MODulation Summary CALibration Not Used 1024 Not Used 2048 AC Off 4096 UNRegulated 8192 INSTrument Summary Command Warning Not Used...
Page 154: Voltage Sub-Register
(variable trip limit), and the supply is in Operation state. Set if the supply’s output power is less than the user-specified under-power trip level (variable trip limit), and the supply is in Operation state. Operating Manual for XDC Series Power Supply...
Page 155: Standard Event Status Register
TEMPerature Sub-Register This shows whether the temperature of critical components is near or over the maximum operating temperature. Table 4.19 TEMPerature Sub-Register Standard Event Status Register The standard event status register sets bits for specific events during power supply operation. All bits in the standard event status registers are set through the error event queue.
Page 156 The message, Event –600 User Request, is loaded into the Error/Event Queue. Not implemented Reserved for possible future use by IEEE. Bit values are reported as zero. Operating Manual for XDC Series Power Supply...
Page 157: Status Byte
Status Byte The Status byte register contains the STB and RQS(MSS) messages as defined in 488.1. The user can read the status byte register using a 488.1 serial poll or the 488.2 *STB? common command. If the user sends a serial poll, bit 6 will respond with Request Service (RSQ).
Page 158: Questionable Status Register Summary (Qsr)
The SRQ line of the GPIB will be set. The SRQ annuciator will be lit. Operation Status Register Summary (OSR) This bit is TRUE when a bit in the Operation Event Status Register is set and its corresponding bit in the Operation Status Enable Register is set. Operating Manual for XDC Series Power Supply...
Page 159: Status Register Commands
Status In the following sections <status-enable> is a value from 0 to 32767 representing a 15-bit register mask. Register Commands SCPI Status Commands Preset Status Configures the status data structures to ensure that certain events are reported at a higher level through the status-reporting mechanism. These events are summarized in the mandatory structures, the Operation Status Register, and Questionable Status Register.
Page 160 The Standard Event Status Register query allows the user to determine the current contents of the Standard Event Status Register. (See “Standard Event Status Register” on page 153.) Reading this register clears it. Command: *ESR? SCPI equivalent for multichannel use: STATus[<channel>]:STANdard[:EVENt]? Operating Manual for XDC Series Power Supply...
Page 161 Remote Operation SCPI Commands for Digital Interfaces Service Request Enable Register The Service Request Enable Register allows the user to select the reasons for the power supply to issue a service request. The Service Request Enable Register allows the user to select which summary messages in the Status Byte Register may cause service requests.
Page 162 Command: *IST? Operation Complete The Operation Complete command causes the power supply to generate the operation complete message in the Standard Event Status Register when all pending operations have been finished. Command: *OPC, *OPC? Operating Manual for XDC Series Power Supply...
Page 163 Remote Operation SCPI Commands for Digital Interfaces Wait-to-Continue Command The Wait-to-Continue command prevents the power supply from executing any further commands or queries until the no-operation-pending flag is TRUE. Command: *WAI Operation Status Register Commands Query Operation Status Register Event SCPI command: STATus[<channel>]:OPERation[:EVENt]? Query Operation Status Register Condition SCPI command: STATus[<channel>]:OPERation:CONDition?
Page 164 Enable Regulating Sub-Register SCPI command: STATus[<channel>]:OPERation:REGulating:ENABle <status-enable> Query format: STATus[<channel>]:OPERation:REGulating:ENABle? Set Regulating Positive Transition Filter SCPI command: STATus[<channel>]:OPERation:REGulating:PTRansition <status-enable> Query format: STATus[<channel>]:OPERation:REGulating:PTRansition? Set Regulating Negative Transition Filter SCPI command: STATus[<channel>]:OPERation:REGulating:NTRansition <status-enable> Query format: STATus[<channel>]:OPERation:REGulating:NTRansition? Operating Manual for XDC Series Power Supply...
Page 165 Remote Operation SCPI Commands for Digital Interfaces Shutdown Sub-Register Commands Query Shutdown Event SCPI command: STATus[<channel>]:OPERation:SHUTdown[:EVENt]? Query Shutdown Condition SCPI command: STATus[<channel>]:OPERation:SHUTdown:CONDition? Enable Shutdown Sub-Register SCPI command: STATus[<channel>]:OPERation: SHUTdown:ENABle <status-enable> Query format: STATus[<channel>]:OPERation:SHUTdown:ENABle? Set Shutdown Positive Transition Filter SCPI command: STATus[<channel>]:OPERation:SHUTdown:PTRansition <status-enable>...
Page 166 Query format: STATus[<channel>]:OPERation:SHUTdown:PROTection:ENABle? Set Protection Shutdown Positive Transition Filter SCPI command: STATus[<channel>]:OPERation:SHUTdown:PROTection:PTRansi tion <status-enable> Query format: STATus[<channel>]:OPERation:SHUTdown:PROTection:PTRansi tion? Set Protection Shutdown Negative Transition Filter SCPI command: STATus[<channel>]:OPERation:SHUTdown:PROTection:NTRansi tion <status-enable> Query format: STATus[<channel>]:OPERation:SHUTdown:PROTection:NTRansi tion? Operating Manual for XDC Series Power Supply...
Page 167 Remote Operation SCPI Commands for Digital Interfaces Remote Control Sub-Register Commands Query Remote Control Event SCPI command: STATus[<channel>]:OPERation:RCONtrol[:EVENt]? Query Remote Control Condition SCPI command: STATus[<channel>]:OPERation:RCONtrol:CONDition? Enable Remote Control Sub-Register SCPI command: STATus[<channel>]:OPERation:RCONtrol:ENABle <status-enable> Query Format: STATus[<channel>]:OPERation:RCONtrol:ENABle? Set Remote Control Positive Transition Filter SCPI command: STATus[<channel>]:OPERation:RCONtrol:PTRansition <status-enable>...
Page 168 SCPI command: STATus[<channel>]:OPERation:CSHare:ENABle <status-enable> Query Format: STATus[<channel>]:OPERation:CSHare:ENABle? Set Current Share Positive Transition Filter SCPI command: STATus[<channel>]:OPERation:CSHare:PTRansition <status-enable> Query Format: STATus[<channel>]:OPERation:CSHare:PTRansition? Set Remote Control Negative Transition Filter SCPI command: STATus[<channel>]:OPERation:CSHare:NTRansition <status-enable> Query Format: STATus[<channel>]:OPERation:CSHare:NTRansition? Operating Manual for XDC Series Power Supply...
Page 169 Remote Operation SCPI Commands for Digital Interfaces Questionable Status Register Commands Query Questionable Status Register Event SCPI command: STATus[<channel>]:QUEStionable[:EVENt]? Query Questionable Status Register Condition SCPI command: STATus[<channel>]:QUEStionable:CONDition? Enable Questionable Status Register SCPI command: STATus[<channel>]:QUEStionable:ENABle <status-enable> Query Format: STATus[<channel>]:QUEStionable:ENABle? Set Questionable Status Positive Transition Filter SCPI command: STATus[<channel>]:QUEStionable:PTRansition <status-enable>...
Page 170 Enable Voltage Sub-Register SCPI command: STATus[<channel>]:QUEStionable:VOLTage:ENABle <status-enable> Query Format: STATus[<channel>]:QUEStionable:VOLTage:ENABle? Set Voltage Positive Transition Filter SCPI command: STATus[<channel>]:QUEStionable:VOLTage:PTRansition <status-enable> Query Format: STATus[<channel>]:QUEStionable:VOLTage:PTRansition? Set Voltage Negative Transition Filter SCPI command: STATus[<channel>]:QUEStionable:VOLTage:NTRansition <status-enable> Query Format: STATus[<channel>]:QUEStionable:VOLTage:NTRansition? Operating Manual for XDC Series Power Supply...
Page 171 Remote Operation SCPI Commands for Digital Interfaces Current Sub-Register Commands Query Current Sub-Register Event SCPI command: STATus[<channel>]:QUEStionable:CURRent[:EVENt]? Query Current Sub-Register Condition SCPI command: STATus[<channel>]:QUEStionable:CURRent:CONDition? Enable Current Sub-Register SCPI command: STATus[<channel>]:QUEStionable:CURRent:ENABle <status-enable> Query Format: STATus[<channel>]:QUEStionable:CURRent:ENABle? Set Current Positive Transition Filter SCPI command: STATus[<channel>]:QUEStionable:CURRent:PTRansition <status-enable>...
Page 172 Enable Power Sub-Register SCPI command: STATus[<channel>]:QUEStionable:POWer:ENABle <status-enable> Query Format: STATus[<channel>]:QUEStionable:POWer:ENABle? Set Power Positive Transition Filter SCPI command: STATus[<channel>]:QUEStionable:POWer:PTRansition <status-enable> Query Format: STATus[<channel>]:QUEStionable:POWer:PTRansition? Set Power Negative Transition Filter SCPI command: STATus[<channel>]:QUEStionable:POWer:NTRansition <status-enable> Query Format: STATus[<channel>]:QUEStionable:POWer:NTRansition? Operating Manual for XDC Series Power Supply...
Page 173 Remote Operation SCPI Commands for Digital Interfaces Temperature Sub-Register Commands Query Questionable Temperature Sub-Register Event Temperature Event Sub-Register is read and then cleared. SCPI command: STATus[<channel>]:QUEStionable:TEMPerature[:EVENt]? Query Questionable Temperature Sub-Register Condition SCPI command: STATus[<channel>]:QUEStionable:TEMPerature:CONDition? Enable Temperature Sub-Register SCPI command: STATus[<channel>]:QUEStionable:TEMPerature:ENABle <status-enable>...
Page 174 Remote Operation SCPI Commands for Digital Interfaces Operating Manual for XDC Series Power Supply...
Page 175: Section 5. Current Sharing (6000 Watt Only)
Section 5. Current Sharing (6000 Watt only) Overview The current sharing function is only available for 6000 Watt units. Power supplies can be equipped with the optional CANbus interface to allow current sharing between units connected in parallel. Current sharing can use a maximum of 5 supplies.
Page 176: Configure Current Share
Press MENU Press 7 times MENU ENTER to select the current to save. ENTER to select Y or N. ENTER You Will See ERROR MSGS CURRENT SHARE No share Master Display Sum? Y Operating Manual for XDC Series Power Supply...
Page 177: Setup Current Sharing Network
SCPI Select whether the unit will operate as a master or slave unit: SOURCE:COMBine:CSHare:MODE [MASTer | SLAVe | OFF] To query the total output current of all current sharing units, use the SCPI command: MEAS:CURR? SUM The current share subregister (CSHare) will show whether the master or slave is operating.
Page 178: Operation
+1812, "Current Share Slave Lost" and the slave will queue error +1821, "Current Share Master Lost." The slave's output will be disabled, and the slave annunciator will flash. See “Current Share Error Codes” on page 222 for the list of error codes and messages. Operating Manual for XDC Series Power Supply...
Page 179: Specifications
Specifications Max current share units Max cable length Bus speed Termination Connections Release 3.0 700 kbits/sec 120 ohm, 1/4 Watt parallel male DB9 to female DB9 cable Operation...
Page 180 Current Sharing (6000 Watt only) Operation Operating Manual for XDC Series Power Supply...
Page 181: Appendix A. Calibration
Appendix A. Calibration These are the calibration procedures for the 6000 W unit. If you purchased a 12000 W unit, please reference the accompanying addendum for the correct calibration procedures. Overview The calibration of the unit is software dependent; there are no potentiometers to adjust.
Page 182: Front Panel
• Change Code: Lets you change the password code. MENU Press 2 times. ENTER You are now in the ENTER You Will See ERROR MSGS CALIBRATION Code ##### Code 0000 Output V Cal Operating Manual for XDC Series Power Supply...
Page 183: Scpi
SCPI To access calibration mode via remote interface, use the command: CAL:STAT ON, "0000" To check if the power supply is in calibration mode, use the command: CAL:STAT ? Security code To protect calibration data, a security code is required to enter calibration mode. The security code set at the factory to "0000."...
Page 184: Setup And Equipment
To set up to calibrate the analog programming interface, you will need a 0-10V power supply to provide a programming signal to the voltage and current programming lines. You will also need to connect the DVM to measure the signal at the readback lines. Operating Manual for XDC Series Power Supply...
Page 185: Front Panel Calibration Procedure
Front Panel Calibration Procedure Calibration can also be done via remote control, using SCPI commands. See “Remote Interface Calibration Procedure” on page 187. Calibration of voltage programming and readback are combined in a single procedure. Output 1. Set the load to open circuit. Attach a DVM across the output terminals. Voltage 2.
Page 186: Analog Programming Interface 0-5V Range
Set the input to the programming lines to approximately 4.5V (90% of full scale). 6. Enter voltage data Enter the voltage at the voltage programming lines, read from the external DVM. Press ENTER. Operating Manual for XDC Series Power Supply...
Page 187: Analog Programming Interface Voltage Readback Calibration
7. Power supply calculates and stores calibration constants. 8. The menu will go to the 5V analog voltage readback calibration menu. Analog Programming Interface Voltage Readback Calibration 1. Attach a DVM across the voltage readback lines, Pins B5 and B1(GND). 2.
Page 188: Analog Programming Interface Current Readback Calibration
Enter the voltage at the current readback lines, read from the external DVM. Press ENTER. 7. Power supply calculates and stores calibration constants. 8. The menu will go to the 10V analog voltage programming calibration menu. Operating Manual for XDC Series Power Supply...
Page 189: Analog Programming Interface 0-10V Range
Analog The 0-10V range of the analog programming interface must be calibrated separately. Follow the procedure exactly as for calibrating the 0-5V range, using the Programming corresponding 10V menu options. All the analog signals will be scaled by a factor of Interface 0-10V Range Remote Interface Calibration Procedure...
Page 190: Analog Programming Interface 0-5V Range
4. Maximum calibration level Set the input to the programming lines to approximately 4.5V (90% of full scale). Set the power supply to receive 5V analog voltage programming calibration data with the command: CAL:ANAL:5V:PROG:VOLT:LEV MAX Operating Manual for XDC Series Power Supply...
Page 191 5. Enter voltage data Enter the voltage at the voltage programming lines, read from the external DVM. CAL:ANAL:5V:PROG:VOLT:DATA <voltage> 6. Power supply calculates and stores calibration constants. Analog Programming Interface Voltage Readback Calibration 1. Attach a DVM across the voltage readback lines, Pins B5 and B1(GND). 2.
Page 192 Set the current readback lines to approximately 90% of full scale by sending the command: CAL:ANAL:5V:READ:CURR:LEV MAX 5. Enter voltage data Enter the voltage across the current readback lines, read from the external DVM. CAL:ANAL:5V:READ:CURR:DATA <voltage> 6. Power supply calculates and stores calibration constants. Operating Manual for XDC Series Power Supply...
Page 193: Analog Programming Interface 0-10V Range
Calibration Remote Interface Calibration Procedure Analog The 0-10V range of the analog programming interface must be calibrated separately. Follow the procedure exactly as for calibrating the 0-5V range, except that all the Programming analog signals will be scaled by a factor of 2. Interface 0-10V Range The commands will begin with the header:...
Page 194: Exit Calibration Mode
Note This procedure should not be used in place of regular calibration, but may be useful to restore the unit to an operational state in case of failure. Operating Manual for XDC Series Power Supply You Will See Output V Cal...
Page 195: Appendix B. Scpi Command Reference
Appendix B. SCPI Command Reference Overview This appendix provides a summary of the Standard Commands for Programmable Instruments (SCPI) that are supported by the this Programmable Power Supply. Codes and Standards This power supply conforms to the following international standards: •...
Page 196: Ieee-488.2/Scpi Syntax And Style
CALibration is the root keyword of the command. CURRent and SECure are second-level keywords, and DATA, LEVel, CODE, and STATe, are third-level keywords. A colon (:) is used to separate a command keyword from a lower-level keyword. Operating Manual for XDC Series Power Supply...
Page 197: Using Scpi Commands
Using SCPI Commands Throughout these commands, the optional command [<channel>] is available for the 6000 W units, but not available for 12000 W power supplies. This manual shows SCPI commands in the following format: CALibration:CURRent:LEVel {<current>|MIN|MAX} The command is expressed as a mixture of upper- and lowercase letters. The uppercase letters suggest how the command can be abbreviated into a short form.
Page 198: Using Minimum And Maximum
Multiple commands sent in the same string are separated by a semi-colon (;). The following is an example of how 3 common commands can be sent together in the same string: *OPC; *PSC Off; *TRG Operating Manual for XDC Series Power Supply...
Page 199: Parameter Types
Parameter Types Several different data types are defined for use in program messages and response messages. Boolean Boolean parameters are single binary conditions such as 1 and 0, or ON and OFF. The following is an example of a command that uses Boolean parameters: Parameters SYST:COMM:GPIB:PONS {ON|OFF|1|0} Discrete...
Page 200: Scpi Command Summary
Query? Indicates whether the unit supports a query version of the listed command Notations The following abbreviations are used in the command listings: Used in the • N/A Not applicable. (The command has no associated setpoint value.) Tables Operating Manual for XDC Series Power Supply...
Page 201 Table B.1IEEE 488.2 Commands Function SCPI Command Clear Status *CLS [:]STATus[<channel>]:CLEAr Standard Event Status *ESE? Enable Query [:]STATus[<channel>]:STANdard:ENABle Standard Event Status *ESE Enable [:]STATus[<channel>]:STANdard:ENABle <ESE-word> Standard Event Status *ESR? Register Query [:]STATus[<channel>]:STANDard[:EVENt]? Identification Query *IDN? [:]SYSTem[<channel>]:IDENtify? Individual Status Query *IST? Operation Complete *OPC Command...
Page 202 Save Default Settings *SDS [:]SYSTem[<channel>]:SAVE:DEFault <setting_location> Query Service Request *SRE? Enable [:]STATus[<channel>]:SREQuest:ENABle? Service Request Enable *SRE [:]STATus[<channel>]:SREQuest:ENABle <status-enable> Read Status Byte *STB? [:]STATus[<channel>]:SBYTe[EVENt]? Trigger *TRG Self-Test Query *TST? [:]SYSTem[<channel>]:TEST? Wait To Continue *WAI [:]SYSTem[<channel>]:WAIT Table B.2Readback Commands Function SCPI Command Read Output Current [:]MEASure[<channel>][:SCALar]:CURRent[:DC]? Read Output Power...
Page 203 Table B.3Commands for Output Control Function SCPI Command Set (Immediate) Current [[:]SOURce][<channel>]:CURRent[:LEVel][:IMMediate][:A Setpoint MPLitude] {<current>|MAXimum|MINimum} Set Triggered Current [[:]SOURce][<channel>]:CURRent[:LEVel]:TRIGgered[:AMP Setpoint Litude] {<current>|MAXimum|MINimum|DEFault} Set (Immediate) Power [[:]SOURce][<channel>]:POWer[:LEVel][:IMMediate][:AMP Setpoint Litude] {<power>|MAXimum|MINimum} Set Triggered Power [[:]SOURce][<channel>]:POWer[:LEVel]:TRIGgered[:AMPLi Setpoint tude] {<power>|MAXimum|MINimum|DEFault} Set (Immediate) [[:]SOURce][<channel>]:VOLTage[:LEVel][:IMMediate][:A Voltage Setpoint MPLitude] {<voltage>|MAXimum|MINimum} Set Triggered Voltage [[:]SOURce][<channel>]:VOLTage[:LEVel]:TRIGgered[:AMP...
Page 204 Set Under Power [[:]SOURce][<channel>]:POWer:PROTection:UNDer:STATe Protection <on-off-state> Shutdown State Query Under Power [[:]SOURce][<channel>]:POWer:PROTection:UNDer:TRIPped Protection Tripped Set Over Voltage [[:]SOURce][<channel>]:VOLTage:PROTection[:OVER][:LEV Protection Level el] {<voltage>|MAXimum|MINimum} Query Over Voltage [SOURce][<channel>]:VOLTage:PROTection[:OVER]:TRIPped Protection Tripped Set Under Voltage [[:]SOURce][<channel>]:VOLTage:PROTection:UNDer[:LEVe Protection Level l] {<voltage>|MAXimum|MINimum} Set Under Voltage [[:]SOURce][<channel>]:VOLTage:PROTection:UNDer:STATe Protection <on-off-state>...
Page 205 Table B.5Commands for Calibration Function SCPI Command Restore Factory [:]CALibration[<channel>]:RESTore Change Calibration [:]CALibration[<channel>][:SECure]:CODE <codeword> Password Set Calibration State [:]CALibration[<channel>][:SECure]:STATe <on-off-state>,<codeword> Set Analog Current [:]CALibration[<channel>]:ANALog:<5V|10V>:PROGram:CURRe Programming Input Level nt:LEVel {MINimum|MAXimum} Enter Analog Current [:]CALibration[<channel>]:ANALog: Programming Input Data :{5V|10V}:PROGram:CURRent[:DATA] <current> Set Analog Voltage [:]CALibration[<channel>]:ANALog: Programming Input Level :{5V|10V}:PROGram:VOLTage:LEVel {MINimum|MAXimum}...
Page 206 Function SCPI Command Set Output Fold Delay [:]OUTPut[<channel>]:PROTection:FOLD:DELay <delay> Set Output Fold Mode [:]OUTPut[<channel>]:PROTection:FOLD[:MODE] {NONE|CC|CP|CV} Query Fold Protection [:]OUTPut[<channel>]:PROTection:FOLD:TRIPped? Tripped Table B.8Commands for Triggering Function SCPI Command Set Immediate Initiation of [:]INITiate[<channel>][:IMMediate] Trigger System Set Trigger Source [:]TRIGger[<channel>][:SEQuence]:SOURce {BUS|EXTernal|IMMediate|NONE} Table B.9System Commands Function SCPI Command Query System Error...
Page 207 Table B.10Status Commands Function SCPI Command Power On Status Clear [:]STATus[<channel>]:POSClear <on-off-state> (*PSC) Query Operation Status [:]STATus[<channel>]:OPERation:CONDition? Condition Register Set Operation Status [:]STATus[<channel>]:OPERation:ENABle <status-enable> Enable Register Query Operation Status [:]STATus[<channel>]:OPERation[:EVENt]? Event Register Set Operation Status [:]STATus[<channel>]:OPERation:NTRansition Negative Transition <status-enable> Register Set Operation Status [:]STATus[<channel>]:OPERation:PTRansition Positive Transition...
Page 208 Set Operation Status [:]STATus[<channel>]:OPERation:RCONtrol:NTRansition Remote Control Negative <status-enable> Transition Register Set Operation Status [:]STATus[<channel>]:OPERation:RCONtrol:PTRansition Remote Control Positive <status-enable> Transition Register Query Operation Status [:]STATus[<channel>]:OPERation:REGulating:CONDition? Regulating Condition Register Set Operation Status [:]STATus[<channel>]:OPERation:REGulating:ENABle Regulating Enable <status-enable> Register Query Operation Status [:]STATus[<channel>]:OPERation:REGulating[:EVENt]? Regulating Event Register Set Operation Status [:]STATus[<channel>]:OPERation:REGulating:NTRansition Regulating Negative...
Page 209 Set Operation Status [:]STATus[<channel>]:OPERation:SHUTdown:PROTection:NT Shutdown Protection Ransition <status-enable> Negative Transition Register Set Operation Status [:]STATus[<channel>]:OPERation:SHUTdown:PROTection:PT Shutdown Protection Ransition <status-enable> Positive Transition Register Preset Enable, Positive [:]STATus[<channel>]:PRESet Transition and Negative Transition Status Registers Query Questionable [:]STATus[<channel>]:QUEStionable:CONDition? Status Condition Register Set Questionable Status [:]STATus[<channel>]:QUEStionable:ENABle Enable Register <status-enable>...
Page 210 Set Questionable Status [:]STATus[<channel>]:QUEStionable:POWer:NTRansition Power Negative Transition <status-enable> Register Set Questionable Status [:]STATus[<channel>]:QUEStionable:POWer:PTRansition Power Positive Transition <status-enable> Register Query Questionable [:]STATus[<channel>]:QUEStionable:TEMPerature:CONDiti Status Temperature Condition Register Set Questionable Status [:]STATus[<channel>]:QUEStionable:TEMPerature:ENABle Temperature Enable <status-enable> Register Query Questionable [:]STATus[<channel>]:QUEStionable:TEMPerature[:EVENt] Status Temperature Event Register Set Questionable Status [:]STATus[<channel>]:QUEStionable:TEMPerature:NTRansi Temperature Negative...
Page 211 Table B.11Protection Commands Function SCPI Command Set Over Temperature [:]SENSe[<channel>]:TEMPerature:PROTection:LATCh Response <on-off-state> Query Over Temperature [:]SENSe[<channel>]:TEMPerature:PROTection:TRIPped? Protection Tripped Set AC Fail Response [:]SENSe[<channel>]:VOLTage:AC:PROTection:LATCh <on-off-state> Query AC Fail Protection [:]SENSe[<channel>]:VOLTage:AC:PROTection:TRIPped? Tripped Table B.12User Lines Function SCPI Command Select polarity of Auxiliary [:]OUTPut[<channel>]:AUXiliary<A|B>:POLarity Lines {HIGH|LOW}...
Page 212 Function SCPI Command Delete selected sequence [:]PROGram[<channel>][:SELected]:DELete[:SELected] Delete all sequences [:]PROGram[<channel>][:SELected]:DELete:ALL Select a sequence to run [:]PROGram[<channel>][:SELected]:NAME or edit <sequence_number> Change Auto Sequence [:]PROGram[<channel>][:SELected]:STATe operating state {RUN|PAUSe|STOP} Skip to the next step [:]PROGram[<channel>][:SELected]:STEP:NEXT (while running in auto sequence) Read selected sequence [:]PROGram[<channel>][:SELected]:COUNt? number of steps Delete selected sequence...
Page 213 Delete specific sequence [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP< step step_number>:DELete Edit specific sequence [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP step <step_number>[:EDIT] [[[[[<voltage>],<current>],<power>],<OVP_level>],{<ti me>|TRIG}] Insert step into specific [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP< sequence step_number>:INSert <voltage>,<current>,<power>,<OVP_level>,{<step_time>| TRIG} Program specific [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP< sequence step current step_number>:CURRent <current> Program specific [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP< sequence step voltage step_number>:VOLTage <voltage> Program specific [:]PROGram[<channel>]:SEQuence<sequence_number>:STEP<...
Page 214 Function Legacy Command Reset ERR? Query System Error Identification Query Read Output Current IOUT? Set High Current Limit IMAX <current> Set (Immediate) Current ISET <current> Setpoint Set Output State OUT <on-off-state> OVSET <voltage> Set Over Voltage Protection Level ROM Query ROM? Clear Output Protection Set High Voltage Limit...
Page 215: Expressions
Expressions Table B.16Expressions Expression Details aux_line_mnemonic Define the output of the auxiliary line.The possible values are NONE, ON, OFF, OVOLtage, UVOLtage, OCURrent, UCURrent, OPOWer, UPOWer, ACOFf, OTEMperature, HTEMpertature, SPRotection, UNRegulated, FOLD, CC, CV, CP. channel The address for a multichannel slave. An integer value in the range 2 to 50. codeword A string representing any 4-digit positive integer.
Page 216 SCPI Command Reference Expressions Operating Manual for XDC Series Power Supply...
Page 217: Appendix C. Error Messages
Appendix C. Error Messages Overview Errors are placed in a queue as they are detected. The queue works on a first in, first out (FIFO) basis. If the queue overflows, the last error in the queue is replaced with error –350, “Queue Overflow”. When all errors have been read from the queue, further error queries return 0, “No error”.
Page 218: Command Error List
This is the generic error for the power supply. -203 Command protected Indicates that a legal password-protected program command or query could not be executed because the command was disabled. Check calibration state. Operating Manual for XDC Series Power Supply...
Page 219: Error Message Description
Error Error Message Description code -220 Parameter error Indicates that a program data element related error occurred. -221 Setting conflict Indicates that a legal program data element was parsed but could not be executed due to the current power supply state. Factors that may contribute to this error are: Remote source - To set most values, the remote source must be correct.
Page 220: Device-Specific Error List
A stop bit was not detected when data was received, e.g. a baud rate mismatch. -363 Input buffer overrun. Software or hardware input buffer on serial port overflows with data caused by improper (or nonexistent) pacing. Operating Manual for XDC Series Power Supply...
Page 221: Query Error List
Query Error List An error number in the range [-499, -400] indicates that the output queue control of the instrument has detected a problem with the message exchange protocol described in IEEE 488.2, chapter 6. The occurrence of any error in this class causes the query error bit (bit 2) in the Event Status Register to be set.
Page 222: Front Panel Error Codes
Auto Sequencing Error Codes Table C.10Auto Sequencing Error Codes Error Error Message Description code +1601 Invalid step number Step does not exist, is out of allowed range or preceding steps do not exist. Operating Manual for XDC Series Power Supply...
Page 223: Canbus Error Codes
CANbus Error Codes Table C.11CANbus Error Codes Error Error Message Description code +1701 CANbus hardware missing The CANbus option is not installed on the controller card, or controller card is not present. +1702 CANbus device specific error An error has occurred on the CANbus circuit. Probable causes are AC input too low, AC input not secure, controller card not securely fastened or other noise sources.
Page 224: Current Share Error Codes
One of the slave’s output is off because of an AC fail condition. +1928 Current share slave output off by OTP (Over Temperature Protection) One of the slave’s output is off because of an OTP condition. Operating Manual for XDC Series Power Supply...
Page 225: Overview
Appendix D. GPIB Overview This power supply can be programmed from a remote terminal using a General Purpose Interface Bus (GPIB) interface. Communications over the GPIB interface meet IEEE 488.2 standards and are SCPI compliant. Codes and Standards The GPIB interface of the this Programmable DC Power Supply has been implemented according to IEEE standard 488.1-1987, “IEEE Standard Digital Interface for Programmable Instrumentation.”...
Page 226: Protocol Specifications
Tri state drivers where selectable Parallel Poll Complete capability Complete capability Device does not act as a controller Operating Manual for XDC Series Power Supply Functions Subset SIDS, SGNS, SDYS, STRS, SWNS, SIWS AIDS, ANRS, ACRS, ACDS, AWNS TIDS, TADS, TACS, SPAS,...
Page 227: Electrical Specifications
Electrical Specifications Driver IEEE 488.2 (Section 3.3). Requirements Table D.3Driver Types for Interface Lines Signal Line DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 DIO8 Driver Specifications for 1 megabyte/second: • Low State: Output voltage • High State: Output Voltage (3 state) The Output Voltage (open collector) is dependent on the composite Device Load Requirements.
Page 228 GPIB Performance Specifications Operating Manual for XDC Series Power Supply...
Page 229: Appendix E. Specifications And Characteristics
Appendix E. Specifications and Characteristics Notes • These specifications are represented over the full operating temperature range. • Nominal line input voltage assumed unless otherwise stated. • All sense lines are configured for default local operation. • All specifications are subject to change without notice. Release 3.0...
Page 230: Electrical Specifications-Summary
12 mV 3100 mA 1600 mA 1000 mA 0–10.3 V 0–20.6 V 0–30.9 V 0.85 0.87 0.87 Operating Manual for XDC Series Power Supply 40-150 60-100 0–40 V 0–60 V 0–150 A 0–100 A 6000 W 6000 W 4 mV...
Page 231 Table E.2Drift Specifications for 6000 Watt units (10V to 60V Models) Models Drift (30 minutes): Voltage (0.04% of Vmax) Current (0.6% of Imax) Drift (8 hours): Voltage (0.02% of Vmax) Current (0.04% of Imax) Temperature Coefficient: Voltage (0.04% of Vmax/°C) Current (0.06% of Imax/°C) 1.
Page 232 20 mV 320 mA 230 mA 120 mA 0–88 V 0–110 V 0–165 V 0.89 0.90 0.90 Operating Manual for XDC Series Power Supply 300–20 600–10 0–300 V 0–600 V 0–20 A 0–10 A 6000 W 6000 W 30 mV...
Page 233 Table E.4Drift Specifications for 6000 Watt units (80V to 600V Models) Models Drift (30 minutes): Voltage (0.04% of Vmax) Current (0.6% of Imax) Drift (8 hours): Voltage (0.02% of Vmax) Current (0.04% of Imax) Temperature Coefficient: Voltage (0.04% of Vmax/°C) Current (0.06% of Imax/°C) 1.
Page 234 12 mV 6200 mA 3200 mA 2000 mA 0–10.3 V 0–20.6 V 0–30.9 V 0.85 0.87 0.87 Operating Manual for XDC Series Power Supply 40-300 60-200 0–40 V 0–60 V 0–300 A 0–200 A 12000 W 12000 W 4 mV...
Page 235 Table E.6Drift Specifications for 12000 Watt units (10V to 60V Models) Models Drift (30 minutes): Voltage (0.04% of Vmax) Current (0.6% of Imax) Drift (8 hours): Voltage (0.02% of Vmax) Current (0.05% of Imax) Temperature Coefficient: Voltage (0.04% of Vmax/°C) Current (0.06% of Imax/°C) 1.
Page 236 20 mV 640 mA 460 mA 240 mA 0–88 V 0–110 V 0–165 V 0.89 0.90 0.90 Operating Manual for XDC Series Power Supply 300–40 600–20 0–300 V 0–600 V 0–40 A 0–20 A 12000 W 12000 W 30 mV...
Page 237 Table E.8Drift Specifications for 12000 Watt units (80V to 600V Models) Models Drift (30 minutes): Voltage (0.04% of Vmax) Current (0.6% of Imax) Drift (8 hours): Voltage (0.02% of Vmax) Current (0.05% of Imax) Temperature Coefficient: Voltage (0.04% of Vmax/°C) Current (0.06% of Imax/°C) 1.
Page 238: Ac Line Input Specifications
0.95 24 A (6000 Watt) 48 A (12000 Watt) 20 A (6000 Watt) 40 A (12000 Watt) 13 A (6000 Watt) 26 A (12000 Watt) 11 A (6000 Watt) 22 A (12000 Watt) Operating Manual for XDC Series Power Supply...
Page 239: Output Performance Specifications
Output Performance Specifications These specifications define the electrical performance specifications of the power supply output. These specifications apply to both local and remote sense configurations, except where noted. These specifications apply to all programming sources, except where noted. Rated Output Range Voltage Current Efficiency...
Page 240 0.1% of Vmax 0.5% of Imax 0.5% of Pmax 0.1% of Vmax 0.2% of Vmax 0.5% of Imax 0.15% of Vmax 0.5% of Imax 0.5% of Pmax 0.3% of Vmax 0.5% of Imax Operating Manual for XDC Series Power Supply...
Page 241: Temperature Coefficients
30 Minute Drift Voltage Current Power 8 Hour Drift Temperature Stability Voltage Current Power Temperature Coefficients Front Panel or Remote Digital Interface Voltage Programming Current Programming Power Programming Voltage Readback Current Readback Power Readback Remote Analog Programming Interface Voltage Programming Current Programming Voltage Readback Current Readback...
Page 242: Switching Frequency
Output Hold-Up Time – Power Off Minimum 4 ms (at full load) 10 mA 15 V 300 Vdc with respect to chassis potential or negative output Time (Max) 100 ms 100 ms Time (Max) 50 ms Operating Manual for XDC Series Power Supply...
Page 243 Output Hold-Up Time – Source Interruption Minimum 4 ms with output deviation less than 5% of maximum output voltage after source interruption. Transient Response Time Time to recover within 0.75% of rated output of previous level after step change in load current between 50% and 100%.
Page 244: Environmental Specification
Meets USA EMC standard: FCC, part 15, class A. Meets Canadian ECMC standard: ICES-001. Up to 6,500 feet (2,000 m) Up to 50,000 feet (15,000 m) II (IEC 1010-1) 2 (IEC 1010-1) 0°C–50°C –40°C–+85°C < 95% RH, Non-condensing Operating Manual for XDC Series Power Supply...
Page 245: Mechanical Specification
Mechanical Specification Weight 6000 W: approx. 75 lb. (34 kg) for 10 V-600 A unit, without packaging 12000 W: approx. 170 lb. (77 kg) for 10 V-1200 A unit, without packaging Size 5.22 in. 133 mm Figure E.1 Power Supply Dimensions (6000 Watt unit) Release 3.0 462 mm 19 in.
Page 246 Mechanical Specification 19 in. 483 mm Figure E.2 Power Supply Dimensions (12000 Watt unit) 22.23 in. 565 mm 23.73 in. 603 mm 10.37 in. 263 mm Operating Manual for XDC Series Power Supply...
Page 247: Index
Index Index AC input connector 30 AC input power 40 AC input wires connecting 41 illustrated 42 specification 41 AC off auto-recovery 71 active power factor correction 21 ADR display annunciator 29 air intake vents 23 ALARM display annunciator 29 ALARM key 25 alarms 72 analog control mode described 31...
Page 248 216 operation complete event 219 query errors 219 reading 81 user request event 219 ERROR MSGS (menu item) 62 execution errors, list of 216 exhaust fan 30 exhaust vents 30 EXIT key 25 Operating Manual for XDC Series Power Supply...
Page 249 factory default settings 31 FCC compliance viii fold protection options 70 setting 71 front panel controls 61 front panel, illustrated 22 function keys ALARM 25 CE 25 CURRENT 24 ENTER 25 EXIT 25 LCL/RMT 24 MENU 25 OUT ON/OFF 24 PROT SET 25 RECALL 25 STORE 24...
Page 250 84 factory preset 85 last setting 86 user setting 86 power on test 46 power output setpoint 65 power output, viewing 104 POWER SETPT (menu item) 62 powering off 58 powering on 57 Operating Manual for XDC Series Power Supply...
Page 251 power-on operating state 58 programming capability 22 PROT SET key 25 protection 65 AC off 133 clearing 134 fold 70 over current (OCP) 68 over power (OPP) 69 over temperature (OTP) 133 over voltage (OVP) 67 shutdown recovery 71 under current (UCP) 69 under power (UPP) 70 under voltage (UVP) 68 query errors, list of 219...
Page 252 VIEW MODEL INFO (menu item) 104 voltage bar graph 28 VOLTAGE key 24 voltage knob described 24 illustrated 23 locking out 99 voltage limit setting 100 voltage mode operation test 46 wire specification (AC) 41 Operating Manual for XDC Series Power Supply...
Page 254 Xantrex Technology Inc. 8999 Nelson Way Burnaby, British Columbia Canada V5A 4B5 604 422 8595 Tel 604 421 3056 Fax 800 667 8422 Toll Free North America prg.info@xantrex.com www.xantrex.com TM-XDOP-01XN PRINTED IN CANADA...

This manual is also suitable for:

Xdc 10-1200 Xdc 10-600 Xdc 100-120 Xdc 100-60 Xdc 150-40 Xdc 150-80 ... Show all

Xantrex XDC Operating Manual

Section 1. about the XDC Power Supply

Section 2. Installation

Section 3. Operation

Section 4. Remote Operation

Section 5. Current Sharing (6000 Watt Only)

Appendix A. Calibration

Appendix B. SCPI Command Reference

Appendix C. Error Messages

Appendix D. GPIB

Appendix E. Specifications and Characteristics

Quick Links

DC Power Supply

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xantrex XDC

Summary of Contents for Xantrex XDC
