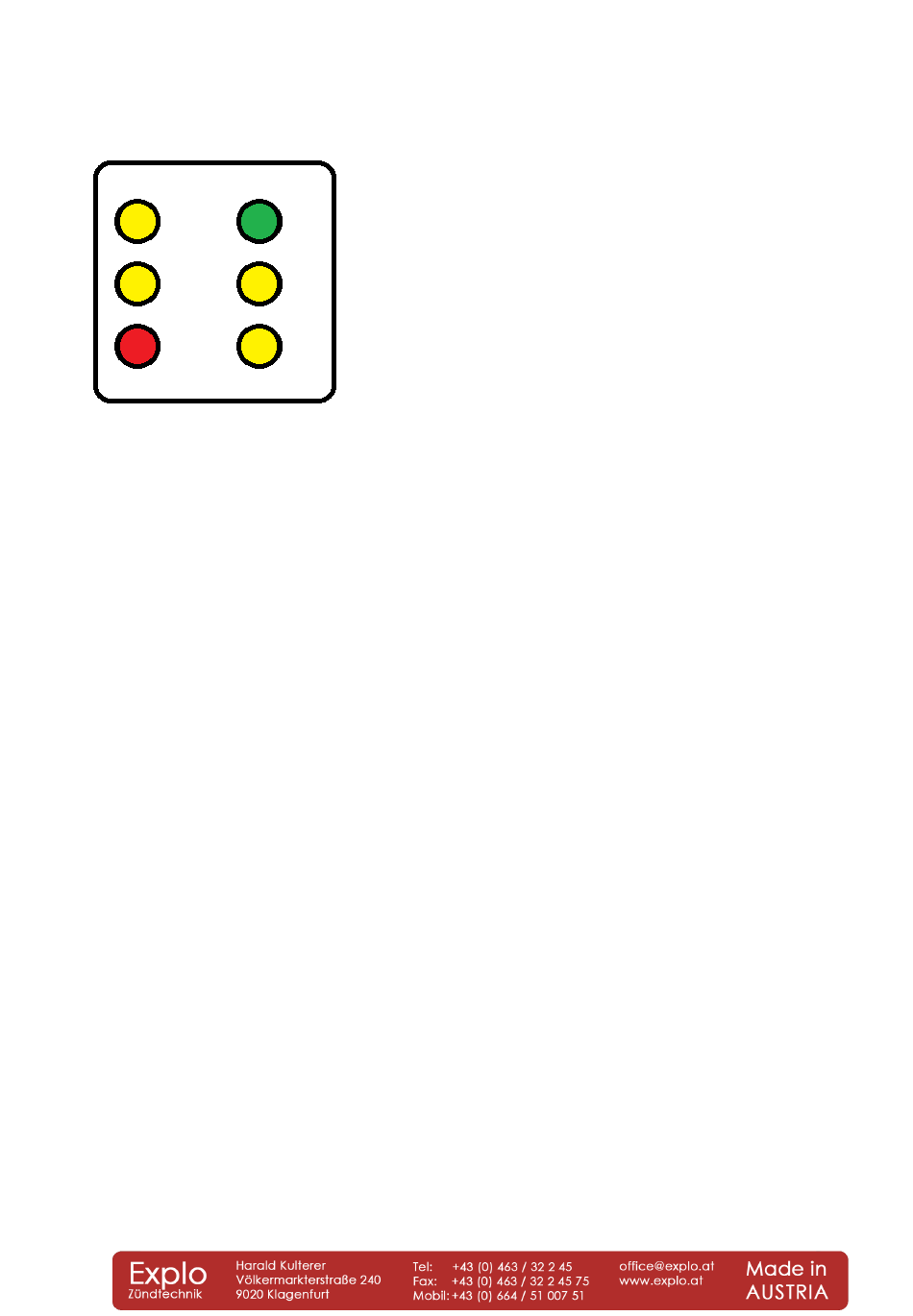

2.3.3 Control LEDs

The control LEDs can give you information about the status of the device.
1) (4
2) (5
3) (6
2.3.3.1 Pump is working
This LED tells you if the pump is working. It should only be lit in Armed-Mode, not in Test-Mode.
2.3.3.2 Pump is at 100%
This LED shows if the pump has reached the neccessary pressure.
2.3.3.3 Pump Error
This LED shows if there is an error at the pump. If this LED is lit, it may indicate an empty Liquid-
canister, You may not use the Wave-Flamer if this LED is lit, since it may cause severe damage to the
device.
2.3.3.4 Battery
This LED indicates the Battery status. If it is continually alight, the voltage is okay. If it should start to
flash, the device does not get enough power. If the device is powered by the 230V connection, and
the LED starts to flash, this may indicate a damage to one of the transformers.
2.3.3.5 Radio signal
This LED flashes if the X2 Wave-Flamer receives a radio signal.
2.3.3.6 DMX
If the device is fitted with DMX, and ready, this LED will be lit permanently. If the device receives
DMX signals, the LED will flash for confirmation.

2.3.4 Status LED

Optional Status LED. In the current version of the device, it is not used.

2.3.5 Programing socket

This socket is used to program the device.

2.3.6 DMX-Connectors

Optional connectors to control the device via DMX.

2.3.7 ON/OFF Switch

ON/OFF Switch of the X2 Wave-Flamer. To activate, the "Start"-Button must also be pushed.
1) Pump is working
2) Pump is at 100%
3) Pump Error
4) Battery
5) Radio signal
6) DMX
