2.3 Description of Front-Panel Components

2.3.1 Buttons and Display

The X2 Wave-Flamer is fitted with a two line LCD-Display, with background lighting. This display is the
optical output for the Device Status, as well as the menu handling.

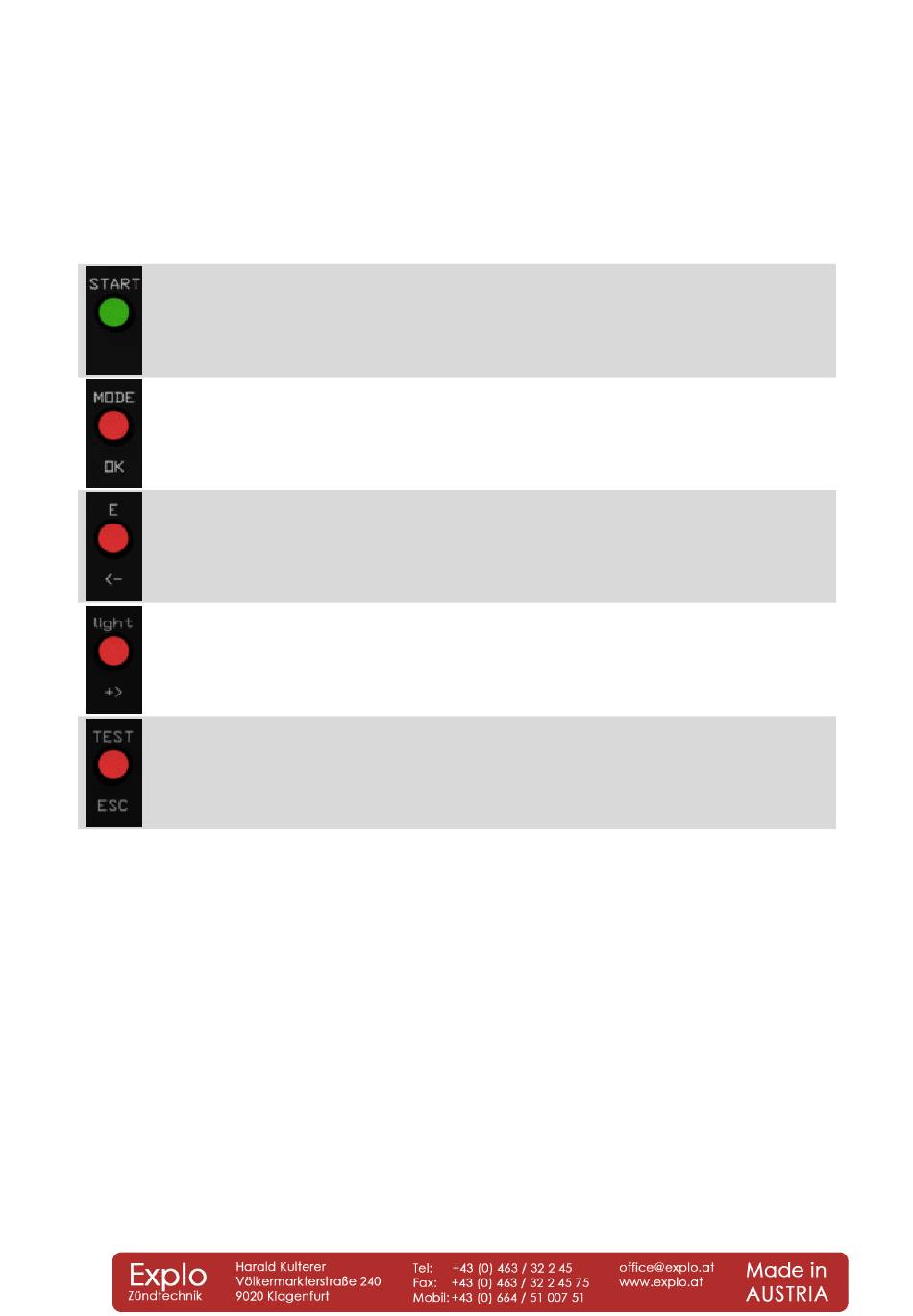

The following control buttons are available next to the Display:
Start-Button
This Button must be pushed after using the ON/OFF Switch, to activate the Device.
Mode/OK-Button
Outside of the Menu, this button can be used to access the Menu.
Inside the Menu, this button is used to confirm.
Discharge/Minus-Button
Outside of the Menu, this Button is used to discharge the Pump (only in Test-Mode).
Inside the Menu, this Button is used as Minus-Button.
8
Light/Plus-Button
Outside of the Menu, this Button toggles the background light on and off.
Inside the Menu, this Button acts as a Plus-Buttondient diese Taste als Plus-Taste.
Test/ESC-Button
Outside of the Menu, a Test signal can be sent to the Transmitter to test the radio
connectivity (only in Test-Mode).
Inside the Menu, this Button is used as an Escape-Button.

2.3.2 Antenna socket

The antenna is used to receive data. To bend or clamp the antenna or antenna-cable can lead to
severe damage, and should be avoided. Please make sure the antenna is mounted correctly and in an
upright position during a performance, to guarantee the best possible radio connectivity.
Wetness entering the antenna socket can drastically reduce the connectivity.
