4 Handling the X2 Wave-Flamer

Der X2 Wave-Flamer kann mittels Explo-Sender der X2-Serie, oder optional über das DMX-Protokoll
angesteuert werden.

4.1 General

4.1.1 Definition of the audience-side

Opposite of the control panel side, is the audience-side of the device. This is the side the audience
should be seeing during the show.
All Sequences and Positions have been made from this point of view. All important Positions for the
device from 1 to 15 (see 4.1.2) as well as the movement labels left, middle and right, are only correct,

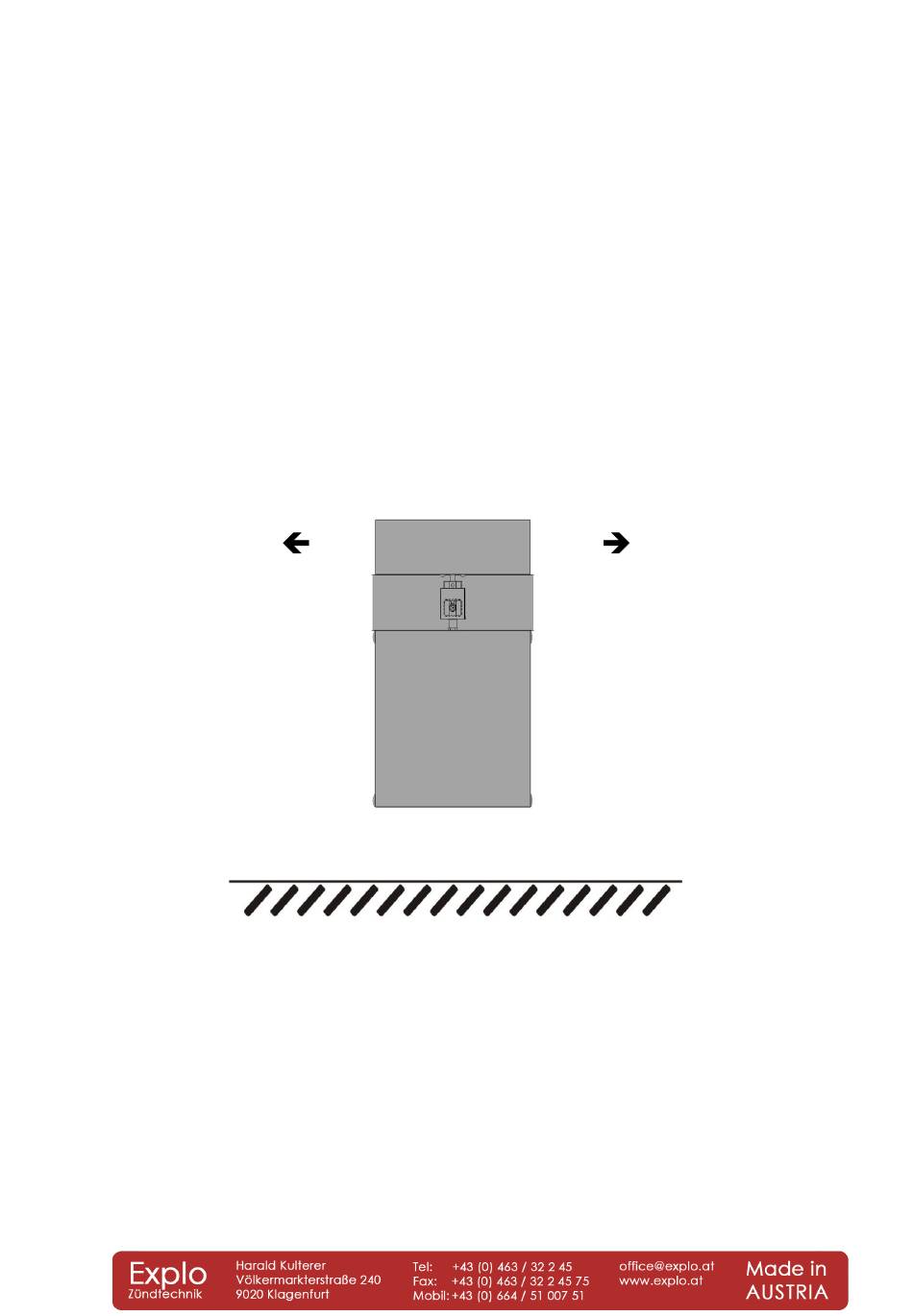

if the device has been placed in this way. The following graphic shows the X2 Wave-Flamer from
above, and is meant to give you an idea of the labelings.
Furthermore, a correct positioning ensures that all control LEDs are facing away from the audience,
and do not bother the viewer.
1 - ⑧ - 15
Left Middle Right
AUDIENCE

4.1.2 Definition of Positions

Contrary to the control via DMX, only certain positions can be accessed, except for Waves. All in all, a
spectrum of 210° (±105°) can be used. This spectrum was separated into 15 positions in steps of 15°
for the control via radio. These 15 positions were numbered from 1 to 15, and the middle, vertical
position (Number 8) defined as 0°. The following graphic depicts the single positions as seen from the
audience side.
