Safety

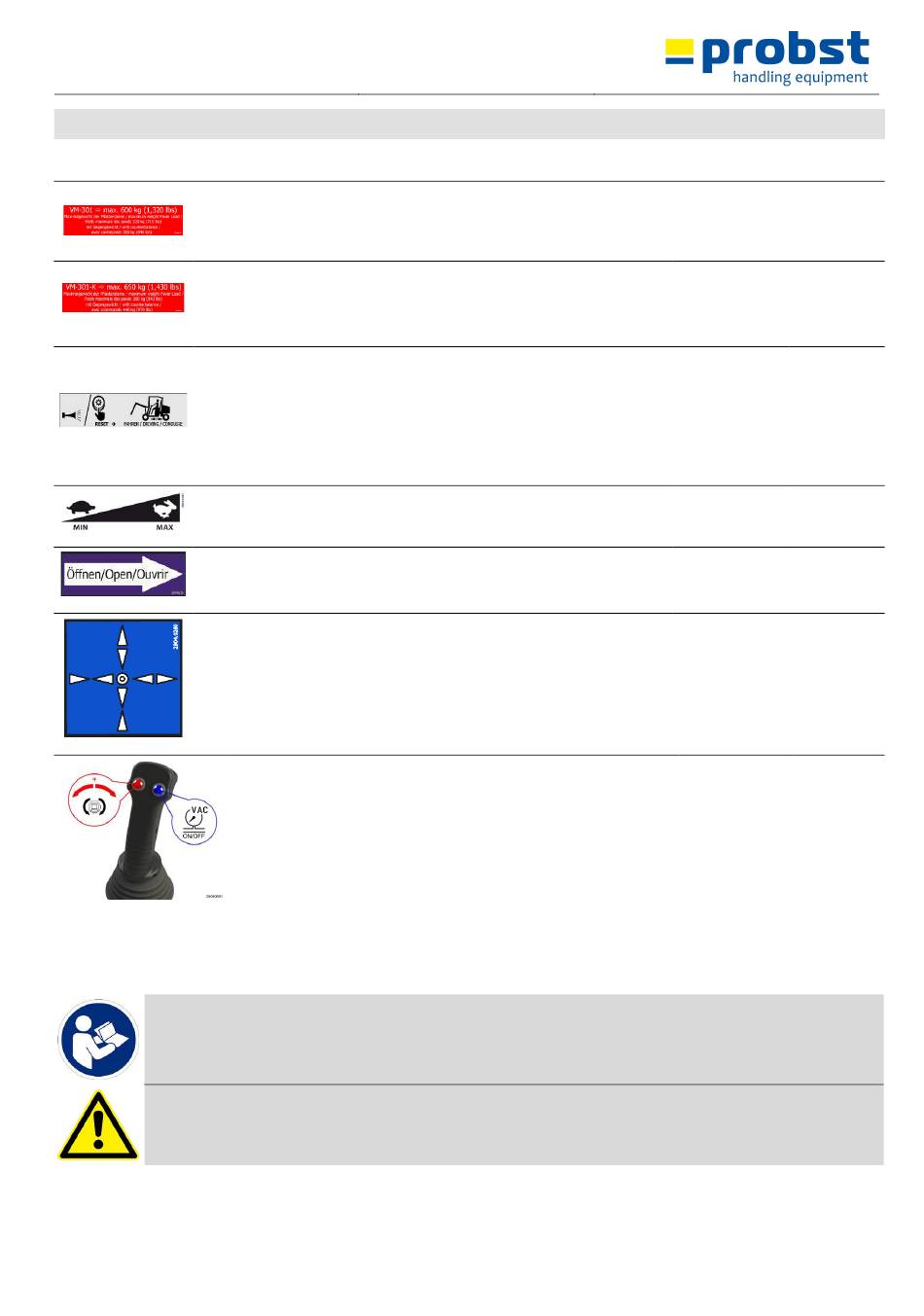

OPERATING INFORMATIONS
Symbol Meaning
Max. 600 kg (1,320 lbs)→VM-301
Maximum weight paver load 320 kg (710 lbs)
with counterbalance 380 kg (840 lbs)
Max. 650 kg (1,430 lbs)→VM-301-K
Maximum weight paver load 380 kg (840 lbs) (837,8 lbs) with
counterbalance 440 kg (970 lbs)
Button for horn / reset button:
Press reset button each time for the driving, when the machine will be
started and when the driving was stopped caused by the standing up
of the diver from the driver´s seat (triggered by the seat switch).
The reset button only works (and the driving of the machine), when
the driver is sitting in the s seat.
Engine speed regulation.
Open cover hood
Joystick / control lever:
Movement directions for the Control / operation of attachments (e.g.
for opening and closing the main and side clamping at a HVZ)
2.4

Personal safety requirements

Each operator must have read and understood the operating instructions (and all safety instructions).
Only qualified, authorized personal is allowed to operate the device and all devices which are connected
(lifting device/carrier).
The manual guiding is only allowed for devices with handles.
51500020 / 51500023
Electronic joystick with function controls as well as activations of
additional functions or similar.
Function controls: for controlling of a hydraulic installation clamp
(HVZ) or similar.
Additional finctions:
- Rotating movement of a hydraulic rotator
- Vacuum operation (suction and release of load)
8 / 38
V5
Order-No. Size
29040616 40 x 160 mm
29040623 40 x 160 mm
29040716 90 x 23 mm
29040485 30 x 90 mm
29040253 28 x 85 mm
29040260 50 x 50 mm
29040681 70x72 mm
GB
