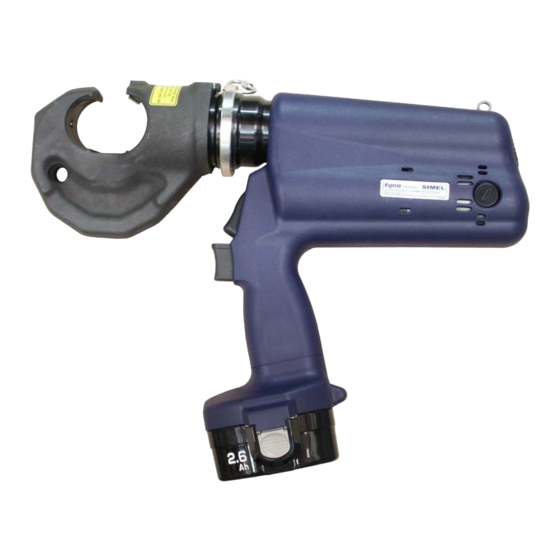

BATTERY OPERATED CRIMPING TOOL
Manuel d'entretien
OUTIL ELECTRIQUE DE SERTISSAGE
Technical handbook
0-1701696-1
AUTOPRESS C120
1st Edition : 20-06-03
Reference 0-1701440-1&-3
Modification :
Indice A : EQ00-0106-03
Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France
Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15
Advertisement
Table of Contents
Related Manuals for Tyco Electronics AUTOPRESS C120
Summary of Contents for Tyco Electronics AUTOPRESS C120

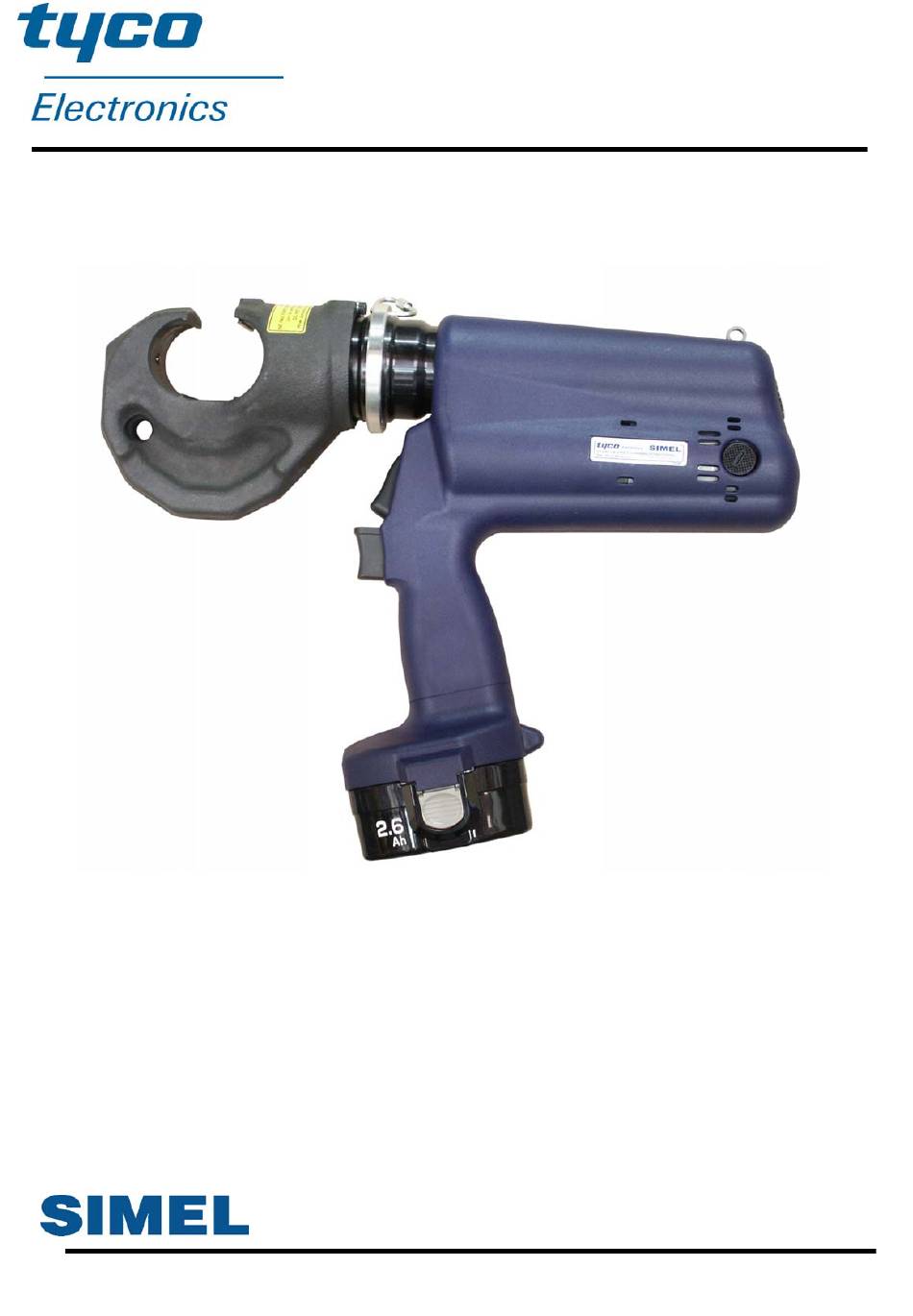

- Page 1 AUTOPRESS C120 1st Edition : 20-06-03 Reference 0-1701440-1&-3 Modification : Indice A : EQ00-0106-03 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15...
- Page 2 Clapet de sécurité Audible "clic" Safety valve 2/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15...
-
Page 3: Instructions D'utilisation
DO NOT OPERATE THE TOOL NE PAS MONTER L'OUTIL EN WITHOUT DIES. PRESSION SANS MATRICES. 3/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15... - Page 4 Cet affichage apparaît pendant 20 secondes of the press crimping state). (après l’affichage de l’état de sertissage). 4/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15...
-
Page 5: Instructions De Maintenance
5/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15... - Page 6 Give it to one of existing ou votre fournisseur. collection station or to your supplier. 6/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15...
-
Page 7: Test Procedure
§ B et C : toutes les 300 opérations ou tous les § B and C: every 300 operations or every month mois 7/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15... -
Page 8: Garantie
à des chocs (dropping, etc.) anormaux (chute de matériels, etc.) 8/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15... -
Page 9: Service Apres Vente
- Please give us the tool serial number. It is marked on basic body item 22 9/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15... -
Page 10: Vue Éclatée
LABEL ETIQUETTE TYCO-SIMEL 212 71320 LABEL ETIQUETTE AUTOPRESS C120 213 71295 LABEL 10/10 Tyco Electronics SIMEL S.A .S– Route de Saulon 21220 GEVREY CHANBERTIN – France Tel: +33(0) 3 80 58 32 00 – Fax:+33(0) 3 80 34 10 15...
