Emulex Fibre Channel Host Bus Adapters Installation Guide

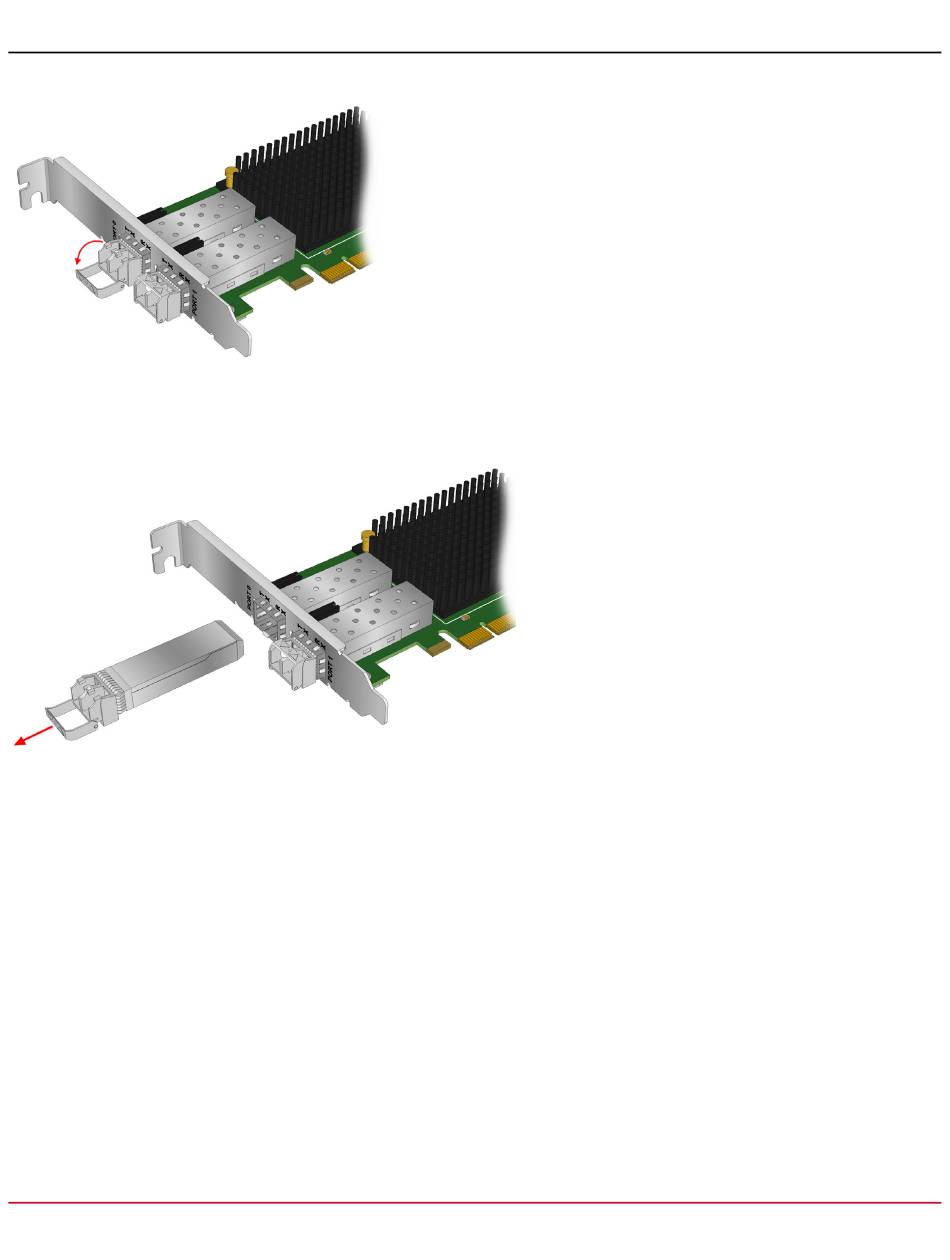

Figure 4: Releasing the Latch on an Optical Transceiver
Figure 5 shows an extracted transceiver and another transceiver latched in place.
Figure 5: Removing an Optical Transceiver
3. Observing ESD precautions, store the transceiver in an ESD-safe place.
4. Remove the mounting bracket screws and washers from the top of the HBA.
from the mounting bracket.
Broadcom
Figure 6 shows the screws that are removed
