Section 8: Rechargeable battery measurements
Battery application test results

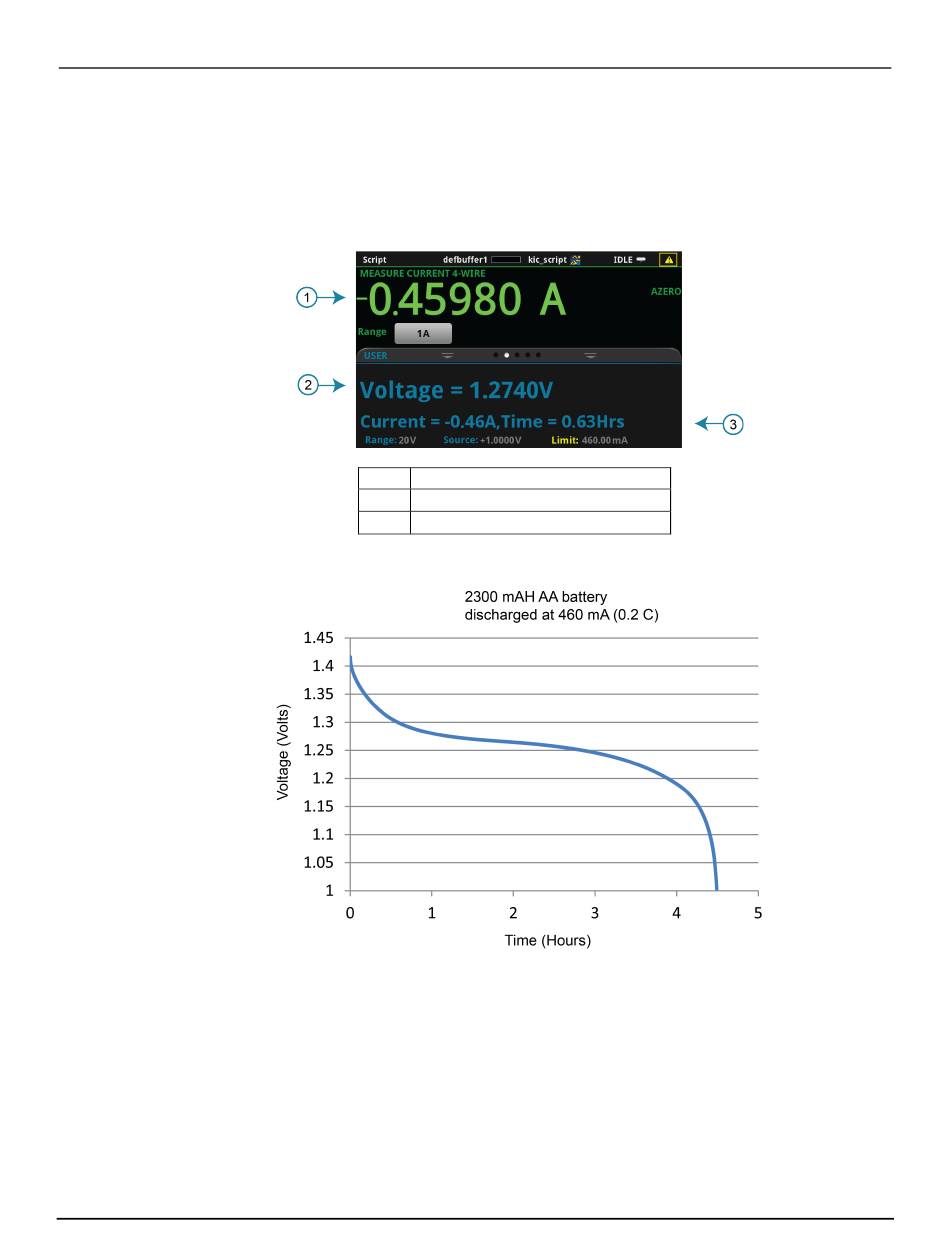

The following figures show the results of this test application.
8-12
Figure 46: 2450 USER swipe screen with test results
1
Measured load current
2
Measured battery voltage
3
Source value and elapsed test time
Figure 47: Results of battery charge and discharge test
Model 2450 SourceMeter® Instrument User's Manual
2450-900-01 Rev. E / August 2019
