Section 5: Measuring low-resistance devices

Set up remote communications

You can run this application from the front panel or any of the supported communication interfaces for
the instrument (GPIB, USB, or ethernet).
The following figure shows the rear-panel connection locations for the remote communication
interfaces. For additional information about setting up remote communications, see
communications interfaces

Device connections

To provide the best measurement accuracy, use the four-wire (Kelvin) measurement method for this
test. This method eliminates the effects of lead resistance on the measurement accuracy. It is the
preferred method when measuring low resistances.
To use the 4-wire connection method:
•
Connect one set of test leads to the FORCE LO and FORCE HI terminals; this setup forces a
current through the device under test.
•
Connect the other set of test leads to the SENSE HI and SENSE LO terminals, which measure
the voltage drop across the device under test (DUT).
5-2
(on page 3-1).

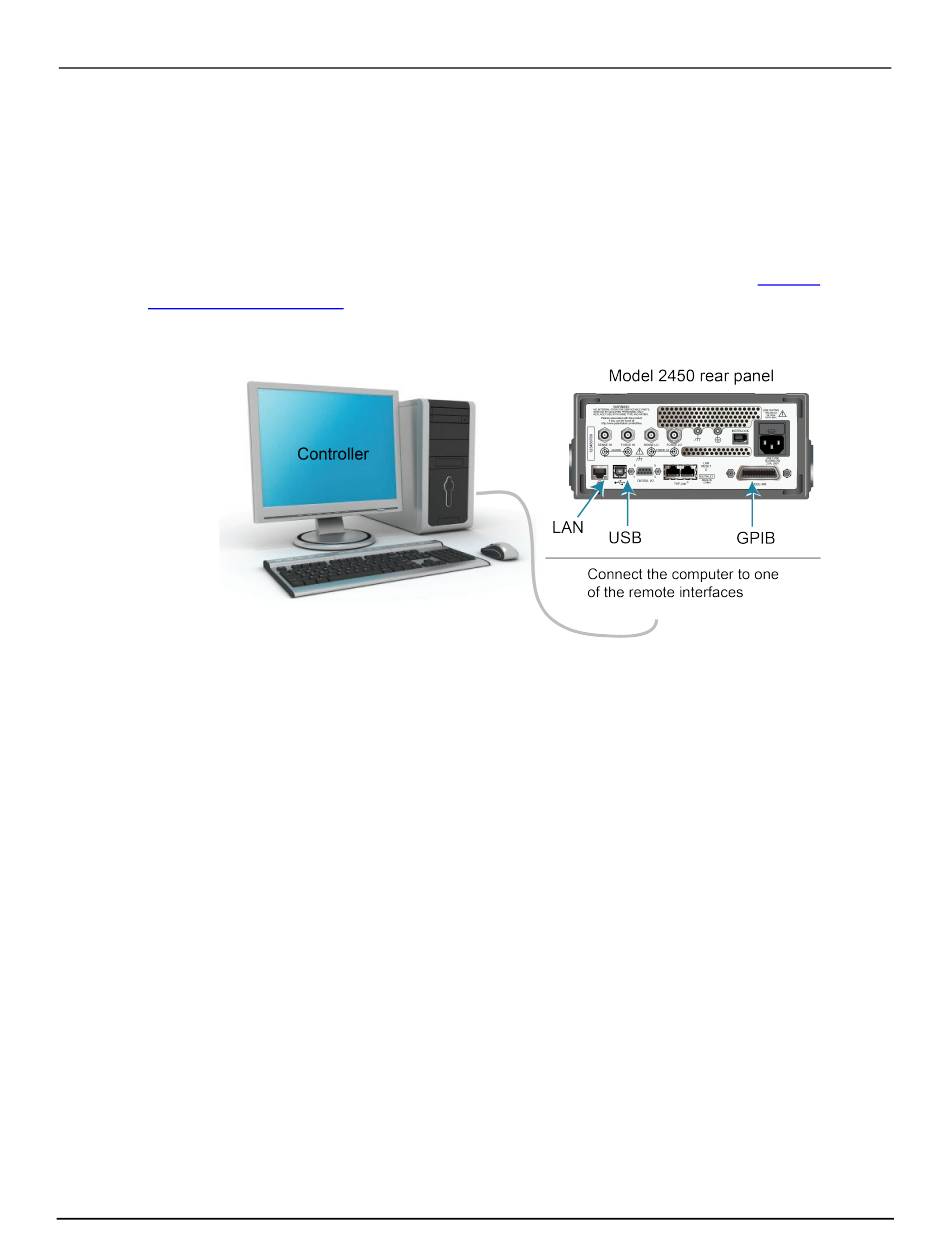

Figure 20: 2450 remote interface connections
Model 2450 SourceMeter® Instrument User's Manual
2450-900-01 Rev. E / August 2019
