Section 2: Front-panel overview
To connect the power cord:
1. Make sure that the front-panel POWER switch is in the off (O) position.
2. Connect the female end of the supplied power cord to the AC receptacle on the rear panel.
3. Connect the male end of the power cord to a grounded AC outlet.
To turn a 2450 on or off:
1. Before turning the instrument on, disconnect any devices under test (DUTs) from the 2450.
2. To turn your instrument on, press the front-panel POWER switch to place it in the on (|) position.
The instrument displays a status bar as it powers on. The home screen is displayed when power
on is complete.
3. To turn your instrument off, press the front-panel POWER switch to place it in the off (O) position.

Front-panel overview

The front panel of the 2450 is shown below. Descriptions of the controls on the front panel follow the
figure.
2-2
Model 2450 SourceMeter® Instrument User's Manual

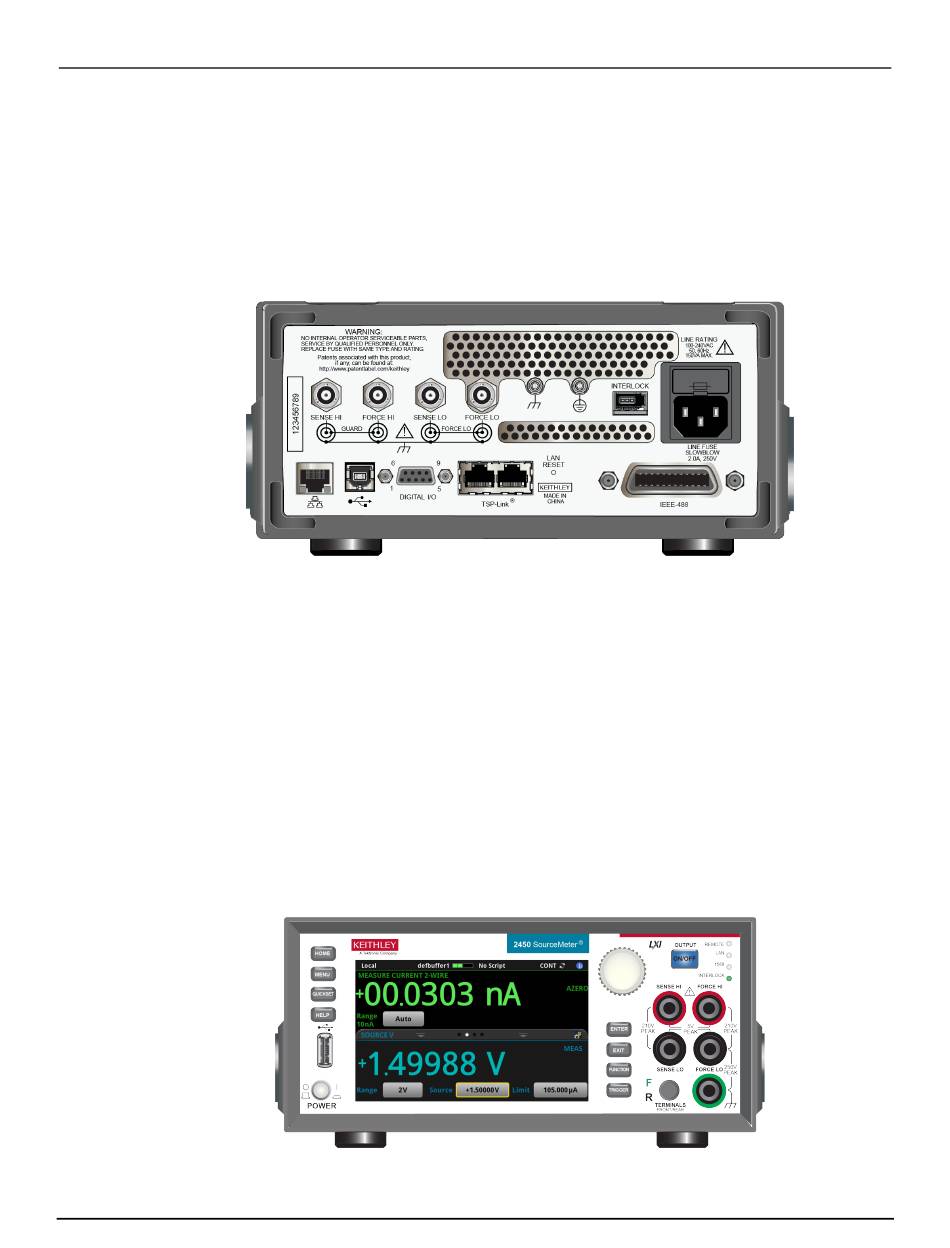

Figure 1: Model 2450 rear panel
Figure 2: 2450 front panel
