Section 3: Using a remote interface
4. Select USB.
5. Click Next. The Select Instrument Driver dialog box is displayed.
6. Select Auto-detect Instrument Driver - Model.
7. Click Next. The Configure USB Instrument dialog box is displayed with the detected instrument
VISA resource string visible.
8. Click Next. The Name Virtual Instrument dialog box is displayed.
3-10

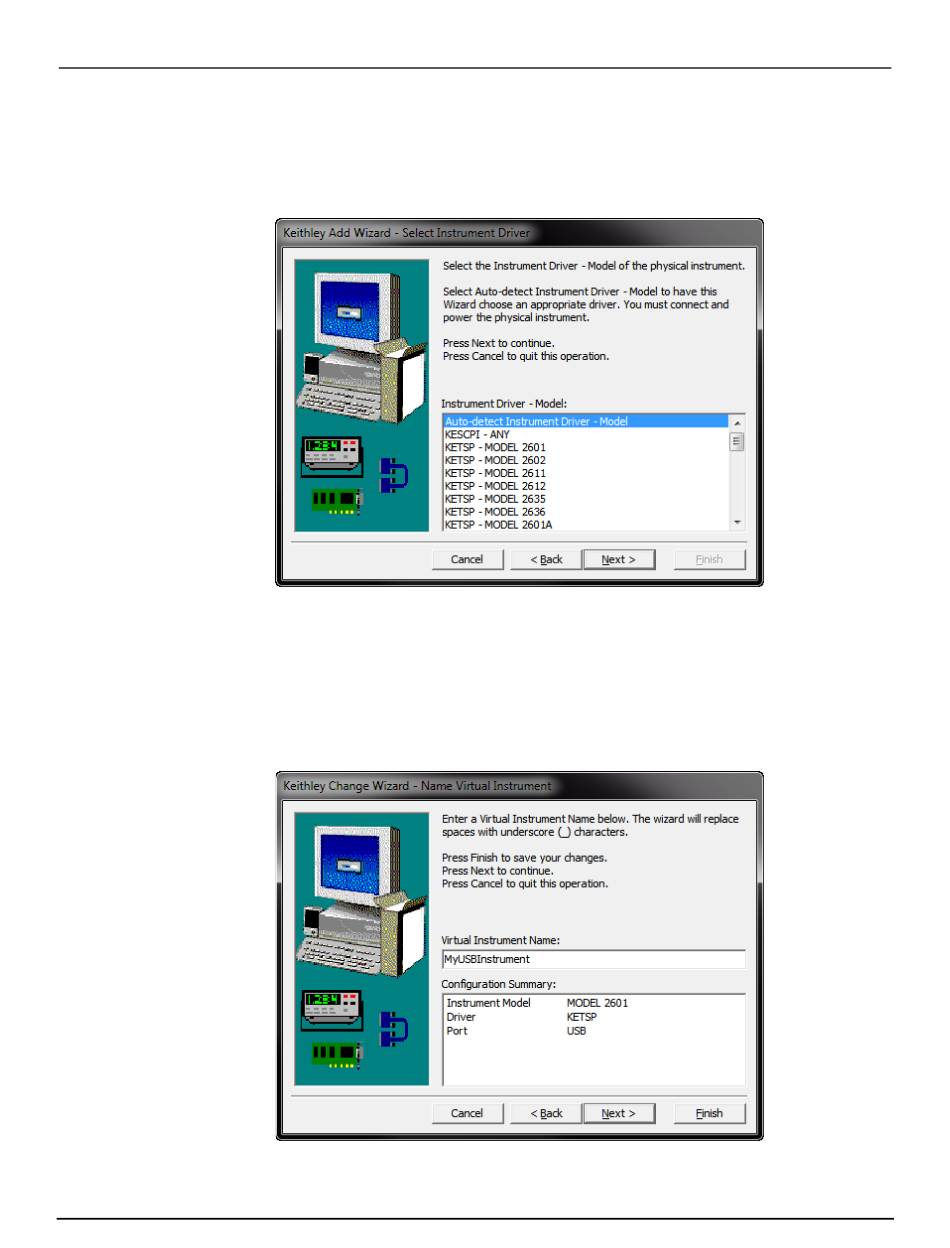

Figure 15: Select Instrument Driver dialog box
Figure 16: Name Virtual Instrument dialog box
