Model 2450 SourceMeter® Instrument User's Manual Section 7: Measuring I-V characteristics of FETs
The resulting drain current and drain voltage are returned in tabular form in the Instrument Console of
® ®
Test Script Builder. You can copy the data into a spreadsheet, such as Microsoft Excel , for
graphing and further analysis.
The following figure shows a graph of the family of curves generated in this example.

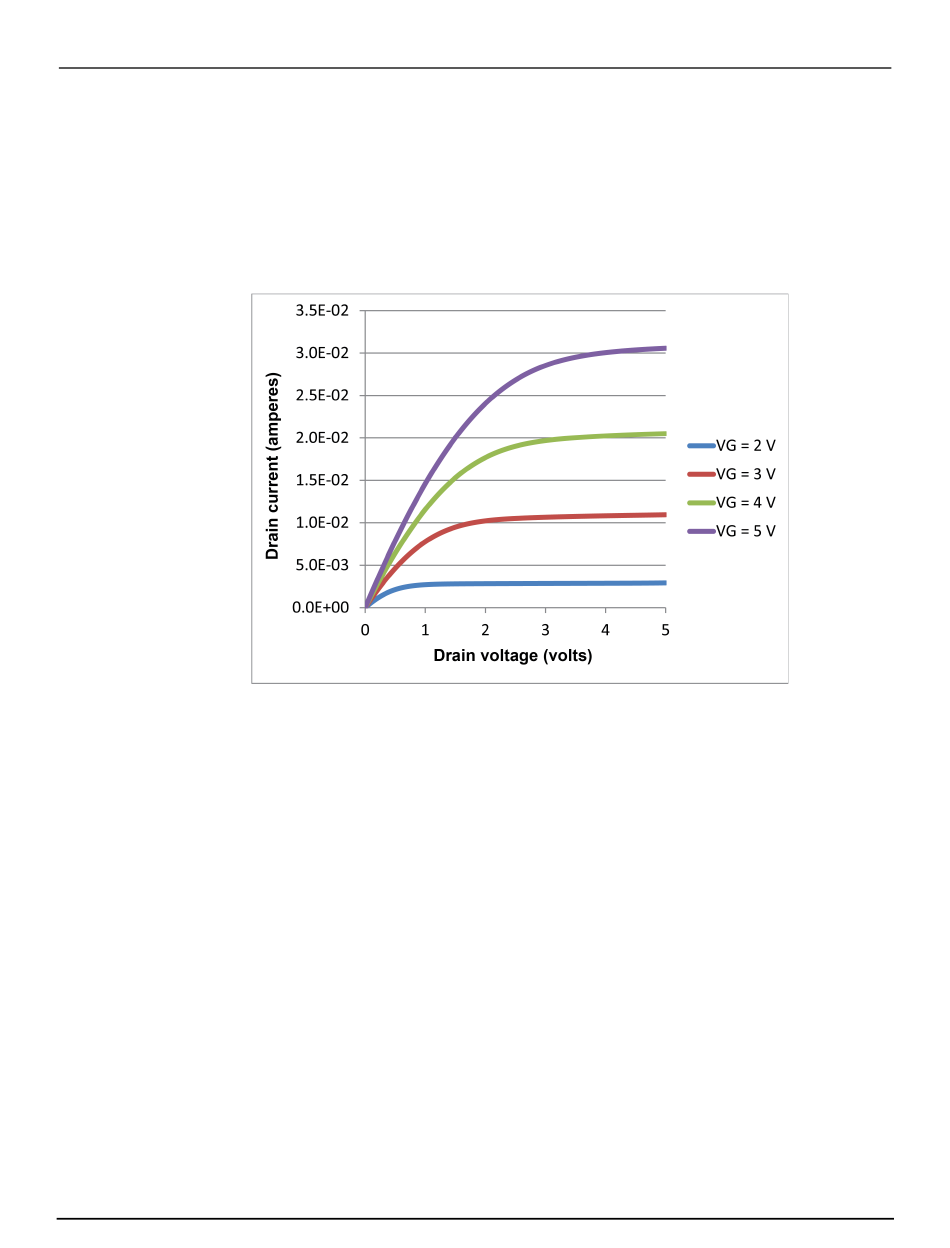

Figure 40: MOSFET drain family of curves generated with two 2450s
