1 2 3
1. Power Indicator
2. Device Status
3. Alarm Status
4. RJ45 AVB Port Status

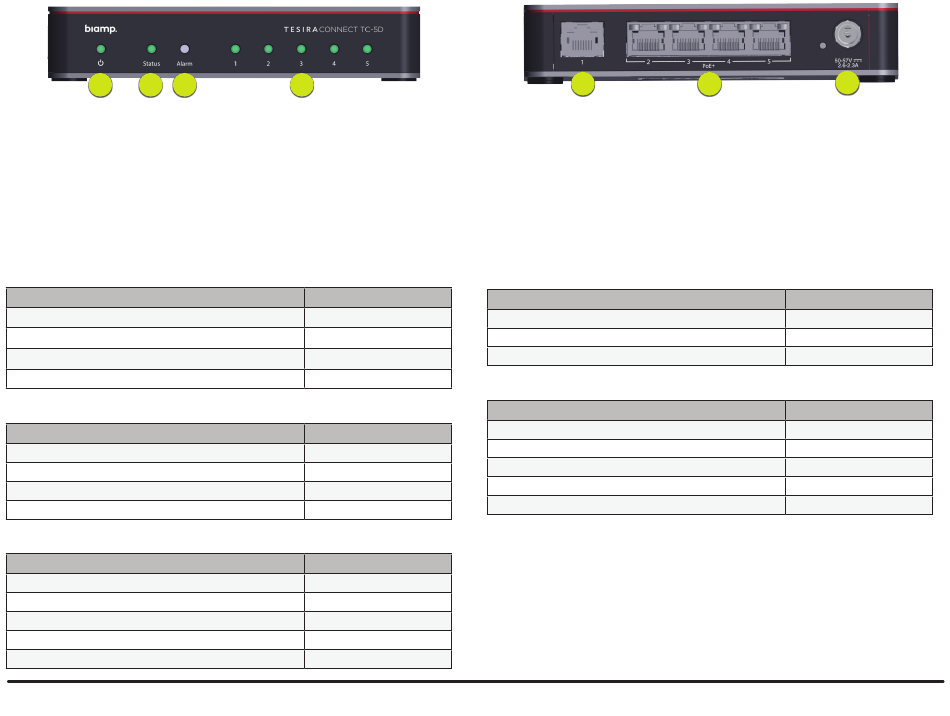

Front Panel LEDs

There are eight multi-color LEDs on the front panel of the TC-5D which give various information to a user.
1. Power
Status
No Power
Device is powered
Device is in Locate mode (triggered from the software)
Device is booting
2. Status
Status
No Power
Device is fully booted/ready
Device is in Locate mode (triggered from the software)
Device is booting
3. Alarm
Status
No Alarm Condition Present
Device is in Locate mode (triggered from the software)
Unit has a major alarm present
Unit has a minor alarm present
Unit has a major and minor alarm present
TesiraCONNECT TC-5D
4
Front Panel
LED Indicator
Off
Green Solid
Green Flashing
Yellow Solid
LED Indicator
Off
Green Solid
Green Flashing
Yellow Solid
LED Indicator
Off
Green Flashing
Red Solid
Yellow Solid
Alternating Red/Yellow
5
5. RJ45 AVB Port (non-PoE+)
6. RJ45 AVB Ports (PoE+)
7. Power Connection
4. RJ45 Port Status Indicators
Status
No Alarm Condition Present
Ethernet link is active
Device is in Locate mode (triggered from the software)
5/6. RJ45 AVB Ports (PoE+/non-PoE+)
Status
When Ethernet Link is down
When Ethernet Link Up
When PoE is delivering Power
When data activity
When no data activity (with Link up)
NOTE: RJ45 AVB does not include PoE+.
Installation and Operation Guide
7
6
Rear Panel
LED Indicator
Off
Green Solid
Green Flashing
LED Indicator
Both LEDs Off
Right LED Green Solid
Right LED Orange Solid
Left LED Green Flashing
Left LED Green Solid
