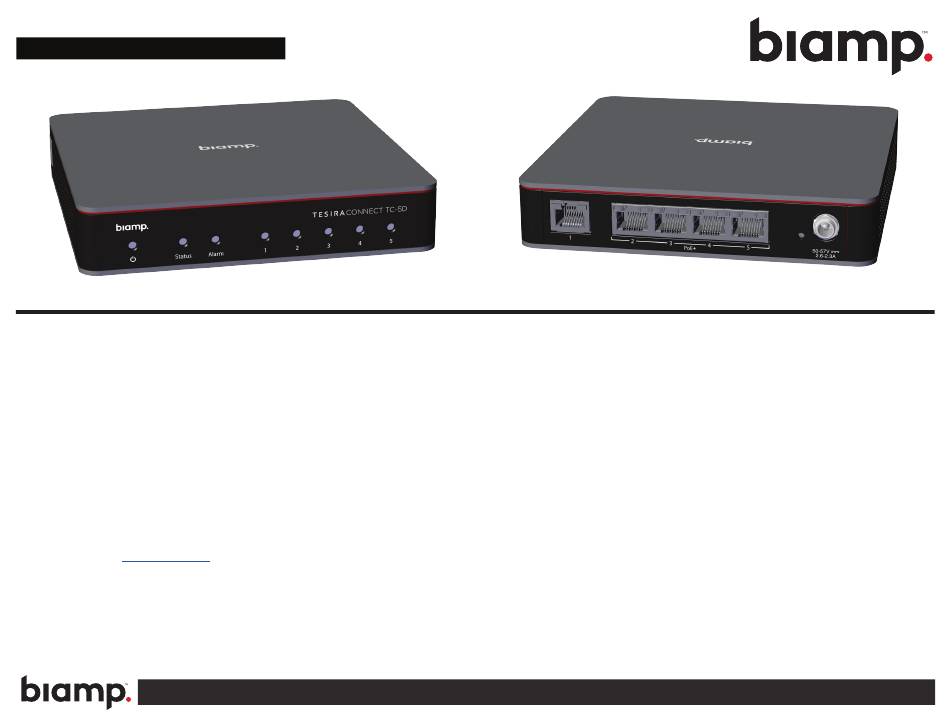

TesiraCONNECT TC-5D
Installation & Operation Guide

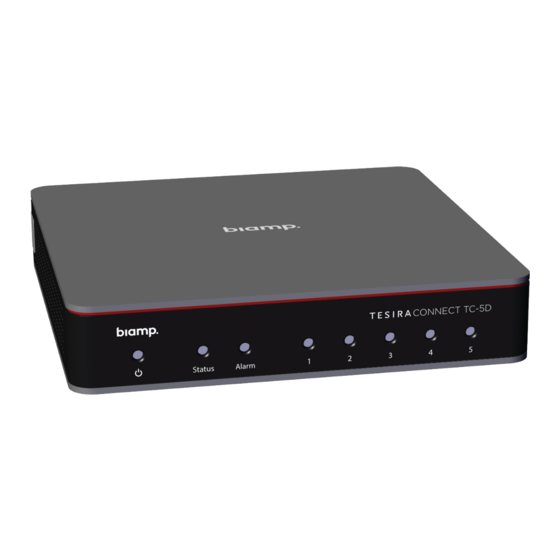

Product Description
TC-5D
TesiraCONNECT™ TC-5D serves as the central connection point for all
Biamp® and Dante™ devices in a conference room. The TC-5D simplifies
installations by providing power and media over a single category cable
between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers
and microphones as well as 3rd-party Dante devices.
Setup and Use
The TC-5D is designed to work out of the box without any user configuration
required, but the Tesira software provides an intuitive interface for features
such as locate and firmware updates. The information supplied by this manual
relates to physical connections and device setup. For more details on software,
please consult the
Tesira Help
File.
Up to four TesiraCONNECT devices may be connected in daisy chain or star
topology to support additional Tesira devices or remote mounting locations.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
Installation
Install away from heat sources, such as vents, radiators, heat registers and
stoves. Also avoid installing near water or steam. Do not exceed the maximum
ambient operating temperature of 32-104° F (0-40° C). Be aware of conditions
in an enclosed rack that may cause the temperature to exceed ambient room
conditions.
The TC-5D may be installed in various locations, and an optional mounting
bracket (ordered separately) allows the TC-5D to be securely fastened under
tables, on walls, etc.
Features
•
Five 1 Gbps RJ-45 ports
•
Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
•
Up to 4 TesiraCONNECT TC-5D devices can be daisychained together
•
Supports up to 32x32 channels of Dante audio
•
Auto-detects media network on each port
•
Front Panel Leds indicate port connections, device status and fault conditions
•
Fault reporting and device monitoring supported in SageVue
•
Supports Dante Domain Manager
•
Dante routing configured in Dante Controller
•
Compatible with Biamp AVB and Dante products
W:
www.biamp.com
JULY 2020
Advertisement
Table of Contents
Related Manuals for Biamp TesiraCONNECT TC-5D
Summary of Contents for Biamp TesiraCONNECT TC-5D
- Page 1 TesiraCONNECT™ TC-5D serves as the central connection point for all stoves. Also avoid installing near water or steam. Do not exceed the maximum Biamp® and Dante™ devices in a conference room. The TC-5D simplifies ambient operating temperature of 32-104° F (0-40° C). Be aware of conditions...
- Page 2 The mounting bracket kit contains the following: A) Mounting Bracket B) Screw (x4) C) Lock Washer (x4) D) Washer (x4) E) Screw (x4) F) Zip Ties (x25) Figure 1 - Mounting Bracket Installation Figure 2 - TC-5D Installation page 2 Installation and Operation Guide TesiraCONNECT TC-5D...
- Page 3 Device is in Locate mode (triggered from the software) Green Flashing Unit has a major alarm present Red Solid Unit has a minor alarm present Yellow Solid Unit has a major and minor alarm present Alternating Red/Yellow TesiraCONNECT TC-5D Installation and Operation Guide page 3...
- Page 4 TesiraCONNECT Wiring Topology Examples TesiraForte DAN VT4 Control/Monitoring TesiraCONNECT TC-5D Connect up to 12 Devices Four TesiraCONNECT TC-5D Devices in Daisy Chain Topology page 4 Installation and Operation Guide TesiraCONNECT TC-5D...
- Page 5 TesiraCONNECT Wiring Topology Examples cont. TesiraForte AVB VT4 Control/Monitoring TesiraCONNECT TC-5D Connect up to 12 Devices Four TesiraCONNECT TC-5D Devices in Star Topology TesiraCONNECT TC-5D Installation and Operation Guide page 5...
- Page 6 TesiraCONNECT System Deployment Examples Soft Codec EX-UBT AMP-450BP with 2 Speakers TesiraCONNECT TC-5D Dante Microphone Control TesiraFORTE DAN VT Cable Type Cat-5e Tesira Dante System with Tesira AVB Endpoints on TesiraCONNECT TC-5D page 6 Installation and Operation Guide TesiraCONNECT TC-5D...
- Page 7 TesiraCONNECT System Deployment Examples cont. Dante I/O Expander Soft Codec EX-UBT TesiraCONNECT TC-5D TCM-XA with Parle Mic and 2 Speakers Control TesiraFORTE AVB VT4 Cable Type Cat-5e Tesira AVB System with Dante Endpoint Single Control Uplinks TesiraCONNECT TC-5D Installation and Operation Guide...
- Page 8 TesiraCONNECT System Deployment Examples cont. Dante I/O Expander Soft Codec EX-UBT TesiraCONNECT TC-5D TCM-XA with Parle Mic and 2 Speakers Control TesiraFORTE AVB VT4 Cable Type Cat-5e Tesira AVB System with Dante Endpoint Multiple Control Uplinks page 8 Installation and Operation Guide...
- Page 9 TesiraCONNECT System Deployment Examples cont. Soft Codec EX-UBT TCM-XA with Parle Mic and 2 Speakers TesiraCONNECT TC-5D Control/Dante TesiraFORTE AVB VT4 Cat-5e Tesira AVB System on a Dante Network Backbone TesiraCONNECT TC-5D Installation and Operation Guide page 9...
- Page 10 CONTACT US Email support@biamp.com support.biamp.com Warranty www.biamp.com/legal/warranty-information Safety and Compliance www.biamp.com/compliance 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com JULY 2020...
