TESIRA
™
HARDWARE INSTALLATION AND SETUP GUIDE
PRODUCT INFORMATION SOURCES
• This guide covers installing and setting up the device.
• Please see the product datasheets on Biamp.com for the EX-USB specifications.
• The EX-USB expander will only operate on a network that includes a Tesira DSP Audio
device, A copy of the Tesira Software is required. See page 6 for details.
INSTALLATION CONSIDERATIONS
• A USB Type-A to Type-B cable is included with the device.
• Refer to maximum operational distance for cables as defined by 802.1BA AVB standard.
• The EX-USB has two mounting holes to secure the unit with hardware if desired.
• The EX-USB is a powered device that needs to be powered by power sourcing equipment
that supplies 802.3at PoE+ Class 2 with 7W of budget. Examples include: an AVB switch,
PoE+ injector, FORTÉ X, or TesiraCONNECT.
• If the network equipment does not support 1 Gbps, the EX-USB power LED will illuminate
steady yellow but the LED on the AVB RJ45 port will remain dark indicating no data activity.
Biampinfo@biamp.com

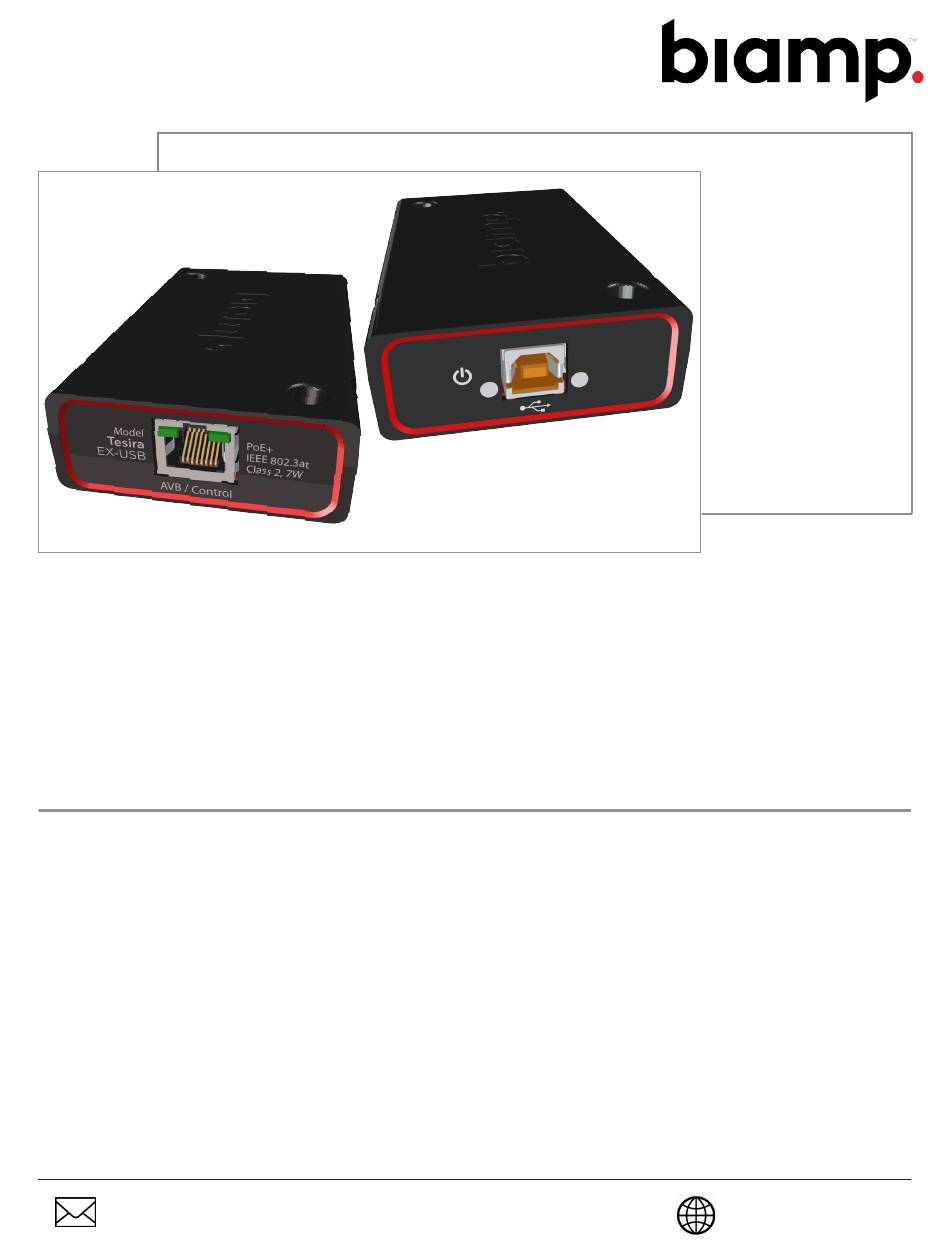

TESIRA EX - USB
EXPANDER
www.biamp.com
Advertisement
Related Manuals for Biamp TESIRA EX-USB
Summary of Contents for Biamp TESIRA EX-USB
- Page 1 PRODUCT INFORMATION SOURCES • This guide covers installing and setting up the device. • Please see the product datasheets on Biamp.com for the EX-USB specifications. • The EX-USB expander will only operate on a network that includes a Tesira DSP Audio device, A copy of the Tesira Software is required.
-
Page 2: Installation
INSTALLATION OPTION 1 The EX-USB is designed with two through-holes to accommodate hard-mounting to a surface (such as under a conference table) if desired. The device is compact and lightweight allowing for numerous mounting options. MOUNTING HOLES 1. Determine the location where the device will be located. 2. -
Page 3: Device Layout
DEVICE LAYOUT FRONT PANEL LAYOUT FRONT PANEL PORTS/TERMINALS/INDICATORS 1. AVB / Control Ethernet interface REAR PANEL LAYOUT REAR PANEL PORTS/TERMINALS/INDICATORS 1. Power / Status LED 2. USB Type-B port Installation & Setup Guide... - Page 4 CONNECTIONS AVB/CONTROL Facilitates connection to the Tesira AVB network for audio and control and supports a standard RJ-45 connector. This connection is for sending and receiving AVB audio signals as well as sending and receiving data between the expander device and the Tesira system.
- Page 5 CONNECTIONS POWER LED INDICATOR Yellow: Green: Red: No Power / Unit No Power / Unit No Power / Unit Unconfigured. Unconfigured. Unconfigured. Configured and Ready to receive Device is powered ready to participate configuration or but not ready to Solid in the system.
-
Page 6: Additional Resources
Design software. It is typically embedded on digital Tesira system devices and can also be found online. • Click here: Tesira Help System (Online) SUPPORT ARTICLES Technical support articles for Tesira Software can be found on Biamp’s Cornerstone knowledgebase support site. • Click here: Tesira - Biamp Cornerstone TRAINING Training courses for Tesira products and system core concepts are available online. - Page 7 Support@biamp.com 9300 SW Gemini Drive Beaverton, OR 97008 USA Warranty: Biamp.com/legal/warranty-information Safety & Compliance: biamp.com/compliance September 18, 2024...
