Product Installation
The TC-5D may be installed in almost any location that is convenient for
room design, requirements, etc. Be sure to allow for adequate airflow over
the ventilation grilles.
•
On a rack shelf
•
In a plenum/air-handling space
•
In a cabinet/credenza
Optional Mounting Bracket Kit
An optional mounting bracket may be ordered separately which allows
greater flexibility in mounting options, such as directly under a table, on a
wall, behind a display or any other flat surface that requires secure mounting.
The mounting bracket kit contains the following:
A) Mounting Bracket
B) Screw (x4)
C) Lock Washer (x4)
D) Washer (x4)
E) Screw (x4)
F) Zip Ties (x25)
page 2
1. Determine the location where the TC-5D is to be located.
2. Install the bracket onto the TC-5D with hardware as shown in Figure 1.
3. Install the bracket and attached TC-5D at the desired location with the
hardware provided as shown in Figure 2.
4. Use the included zip ties to secure the power supply and cables as
required (not shown).
Installation and Operation Guide

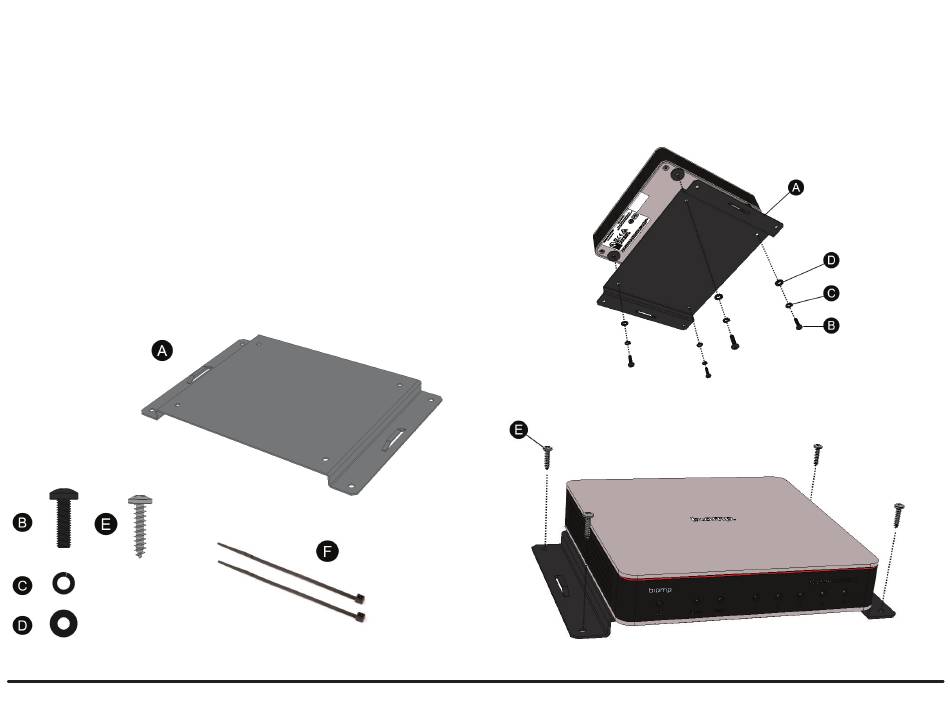

Figure 1 - Mounting Bracket Installation
Figure 2 - TC-5D Installation
