- Page 1 EX-UBT AVB/USB EXPANDER OPERATION MANUAL SEPTEMBER 2018...
- Page 2 Supports up to 8 channels of configurable USB audio Supports Bluetooth Wireless Technology LED indicators for power and wireless status Configurable via Tesira software PoE powered CE marked, UL listed and RoHS compliant Covered by Biamp Systems five-year warranty ...
- Page 3 EX-UBT SETUP AND USE Setup and Use The Tesira software provides an intuitive interface for setup and programming of the EX-UBT. The information supplied by this manual relates to physical connections and device setup. For more details on software setup, please consult the Tesira Help File.

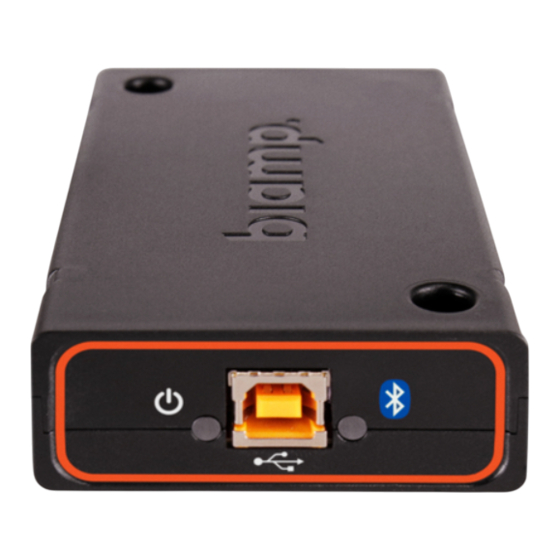

- Page 4 EX-UBT SETUP AND USE Figure 2 USB/Status LEDs 2. USB Type-B Connection Facilitates connection to a 3 party device that is USB Audio Class 1 compliant. Some USB function and setup (including driver installation) may be performed from a 3 party device.
- Page 5 EX-UBT SETUP AND USE 4. Bluetooth Wireless Technology The EX-UBT features Bluetooth wireless technology that allows 3rd party control of Tesira systems and can cache up to 32 paired devices. All setup is done in the Tesira software. A multi-color LED provides information about the status of the Bluetooth connection: Status LED Indicator Bluetooth disabled, unit is in Select/Locate mode, or the unit...
- Page 6 Connections to the Tesira network are made with CAT5e cabling or better. For USB connections to a 3 party device, a USB type B cable is required. Figure 4 EX-UBT Wiring Diagram The Tesira EX-UBT does not connect with Telecom Network Voltage (TNV) circuitry and is considered a Network Environment Zero device...
- Page 7 The device is compact and lightweight allowing for numerous mounting options. Figure 5 EX-UBT Hardware Mounting Visit www.biamp.com to obtain firmware and software updates related to this product. To speak with an Applications Engineer, please call 1.503.641.7287 or email support@biamp.com.
-
Page 8: Fcc Notice
This equipment is not user serviceable. If trouble is experienced with this equipment, for repair or warranty information, please contact Biamp Systems, LLC, phone number 503.641.7287. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
