Page 1: Operation Manual
AudiaEXPI & AudiaEXPO Input & Output Expanders Operation Manual Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 www.biamp.com an affiliate of Rauland Borg Corp. - Page 2 blank print update September 7, 2005...
-
Page 3: Table Of Contents
AudiaEXPI & AudiaEXPO TABLE OF CONTENTS INTRODUCTION AudiaEXPI - front & rear panels pg. 2 ® AudiaEXPI is an input expander for AUDIA , the benchmark in digital audio AudiaEXPO - front & rear panels pg. 3 systems for demanding professional sound installations. AudiaEXPI accepts eight mic/line analog audio inputs and provides eight channels of digital audio Applications pgs. -

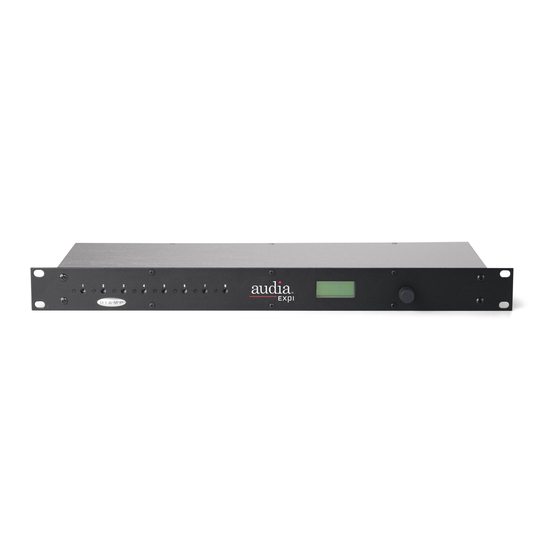

Page 4: Audiaexpi - Front & Rear Panels
COBRANET LATENCY (dependent upon CobraNet firmware); PHANTOM POWER (assigns phantom power to inputs); PASSWORD PROTECT (prohibits unauthorized tampering); TITLE DISPLAY (personalized: 2 lines with 8 characters each); ABOUT (serial#, version#, and Ethernet address information). BIAMP SYSTEMS primary secondary... -
Page 5: Audiaexpo - Front & Rear Panels
'BACK' to return to a previous level, and select '→' to advance. Primary selections are as follows: BUNDLE NUMBER (CobraNet bundle number to logic input assignments); COBRANET LATENCY (dependent upon CobraNet firmware); PASSWORD PROTECT (prohibits unauthorized tampering); TITLE DISPLAY (personalized: 2 lines with 8 characters each); ABOUT (serial#, version#, and Ethernet address information). BIAMP SYSTEMS primary secondary green: link/act... -
Page 6: Applications
APPLICATIONS Hotel with Sound Reinforcement in Multiple Banquet/Conference Rooms ® This application demonstrates the use of AUDIA Room A Room B left right left right a hotel conference/banquet facility. This is a stereo stereo stereo stereo speaker speaker speaker speaker networked system using one AudiaFLEX 10x12CM unit and three AudiaEXPI 8-Input Expander units (forty-two inputs, twelve outputs, CobraNet). - Page 7 APPLICATIONS AudiaEXPI BIAMP SYSTEMS primary secondary green: link/act mic/line inputs Portland, Oregon red: fault an affiliate of Rauland-Borg Corp. MADE IN U.S.A. green: in use 50/60 Hz logic inputs orange: conductor LEDs U.S. pat. no. 4,922,536 CobraNet connections only 25 watts...
- Page 8 APPLICATIONS Courthouse with Multiple Courtrooms and Hard-Disk Court Recording ® This application demonstrates the use of AUDIA Courtroom A Courtroom B a modern courthouse. This is a networked system using two AudiaFLEX 20x4CM units and two AudiaEXPO 8-Output Expander units (forty inputs, distributed 70V distributed 70V twenty-four outputs, CobraNet).
- Page 9 APPLICATIONS AudiaEXPO BIAMP SYSTEMS primary secondary green: link/act line outputs Portland, Oregon red: fault an affiliate of Rauland-Borg Corp. MADE IN U.S.A. green: in use 50/60 Hz logic inputs orange: conductor LEDs U.S. pat. no. 4,922,536 CobraNet connections only 25 watts...
- Page 10 APPLICATIONS Hospital with Multiple Zones of Paging, Messaging, and Background Music ® This application demonstrates the use of AUDIA 4th Floor a multi-zone hospital building. This is a networked system using one AudiaFLEX 8x8CM unit and three AudiaEXPO 8-Output Expander units (eight inputs, Zone 1 Zone 2 Zone 3...
- Page 11 APPLICATIONS AudiaEXPO BIAMP SYSTEMS primary secondary green: link/act line outputs Portland, Oregon red: fault an affiliate of Rauland-Borg Corp. MADE IN U.S.A. green: in use 50/60 Hz logic inputs orange: conductor LEDs U.S. pat. no. 4,922,536 CobraNet connections only 25 watts...
- Page 12 APPLICATIONS Theater with Live Mixing Console and Multiple Speaker Zones ® This application demonstrates the use of AUDIA Stage Auditorium a live-performance theater. This is a networked system using one AudiaFLEX 2x8CM unit, three AudiaEXPI 8-Input Expander units, and two AudiaEXPO 8-Output Expander units (twenty-six inputs, twenty-four outputs, CobraNet).
- Page 13 APPLICATIONS AudiaEXPI BIAMP SYSTEMS primary secondary green: link/act mic/line inputs Portland, Oregon red: fault an affiliate of Rauland-Borg Corp. MADE IN U.S.A. green: in use 50/60 Hz logic inputs orange: conductor LEDs U.S. pat. no. 4,922,536 CobraNet connections only 25 watts...
-
Page 14: Specifications
SPECIFICATIONS AudiaEXPI SPECIFICATIONS Frequency Response (20Hz~20kHz @ -20dBFS): +0/-0.4dB Maximum Input (mic/line): +20dBu THD+N (20Hz~20kHz @ -20dBFS): Phantom Power: +48 VDC (10mA/input) line level (0dBu) < 0.006% Input Gain Range (variable trim): 0dB ~ +60dB mic level (-60dBu) < 0.065% A/D Converters: 24-bit (48kHz sampling) Equivalent Input Noise (20Hz~20kHz, 66dB gain, 150 ohm):... -
Page 15: Block Diagrams
BLOCK DIAGRAMS Audia BLOCK DIAGRAM -:21 LCD & Power encoder Processor Conversion Analog Inputs CobraNet™ Trim CM-1 digital audio & Peak Audia BLOCK DIAGRAM EXPO LCD & Power encoder Processor Conversion Analog Outputs CobraNet™ CM-1 Trim digital audio... -
Page 16: Warranty
WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL 1. BIAMP Systems warrants to the original purchaser of new THIS WARRANTY IS IN LIEU OF ALL OTHER products that the product will be free from defects in material WARRANTIES, EXPRESS OR IMPLIED.
