Summary of Contents for SIIG AV-GM08R3-S1

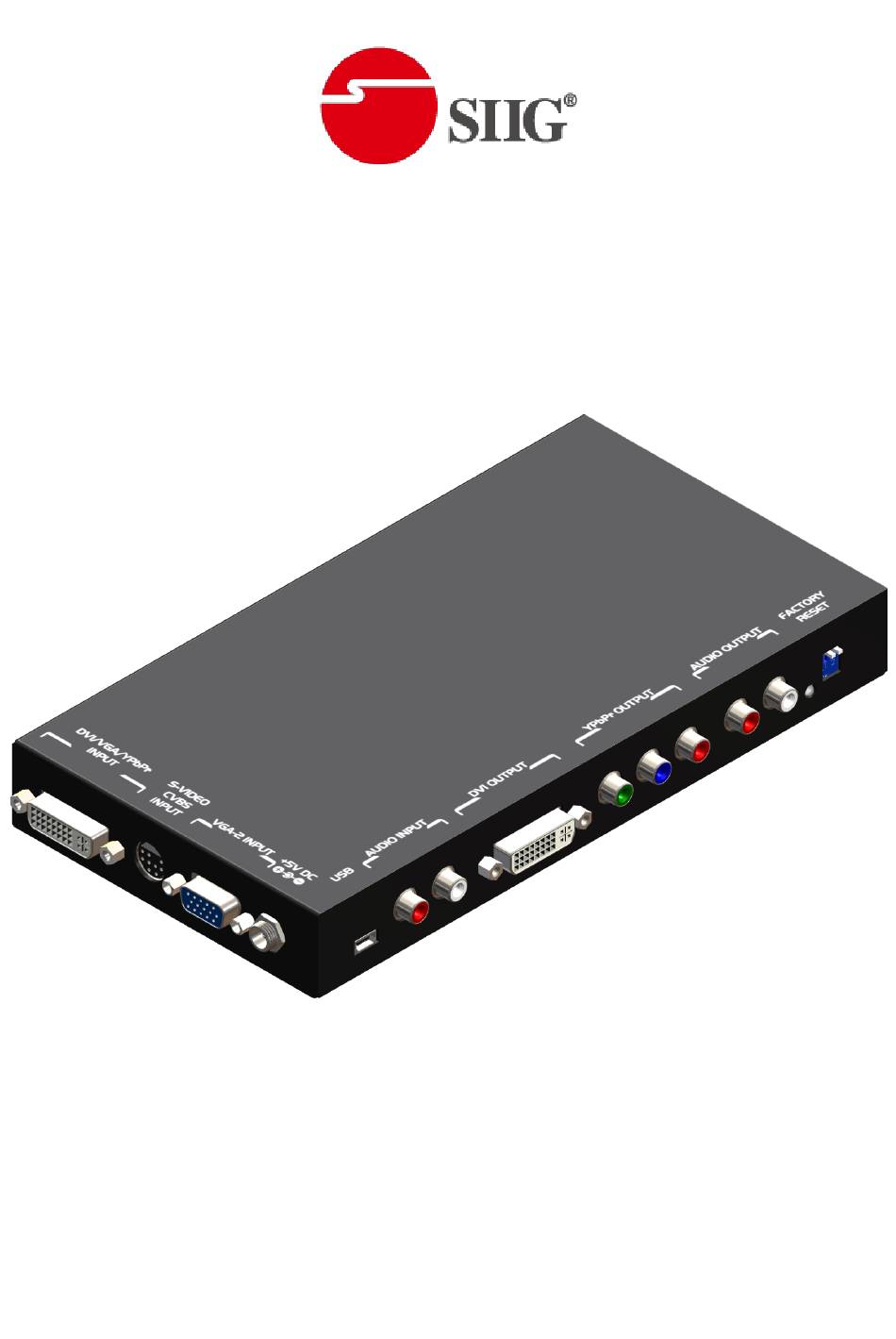

- Page 1 Dual-View Video Processor with Audio Path P/N: AV-GM08R3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM08R3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
Despite the advanced video features, AV-GM08R3-S1 also equips audio processor allowing users to do analog switching and convert analog stereo into HDMI streams. -
Page 4: Features
● Firmware upgradable for support of new features and technology enhancements. ● IR control and software control through USB. ● Portable size. ● Automatically power-saving mode. PACKAGE CONTENTS 1x AV-GM08S3-S1 or AV-GM08R3-S1 1x 5V power adapter ● ● 1x DVI to DVI&VGA breakout cable IR remote controller ●... -
Page 6: Specifications
SPECIFICATIONS Model Name AV-GM08S3-S1 AV-GM08R3-S1 Technical Role of usage Multiplexer / video processor Dual output support Yes [DVI + VGA] Yes [HDMI/DVI + YPbPr] HDCP compliance Video bandwidth HDMI/DVI [Single-link 4.95Gbps] HDMI/DVI [Single-link 4.95Gbps] VGA [165MHz] VGA [165MHz] Input Video support... -
Page 7: Panel Descriptions
You can choose two of the four inputs, one is for main channel and another is for sub channel. Then display two of them simultaneously on the same screen. Figure 2 shows the rear panel connectors of the AV-GM08R3-S1; Table 1 illustrates how you can connect video devices and display to the AV-GM08R3-S1. - Page 8 * Default: Turn on the AV-GM08R3-S1 then switch both two DIP switches simultaneously up and down to factory default mode. *These IO ports support various resolution from 640x480 up to 1920x1200, for more detail of the supported modes, please refer to the Appendix – Supported Resolution.
-
Page 9: Hardware Installation
1: I/O C ABLE ONNECTORS Input Connector Video Source [1] DVI [2] VGA — with a DVI-to-VGA adapter (DVA01) [3] Component (YPbPr) — with a DVI-to-VGA adapter (DVA01) and a VGA-to-component breakout cable (VYPBA01) DVI-IN [4] 1x DVI + 1x VGA — with a DVI-to-DVI/VGA breakout cable (DDVY01) [5] 1x DVI + 1x Component (YPbPr) —... - Page 10 7. Connect a device equipped with composite video output to composite input of the AV-GM08R3-S1. 8. Connect your computer with the AV-GM08R3-S1 by a Mini USB cable and then install the software. 9. Plug in power adapter cable into 5V DC power jack.
- Page 11 13. For detailed IR remote control operation, please refer to the On Screen Display menu and IR operating instruction. IR Remote Control The AV-GM08R3-S1 is now shipped with a compact remote control that allows for direct access to most commands used to control the video processor. 2: IR F...
- Page 12 (41) Function Key 3 On Screen Display Menu Image Settings Scheme: Normal, Vivid, Cinema, Game, Sport Five slider controls for video quality: Brightness, Contrast, Saturation, Hue, Sharpness...
- Page 13 Advanced: Noise Reduction, Flash tone, Dynamic Contrast, Color Noise Reduction: MPEG NR (MPEG Noise Reduction) Temporal NR (Temporal Noise Reduction) Flash tone: Enhance Flash Dynamic Contrast: 5 Level Controls Color: User Defined Color Temperature Display Settings Auto Aspect Ratio Aspect Ratio: 16:9, Letter Box, Pillow Box Expand Resolution: Define the output’s resolution 800x600@60, 1024x768@60, 1280x1024@60, 1280x720@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1920x1080@60, 1920x1200@60, 1600x1200@60...
-
Page 15: Operation Software
AV-GM08R3-S1 after you press any key on the remote control. Instruction of Software Connection 1. Power up the AV-GM08R3-S1 and you can see both red and green LEDs on the front panel blink. Make sure the serial port USB connection secure. - Page 16 3. If the serial connection is well established, you can see similar work window as below.
- Page 17 Instruction of Software Operation Menu File a. Device Linkage: This will synchronize the status or the AV-GM08R3-S1 with the software, especially after IR commands sent. b. Data Table: It will show a dialog that will list the input and resolution data.
- Page 18 Advance Firmware Update: It will show a dialog, that that for update the firmware to the newest version. g. Resolution Parameter: It will show a dialog that for custom output resolution. Tree List Dialog a. Output Resolution and Type b. Layout Mode c.
- Page 19 Flash Group: There are having 5 groups of custom PAP Mode Layout in the device HDD Group: This is saved in Pc. f. The border control g. Size and Position h. Width i. Color Dialog 1. PAP control dialog: While you move the mouse’s cursor near the borders, in either red or blue, the icon of the cursor will change as the figure below.
- Page 20 2. Data dialog: About output resolution and input signal data. The information is only for software development. 3. Serial port dialog: Please select the correct number of serial port. 4. Firmware Update dialog: It supports to update the firmware to the newest version.
- Page 21 5. Resolution Parameter dialog: It can edit and save the parameter of output resolution in device. And it also can save the parameters in PC. 6. Serial Port Monitor Monitor the send and receive data with serial port.
-
Page 22: Troubleshooting
Make sure all cables are in good working condition and properly connected to the AV-GM08R3-S1 and displays. Configure the output video resolution so that it doesn’t excess the native resolution of the display. ( in this case, the message of “out of No/ Erratic video range”... -
Page 23: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM08R3-S1 features and specifications is subject to change without further notice. -
Page 24: Appendix - Supported Resolution
APPENDIX – SUPPORTED RESOLUTION [DVI-IN] socket Supported Mode Resolution Supported Mode Resolution NTSC – 480i / 525i 720x240 @60Hz 832x624 @75Hz PAL– 576i / 625i 720x288 @50Hz VESA 1024x768 @60Hz PAL– 480p / 525p 720x483 @60Hz 1024x768 @60Hz PAL– 480p (16:9) 960x483 @60Hz VESA 1024x768 @70Hz... - Page 25 [DVI-IN] socket Supported Mode Resolution Supported Mode Resolution 480p / 525p 720x483 @60Hz VESA 800x600 @56Hz 480p (16:9) 960x483 @60Hz VESA 800x600 @60Hz HDTV – 720p 1280x720 @50Hz VESA 800x600 @72Hz HDTV – 720p 1280x720 @60Hz VESA 800x600 @75Hz HDTV – 1080i 1920x1080 @30Hz VESA 800x600 @85Hz...
