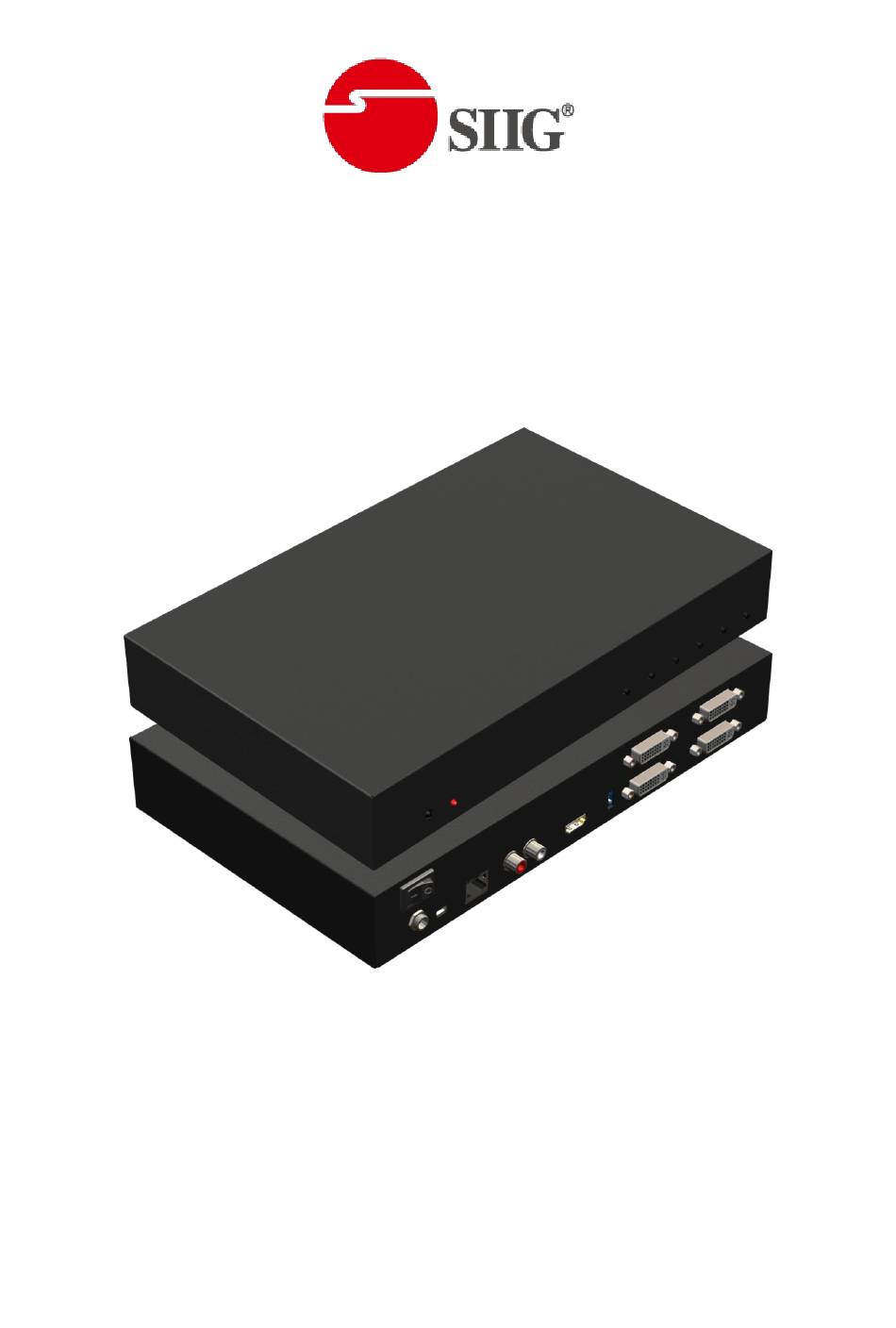

- Page 1 4-Display HDMI2.0a 4K 4:4:4 Video Wall Processor P/N: AV-GM0A43-S1Z...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0A43-S1Z should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
2x2 squares. Virtually any setups for the display layout can be possible by the provided software. The AV-GM0A43-S1Z allows you to input DVI/HDMI, wherever positions and whatever sizes you want for viewing. The embedded scaler converts signals from either DVI/HDMI source to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0A43-S1Z Technical Role of usage Video Wall Processor HDCP compliance Input – Single link 600MHz [18Gbps] Video bandwidth Output – DVI [Single-link 4.95Gbps] / HDMI[2.25G to 6.75Gbps] Input - 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Input Video support Output –... -
Page 5: Hardware Installation
20~90% RH [no condensation] HARDWARE INSTALLATION AV-GM0A43-S1Z as master 1. Connect all sources to DVI/HDMI Inputs on the AV-GM0A43-S1Z. 2. Connect all displays to DVI/HDMI Outputs on the AV-GM0A43-S1Z. 3. Connect the +12V DC power supply to the AV-GM0A43-S1Z CONNECTION DIAGRAM... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Front Panel IR SENSOR: IR sensor for receiving the IR commands from IR remote Power Status: Power indicator LED Control buttons: Button 1: Reserved Button 2: Reserved Button 3 – Previous: Previous rotation setting Button 4 – Fast switch to 1x1 and 2x2 Button 5 –... -
Page 7: Supported Resolution
SUPPORTED RESOLUTION Input resolution Output resolution 720x480@30Hz 640x480@60Hz 720x480@60Hz 720x480@60Hz 720x576@30Hz 720x576@60Hz 720x576@60Hz 800x600@60Hz 1280x720@60Hz 1024x768@60Hz 1920x1080@30Hz 1280x720@60Hz 1920x1080@60Hz 1280x768@60Hz 4K2K@30Hz 1280x960@60Hz 4K2K@60Hz (4:2:0 10bits) 1280x1024@60Hz 4K2K@60Hz (4:2:2 10 bits) 1366x768@60Hz 4K2K@60Hz (4:4:4 8bits) 1440x900@60Hz 1680x1050@60Hz 1920x1080@60Hz 1920x1200@60Hz 1600x1200@60Hz OPERATION APPROACH Method A: IR Remote Control Button Function... - Page 8 Method B: Software Operation System Requirement and Precautions 1. Whenever power off AV-GM0A43-S1Z, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. 2. The AV-GM0A43-S1Z provides software control program which runs under Microsoft Windows 98, 2000, XP, 7, 8 through the interface of USB virtual com control.
- Page 9 Control Interface Connection Status: Show the connect information and status. If you use USB control Mode to connect device, the graph is . For IP control, the graph of Ethernet is Quick Selection: In this part, you can set up the screen resolution, screen coordinate and split screen. Firstly, you should select the TV picture and you can set up the corresponding function.
- Page 10 Rotation: *only at 720p or 1080p resolution Use the software for independent rotation for each input. You can select clockwise or counterclockwise to rotate the screen.
- Page 11 Output Selection and Resolution: (1) Step 1: check input resolution and choose output resolution Set the output resolution. You can choose the design display icon to select the output port and setup resolution. When setting the different resolution, the coordinate of output will also be changed.
- Page 12 (3) Step 2-1: quick selection If you choose the Quick Selection mode in step 2, this window will automatically pop up. In this mode, you can select default screen split and rotate screen (rotate screen only at 720p or 1080p resolution). 3x1: This mode will divide the screen into 3 parts and rotate the figure.
- Page 13 (5) Step 2-3: custom define In Custom define mode, you can define how to cut in both directions and the part you want to show on output TV. If you want to understand or estimate which part you may select, you can select the Grid button to show grid on the graph.
- Page 14 EDID (Extended Display Identification Data) (1) Learn EDID from the default Select Default EDID (1-4 default EDID). Click button to learn default EDID. (2) Learn EDID from Display Select the Output. Click button to learn display EDID. ...
- Page 15 Advanced Setting (1) Machine Name You can set up your machine name in here. Please take a closer look at the length of string (Max Length: 8). (2) Change Graph You can change the default graph (splash screen) on this machine. Click button to select the graph.
- Page 16 IP Configure You also can use the Ethernet to control software program. First, you should click the button to setup network set. Next, you can read the Ethernet setting from device and manually set to device or click the DHCP button to automatically get the IP address. After the step of IP configuration, please restart the machine.
-
Page 18: Edid Learning
EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in playing audio and video, the general principle is that the source will output the lowest standards in terms of audio format and video resolutions to be commonly acceptable among all HDMI displays. -
Page 19: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0A43-S1Z features and specifications is subject to change without further notice.
