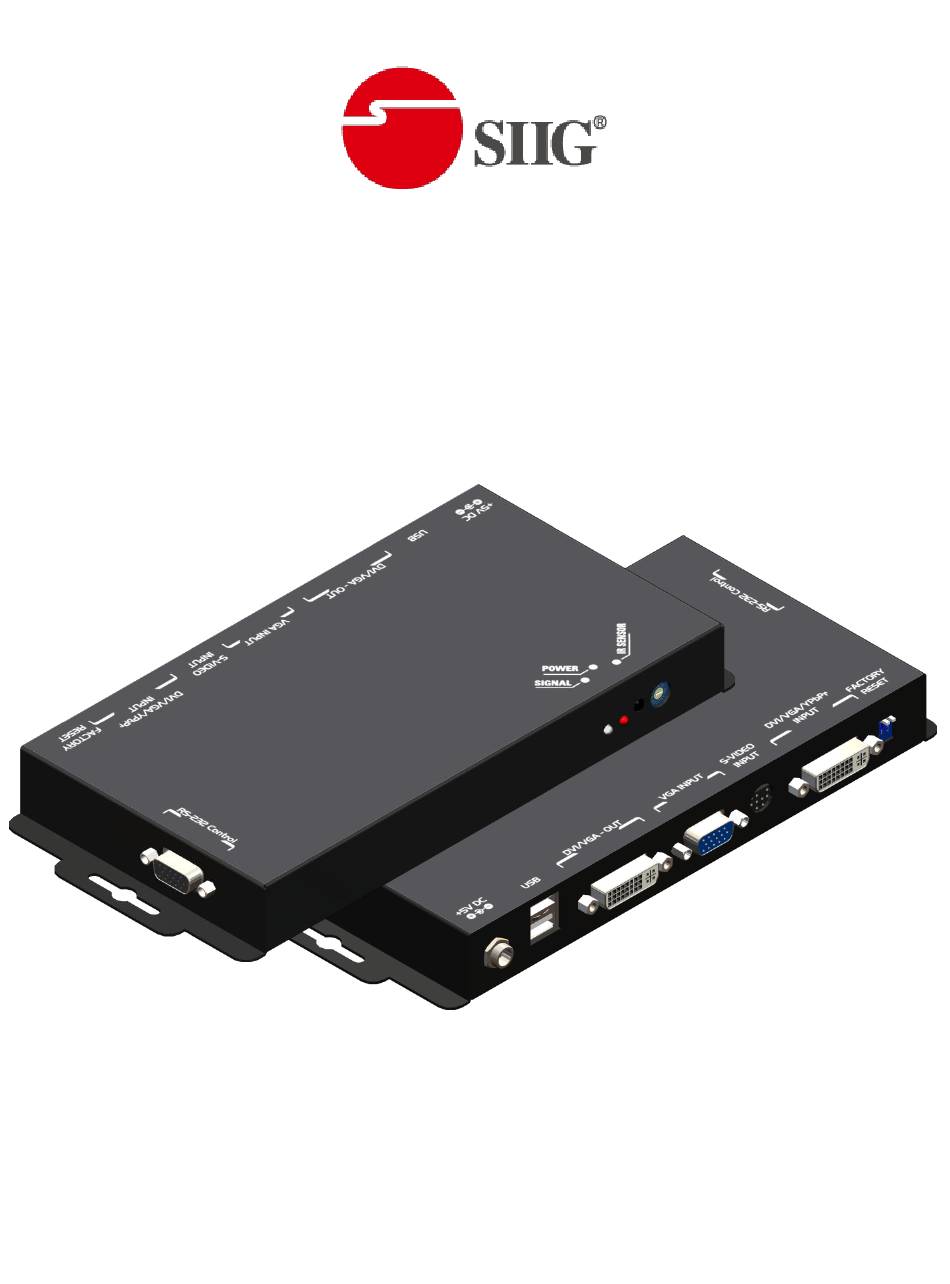

  • Page 1 Dual-View Video Processor P/N: AV-GM08S3-S1...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the AV-GM08S3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 It supports up to four video inputs, of which two can be outputted simultaneously in Picture-In-Picture (PIP) or Picture-Aside-Picture (PAP) modes. The AV-GM08S3-S1 allows you to manipulate output images, wherever position and whatever sizes you want for viewing two computers or two video signals or a combination.
  • Page 4 Figure 1: Configuration Diagram Features  Three graphic (DVI / VGA) and four video (HDMI /Component / S-Video / Composite) Inputs, from 640x480 to 1920x1200, interlaced or progressive.  Dual outputs (DVI / VGA), 640x480 to 1920x1200.  HDCP 1.1 Support ...
  • Page 5  Image parameters and layouts are automatically saved in flash memory and can be recalled for later use.  Several Image parameters and layouts can be saved in flash memory and can be recalled for later use.  Video parameters adjustable (brightness, contrast, color temperature, etc.). ...

  • Page 6: Specifications

    Specifications Model Name AV-GM08S3-S1 MX-1003B Technical Role of usage Multiplexer / video processor Dual output support Yes [DVI + VGA] HDCP compliance HDMI/DVI [Single-link 4.95Gbps] DVI [Single-link 4.95Gbps] VGA [165MHz] VGA [165MHz] Video bandwidth Component [30MHz] Component [30MHz] S-Video/Composite [13.5MHz] Composite [13.5MHz]...
  • Page 7 Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] 1x AV-GM08S3-S1 or MX-1003B 1x 5V power adapter 1x DVI to DVI&VGA breakout cable 1x IR remote controller Package Contents 1x VGA to component breakout 1x Installation software CD...

  • Page 8: Package Contents

    Package Contents 1. AV-GM08S3-S1 2. DVI to DVI & VGA breakout cable (DDVY01) 3.VGA to component breakout 4. DVI to VGA adapter (DVA01) cable (VYPBA01) 5. 5V DC power adapter 6.IR remote controller 7. Installation software CD...
  • Page 9 8. User Manual Please visit www.gomax-electronics.com/download.htm to download software & firmware updates...

  • Page 10: Inputs And Outputs

    Figure 2 shows the rear panel connectors of a AV-GM08S3-S1 and Table 1 illustrates how you can connect video devices and display to the AV-GM08S3-S1.
  • Page 11 Composite [1] With a RCA cable Output Connector Display [1] HDMI/DVI display [2] VGA display — with a DVI-to-VGA adapter (DVA01) DVI-I OUT [3] 1x DVI display + 1x VGA display — with a DVI to DVI&VGA breakout cable (DDVY01)

  • Page 12: Hardware Installation

    Installation Procedures Unpacking Remove the AV-GM08S3-S1 from the shipping container and examine it for any signs of shipping damage or missing items (check with package contents above). All shipping items should be saved if the product is to be moved or returned for service. Shipping unit back to dealers for service not in the original box may result in voiding warranty or additional cost.
  • Page 13 7. Connect a device equipped with composite video output to composite input of the AV-GM08S3-S1. 8. Connect your computer with the AV-GM08S3-S1 by a 9-pin RS-232 cable and then install the software. 9. Plug in power adapter cable into 5V DC power jack.

  • Page 14: Ir Remote Control

    IR Remote Control The AV-GM08S3-S1 is now shipped with a compact remote control that allows for direct access to most commands used to control the video processor. Table 2: IR Functionalities Mute Mute the audio output Power Power on/off the device...

  • Page 15: On Screen Display Menu

    (38) Hot key to select DVI/HDMI input (39) Function Key 1 (40) Function Key 2 (41) Function Key 3 On Screen Display Menu Image Settings Scheme: Normal, Vivid, Cinema, Game, Sport Five slider controls for video quality: Brightness, Contrast, Saturation, Hue, Sharpness Advanced: Noise Reduction, Flash tone, Dynamic Contrast, Color Noise Reduction: MPEG NR (MPEG Noise Reduction) ~13~...
  • Page 16 Temporal NR (Temporal Noise Reduction) Flash tone: Enhance Flash Dynamic Contrast: 5 Level Control Color: User Defined Color Temperature Display Settings Auto Aspect Ratio Aspect Ratio: 16:9, Letter Box, Pillow Box Expand Resolution: Define the output’s resolution 800x600@60, 1024x768@60, 1280x1024@60, 1280x720@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1920x1080@60, 1920x1200@60, 1600x1200@60 PIP: PIP Mode: off, Large PIP, Small PIP, Side by Side (PBP) PIP Position: Bottom-Right, Bottom-Left, Top-Left, Top-Right...

  • Page 17: Operation Software

    Operation Software System Requirement and Precautions 1. The MX-1003B provides a software control program which runs under Microsoft Windows 98, 2000, XP through the interface of RS-232 serial control. 2. Before you click on the icon of the software, make sure you have secured the connection between your computer COM port and the MX-1003B and switched on the MX-1003B with green LED light.
  • Page 18 serial port is free to be used by the MX-1003B. ~16~...
  • Page 19 3. If the serial connection is well established, you can see similar work window as below. 4. While you move the mouse’s cursor near the borders, in either red or blue, the icon of the cursor will change as the figure below. ~17~...

  • Page 20: Instruction Of Software Operation

    Instruction of Software Operation File a. Connect: This will synchronize the status of the MX-1003B with that of the software, especially after IR commands sent. b. Save Setting: This will save current user preferred settings such as the positions and sizes of the videos, the width or color of border etc.
  • Page 21 f. Device ID: This is for identifying the MX-1003B while multiple devices are cascaded by RS-232 over CAT5 module. 1. Assign an ID for the connected MX-1003B: type a number in the “ID Number” of the device ID setting area and then click “Write”. 2.
  • Page 22 Main a. Input Source: Select a video/graphic input of the main channel. b. Visible: Display the main channel or not. c. Border: Display the main channel’s border. d. Label: Display the main channel’s label. Users can define the content of the label. e.
  • Page 23 ~21~...
  • Page 24 Control- Setting Dialog Border Select main or sub channel for further setting. PAP mode only 1. Border Color: Setup border’s color by clicking on “Color setting”. 2. Border Width: Input border’s width. 3. Border Type: The placement of border has two types: Option Inside means the added border is fully inside the video.
  • Page 25 6. Duty Cycle: The duty cycle of blinking of OSD borders and labels. 7. Frequency: How fast the blink. Image 1. Choose the scaling type for the main channel at full screen display. 2. While Blend is selected, users can use the slider to control the degree of blending. There is a short period of slight blinking while the MX-1003B processes the blending of the two input videos.
  • Page 26 Color 1. Select the main or sub channels. 2. Reset: Restore all the setting on this page back to their default values. Zoom A. Select the main or sub channel. B. Default: Restore the selected channel without zoom effect. ~24~...
  • Page 27 A. This scroll bar controls the ratio of Zoom. B. The workplace for controlling the displayed area after zooming the selected video. Pattern 1. While “Pattern Model” is chosen, the output will display the selected pattern. While unselecting this item, the output display works normally.
  • Page 28 ~26~...
  • Page 29 HS / VS Delay 1. Select the main or sub channel. 2. Adjust Main /Sub Channel size and position 3. The fine movement of the selected channel. EDID Code 1. Save: Save the read back EDID Content in PC. 2. Setting: Automatically setup the output resolution according to the content of EDID.

  • Page 30: Troubleshooting

    Troubleshooting Problem Recommendations Check if you are using 5V DC adapter and it is firmly plugged into No power  the MX-1003B If you are recovering from power outage, accidentally unplug the  adapter or other power surge conditions, leave the device off for a while and then power it on again.
  • Page 31 Press “Color” key for auto color configuration. Wrong color  Auto color configuration only works at VGA and component inputs. ~29~...

  • Page 32: Limited Warranty

    Limited Warranty The SELLER warrants the AV-GM08S3-S1 Dual-View Video Processor to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 3 years warranty...

  • Page 33: Appendix - Supported Resolution

    Appendix – Supported Resolution [DVI-IN1] Socket Supported Mode Resolution Supported Mode Resolution NTSC/480I/525I 720x240 @60Hz 832x624 @75Hz PAL/576I/625I 720x288 @50Hz VESA 1024x768 @60Hz 480P/525P 720x483 @60Hz 1024x768 @60Hz 480P (16:9) 960x483 @60Hz VESA 1024x768 @70Hz 576P/625P 720x756 @50Hz 1024x768 @72Hz (HDTV) 720p 1280x720 @50Hz VESA...
  • Page 34 [DVI-IN2] Socket Supported Mode Resolution VESA 640x480 @60Hz VESA 800x600 @60Hz VESA 1024x768 @60Hz VESA 1280x1024 @60Hz VESA 1600x1200 @60Hz VESA 1920x1200 @60Hz [DVI-I OUT] Socket Supported Mode Resolution (HDTV) 720p 1280x720 @50Hz (HDTV) 720p 1280x720 @60Hz (HDTV) 1080p 1920x1080 @60Hz VESA 640x480 @60Hz VESA...
  • Page 35 VESA 1600x1200 @60Hz VESA 1920x1200 @50Hz VESA 1920x1200 @60Hz ~33~...
