Summary of Contents for SIIG AV-GM08K3-S1S

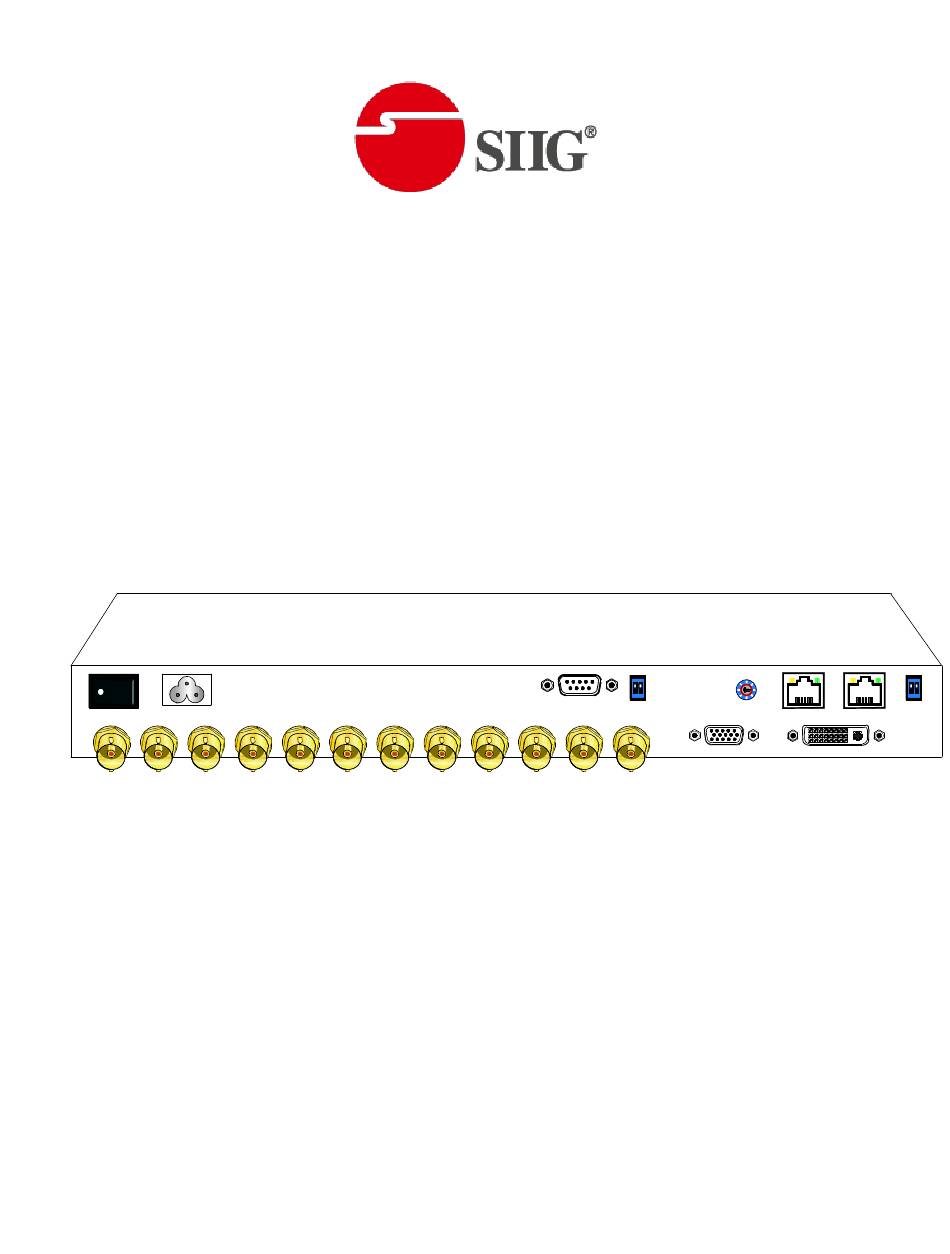

- Page 1 3G/HD/SD-SDI Quad-view Video Processor P/N: AV-GM08K3-S1S...
- Page 2 However, like all electronic equipments, the AV-GM08K3-S1S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction General Features Specifications Package Contents Inputs and Outputs Chapter 2 Hardware Installation Safety Precautions Installation Procedure Chapter 3 Operation Software System Requirement and Precautions Instruction of Software Connection Definitions of Menu Buttons and Icons Chapter 4 Troubleshooting Warranty Appendix Supported Resolution... -
Page 4: Chapter 1 Introduction
Introduction General The AV-GM08K3-S1S Professional 3G-SDI Quad-View Video Processor is an advanced video processor for multimedia presentations. It is an ideal solution for some applications such as surveillance, where up to four SDI/CVBS video signals must be displayed on a single display. It supports up to 4 SDI/CVBS video inputs, of which four can be outputted simultaneously with the desired display layout through software control. -
Page 5: Features
Features Supports 3G/HD/SD SDI video formats Input resolutions support interlaced or progressive video under SMPTE. Dual outputs (DVI / VGA), 640x480 to 1920x1200. Each SDI channel has 2 re-clocked SDI loop-outs for cascading. Adjustable size& position through software. ... -
Page 6: Specifications
Specifications Model Name AV-GM08K3-S1S AV-GM08K3-S1P Technical Role of usage Multiplexer / video processor Dual output support Yes [DVI & VGA] Background video input HDCP compliance DVI/HDMI[Single-link 4.95Gbps] VGA[165MHz] Composite [13.5MHz] Video bandwidth Component [30MHz] SDI [2.97Gpbs & 2.97/1.001Gbps] Composite [13.5MHz] S-Video [13.5MHz]... -
Page 7: Package Contents
Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] 1xAV-GM08K3-S1P 4x DVI to DVI&VGA breakout cable 1x AV-GM08K3-S1S 4x VGA to component breakout 1x USB to RS-232 cable cable 2x 1U rack mounting-ear 4x DVI to VGA adapter Package Contents... -
Page 8: Inputs And Outputs
The AV-GM08K3-S1S has 4 SDI or CVBS inputs and user can display four of them simultaneously on the same screen. Figure 2 shows the rear panel connectors of a AV-GM08K3-S1S and Table 1 illustrates how you can connect video devices and display to the AV-GM08K3-S1S. -
Page 9: Chapter 2 Hardware Installation
Installation Procedures Unpacking Remove the AV-GM08K3-S1S from the shipping container and examine it for any signs of shipping damage or missing items (check with package contents above). All shipping items should be saved if the product is to be moved or returned for service. Shipping unit back to dealers for service not in the original box may result in voiding warranty or additional cost. - Page 10 3. Connect a device equipped with SDI output including SD/HD/3G to the BNC input connector of AV-GM08K3-S1S. 4. Connect a device equipped with composite video output to the BNC input connector of the AV-GM08K3-S1S. 5. Connect your computer with the...
-
Page 11: Chapter 3 Operation Software
AV-GM08K3-S1S with green LED light. Instruction of Software Connection 1. Power up the AV-GM08K3-S1S and you can see VFD on the front panel blink. Make sure the serial port mode is right for your setting. RS-232 mode: , RS-485 mode: 2. -
Page 12: Definitions Of Menu Buttons And Icons
Definitions of Menu Buttons and Icons Fast Linkage This button will update software GUI for device state. Output Resolution: Supported Resolution Supported Mode Resolution Mode 1280x720 (HDTV) 720p VESA 1280x768 @60Hz @60Hz 1920x1080 (HDTV) 1080p VESA 1366x768 @60Hz @60Hz VESA 800x600 @60Hz VESA 1400x1050 @60Hz... - Page 13 Click on this button will show the color dialog for background color adjustment. Background Setting AV-GM08K3-S1S offers the video background to make this advanced unit actually working like 5 channel video mixer! The default background video must work as full screen! Users can choose between color and video background through the following control window.
- Page 14 Channel Control Panel Output Window Panel: Channel visible, blend, size, position .Input Signal Panel: Input signal type selection, signal stable, input format.
-
Page 15: Chapter 4 Troubleshooting
Make sure all cables are in good working condition and properly No/ Erratic video connected to the AV-GM08K3-S1S and displays. Configure the output video resolution so that it doesn’t excess the native resolution of the display. ( in this case, the message of “out of range”... - Page 17 Limited Warranty The SELLER warrants the AV-GM08K3-S1S 3G/HD/SD-SDI Quad-view Video Processor to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 3...
-
Page 18: Appendix Supported Resolution
Appendix – Supported Resolution [ SDI-x (x = 1~4)] Socket Supported Mode Resolution NTSC/480I/525I 720x240 @60Hz PAL/576I/625I 720x288 @50Hz (HD) 720p 1280x720 @23.98Hz (HD) 720p 1280x720 @24Hz (HD) 720p 1280x720 @25Hz (HD) 720p 1280x720 @30Hz (HD) 1080i 1920x540@50Hz (HD) 1080i 1920x540 @59.94Hz (HD) 1080i 1920x540 @60Hz...
