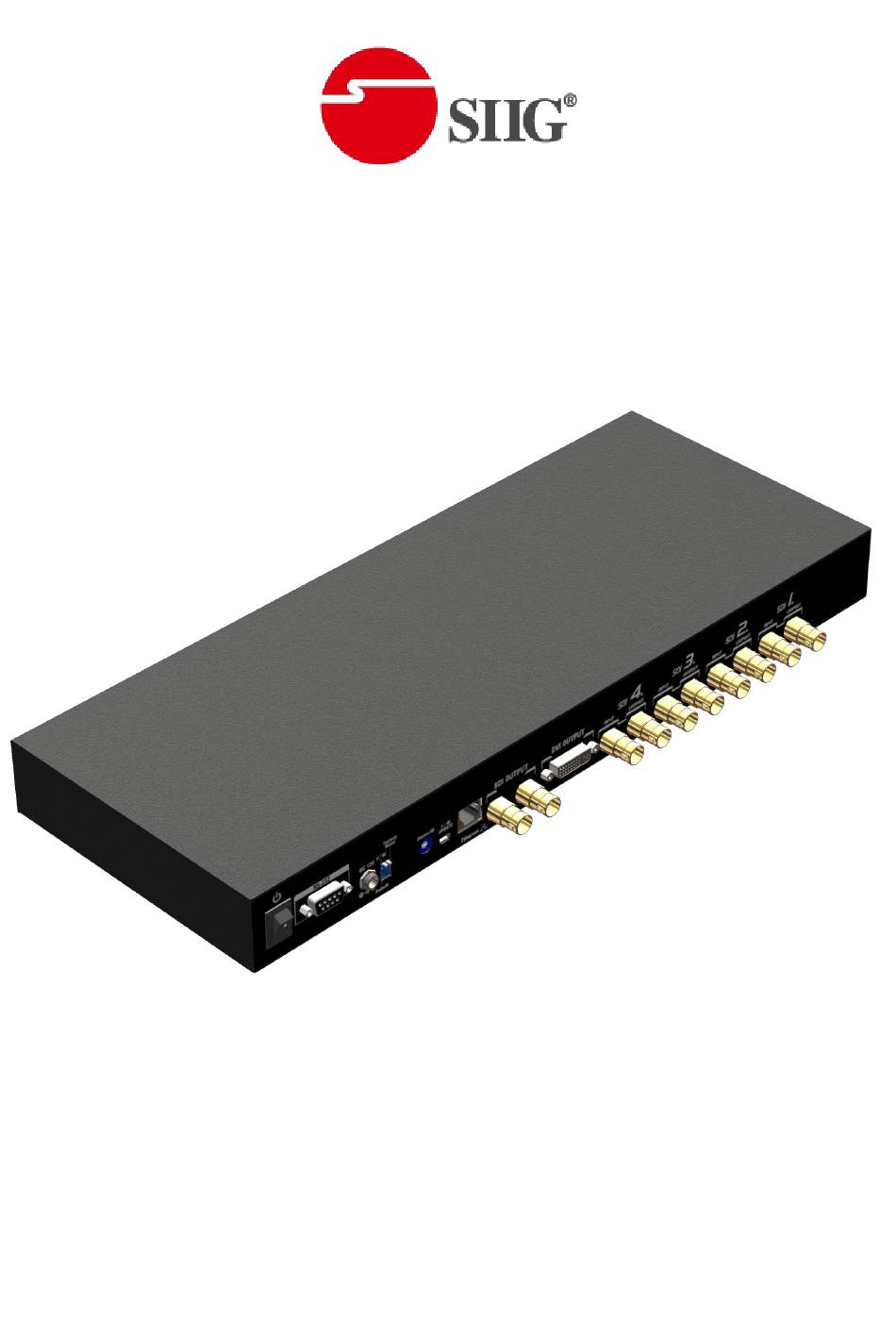

- Page 1 3G/HD/SD-SDI Quad-view Video Processor P/N: AV-GM08U3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM08U3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
● Software control through RS-232 or IP port. ● Control protocol available for customer proprietary design ● 1U size PACKAGE CONTENTS ● 1x AV-GM08U3-S1 ● 2x 1U rack mounting-ear ● 1x Installation software CD ● 1x UL 12V 5A power adapter ●... -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM08U3-S1 Technical Role of usage Multiplexer / video processor Dual output support Yes [DVI &SDI] Background video input DVI/HDMI [165MHz] Video bandwidth SDI 3G/HD/SD Video input support 480i / 576i / 720p / 1080i / 1080p Input TMDS signal 1.2 Volts [peak-to-peak]... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front Panel 1. Power LED: Power indicator Rear Panel 2. Power Switch: Power On/Off 3. RS-232: RS-232 control port 4. +12V DC: Connect to the +12VDC power supply unit. 5. Dip Switch: Switch the firmware update mode or factory reset mode (Switch ON) 6. -
Page 6: Hardware Installation
3. Connect a device equipped with SDI output including SD/HD/3G to the BNC input connector of AV-GM08U3-S1. 4. Connect your computer with the AV-GM08U3-S1 by a 9-pin RS-232 cable or Cat.5e cable, and then install the software. 5. Plug in AD power cord into AC power socket. -
Page 7: Connection Diagram
CONNECTION DIAGRAM... -
Page 8: Operation Software
OPERATION SOFTWARE Software Control through RS-232 port / Ethernet port System Requirement and Precautions 1. The device provides a software control program, Quartet, which runs under Microsoft Windows 98, 2000, XP, Vista or 7 through the interface of RS-232 serial control. 2. - Page 9 Control Interface 1. PAP Panel Display and adjust the window size and position. Control percent: 10~100% panel display/control size. Stretch: Fix the size ratio when the window is resizing. PAP mode Window 1 in full screen Window 2 in full screen ...
- Page 10 2. Tool Bar list: Status: Get all information of the device and update this software state. Port Setting: Pop-up the “Port Setting” dialog, user can change the connecting way. Advance Setting: Set the no signal color, fade in/out effect, background picture, window text, input text, OSD border, Clock, audio and factory reset.
- Page 11 Clock and Audio: User can set up the position of clock and other audio control. Factory Reset: Click the button to do factory default reset. This default reset process will take about 10~15 seconds and it will be initialized all setting to original system state.
- Page 12 Version: Read the software and firmware version. 3. Output Resolution: Set the output resolution. When setting the different resolution, the parameters of PAP and custom layout (position and size) will change accordingly.
- Page 13 4. Audio, analog clock and digital clock 5. Background picture: 6. Default layout and Custom layout: Default layout: Use factory preloaded video layouts. Custom layout: Use custom pre-saved video layouts. In this part, you can adjust the size and position of output screen. If you want to save the layout, please right click to save this layout into device.
- Page 14 8. Window setting Adjust the size, position or other settings of the specified window.
-
Page 15: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM08U3-S1 features and specifications is subject to change without further notice.
